Product Description

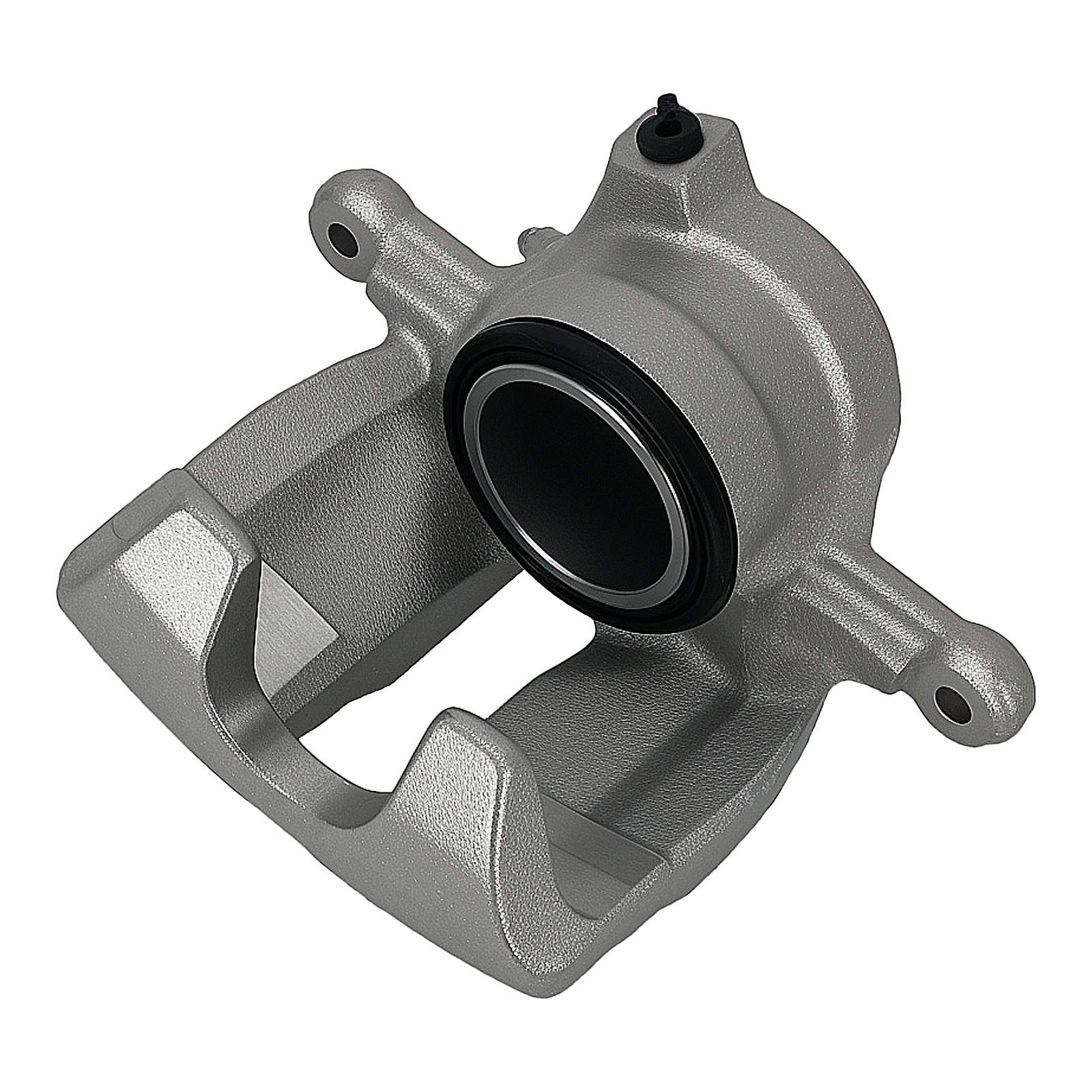

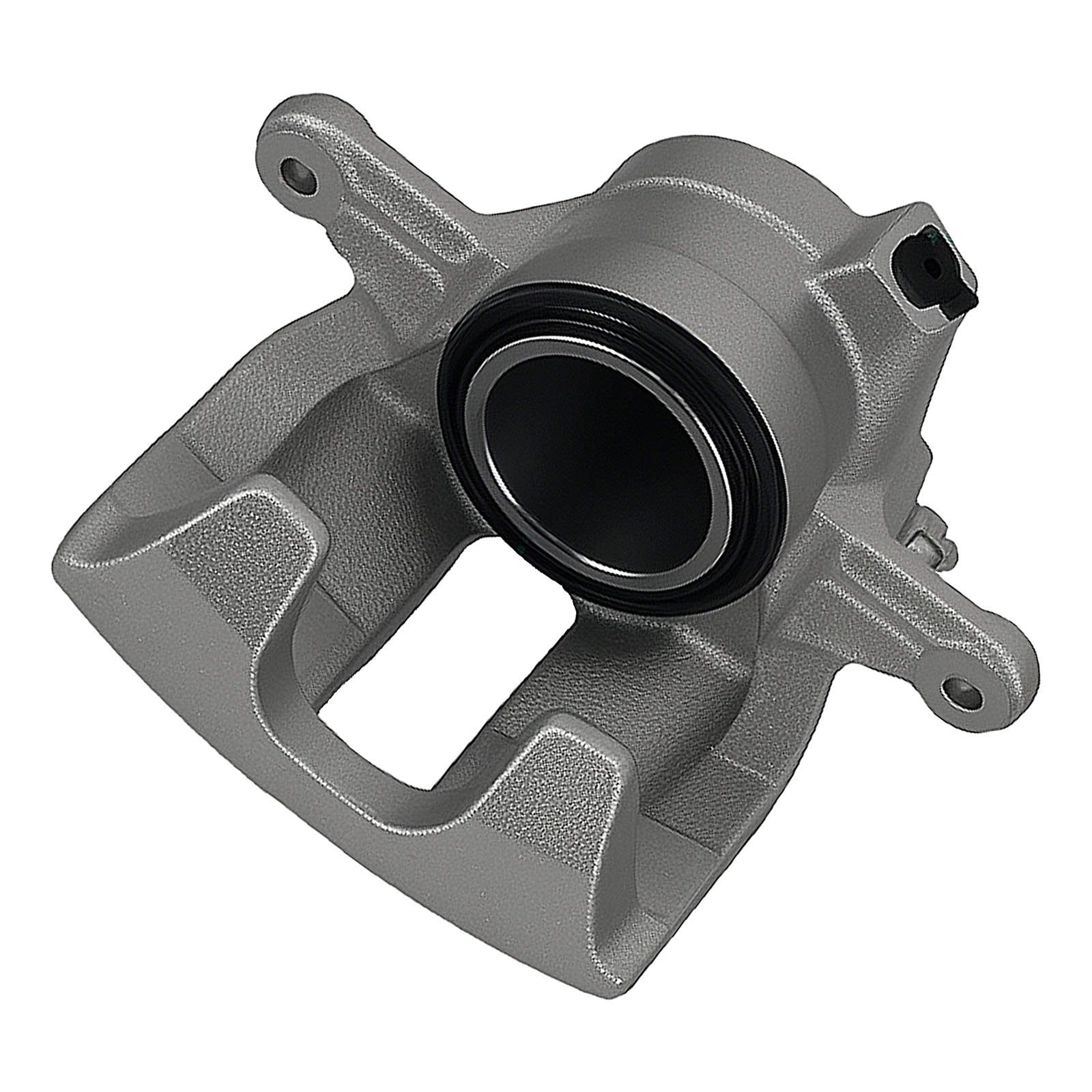

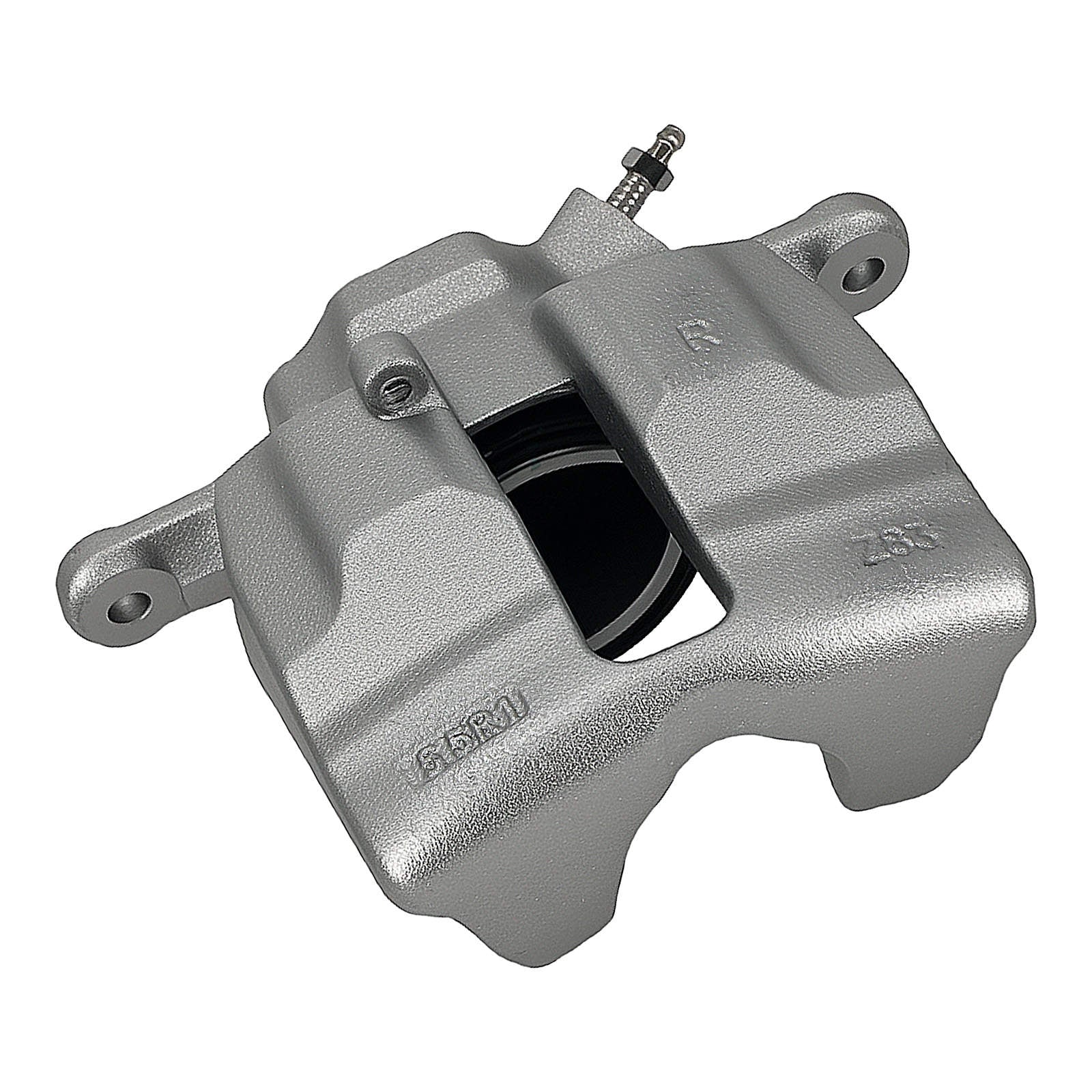

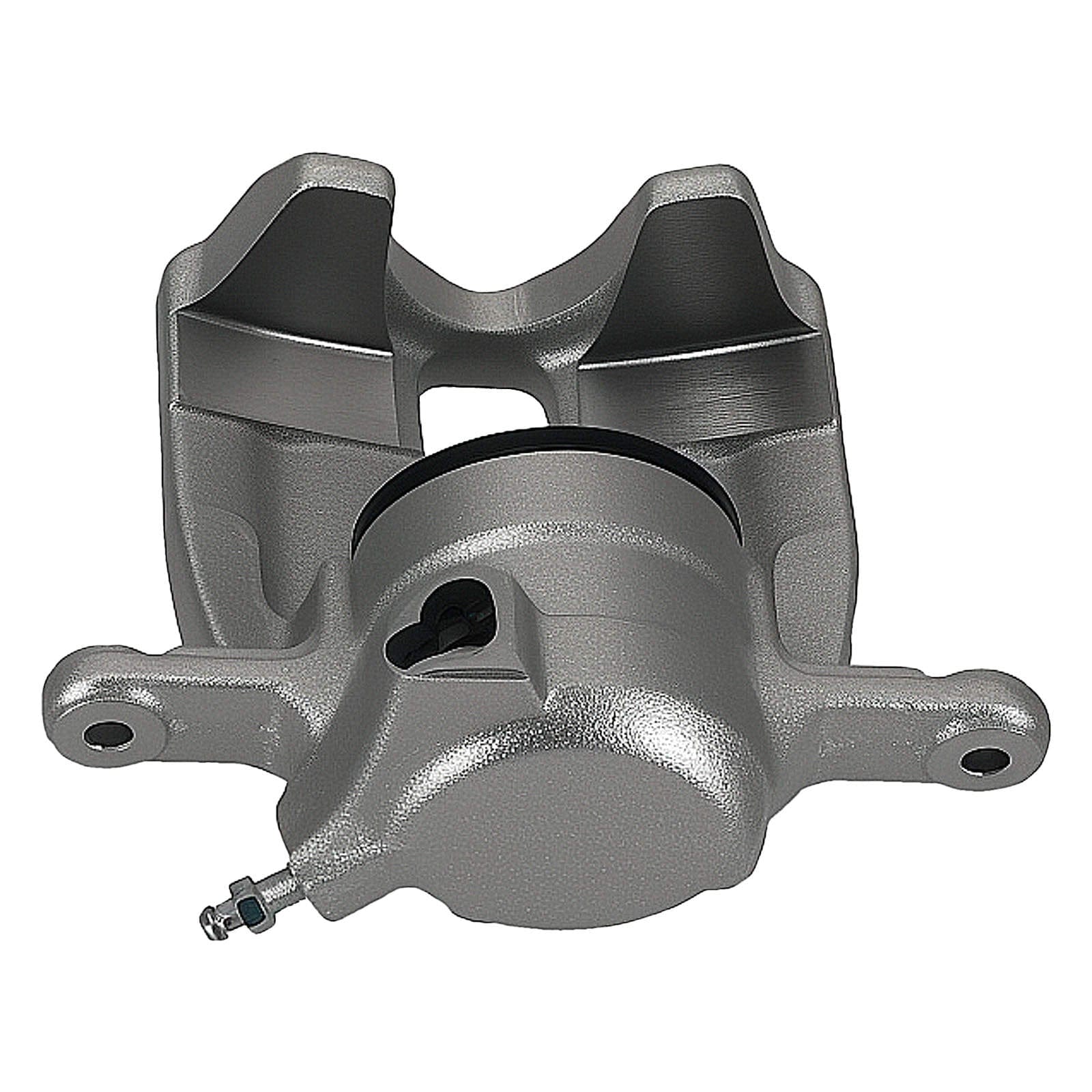

This front brake caliper (floating caliper) is a direct replacement for the original brake caliper and clamps together with the brake pads on the brake disc to slow down the wheel.

Suitable for:

• Mercedes-Benz C-Class W203 C 180 2.0L 2000/10-2002/05
• Mercedes-Benz C-Class W203 C 180 Kompressor 1.8L 2002/05-2007/02
• Mercedes-Benz C-Class W203 C 200 CDi 2.2L 2000/09-2007/02
• Mercedes-Benz C-Class W203 C 200 CGI Kompressor 1.8L 2003/07-2004/07
• Mercedes-Benz C-Class W203 C 200 Kompressor 1.8L 2002/05-2007/02
• Mercedes-Benz C-Class W203 C 200 Kompressor 2.0L 2000/05-2002/06
• Mercedes-Benz C-Class W203 C 220 CDi 2.2L 2000/05-2007/02
• Mercedes-Benz C-Class Coupe CL203 C 160 Kompressor 1.8L 2004/09-2006/07
• Mercedes-Benz C-Class Coupe CL203 C 180 2.0L 2001/03-2002/05
• Mercedes-Benz C-Class Coupe CL203 C 180 Kompressor 1.8L 2002/05-2008/01
• Mercedes-Benz C-Class Coupe CL203 C 200 CDi 2.2L 2003/07-2008/01
• Mercedes-Benz C-Class Coupe CL203 C 200 Kompressor 1.8L 2002/08-2005/04
• Mercedes-Benz C-Class Coupe CL203 C 200 Kompressor 2.0L 2001/03-2002/05
• Mercedes-Benz C-Class Coupe CL203 C 220 CDi 2.2L 2001/03-2008/01
• Mercedes-Benz C-Class T-Model S203 C 180 2.0L 2001/03-2002/05
• Mercedes-Benz C-Class T-Model S203 C 180 Kompressor 1.8L 2002/05-2007/08
• Mercedes-Benz C-Class T-Model S203 C 200 CDi 2.2L 2001/03-2007/08
• Mercedes-Benz C-Class T-Model S203 C 200 CGI Kompressor 1.8L 2003/07-2004/07
• Mercedes-Benz C-Class T-Model S203 C 200 Kompressor 1.8L 2002/05-2007/08
• Mercedes-Benz C-Class T-Model S203 C 200 Kompressor 2.0L 2001/03-2002/05
• Mercedes-Benz C-Class T-Model S203 C 220 CDi 2.2L 2001/03-2007/08
• Mercedes-Benz CLC-Class CL203 CLC 160 1.6L 2009/02-2011/06
• Mercedes-Benz CLC-Class CL203 CLC 180 Kompressor 1.8L 2008/05-2011/06
• Mercedes-Benz CLC-Class CL203 CLC 200 CDi 2.2L 2008/05-2011/06
• Mercedes-Benz CLC-Class CL203 CLC 220 CDi 2.2L 2008/05-2011/06
• Mercedes-Benz CLK C209 CLK 200 CGI 1.8L 2003/07-2005/07
• Mercedes-Benz CLK C209 CLK 200 Kompressor 1.8L 2002/09-2006/05
• Mercedes-Benz CLK C209 CLK 220 CDi 2.2L 2005/01-2009/05
• Mercedes-Benz CLK Cabriolet A209 CLK 200 CGI 1.8L 2003/07-2010/03
• Mercedes-Benz SLK R171 200 Kompressor 1.8L 2004/03-2011/02

Specifications

• OEM / Part number left: 0014209483, 0034202183, 0044203383, A0014209483, A0034202183, A0044203383, 343684, 521611, 19-2925
• OEM / Part number right: 0014209583, 0034202283, 0044203483, A0014209583, A0034202283, A0044203483, 343685, 521612, 19-2924
• Warranty: 1 year
• Caliper type: Floating caliper
• Condition: Brand new, ready for installation
• Mounting type: Direct replacement
• Mounting position: Front left/right
• Brake disc thickness: 25 mm
• Piston diameter: 57 mm
• Brake disc diameter: 288 mm
• Number of brake pistons: 1 piston
• Piston material: Steel
• Pump housing material: Nodular cast iron

Scope of delivery

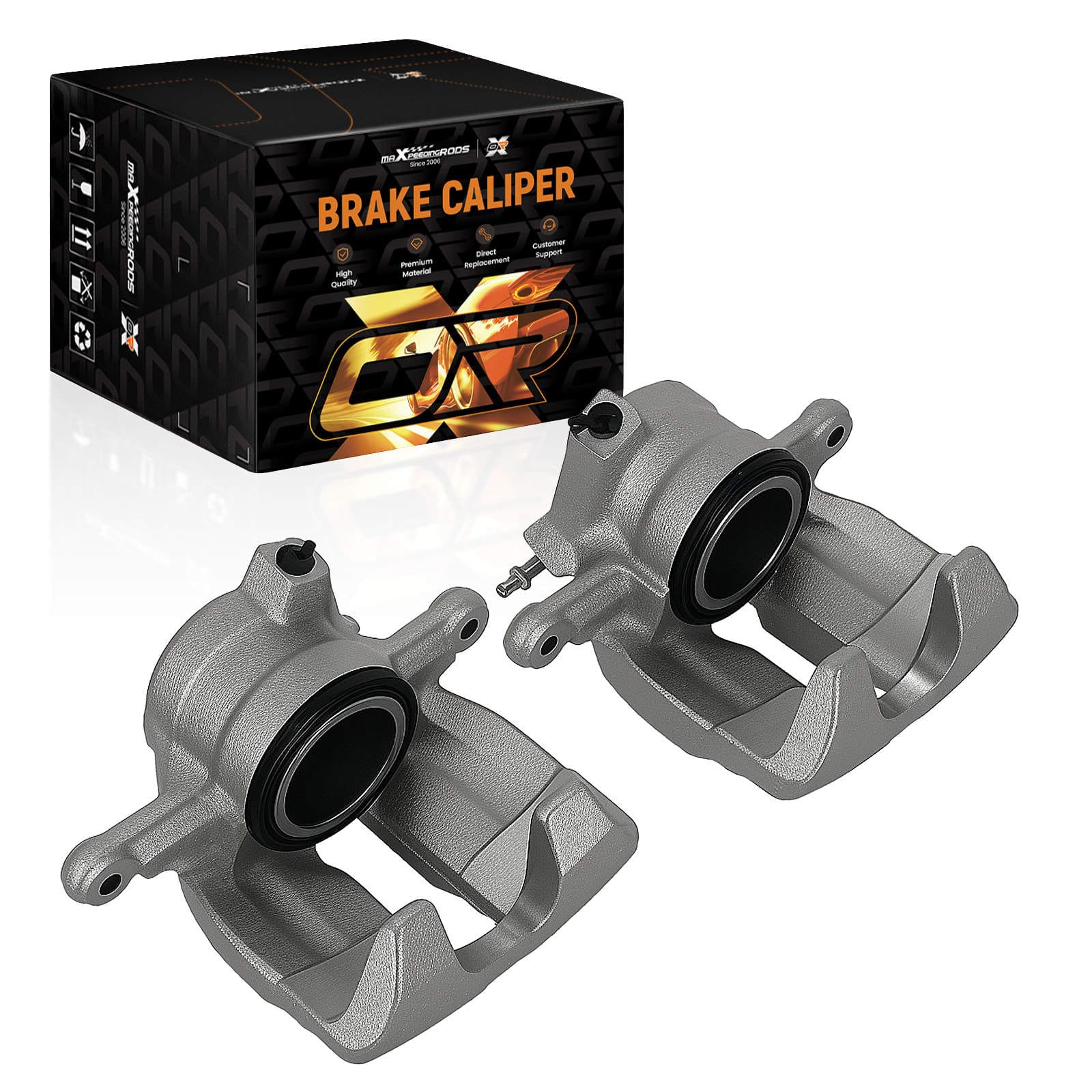

1x front left brake caliper, 1x front right brake caliper (as pictured).

Features

• Quick and easy installation due to precise fit
• High pressure resistance, tested in a wide pressure range
• High-quality anti-corrosion coating for durable protection of the brake caliper
• Careful workmanship, pressure tested to prevent leakage

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
