Turbo suitable for Nissan Skyline R34 GTT RB25DET T3 430BHP turbo
Product Description

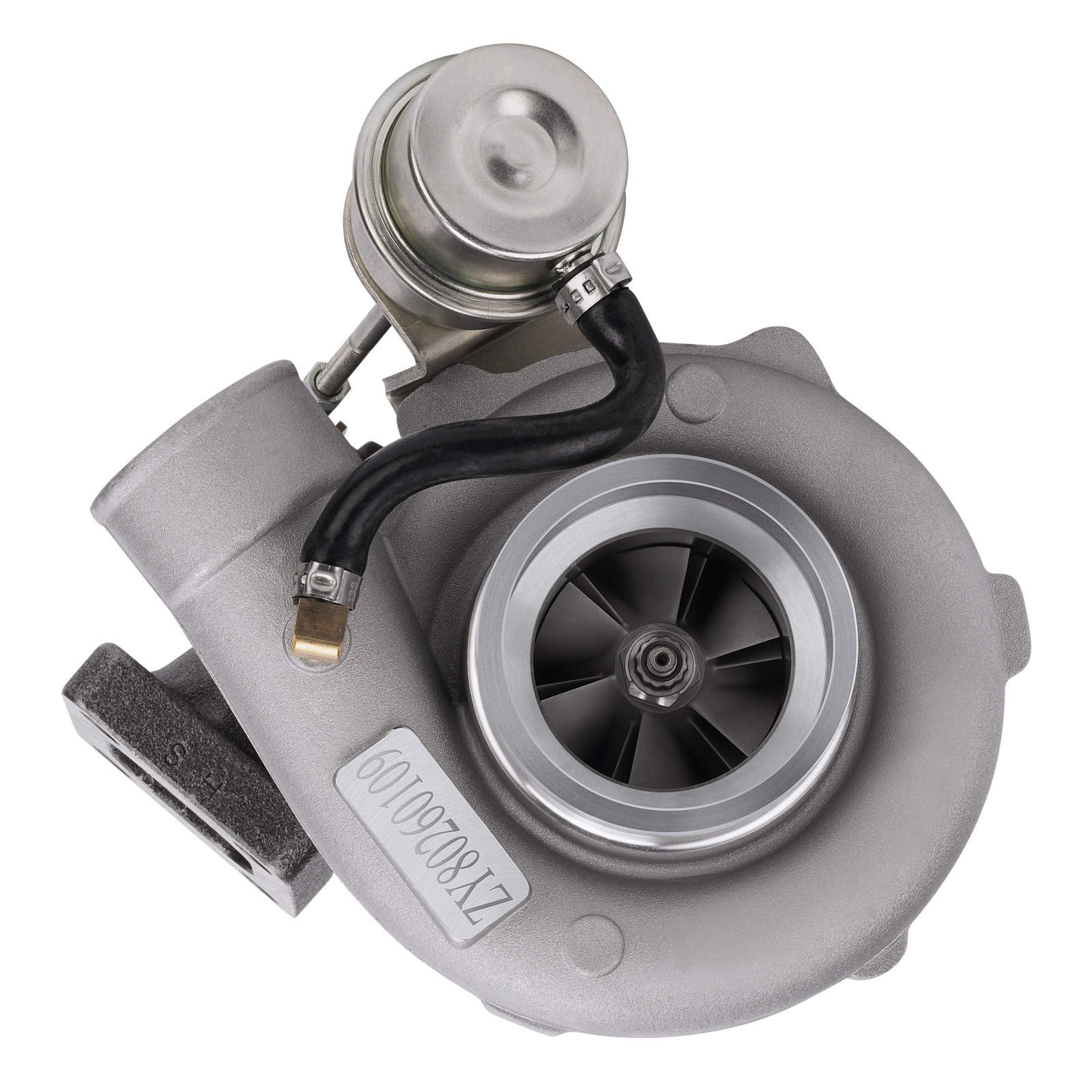

Turbocharger (turbo) for performance enhancement, suitable as a direct bolt-on upgrade.
Suitable for:
- Nissan Skyline R32, R33, R34, 2.0L-2.5L, RB20DET / RB25DET (direct bolt-on; for some R33 versions, modifications may be necessary)
Specifications
- Exhaust inlet flange (turbo manifold): T3 flange
- Exhaust outlet flange (downpipe): 6-bolt flange
- Turbine inducer diameter: 64.4 mm
- Turbine exducer diameter: 47.9 mm
- Turbine trim: 55.3
- Turbine A/R: 0.63
- Compressor inducer diameter: 52.7 mm
- Compressor exducer diameter: 76 mm
- Compressor trim: 48.1
- Compressor A/R: 0.5
- Bearing: wet floating bearing
- Cooling: water + oil
- Oil inlet: M12*1.25 and 2*M8*1.25
- Oil outlet: 2*M8*1.25
- Water: M18*1.5

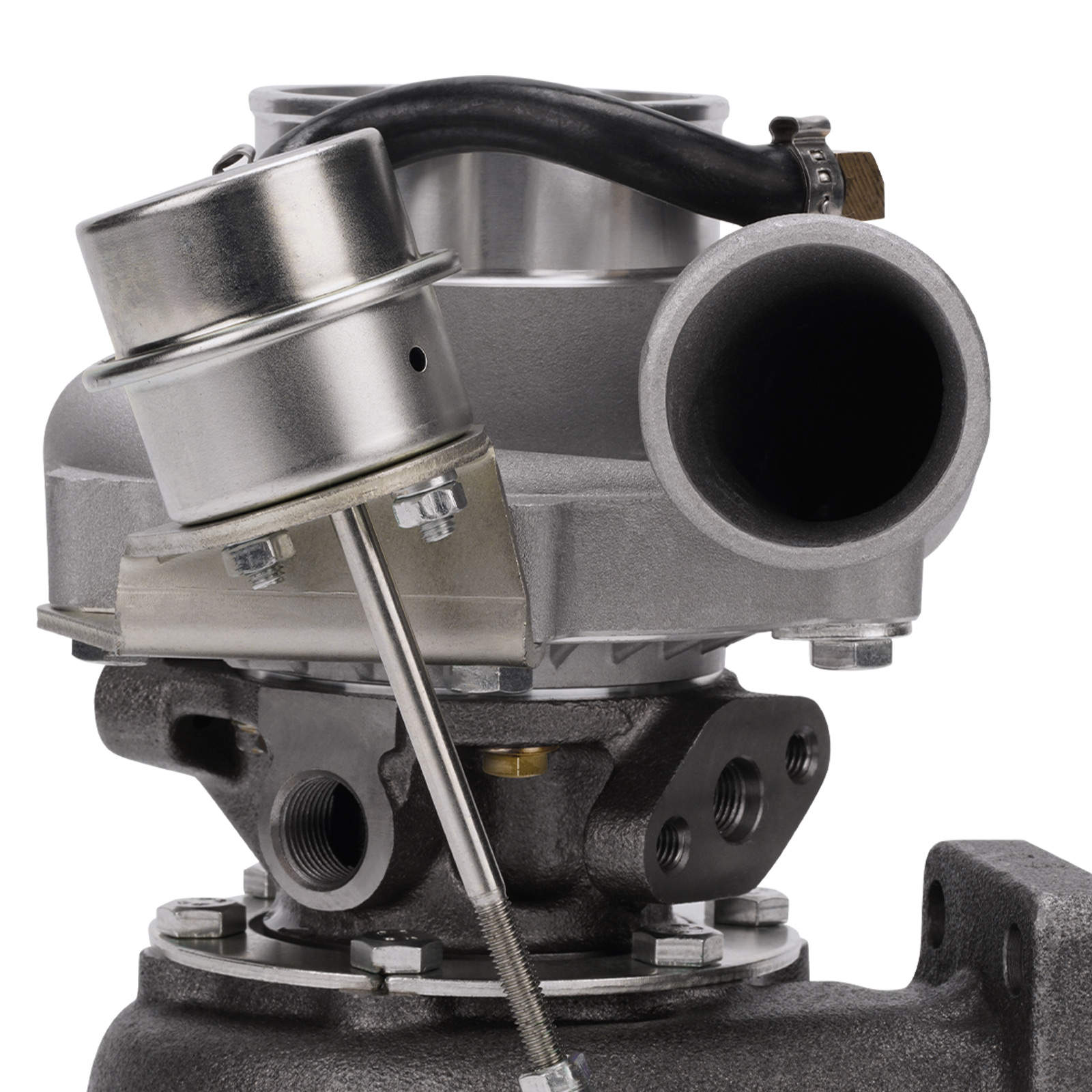

- Wastegate: with wastegate
- Power: increases power up to 500 hp
- Warranty: 1 year for manufacturing defects
Scope of delivery

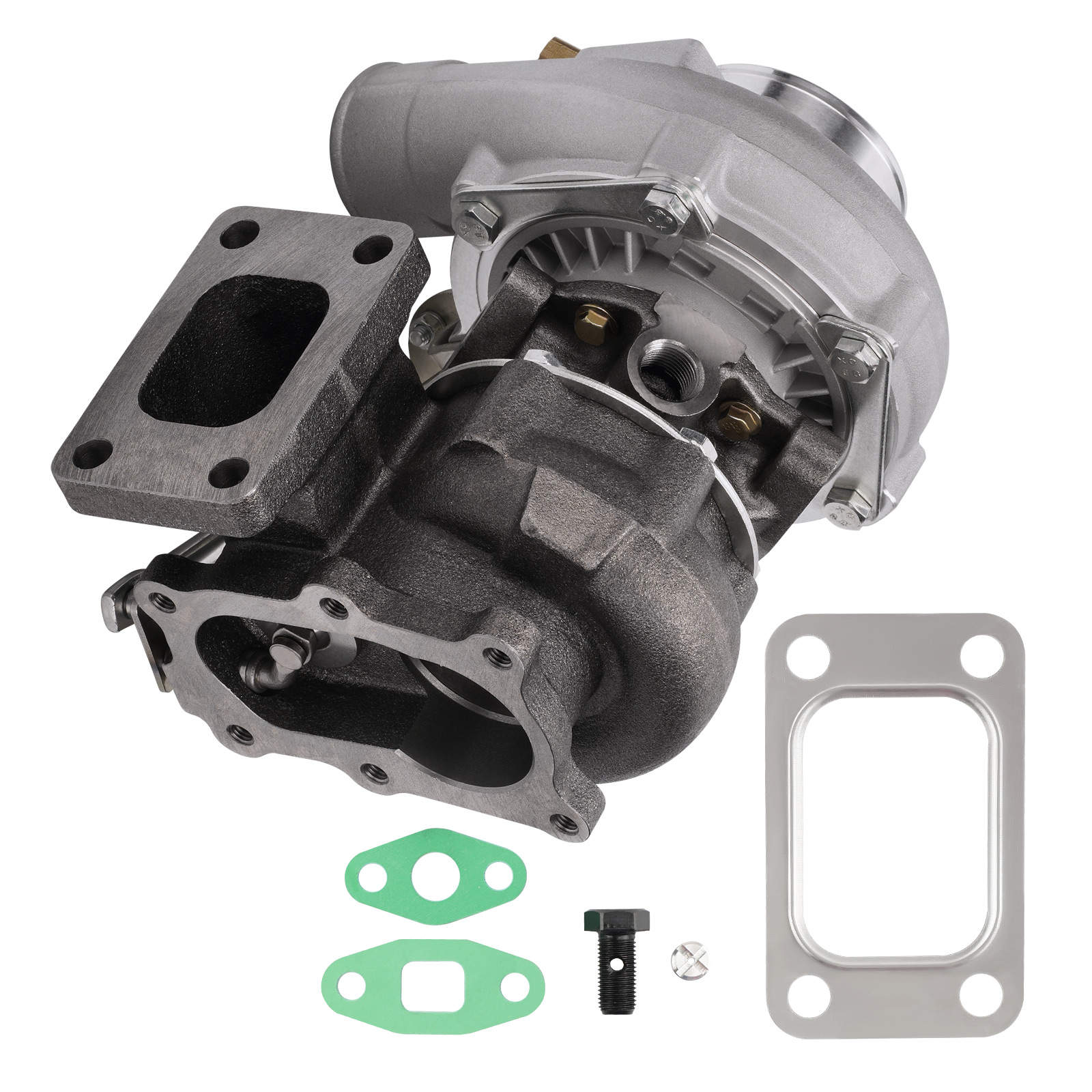

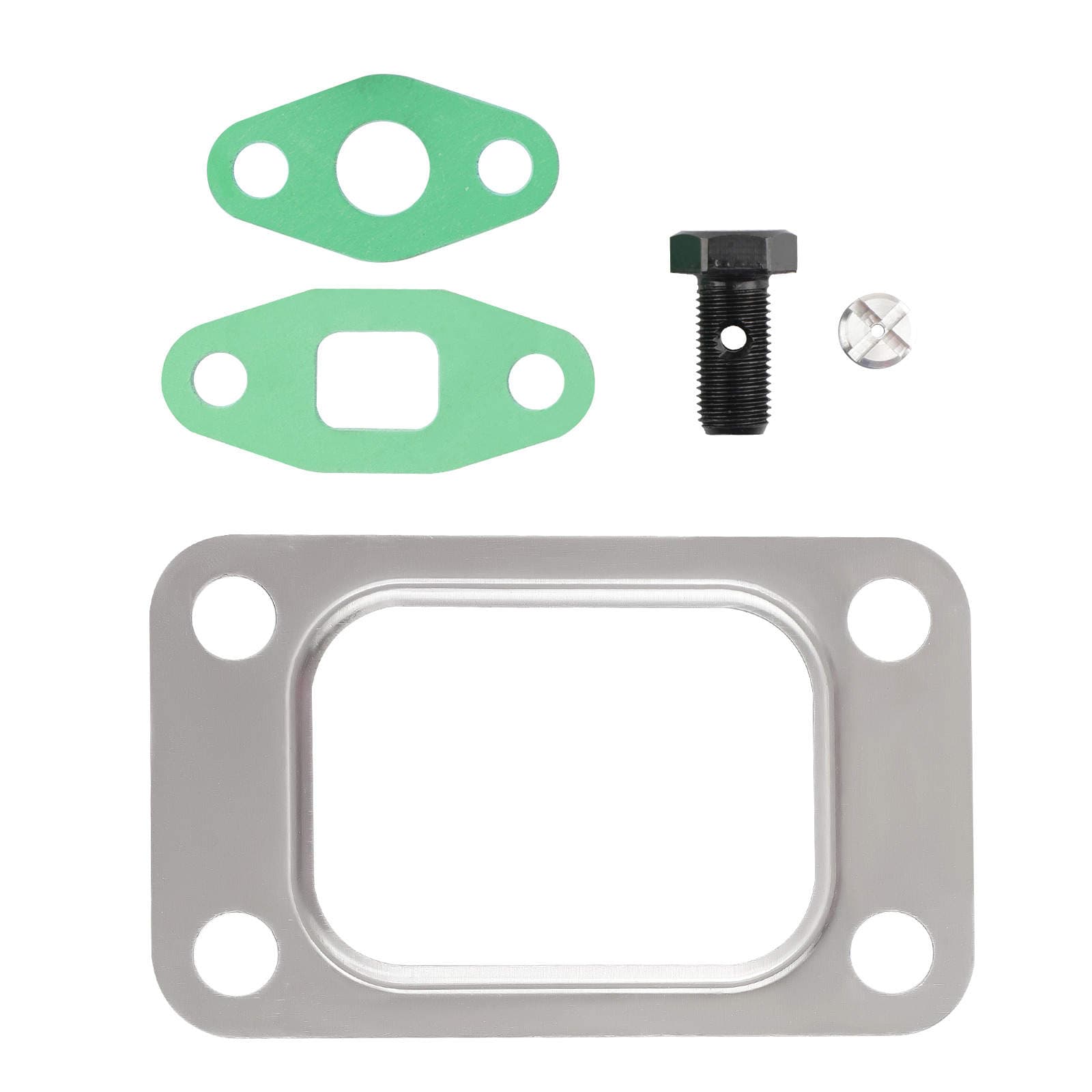

Exactly as shown in the image
Features
- Turbine housing: nodular cast iron QT450-10, heat resistant up to 700°C
- Steel turbine wheel: special K418 alloy, high oxidation resistance and stability up to 900°C
- Compressor housing: ZL104 aluminum, lightweight
- Compressor impeller/blades: cast aluminum with good gas tightness and corrosion resistance
Please note
This is a turbo for universal application; for some vehicles, adjustments may be necessary. Always analyze and remedy the cause of the previous turbo failure (e.g., insufficient oil lubrication, dirt in the intake area) before installation.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as differences may exist depending on the version. Are you unsure if this part fits your vehicle? Feel free to contact us before purchasing.
