Product description

Turbocharger with oil supply line, suitable as a replacement for the original part for the listed Ford 2.2 TDCi models.

Suitable for:

• Ford Transit Tourneo Bus 2.2 TDCi 103 kW 2007-2014
• Ford Transit Tourneo Bus 2.2 92 kW FWD CYFA, CYFB, CYFC, CYFD 2011-2014
• Ford Tourneo Custom V362 Bus (F3) 2.2 TDCi 92 kW FWD CYF4, CYFF 2012-2015
• Ford Tourneo Custom V362 Bus (F3) 2.2 TDCi 74 kW FWD DRF4, DRFF, DRFG 2012-2015
• Ford Tourneo Custom V362 Bus (F3) 2.2 TDCi 114 kW FWD CVFF 2012-2015
• Ford Transit Custom V362 Van (FY, FZ) 2.2 TDCi 74 kW DRF4, DRFF, DRFG 2012-2016
• Ford Transit Custom V362 Van (FY, FZ) 2.2 TDCi 114 kW CVFF 2012-2016
• Ford Transit Custom V362 Van (FY, FZ) 2.2 TDCi 92 kW CYF4, CYFF 2012-2016
• Ford Transit V363 Van (FCD, FDD) 2.2 TDCi 114 kW FWD CVF5 2013-2018
• Ford Transit V363 Van (FCD, FDD) 2.2 TDCi 74 kW FWD DRF5, DRFF, DRFG 2013-2018
• Ford Transit V363 Van (FCD, FDD) 2.2 TDCi 92 kW FWD CY14, CYF5, CYFG, USF6 2013-2018
• Ford Transit V363 Bus (FAD, FBD) 2.2 TDCi 92 kW FWD CY14, CYF5, CYFG, USF6 2013-2018
• Ford Transit V363 Bus (FAD, FBD) 2.2 TDCi 74 kW FWD DRF5, DRFF, DRFG 2013-2018
• Ford Transit V363 Chassis Cab (FED, FFD) 2.2 TDCi FWD 114 kW 2013-2018
• Ford Transit V363 Chassis Cab (FED, FFD) 2.2 TDCi 74 kW FWD DRF5, DRFF, DRFG 2013-2018
• Ford Transit V363 Chassis Cab (FED, FFD) 2.2 TDCi 92 kW FWD CY14, CYF5, CYFG, USF6 2013-2018
• Ford Transit Chassis Cab (FM_, FN_, FF_) 2.2 TDCi 74 kW FWD DRFA, DRFB, DRFC, DRFD, DRFE 2011-2014
• Ford Transit Chassis Cab (FM_, FN_, FF_) 2.2 TDCi 92 kW FWD CYFA, CYFB, CYFC, CYFD 2011-2014
• Ford Transit Chassis Cab (FM_, FN_, FF_) 2.2 TDCi 103 kW PGFA, PGFB, UHFA, UHFB, UHFC 2007-2014
• Ford Transit Bus (FD_, FB_, FS_, FZ_, FC_) 2.2 TDCi 92 kW FWD CYFA, CYFB, CYFC, CYFD 2011-2014
• Ford Transit Bus (FD_, FB_, FS_, FZ_, FC_) 2.2 TDCi 103 kW PGFA, PGFB, UHFA, UHFB, UHFC 2007-2014
• Ford Transit Bus (FD_, FB_, FS_, FZ_, FC_) 2.2 TDCi 74 kW DRFA, DRFB, DRFC, DRFD, DRFE 2011-2014
• Ford Transit Van (FA__) 2.2 TDCi 74 kW DRFA, DRFB, DRFC, DRFD, DRFE 2011-2014
• Ford Transit Van (FA__) 2.2 TDCi 92 kW CYFA, CYFB, CYFC, CYFD 2011-2014
• Ford Transit Van (FA__) 2.2 TDCi 103 kW PGFA, PGFB, UHFA, UHFB, UHFC 2007-2014

Specifications

• OEM / part number: 1741779, 1946738, 786880-0006, 7868805006S, 786880-5006S, 786880-0021, 7868805021S, 786880-5021S, 786880-6, 786880-21, 786880-9006S, BK206K682GA, BK20-6K682-GA, BK2Q6K682CA, BK2Q-6K682-CA, BK2Q6K682GA, BK2Q-6K682-GA, BK2Q6K682GB, BK2Q-6K682-GB, 2052535, 1763292, 1899515, BK3Q-6K679-AC, BK3Q-6K679-BA, BK3Q6K679BA, BK3Q6K679AC
• Turbo model: GTB1749VK
• Engine: Duratorq EURO 5
• Cooling: oil-cooled
• Fuel: diesel
• Bearing type: journal bearing
• Actuator type: electronic actuator
• Turbo type: variable geometry
• Condition: 100% new
• Package dimensions: 31 × 29 × 34 cm
• Package weight: 8.45 kg

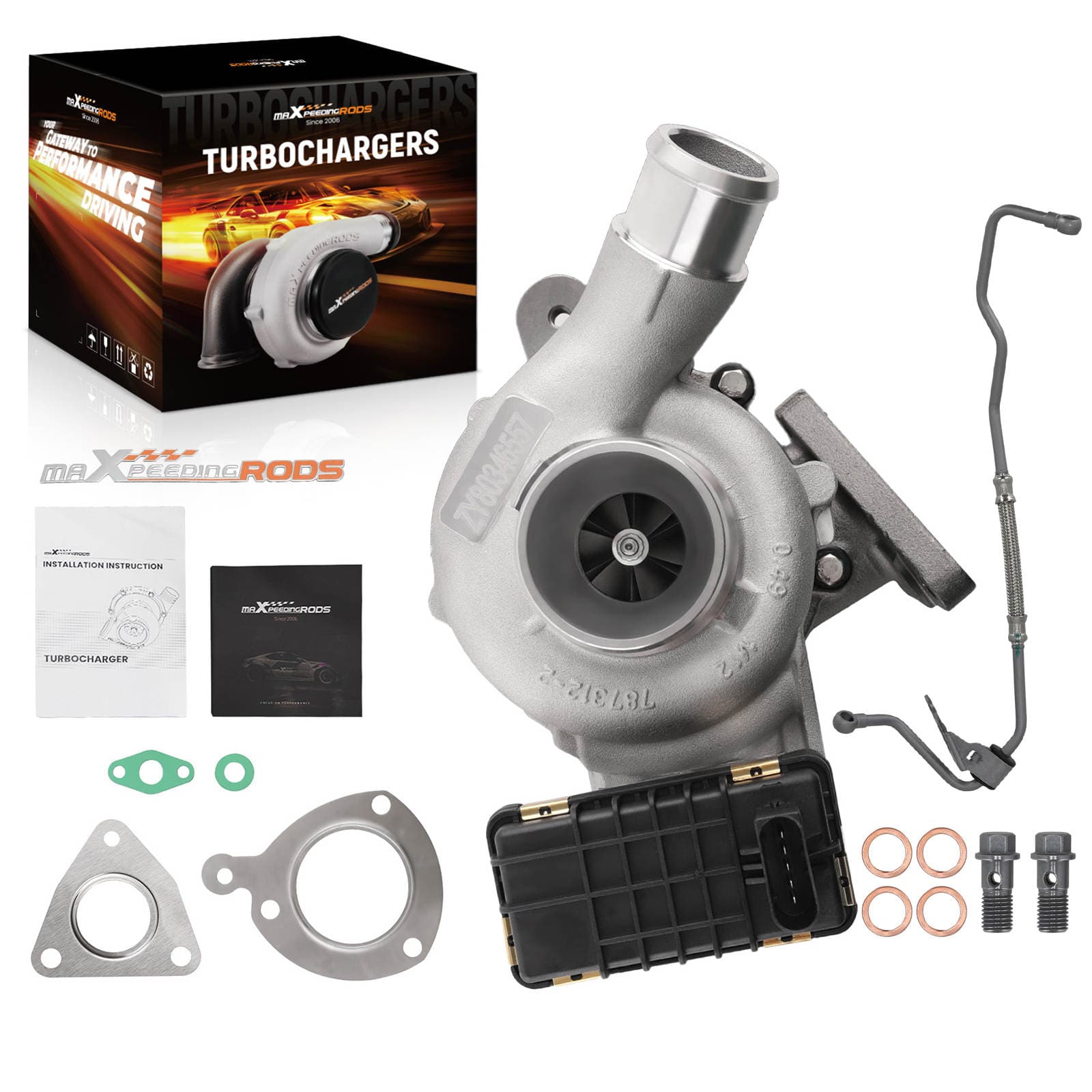

Scope of delivery

• 1x turbocharger

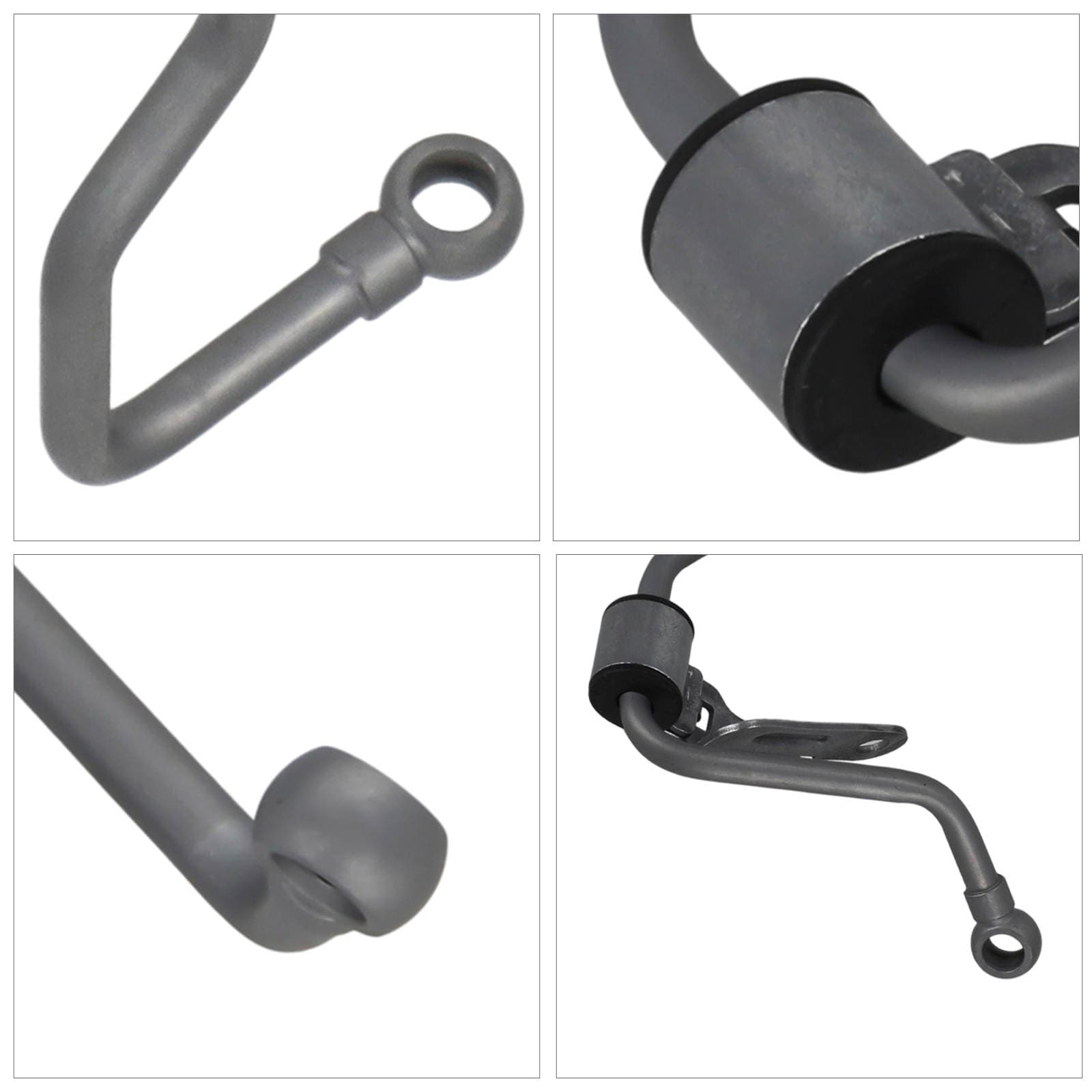

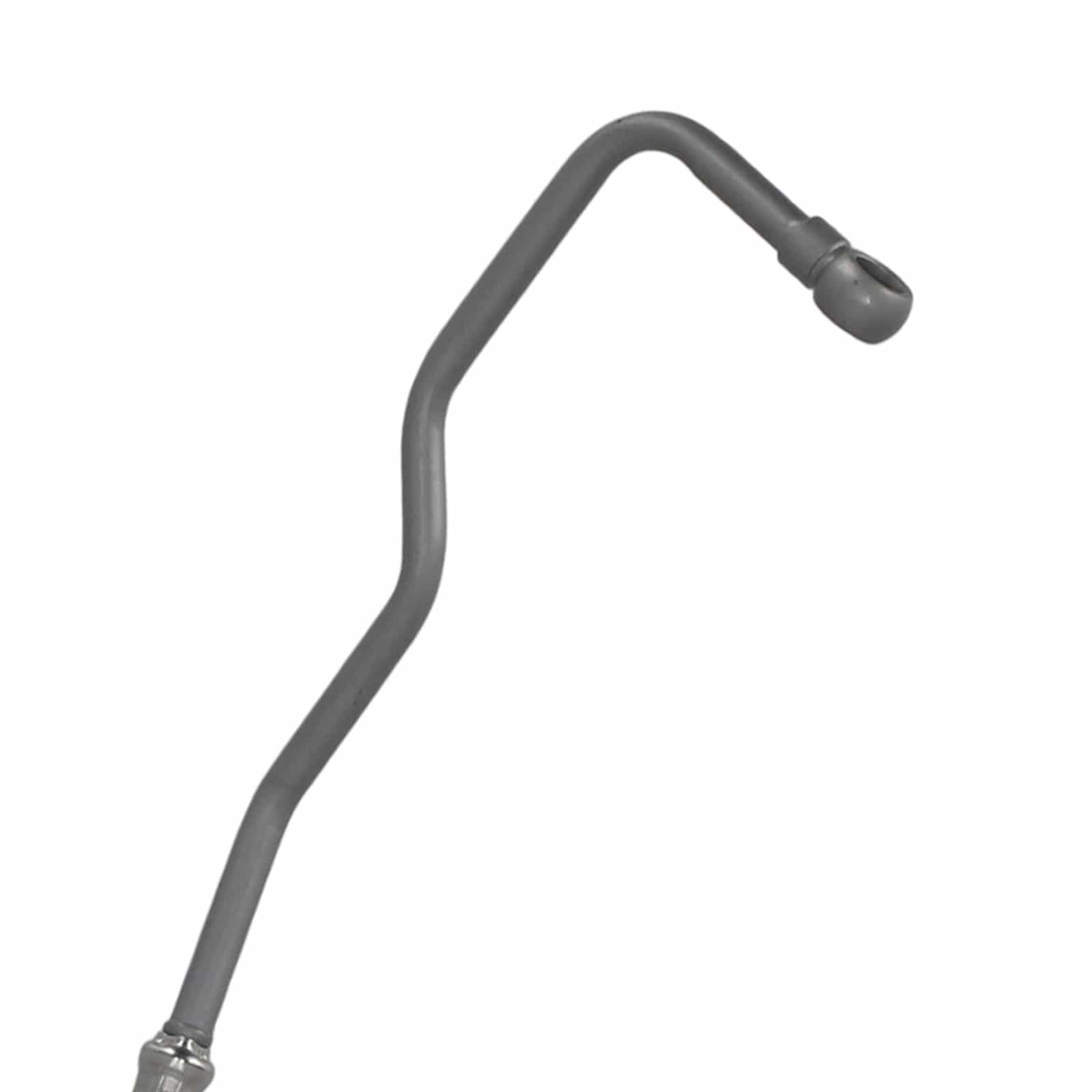

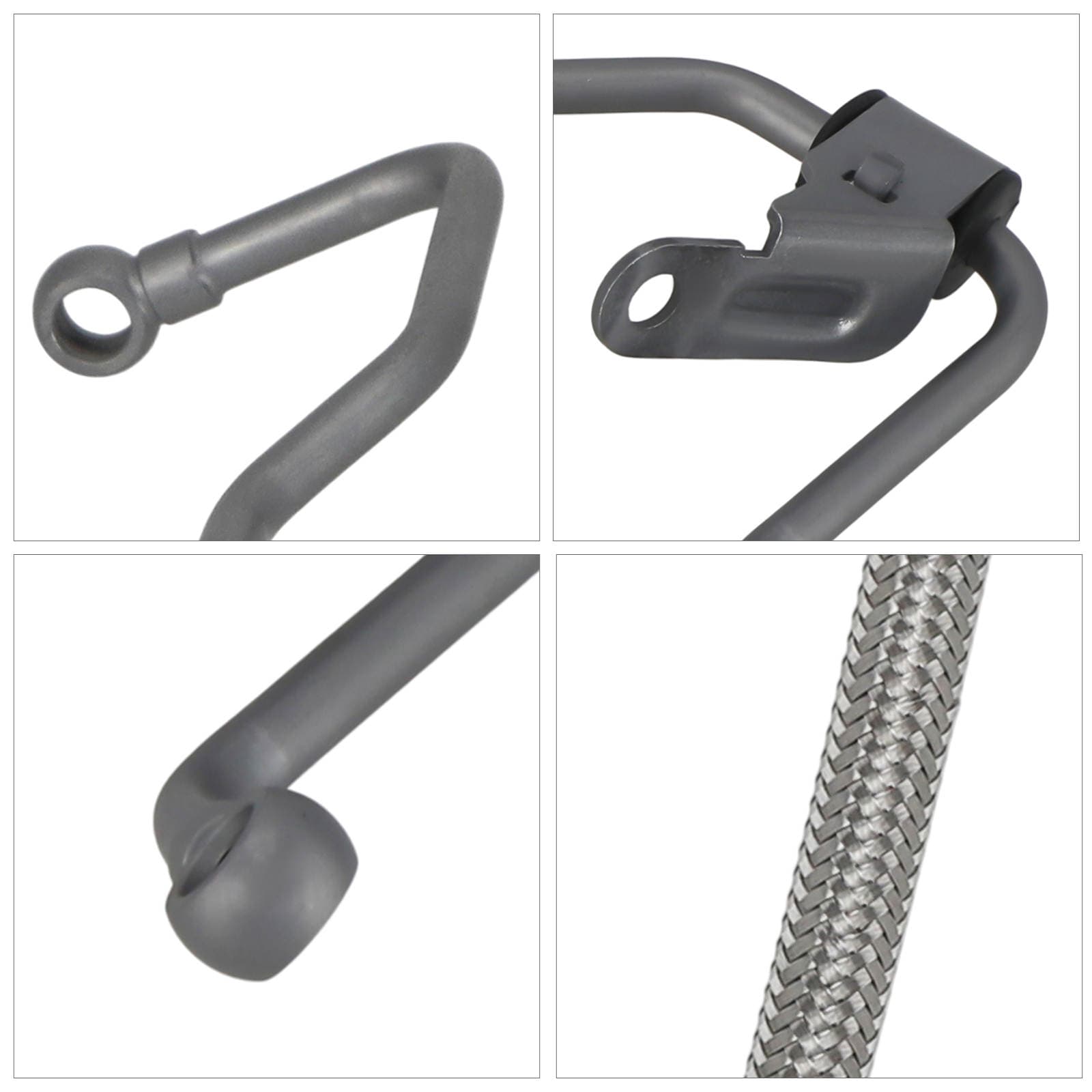

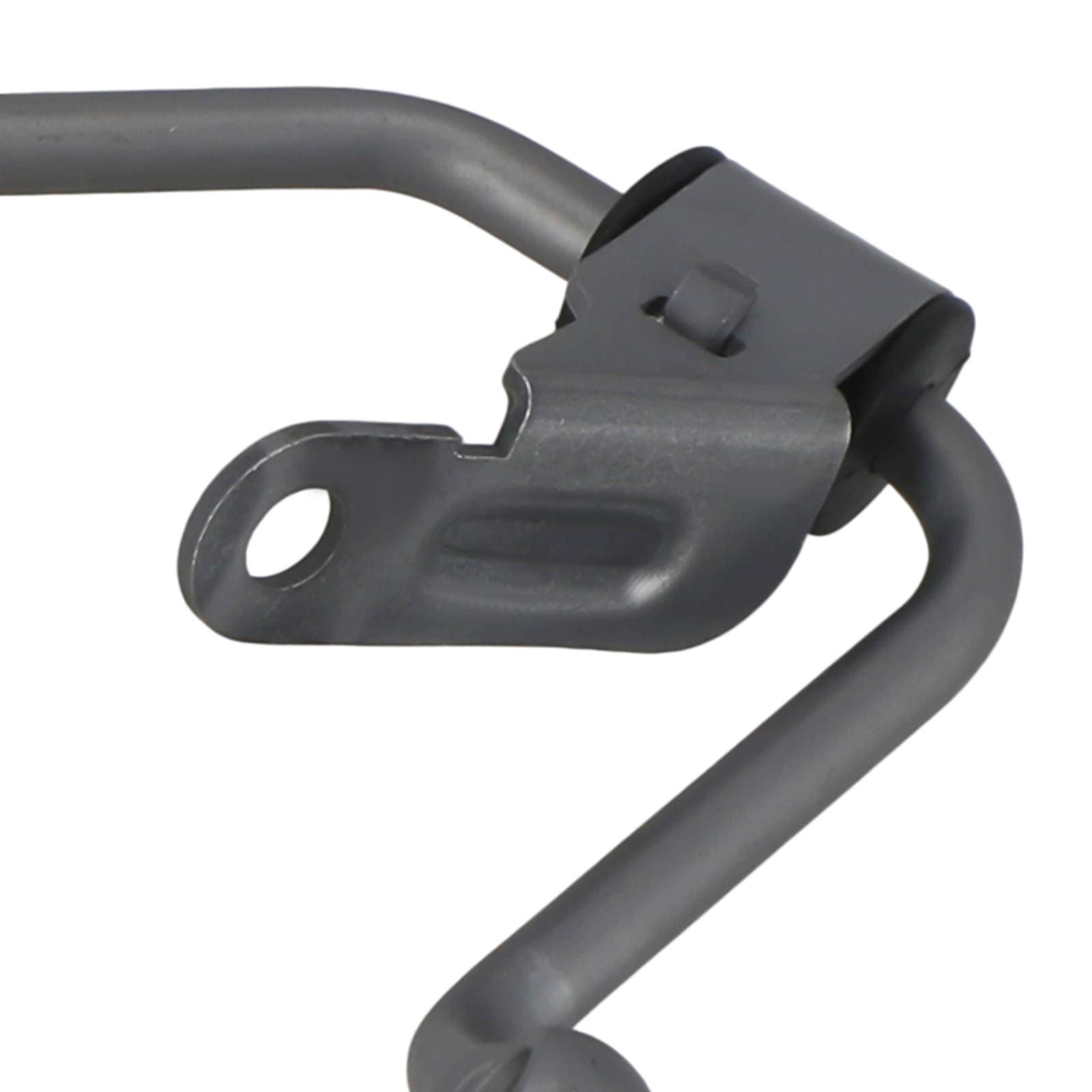

• 1x turbo oil supply line
• 2x oil gaskets
• 2x flange gaskets
• 1x manual, 1x brochure, 1x sticker

Features

• Turbine housing made of nodular cast iron QT450-10, heat resistant up to 700 °C
• Turbine wheel made of K418 alloy, oxidation resistant up to 900 °C
• Compressor housing made of light ZL104 aluminum; die-cast aluminum compressor wheel
• OEM quality and dimensions; own factory
• 100% balance test with TURBOTECHNICS VSR3, VNT G3-min-Flow test and advanced actuator test

Please note

Before purchasing, confirm the part number of your original turbo. Before installation, analyze and resolve the cause of the turbo defect. Professional installation is strongly recommended.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
