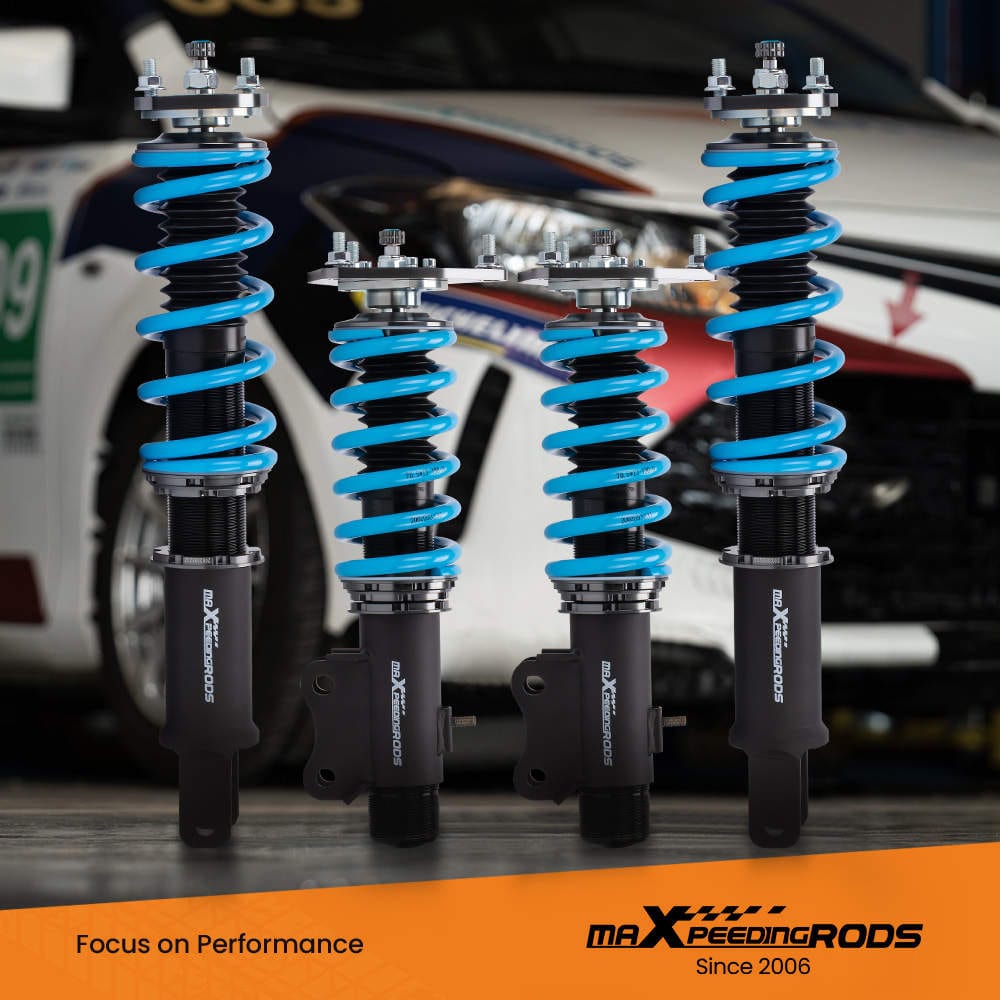

Product Description

Lowering coilover suspension (coilovers) front and rear axle from the MaXpeedingRods T6 series. Standard with adjustable rebound damping and separate height adjustment without changing preload, special shock absorber oil, and improved racing springs.

Suitable for:

• Ford Expedition 2003-2006, all models
• Lincoln Navigator 2003-2006, all models

Specifications

• Height adjustable: yes, lowering 25-75 mm depending on model
• Damping adjustable: 24 levels of rebound damping force

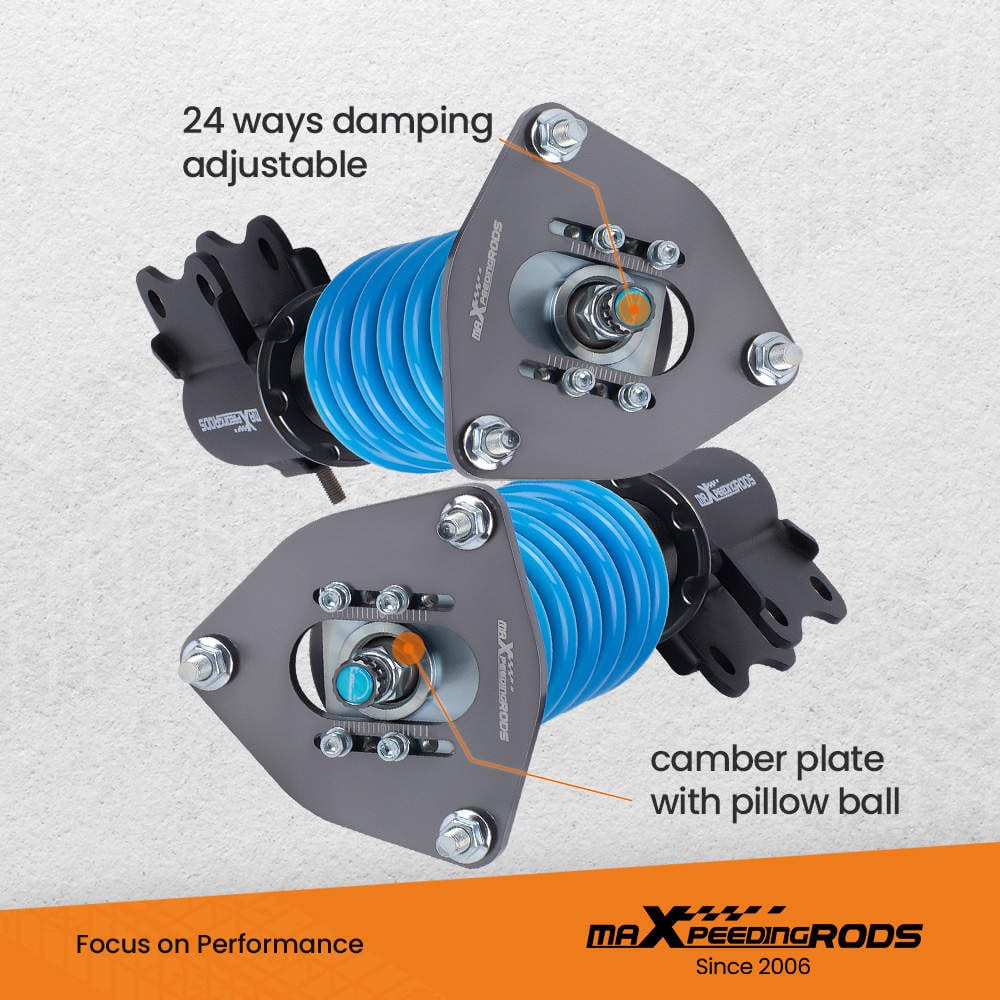

• Front upper mount: pillow ball with camber plate
• Rear upper mount: uses original (OE) upper mounts
• Camber adjustable: yes
• Front spring rate: 18 kg/mm (1008 lbs/in)
• Rear spring rate: 14 kg/mm (784 lbs/in)
• Spring inner diameter front/rear: 70.5 mm
• Spring length front/rear: 230 mm
• Spring preload: 7-10 mm
• Damper type: twin tube

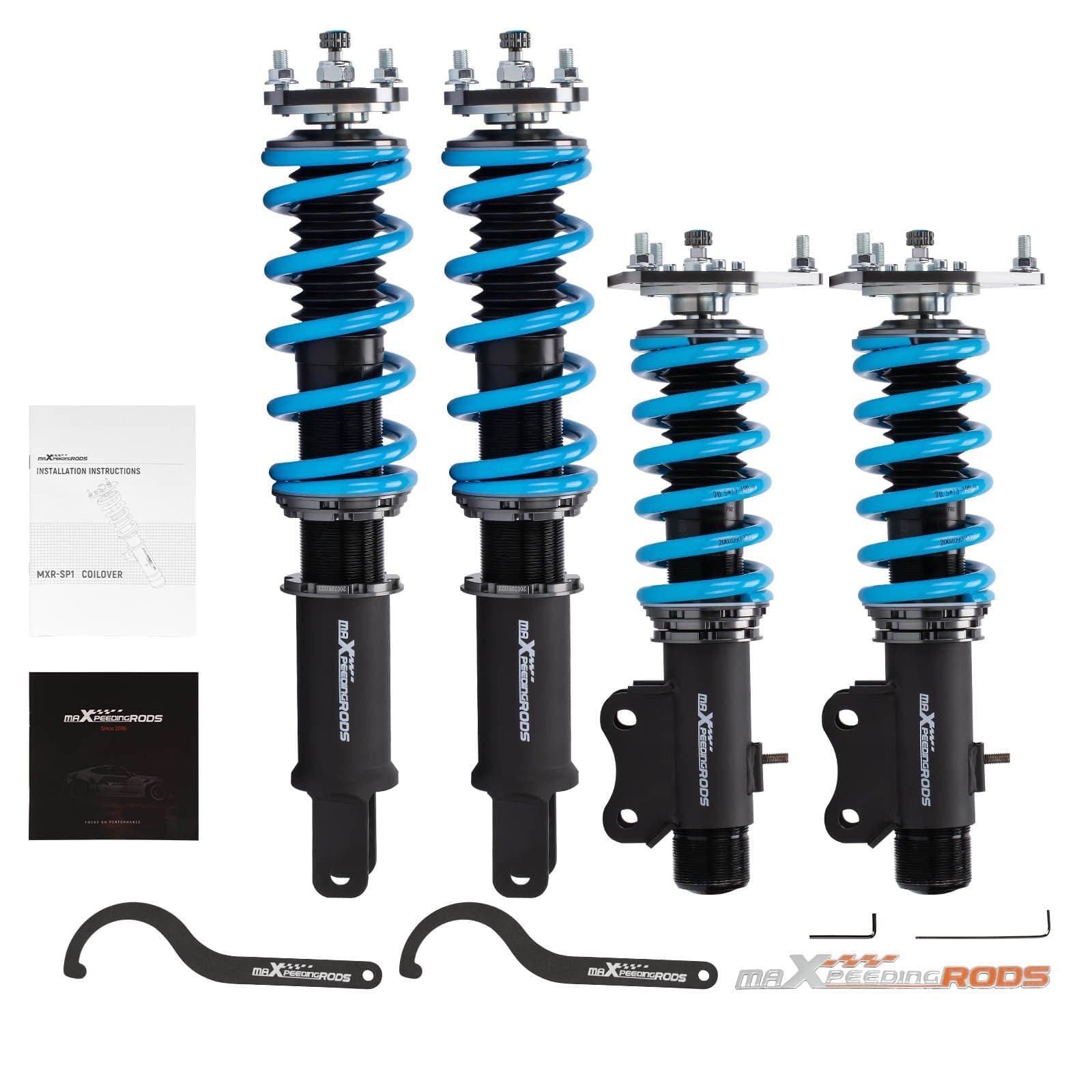

Scope of delivery

• 2x front axle coilover
• 2x rear axle coilover
• 2x C-wrenches
• 2x Allen keys
• 1x sticker

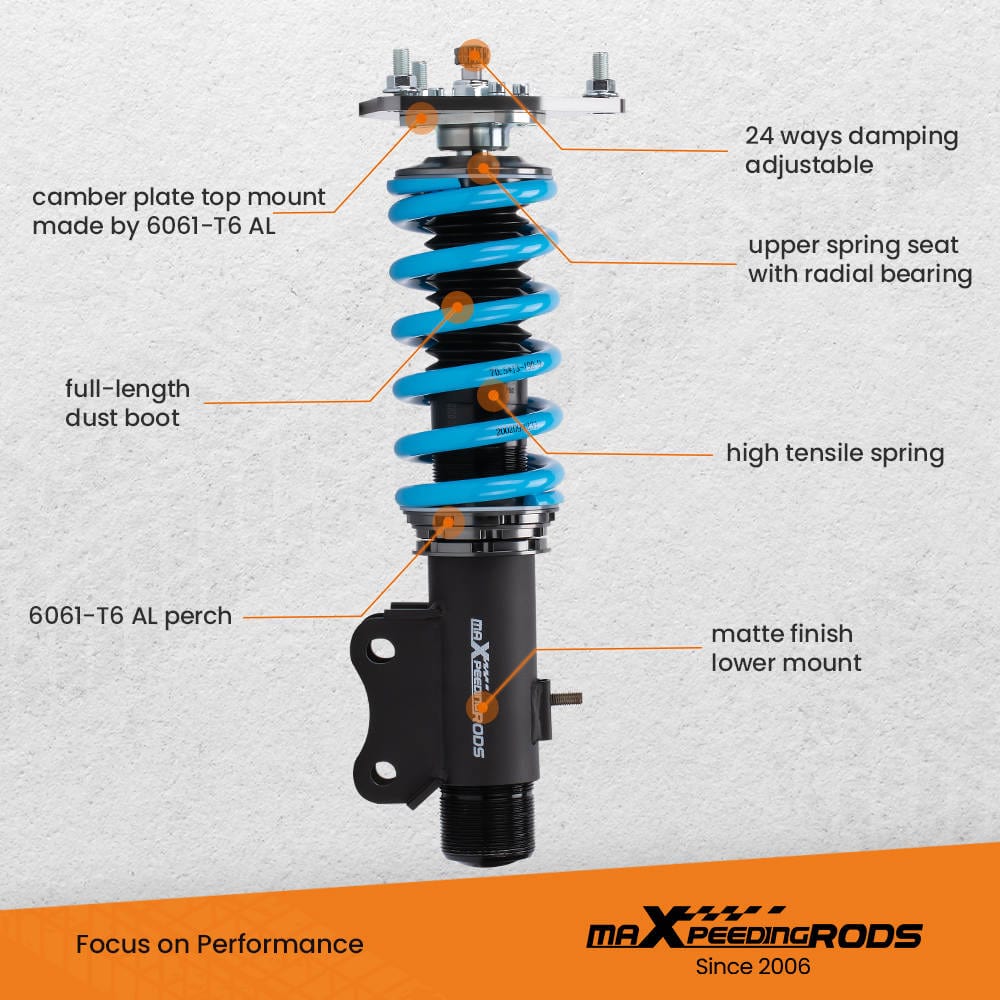

Features

• Lowering 25-75 mm for a lower center of gravity and more aggressive stance
• 24-way adjustable damping for comfort or sporty driving
• CNC machined aluminum upper mounts; heavy-duty steel lower mounts
• Spring tested for over 600,000 cycles; twin-tube construction; anti-corrosion finish

Note

All modifications must be installed by qualified mechanics and in accordance with local regulations. Do not use an impact wrench during installation. Check clearance between tires and suspension (minimum 4 mm). Periodic maintenance (every 3-4 months WD-40) extends lifespan.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. Are you unsure if this part fits your vehicle? Please feel free to contact us before purchasing.
