Wiring Harness 6 Outputs for LED Lights maXpeedingrods Crosshair 12-24V 40A 4PIN
Wiring Harness 6 Outputs for LED Lights maXpeedingrods Crosshair 12-24V 40A 4PIN
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product Description

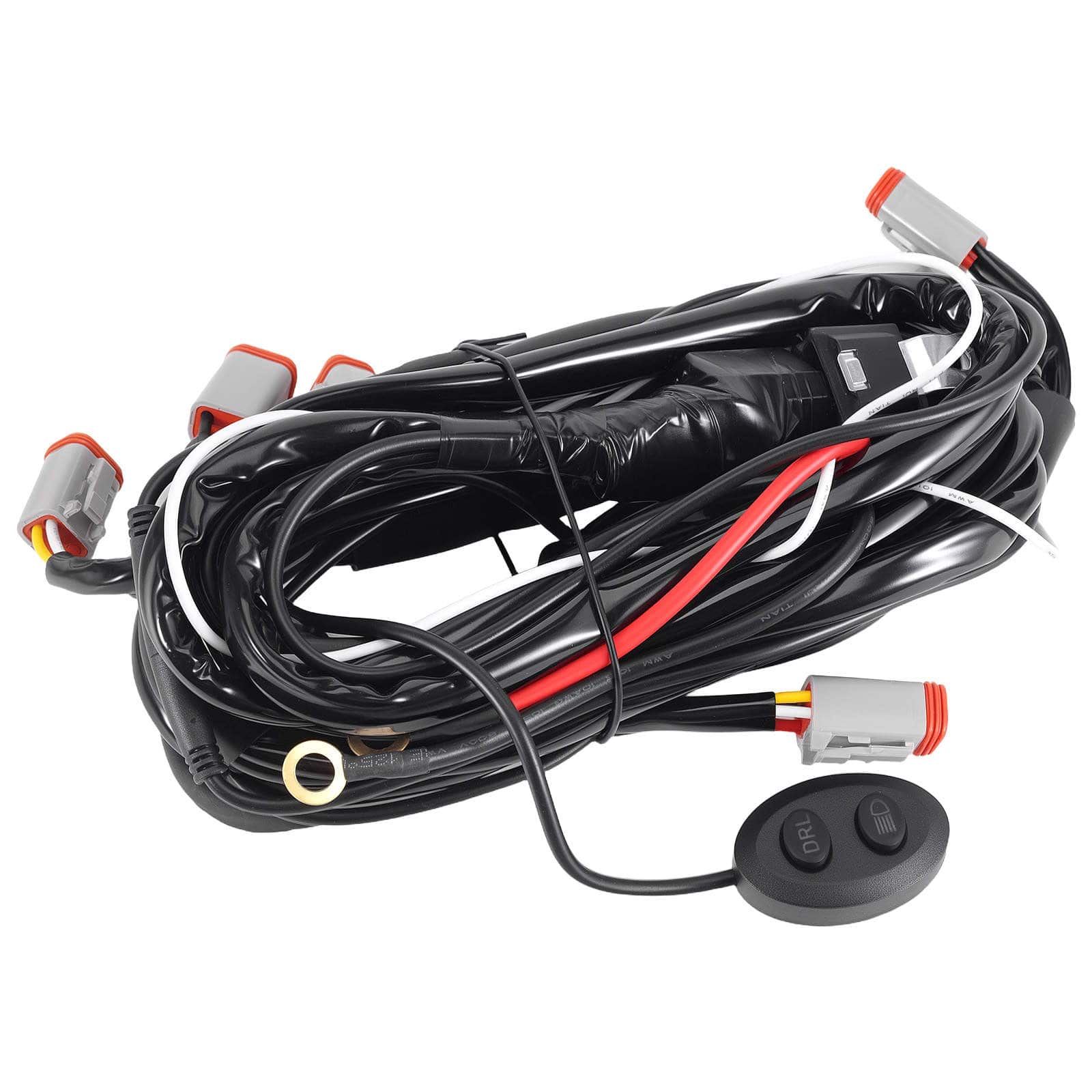

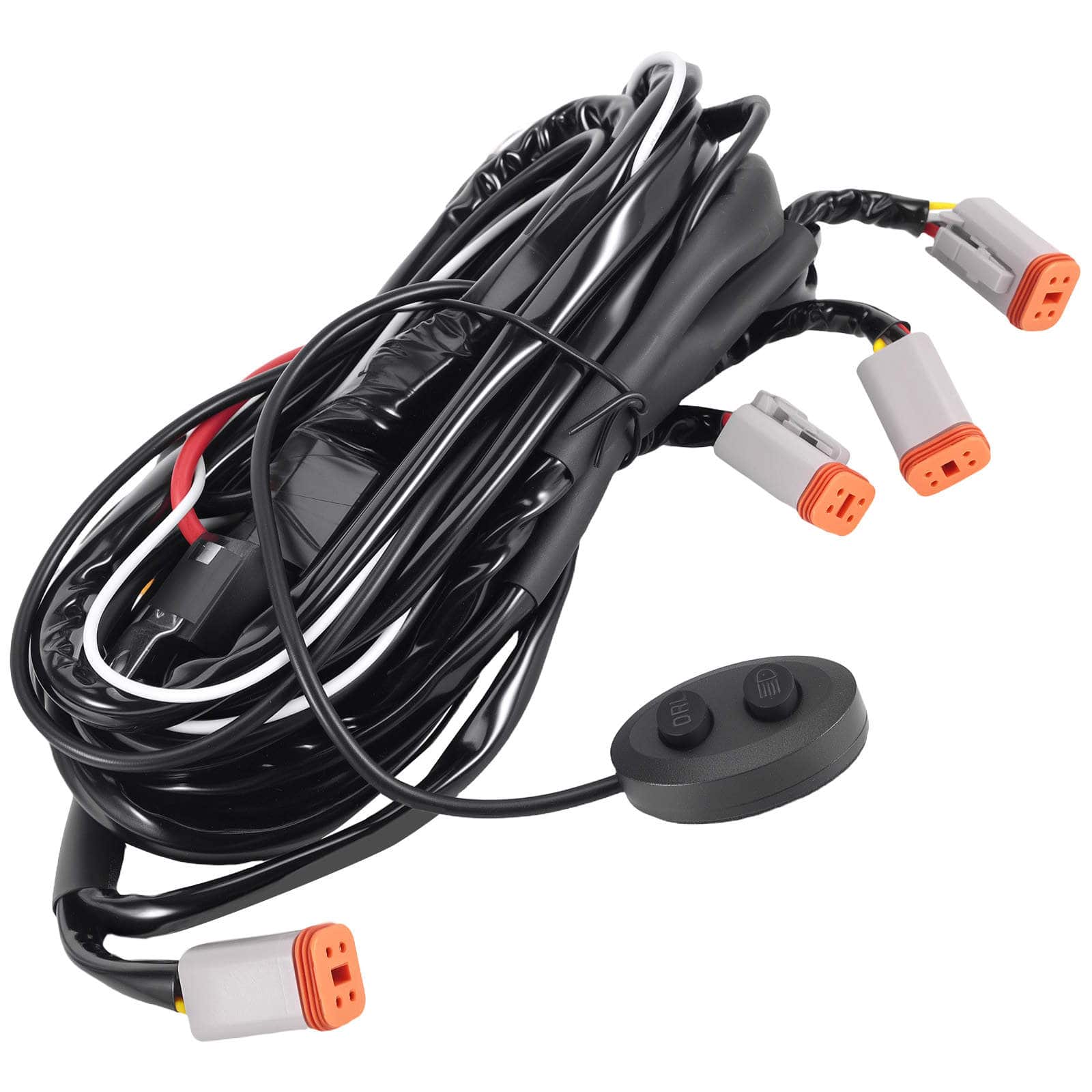

Wiring harness kit with 6 connectors for simultaneous control of multiple maXpeedingrods Crosshair LED driving lights with daytime running lights (DRL).
Suitable for:
- maXpeedingrods Crosshair series LED driving lights with DRL (3.5 inch / 5 inch / 7 inch models)
- Simultaneous control of 2 pairs of A-pillar lights (2 pairs 3.5/5 inch) + 1 pair of bumper lights (5/7 inch)
- Simultaneous control of 3 pairs of roof lights (5 inch)
- 1-to-6 configuration: max. 6 lights simultaneously, loadable up to 2 pairs 5 inch + 1 pair 7 inch
Specifications
- Working Voltage: 12-24V
- Maximum Current: 40A
- Relay: 60A
- Maximum Power: 480W/12V, 960W/24V

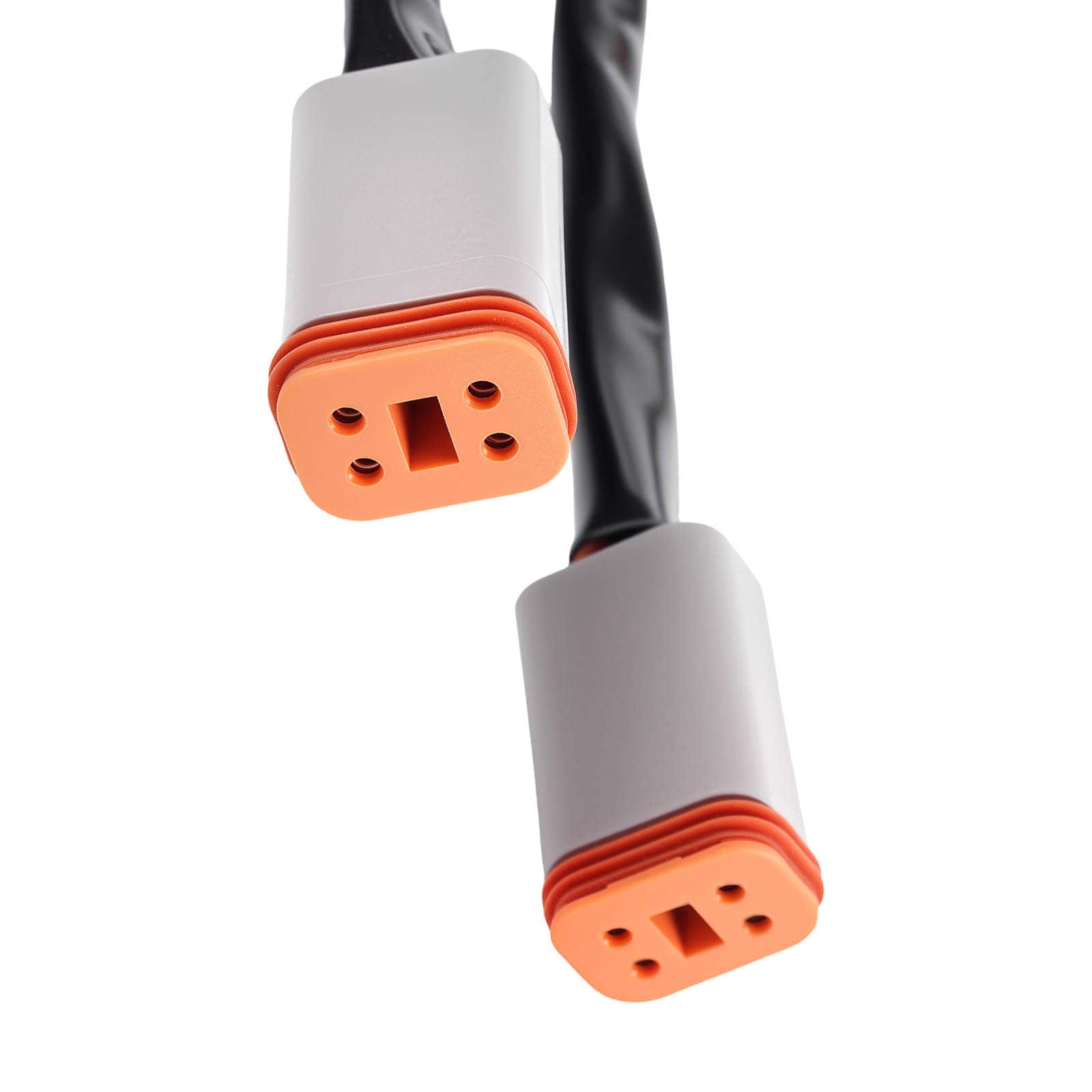

- Plug Type: 4-PIN DT plug
- Number of Plugs: 6

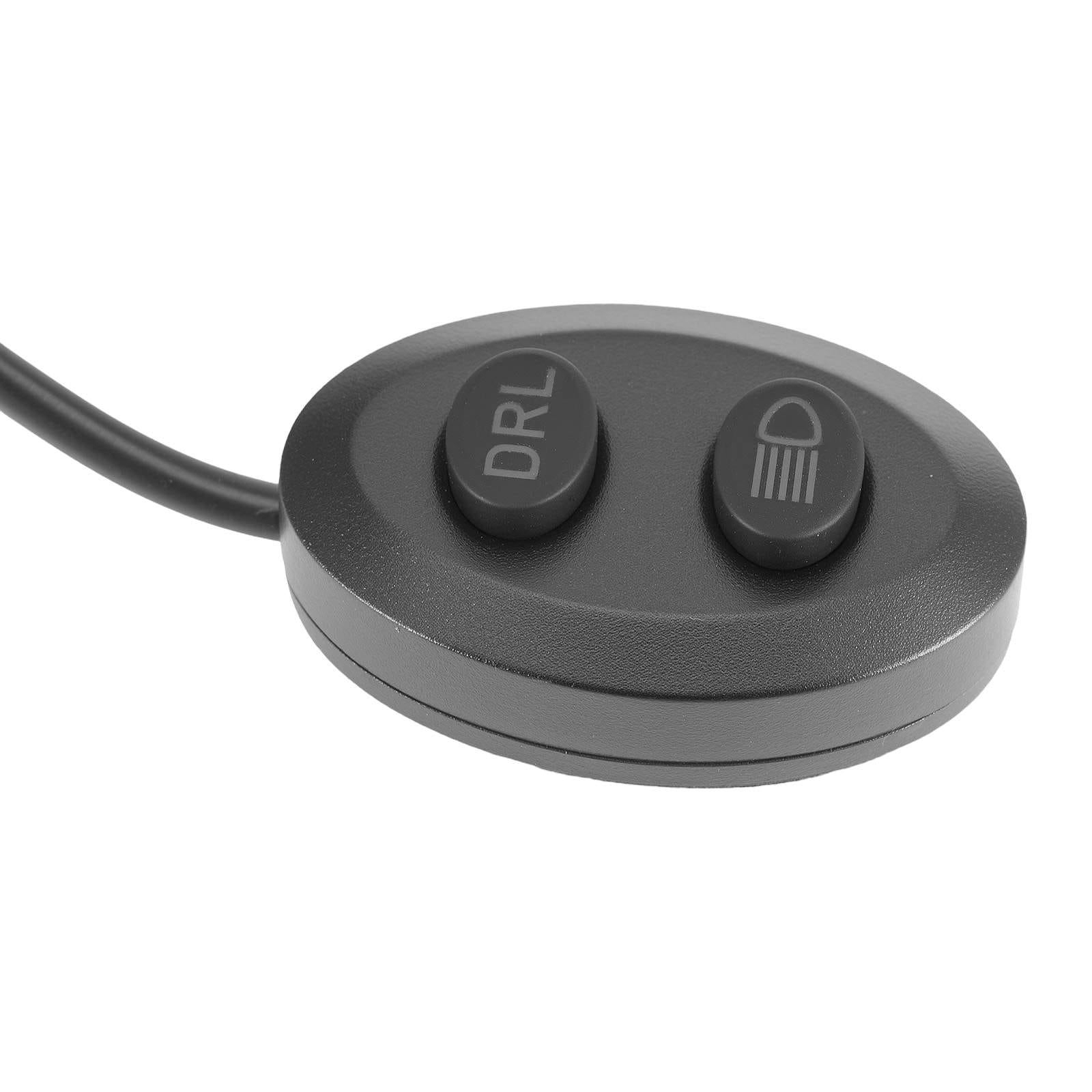

- Switch Type: Touch
- Material: High-quality PVC + copper wire
- Wire Gauge: 14AWG
- Harness Length: 3.6m + 1m x 2 (extension cable)
- Power Supply: ACC
Scope of Delivery

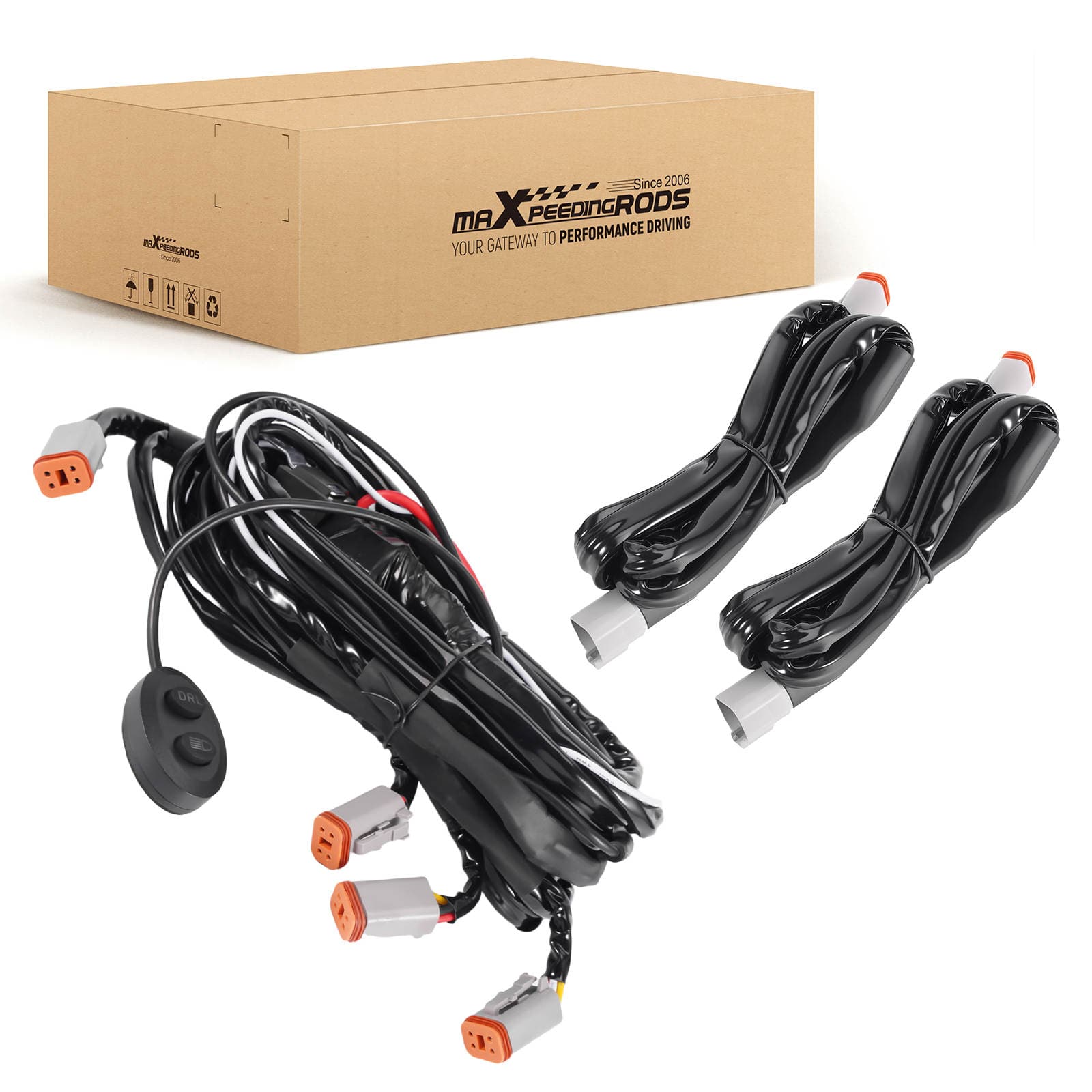

1x Wiring harness kit.
Features
- Professionally assembled switch/wiring harness for simultaneous control of 6 maXpeedingrods Crosshair series off-road lights with DRL (7, 5 and 3.5 inch)
- Easy installation: Connect the lamp's DT plug directly to the harness's DT plug
- Made of high-quality copper and PVC, equipped with relays and fuses for high current
- 14AWG wiring, total length approx. 4m, flexible to install
Check Fitment
Always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle before ordering, as differences may exist per version. Are you unsure if this part fits your vehicle? Feel free to contact us before purchasing.
