Weld On Triangulated 4 Link +2 Bags Air Suspension Kit Brackets 21.29 Bars
Application
for Most Pickup Trucks, Hotrod, Rat Rod, or Classic Cars with 3" Rear Axle Tube.
Specification
Package Includes:
1 set of Suspension 4 Link
Mounting hardware Included
5 Link Bar Dimensions:
Tubing Outside Diameter :1.259"
Tubing Thick Wall :0.157"
All Five Bars :21.29"
(Center To Center Adjusted All The Way In)

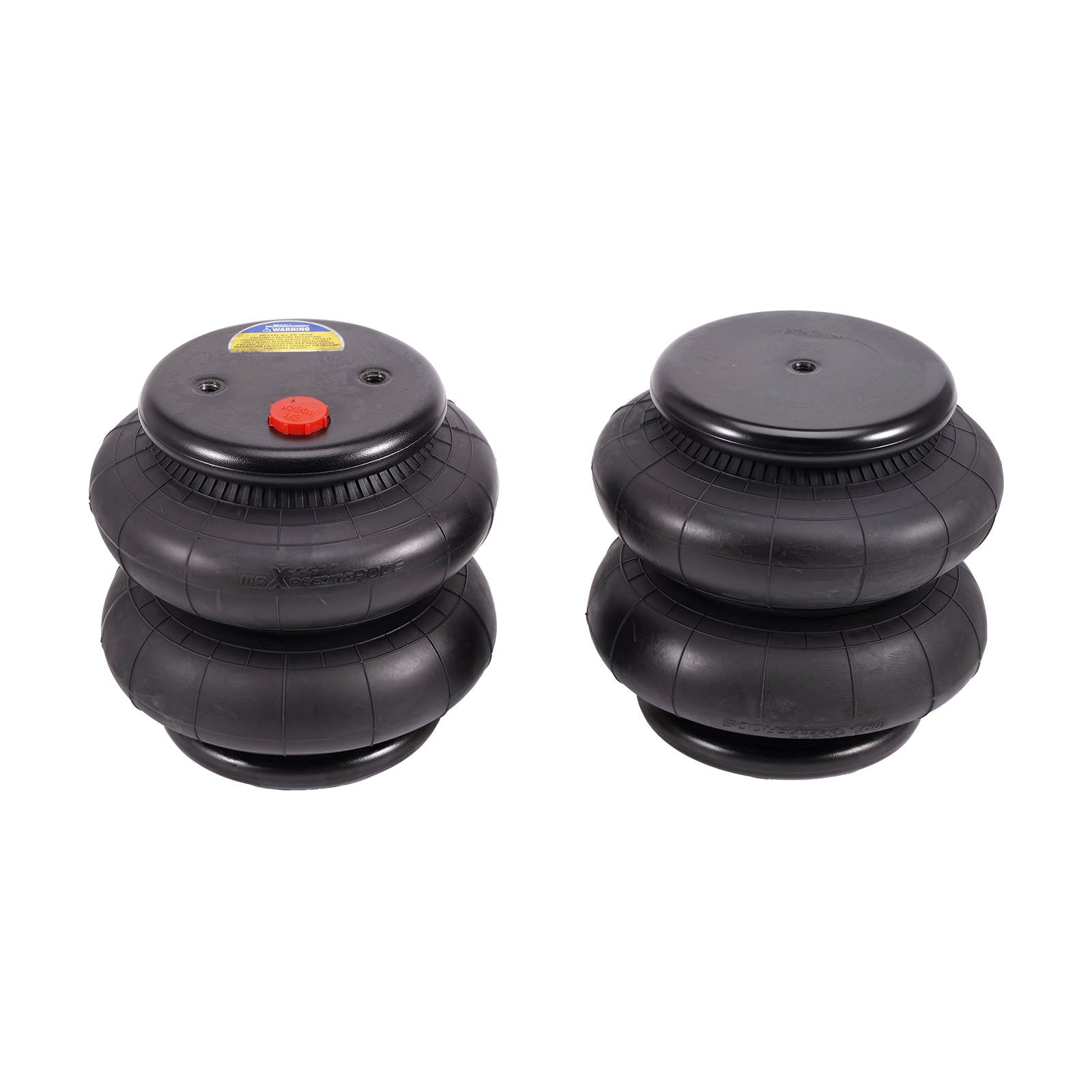

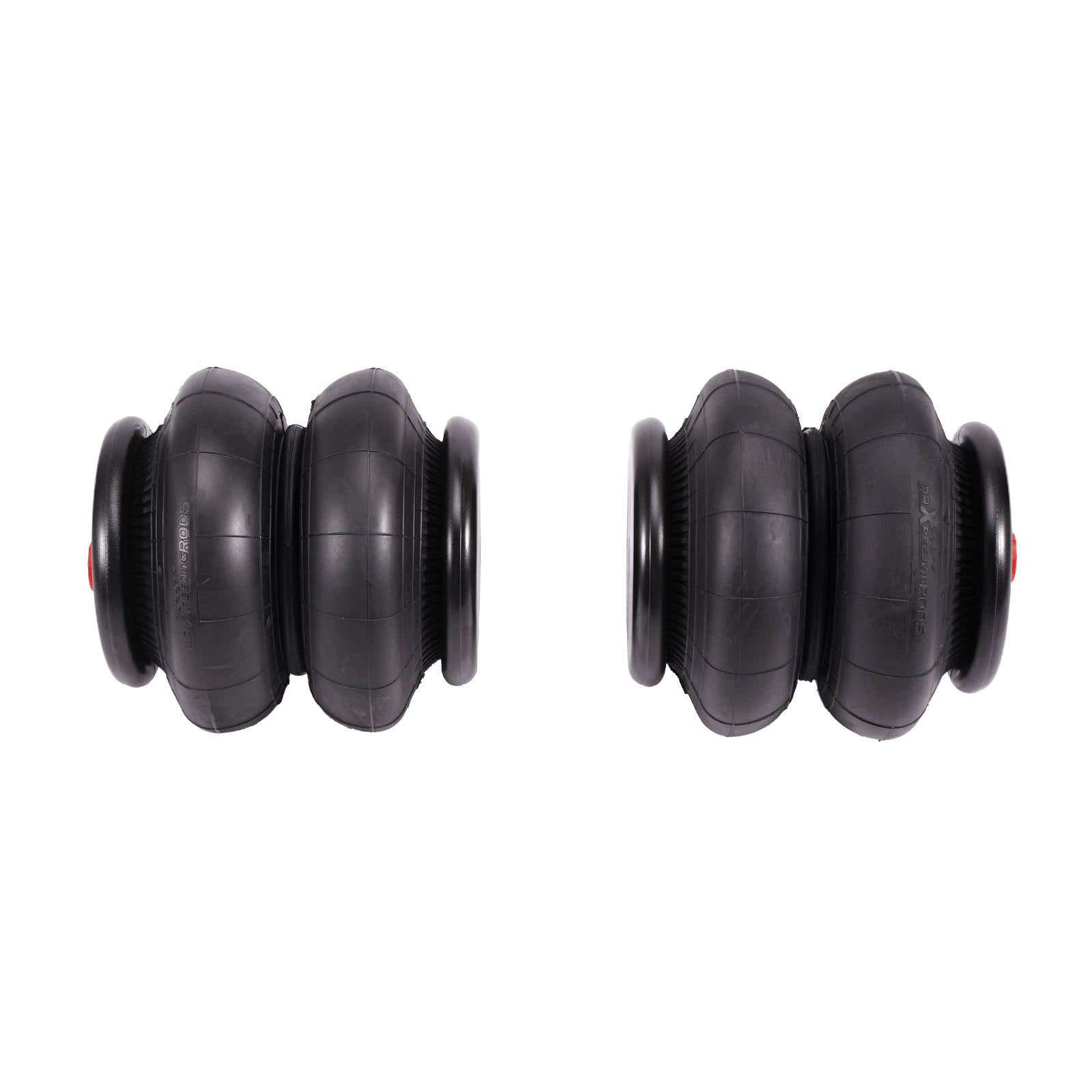

Specs of bag:
Diameter: 6.889"
Extended:9.645"
Closed:3.54"
Air spring bag capacity: 2500LBS
2 smaller bolt holes diameter: 0.375"
1 bigger bolt hole diameter: 1/2"-14NPT

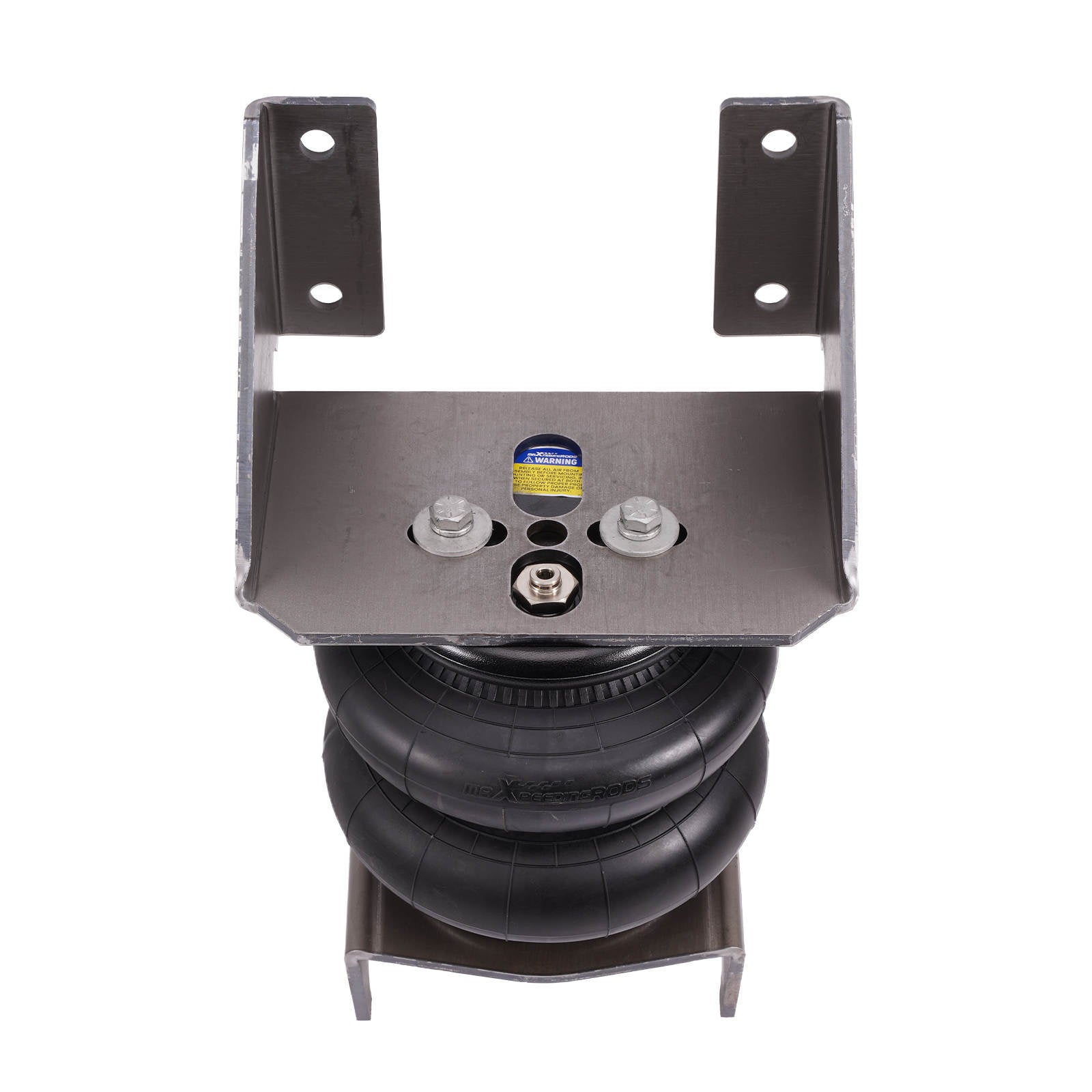

Two Top Mounting Holes : Approx 2-3/4" from Eye to Eye
Bottom has One Mounting Hole in Center
All mounting holes are 3/8"-16 UNC
Feature
1、Stress Test Over 5,000,000 Times：Durable and Safe
2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3、Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee
4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material
5、Use high-quality steel with high load-bearing capacity and long life.
6、Excellent and practical bolt-on installation.
7、Safe carrying capacity and stability
8、Restore the original ride height and improve ride quality
9、Ensure our driving comfort and reduce tire wear.
Note
Instructions Are Not Included
We Recommend Professional Installation
Please feel free to contact for whatever we can help!
