Forged connecting rods H-beam set of 4 for Honda H22 H22A 2.2 DOHC (Prelude, Accord) | 143 mm, ARP 2000 bolts
Forged connecting rods H-beam set of 4 for Honda H22 H22A 2.2 DOHC (Prelude, Accord) | 143 mm, ARP 2000 bolts
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product description
Set of H-beam connecting rods (conrods) for Honda H22 type engines.
Suitable for:
- Honda Accord H22 DOHC 2.2
- Honda Prelude H22 DOHC 2.2
Specifications
- Connecting rod length: 143 mm / ≈5.6299 inch
- Crankshaft-rod bearing journal: 51 mm / ≈2.0078 inch
- Piston pin: 22 mm / ≈0.8661 inch
- Width bottom: 23.75 mm / ≈0.93503 inch
- Width top: 23.75 mm / ≈0.93503 inch

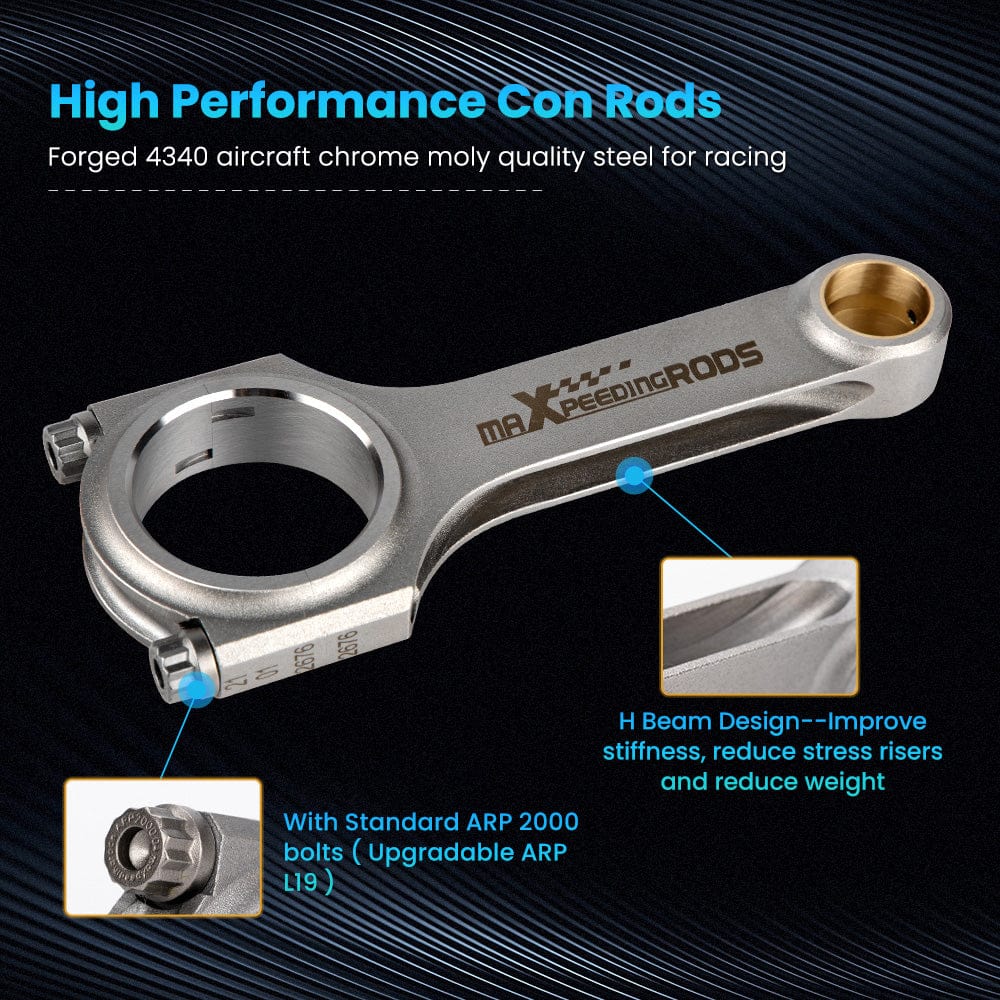

- Material: forged 4340 EN24 (40CrNiMo) chrome-molybdenum steel
- Weight tolerance: +/- 1 gram
- Piston pin bore: +-4/1000mm

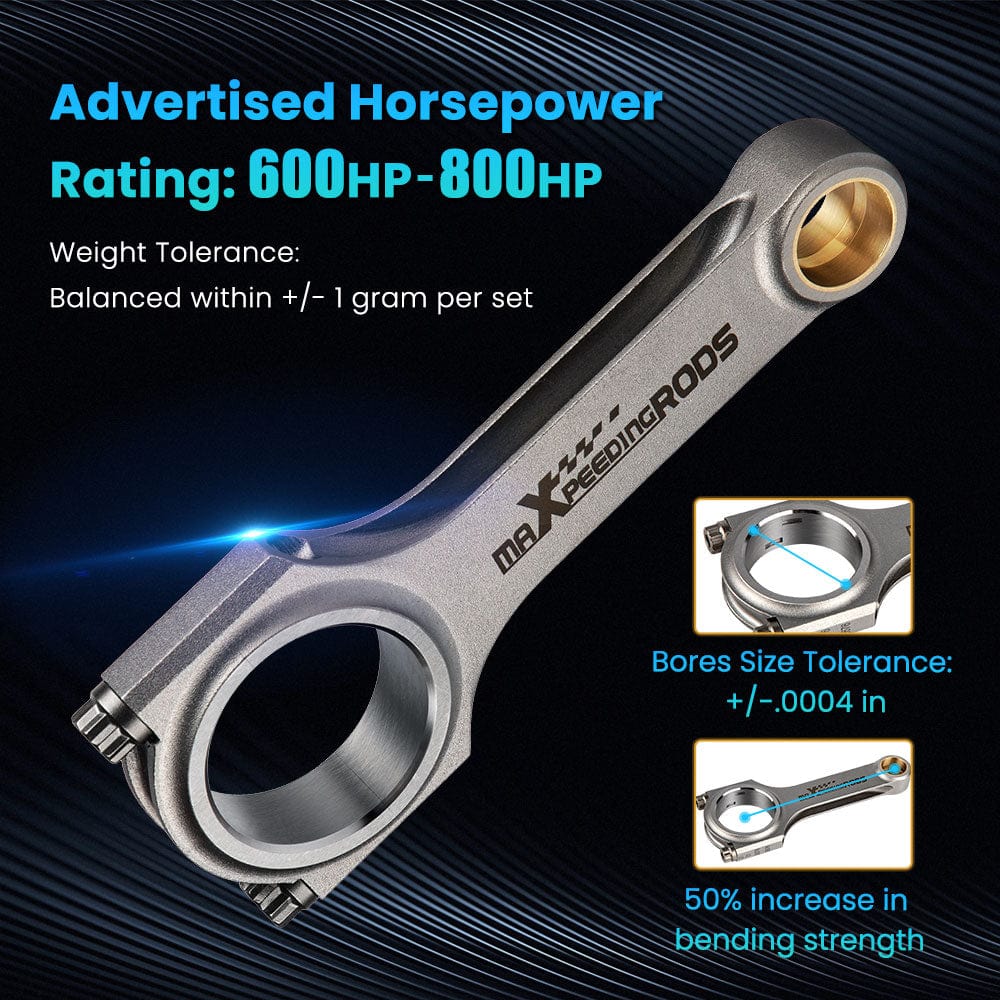

- Power: 600hp~800hp per set
- Tightening torque: 48 ft ≈ 65 Nm
- Maximum RPM: 9000 rpm
Scope of delivery

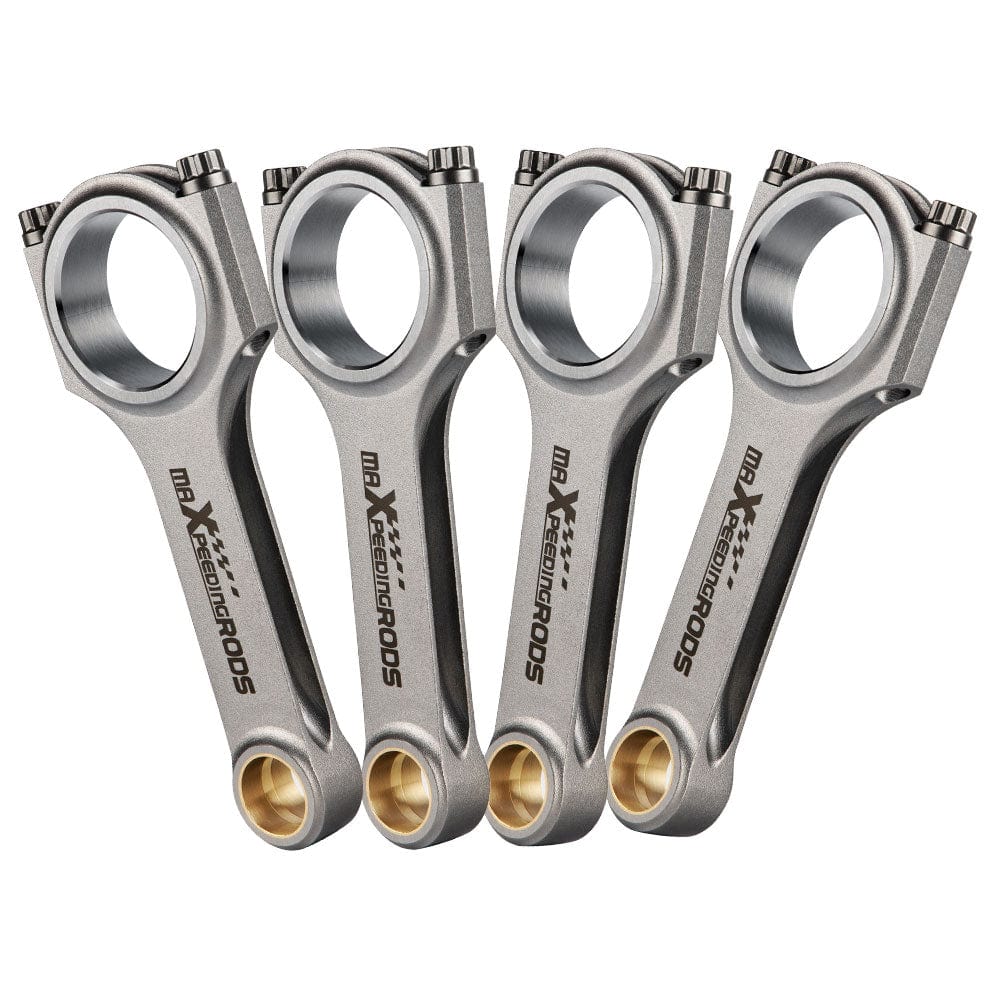

- 4x steel connecting rods (H-beam)
- 1x set of ARP 2000 3/8" bolts
Features
- New
- 100% tested and balanced
- TÜV-inspected
- Multiple heat treatments
- With bronze bushings for floating pistons
- 100% inspected with X-ray, ultrasound and Magnaflux
- Designed and manufactured with advanced CNC machines

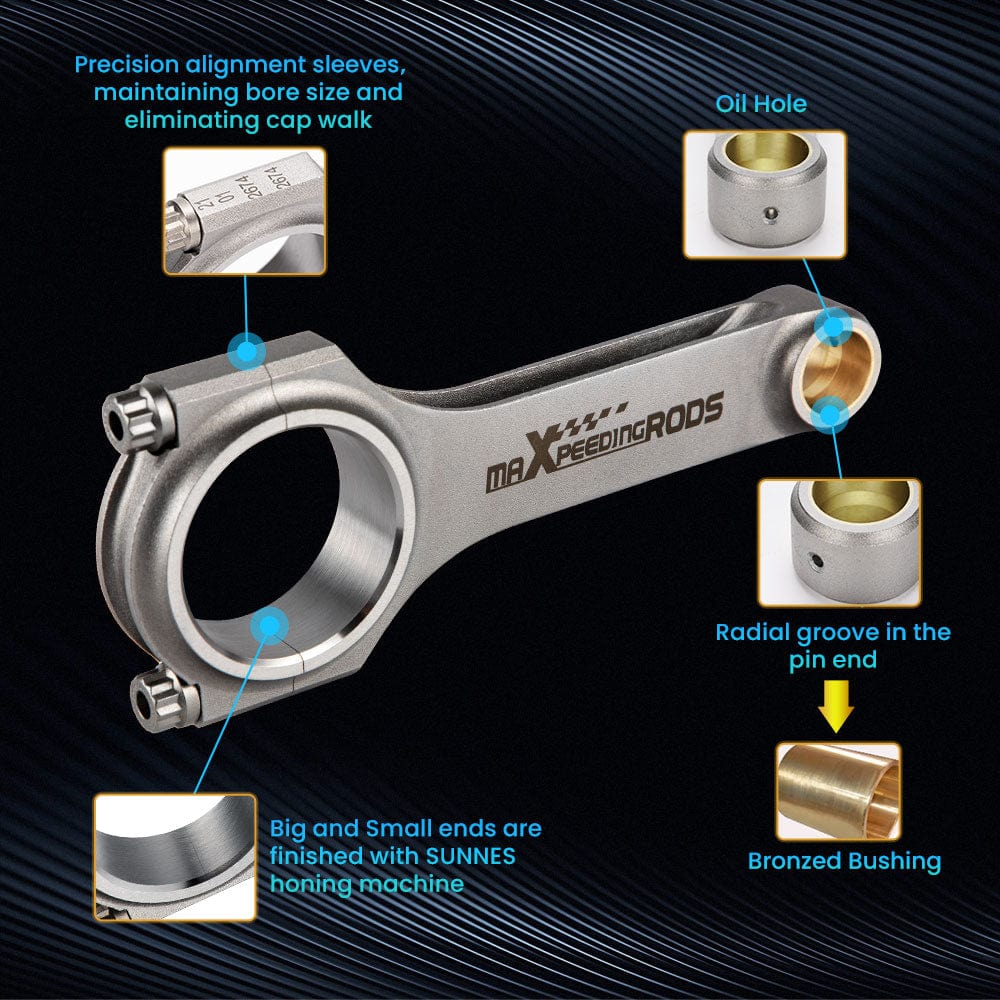

- Large and small connecting rod eyes honed by SUNNEN machine
- Shot peened for long life, even under load
- Precise alignment of the base hole for the connecting rod bearing to prevent shifting
Please note
Upgrade to ARP L19 bolts possible, up to 220,000/230,000 or 260,000/270,000 PSI (from 800hp, surcharge 10 EUR/piece). Professional installation highly recommended, no manual included.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as differences may exist per version. Unsure if this part fits your vehicle? Feel free to contact us before purchasing.
