Application

Compatible for Mazda speed 3/Axela with DISI MZR Engine 2005-10,
compatible for Mazda speed 6 with DISI MZR Engine 2005-10,
compatible for Mazda CX-7 European Version with DISI MZR Engine 2005-10,
compatible for Mazda 6/3, CX-7 (European) with DISI Engine 2005-10,

OE/Part number

53047109905, 53049889905,
53047109901, 53049889901,
K0422-882, K0422-881,
L3K913700E, L3K9-13-700E,
L3M713700C,L3M7-13-700C,
L3M713700G,L3M7-13-700G,

Specification

Turbine Inducer wheel Diameter：49.9mm
Turbine Exducer wheel Diameter：44.5mm
Compressor Inducer wheel Diameter：44.9mm
Compressor Exducer wheel Diameter：58.8mm
Turbo Model: K0422-881, K0422-882
Engine Code: DISI MZR, DISI NA/JP
Cooling Type: Water+Oil Cooling
Bearing Type: Journal Bearing/Floating Bearing
Thrust Bearings: 270 Degrees
Horsepower: 191 kw/256 bhp
Actuator Type: Vaccum Actuator
Turbo Type: Individual
Universal Fitment: no
Finish: no
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size:26x24 x 23cm
Package Weight: 7300g

Package included

1xTurbocharger
2x Flange Gaskets
4x Oil/water Port Gaskets

Feature

1. OEM-quality and size with little modification

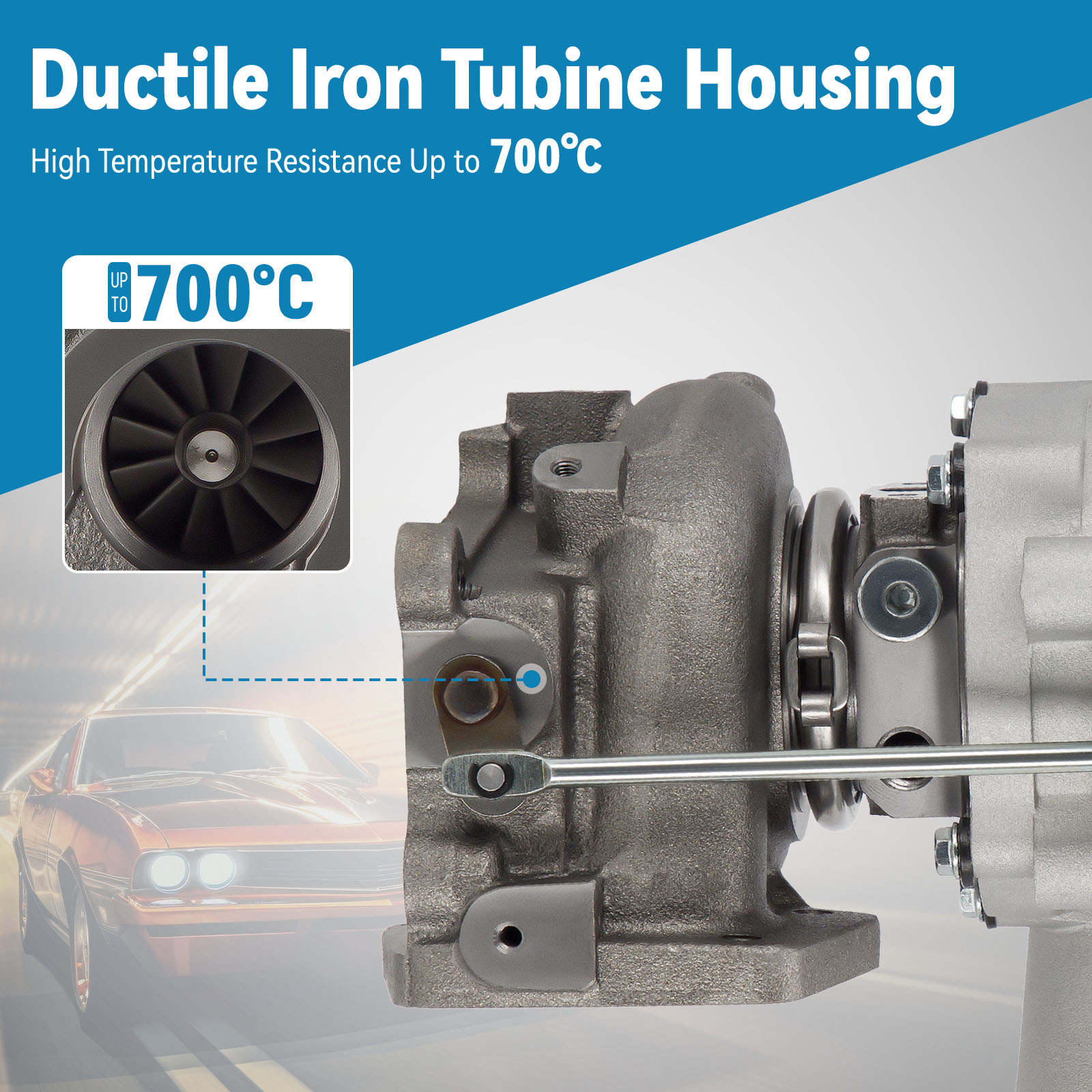

2. Ductile Iron QT450-10 turbine housing - Temperature resistant up to 700℃
3. K418 Alloy turbine wheel- High oxidation stability AND resistance up to 900℃
4. Cast aluminium blades with good gas tightness and corrosion resistance
5. ZL104 aluminum compressor housing with lightweight
6. 100% balancing Test by TURBOTECHNICS VSR3

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
