Specifications:

Turbo Model：CT16V
Engine:1KD-FTV
Cooling Type：Oil+Water Cooled
Bearing Type: Journal Bearing / Floating Bearing
Trust bearings: 270 Degrees
Horsepower:  Up to 170HP
Compressor: 2 Bolt Inlet Flange
Turbine: 3 Bolt Inlet/Outlet Flange
Compressor Wheel: 6/6 blades
Turbine Wheel: 11 blades
Maximum PSI: 10 PSI
Actuator Type: Electronic Actuator Included
Turbo Type: Individual
Universal Fitment: No
Finish: Polished
Condition: Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:29x 27 x 24 cm
Package Weight: 8350g

Features

*Product Material
1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance  up  to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight

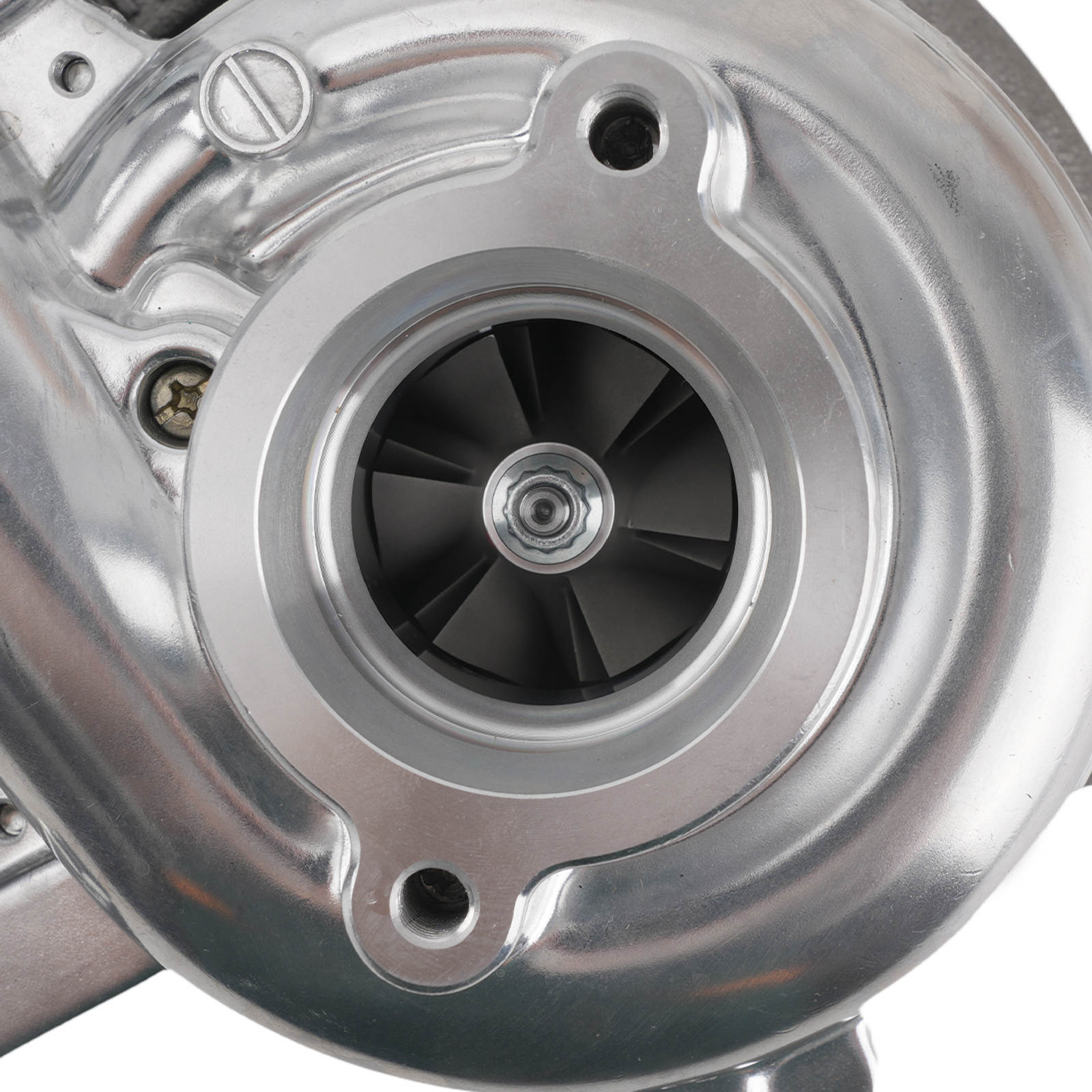

4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

*Product  Performance
1. OEM fitment turbo with upgraded material and performance
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2.  G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

Package included:

1xTurbocharger
2x Flange Gaskets
2x Oil/water Port Gaskets

6x Stud Bolts & Nuts

2x Gloves

1x Injection
1x Manual
1x Brochure
1x Sticker

1x Balanced Test Report
