Turbo T3 T04E 0.63 A/R met olietoevoer- en retourleidingset
Product Description

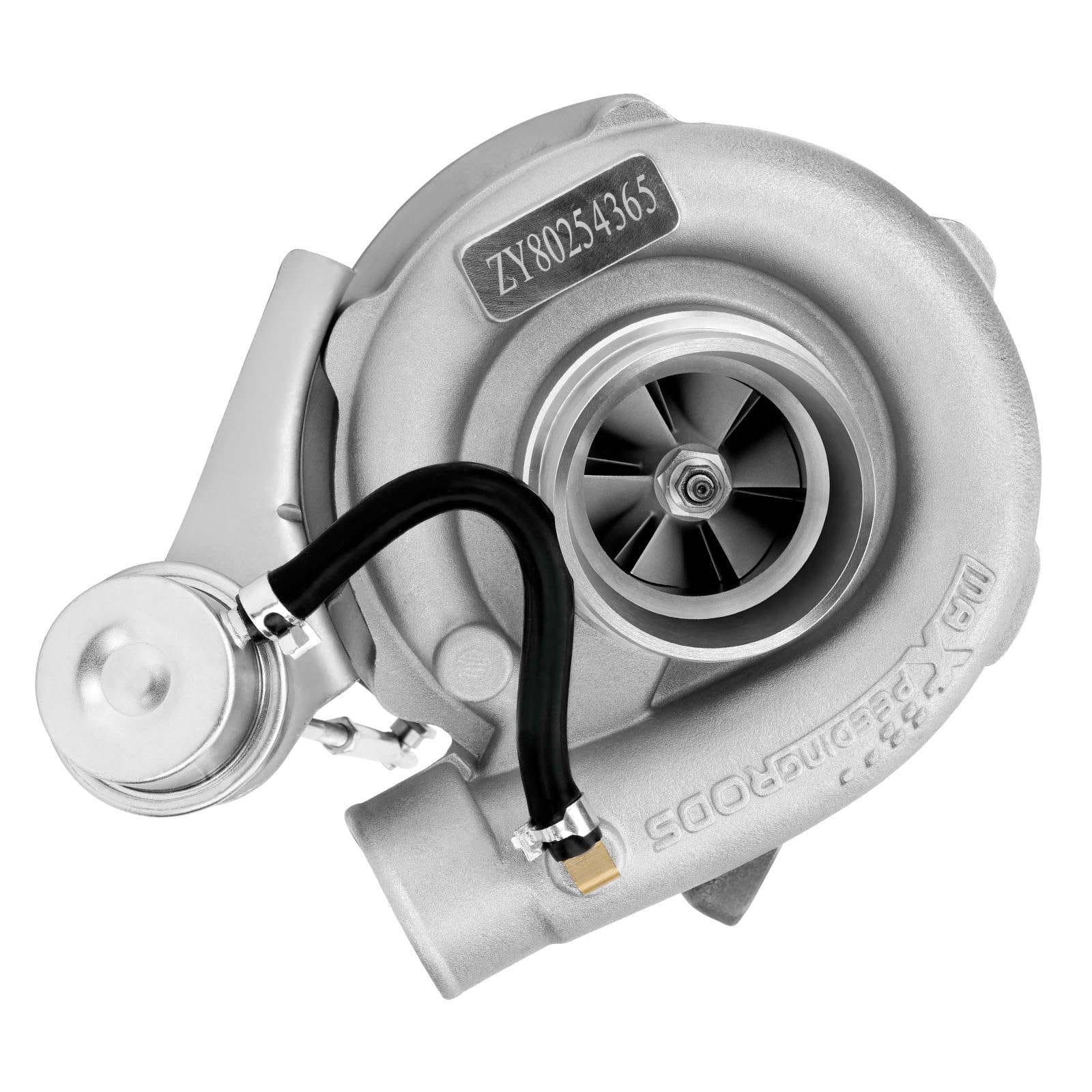

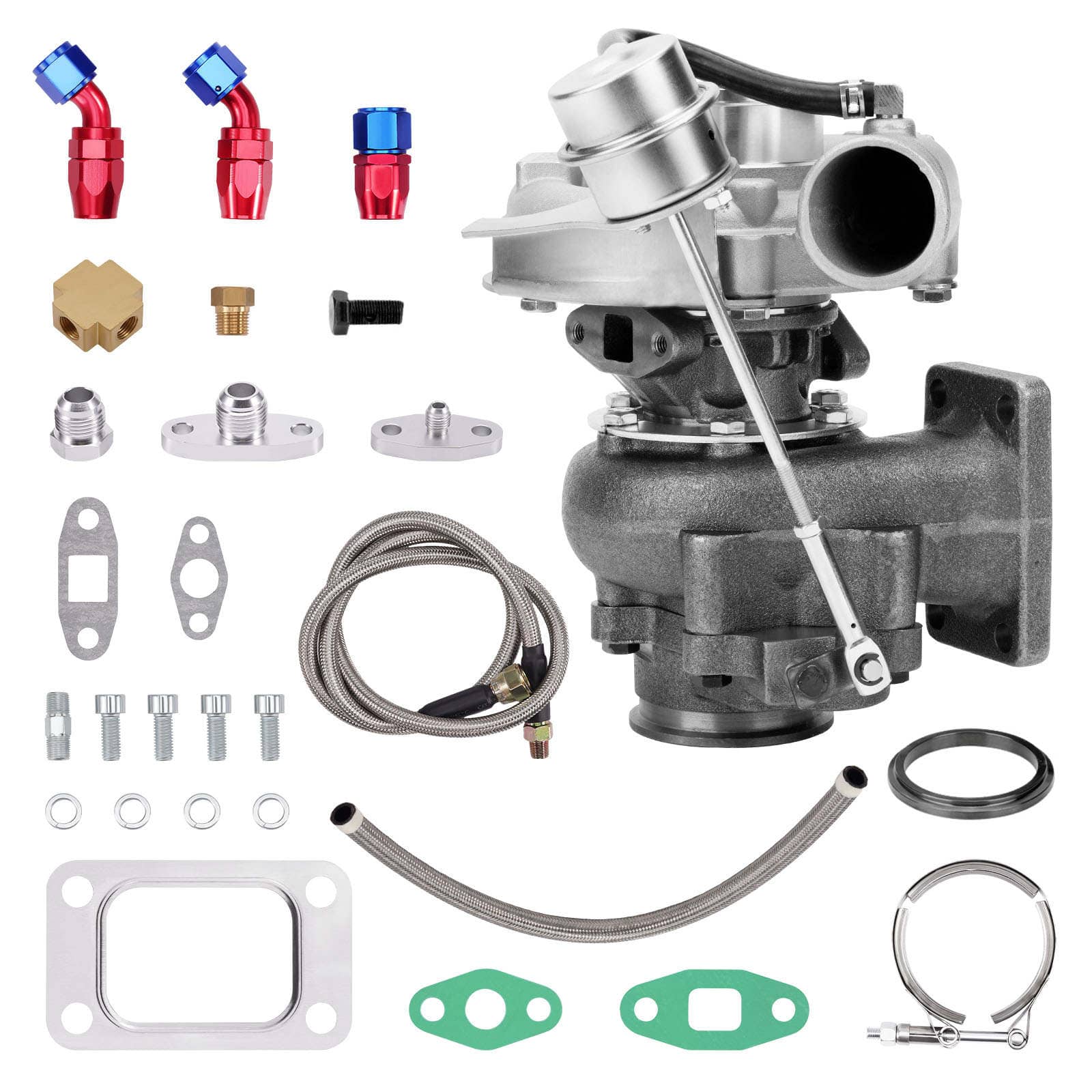

T3 TO4E turbocharger (.63 A/R) with oil return and oil feed lines, a universal turbocharger for 1.5-2.5L 4/6-cylinder engines.
Specifications
- Oil return line: length 550 mm, inner diameter 21 mm
- Oil feed line: length 1000 mm, inner diameter 14 mm
- Turbocharger: T3
- Exhaust manifold flange: T3 4-bolt flange
- Exhaust flange: V-band flange
- Cooling: oil-cooled
- Wastegate: internal
- Power: up to 420 hp
- Compressor wheel: trim 48.1, air intake diameter 50.5 mm, air outlet diameter 76 mm, A/R 0.5
- Turbine wheel: trim 74.2, air intake diameter 65.5 mm, air outlet diameter 55.9 mm, A/R 0.63
- Bearing type: journal bearing
- Condition: 100% brand new

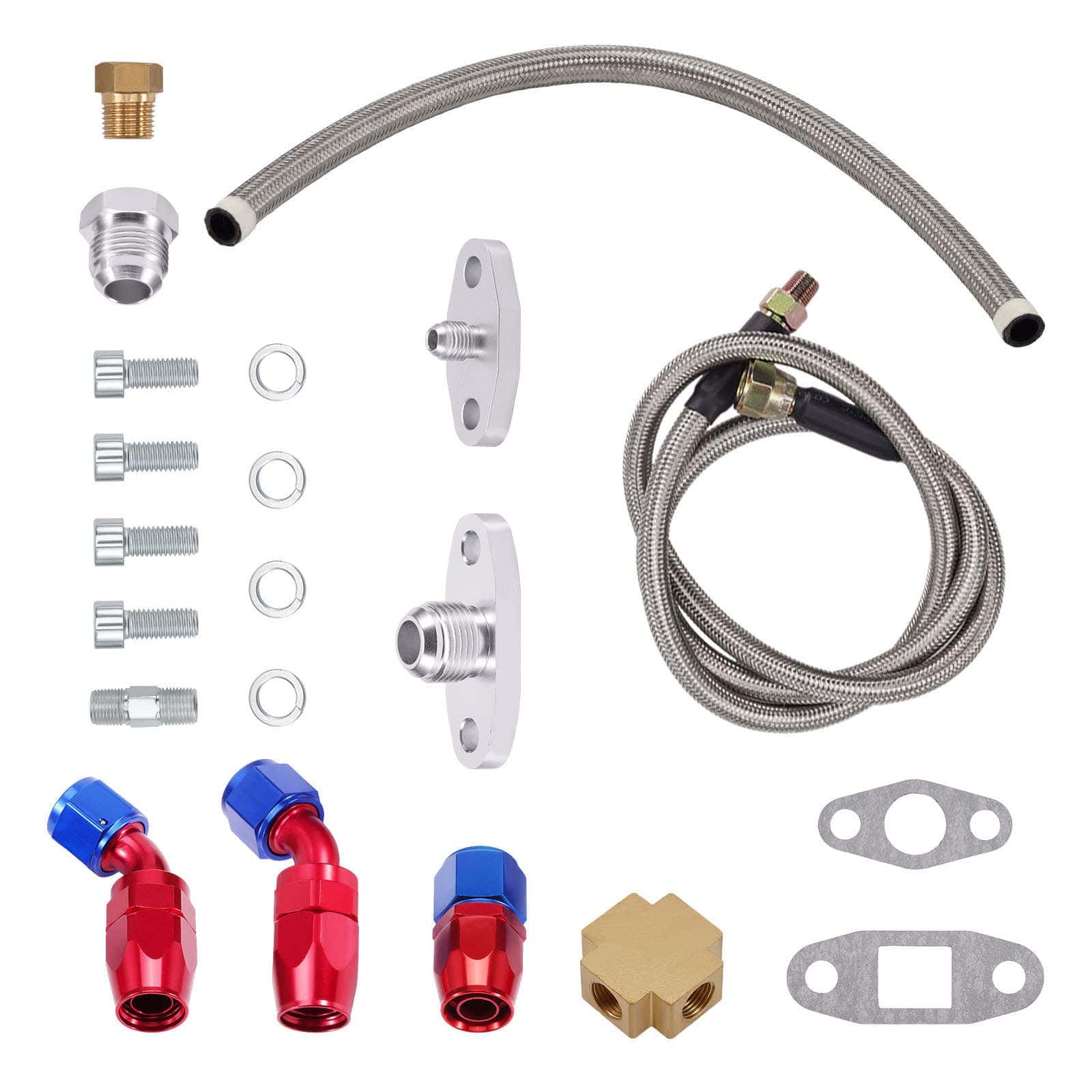

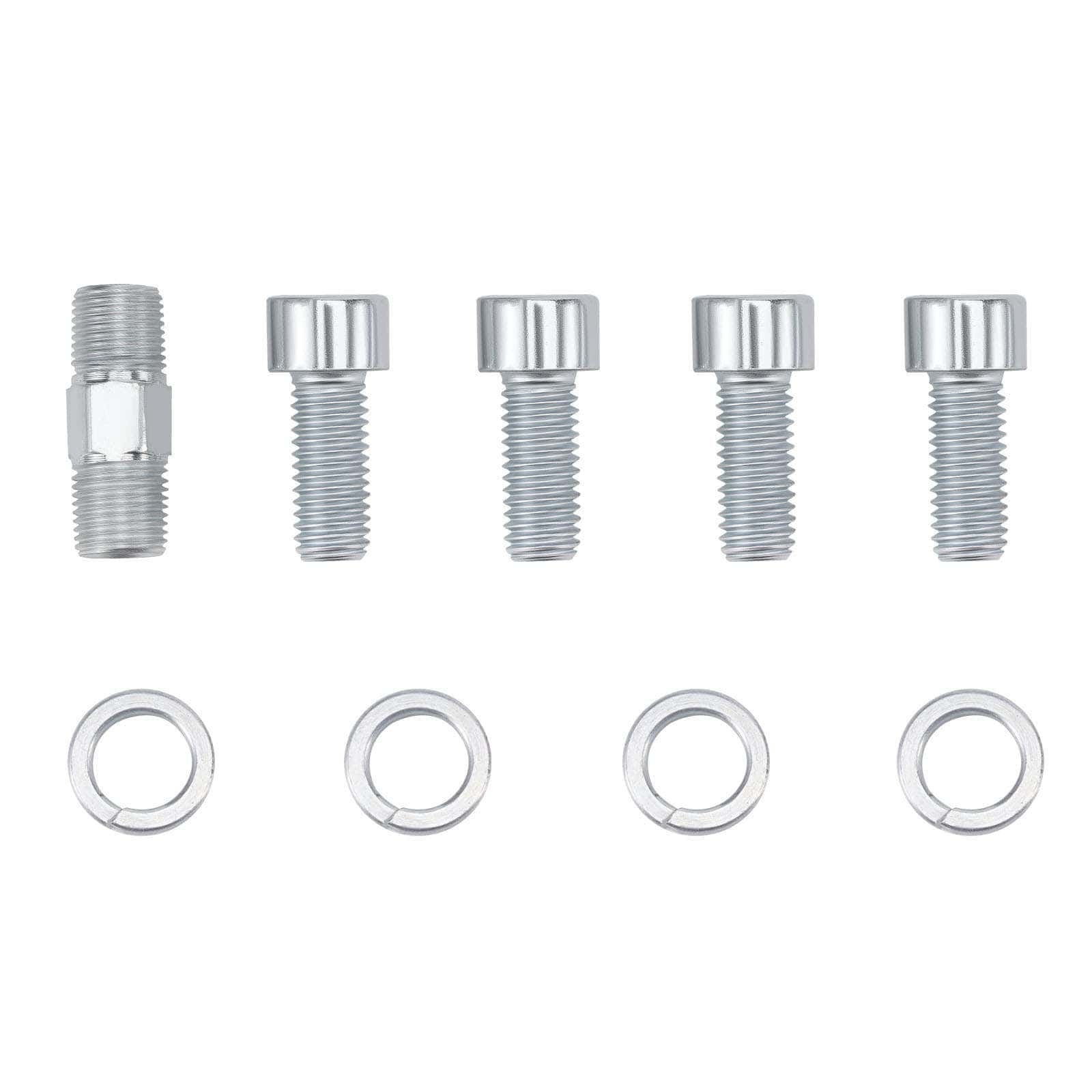

- Accessories: as shown in the picture
Please note
This is an aftermarket and universal turbocharger; modification may be required per vehicle. Please check the turbo number before purchase to avoid incorrect purchase.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as differences may exist per version. If you are unsure whether this part fits your vehicle? Please feel free to contact us before purchase.
