Product Description

Universal T3/T4 turbocharger with RS blow-off valve, suitable for 1.5L to 2.5L 4- or 6-cylinder engines. This is not a vehicle-specific turbo; please check the dimensions and if your engine provides sufficient space for installation before purchasing.

Specifications

• Suitable for displacement: 1.5L to 2.5L, 4/6-cylinder engines
• Boost pressure: 7 psi (0.5 bar) to 21 psi (1.5 bar)

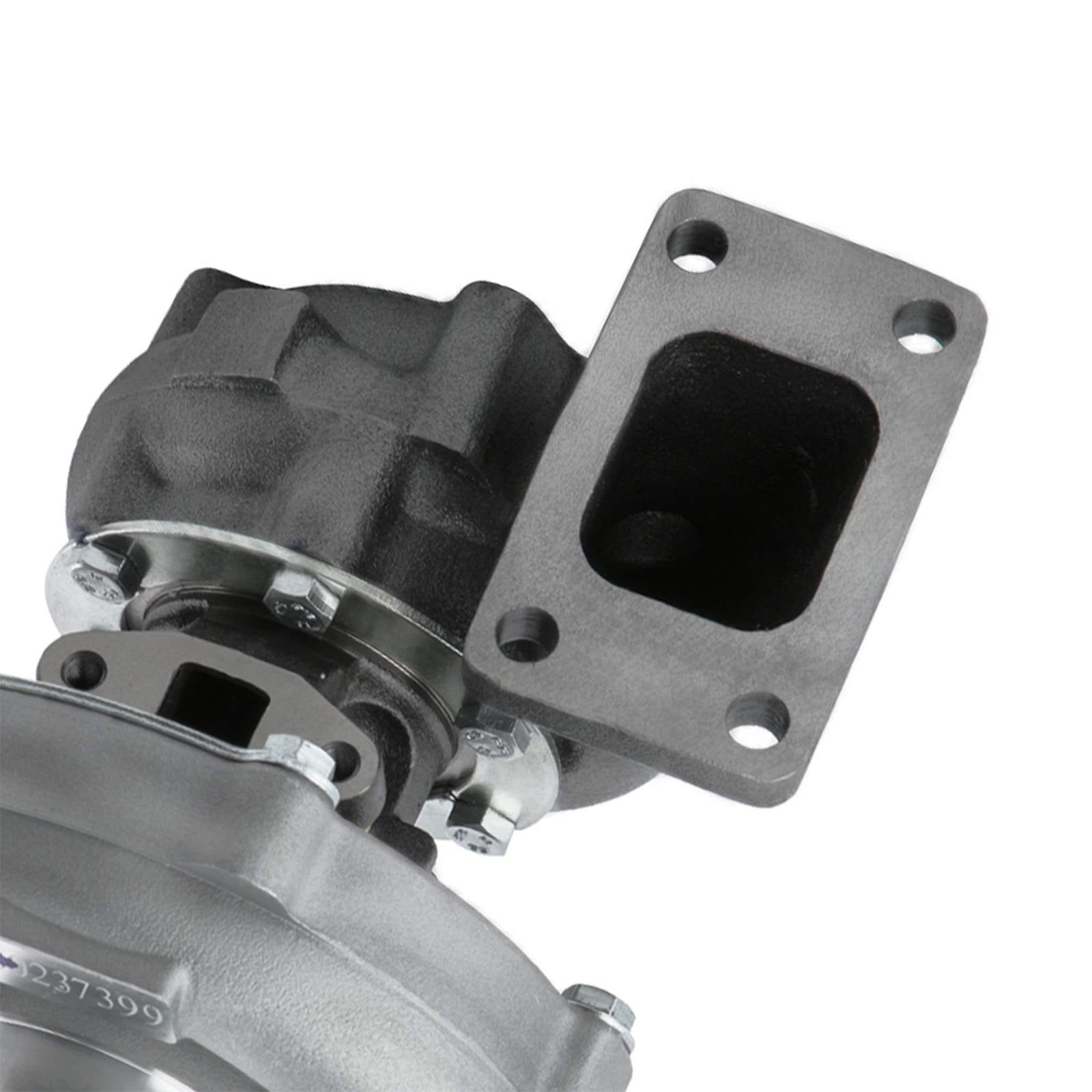

• Exhaust flange (turbo manifold): T3/T4, 4-bolt
• Exhaust flange (downpipe): standard T3, 5-bolt
• Cooling: oil-cooled
• Bearing: ball bearing / journal bearing
• Thrust bearing: 270 degrees
• Power: up to 400 hp
• Wastegate: none (without wastegate, without actuator)

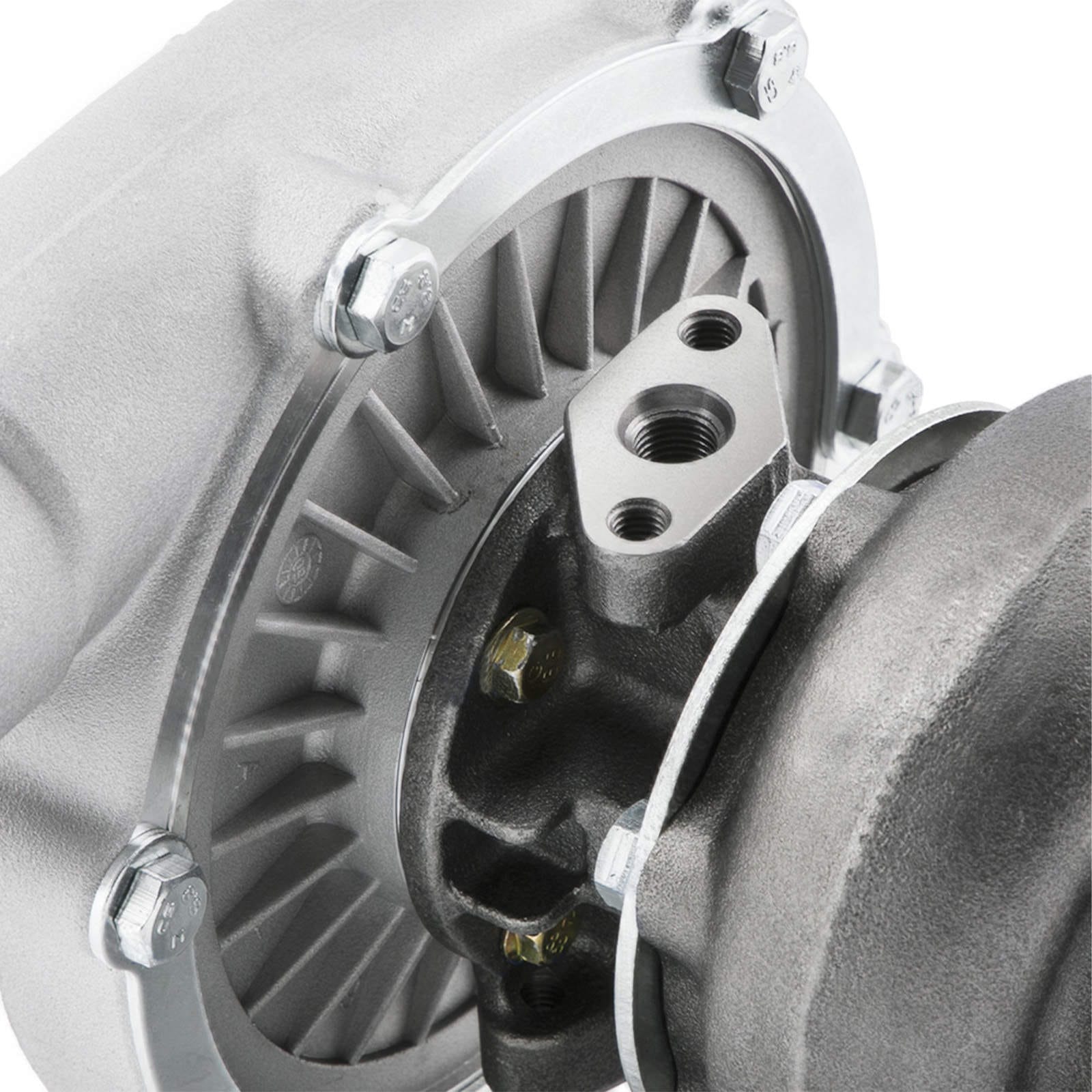

• Oil inlet: M12x1.25
• Oil outlet: 2x M8x1.25
• Finish: matte
• Condition: new

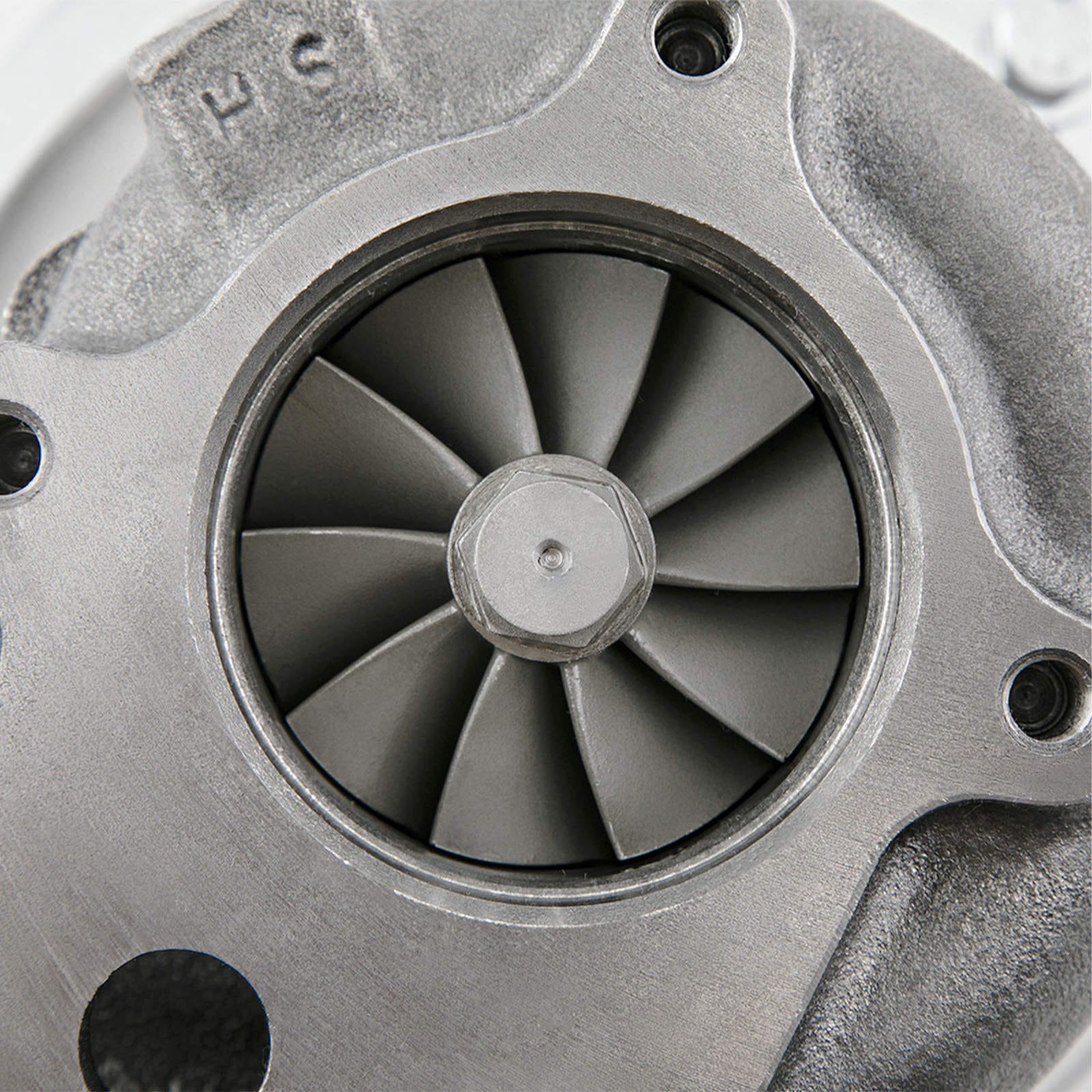

• Compressor: Trim 44 | A/R 0.5 | Inducer 50.5 | Exducer 76
• Turbine: Trim 73 | A/R 0.63 | Inducer 65.5 | Exducer 55.9
• Blow-off valve: RS type, aluminum billet body, 40mm hard anodized valve, dual spring, up to 30 PSI, 2-bolt mounting
• Warranty: 1 year
• Package dimensions: 27 × 25 × 24 cm

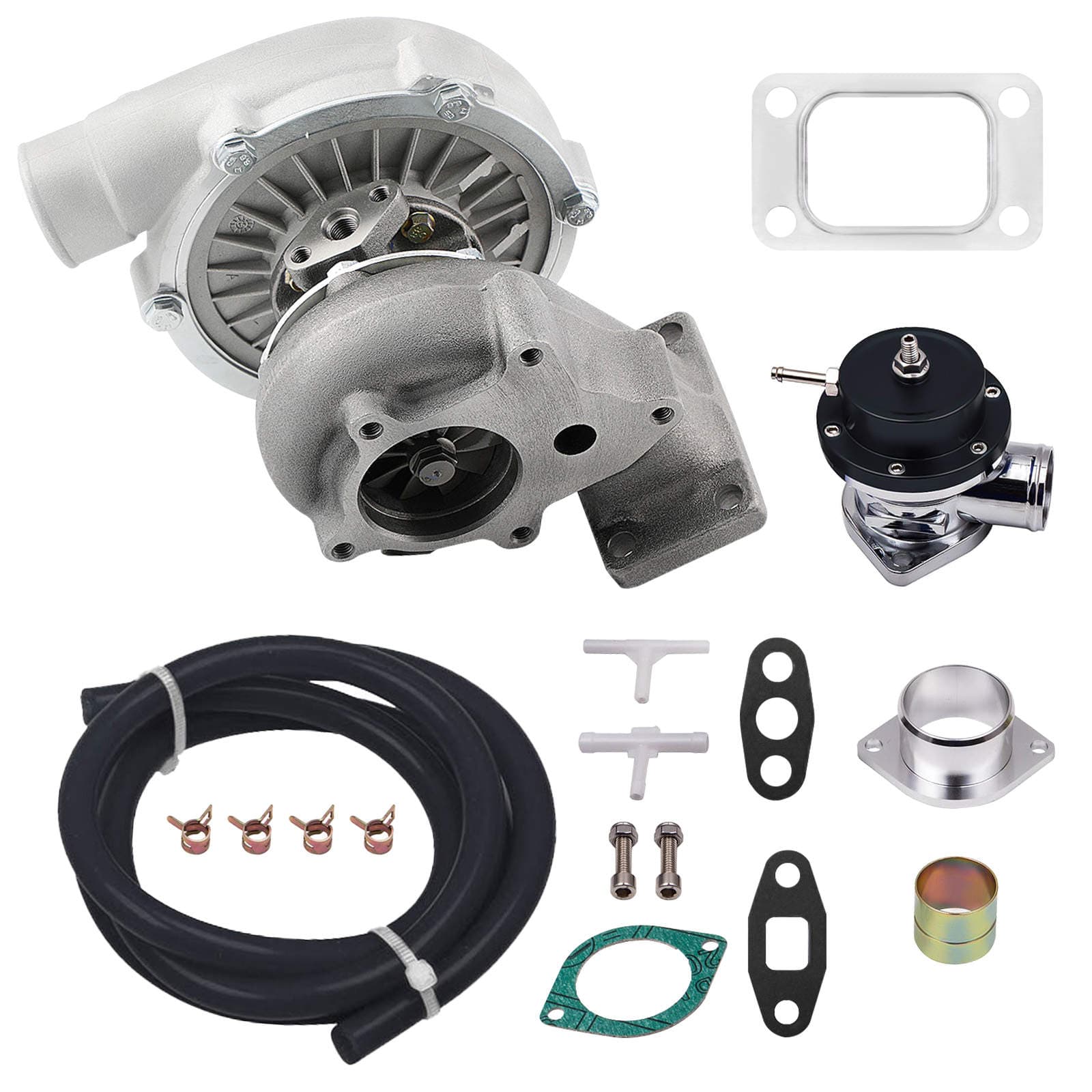

Scope of delivery

• 1x turbo kit
• 1x blow-off valve kit

Features

• Turbine housing: nodular cast iron QT450-10, heat resistant up to 700 ℃
• Turbine wheel: K418 alloy, high oxidation stability and resistant up to 900 ℃
• Compressor housing: lightweight ZL104 aluminum
• 100% balanced tested with TURBOTECHNICS VSR3

Please note

This turbo has NO internal wastegate; you will need an external wastegate on your manifold. Ensure that the oil return line is lower than the turbo and that the exhaust outlet is properly sealed. This turbo is not vehicle-specific; please check specifications and compatibility before ordering. Professional installation is highly recommended.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences depending on the version. Are you unsure if this part fits your vehicle? Please feel free to contact us before purchasing.
