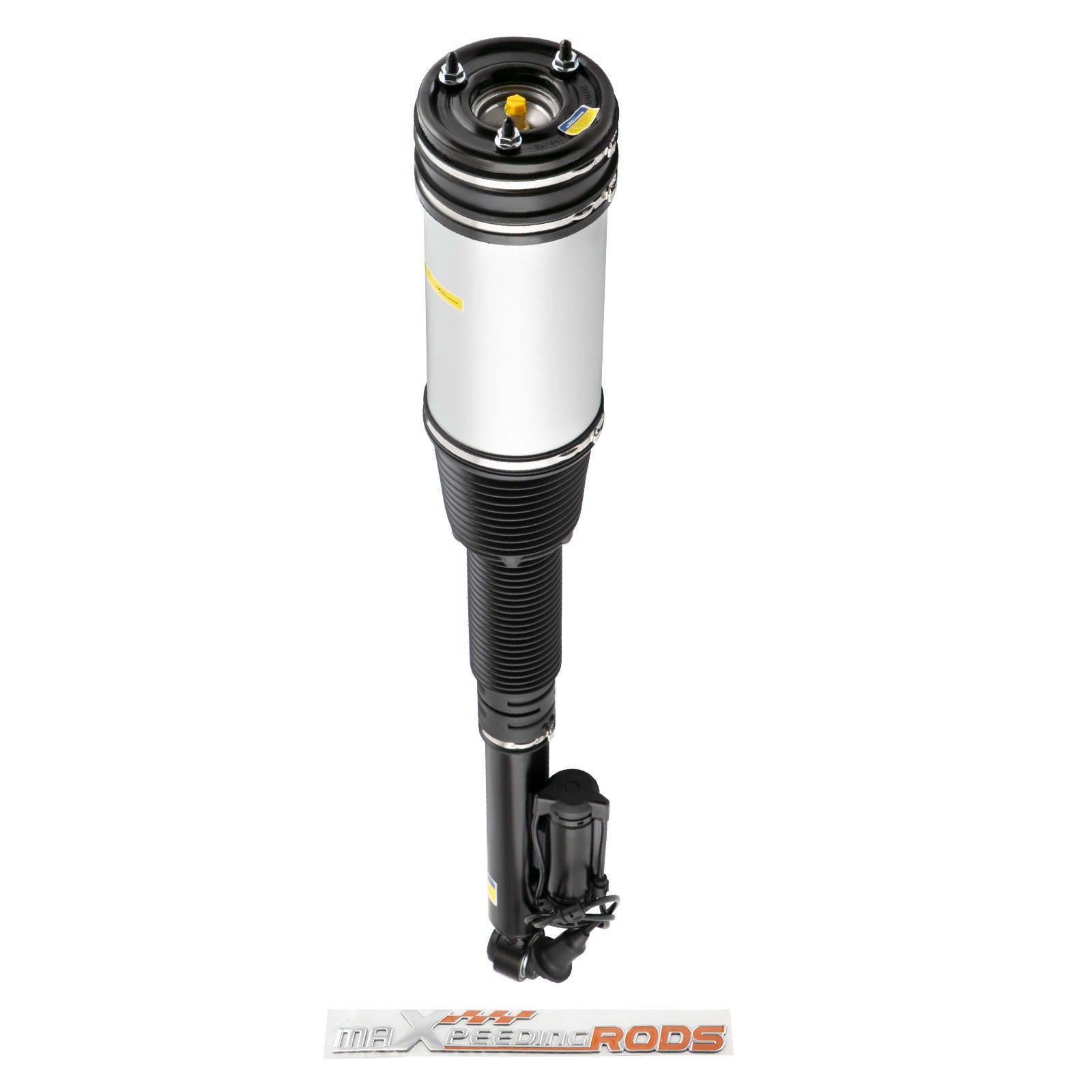

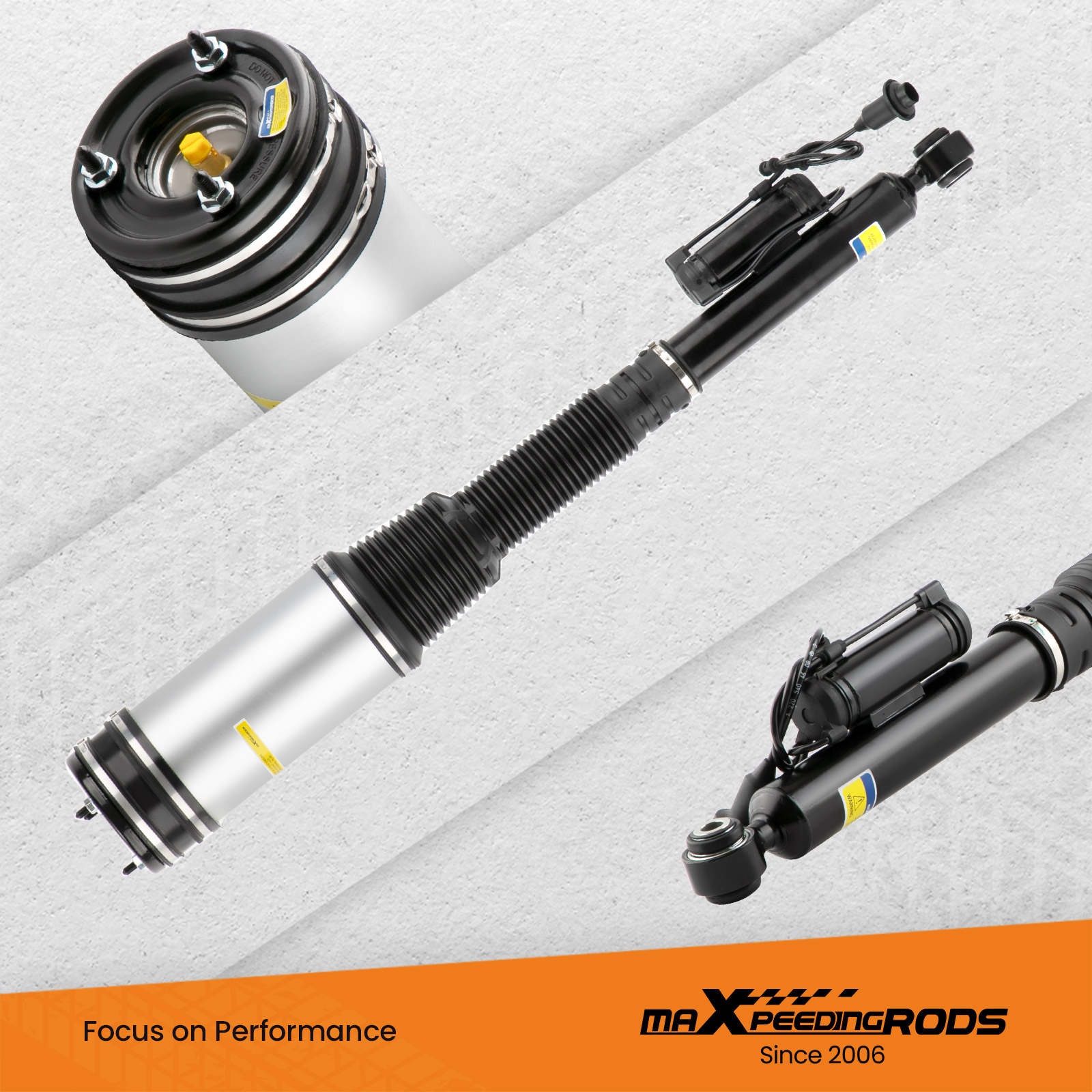

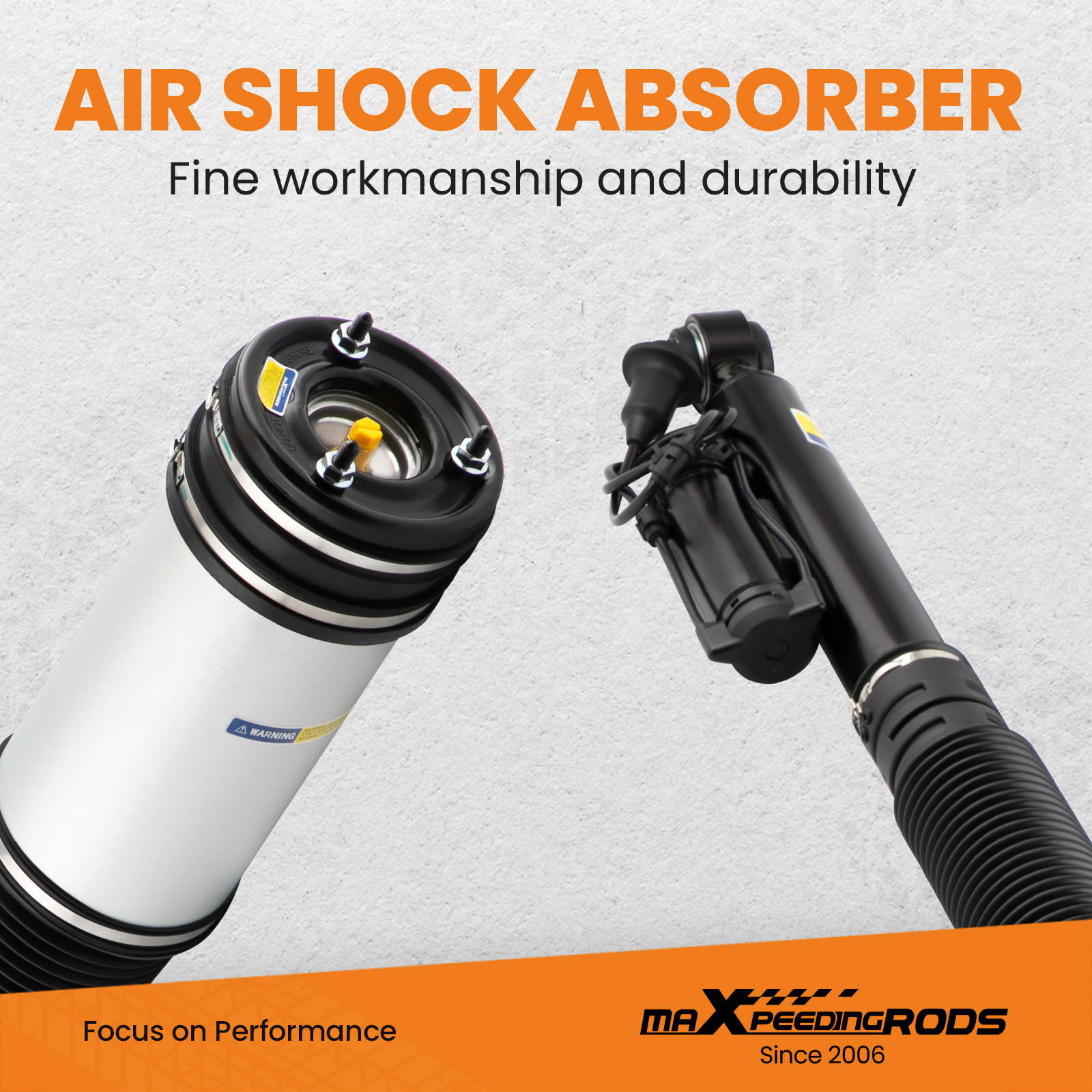

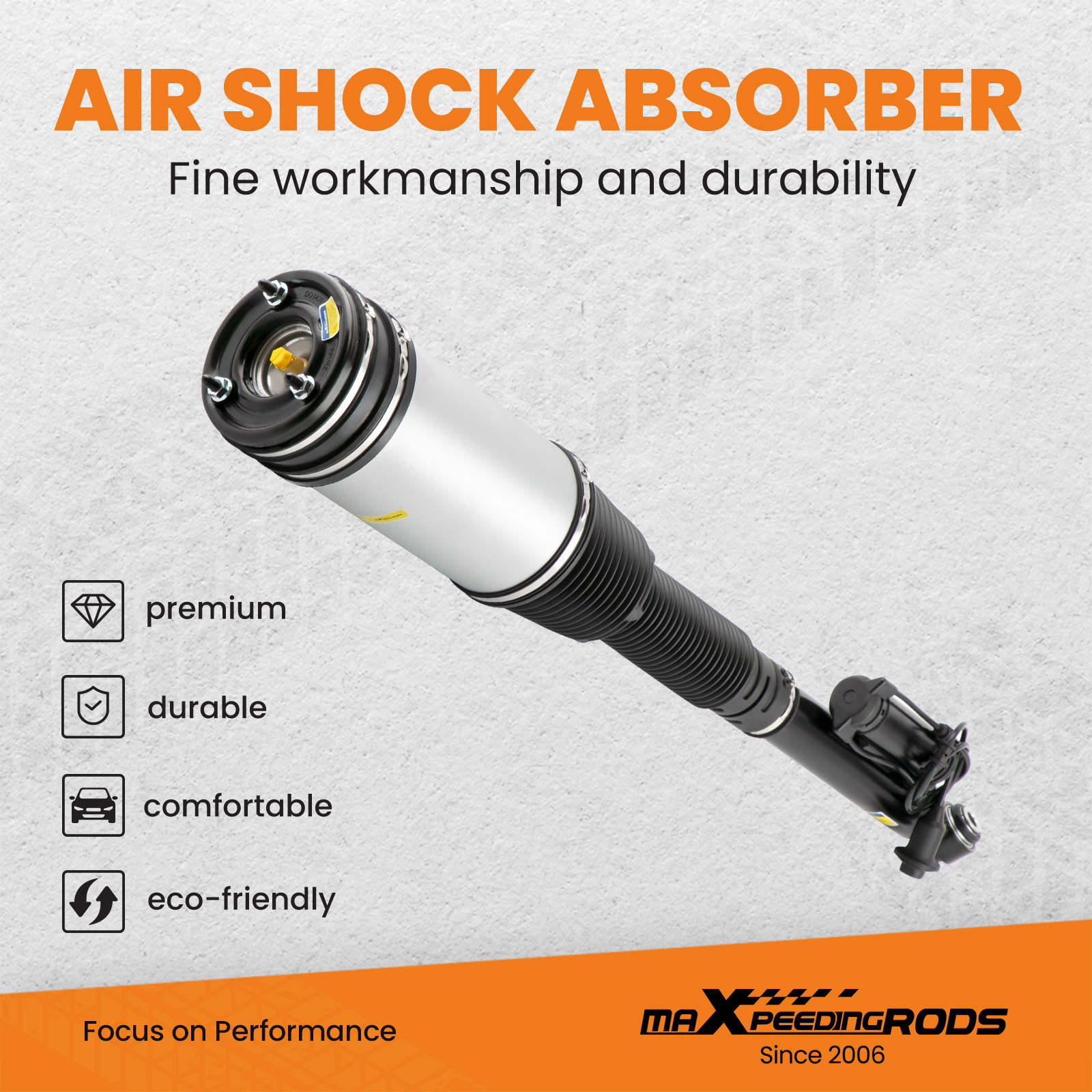

Rear Air Suspension Strut Shock compatible for Mercedes S Class W220 S430 S500 2203205013
Rear Air Suspension Strut Shock compatible for Mercedes S Class W220 S430 S500 2203205013
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Application
Compatible for Mercedes-Benz S Class S430 2000-2006
compatible for Mercedes-Benz S Class S500 2000-2006
compatible for Mercedes-Benz S Class S55AGM 2001-2006
compatible for Mercedes-Benz S Class S600 2001-2006
(Front Shock for cars without 4Matic With Airmatic Suspension)
(Not correct for models with ABC (Active Body Control) or 4MATIC (All Wheel Drive)
OE/Part number
220 320 50 13, 220 320 5013, 2203205013, 220320501360,
2203202338, 220 320 23 38, A2203202338 , A 220 320 23 38,
220320501380, 220320501388, A2203205013, A220320501360, A220320501380, A220320501388
Specification
Condition: New
Fitment Type: Direct Replacement
Equipment Vart.:ADS（Adaptive damper system）
Quantity: 1 piece (for rear left or right side)
Internal Construction Type: Twin-tube
Surface Finish: Rust Protected
Greasable or Sealed: Sealed
Gas Charged Shock: Yes
Bushings Included Yes
Adjustable: Yes
Shock Absorber Type: Gas Pressure
Length, width and height (in/cm): 39*9*9/ 99*23*23
Weight: 19.51 lbs
Stroke: 130mm
Operating Pressure : ≤290 psi
Temperature range ≥-40℃ / ≤+70℃
Applicable Regions: Airmatic Suspension System

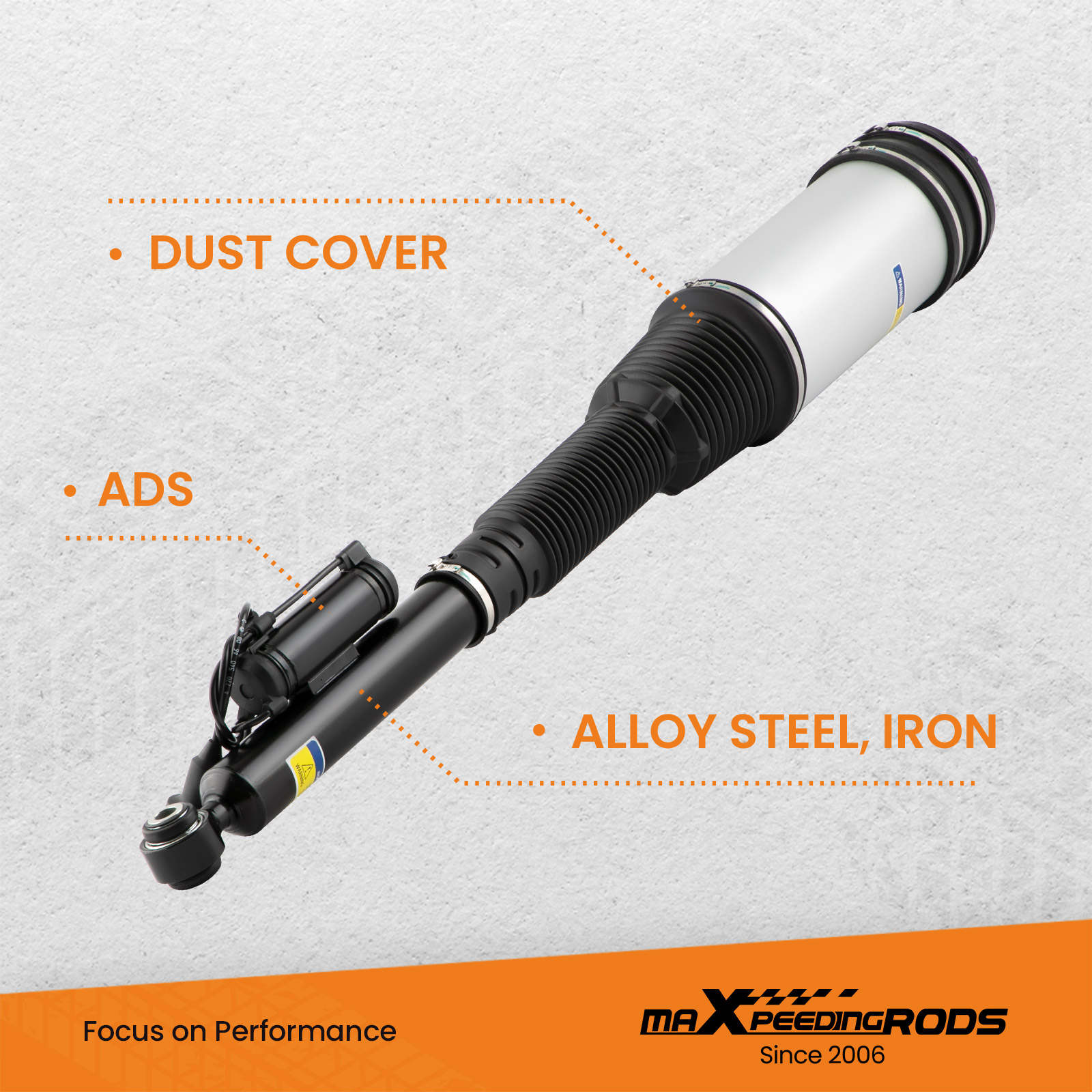

Feature
PREMIUM MATERIALS & TECHNOLOGY
Multi-ply air spring sleeve reduces noise.
Heavy-duty crimping rubber and connection compatible for seat withstands 2 MPa+ pressure, no detachment.
Polyurethane bump stop is durable, abrasion-resistant.
Nitrile rubber seals are oil-resistant and aging-resistant.
The connecting end is made of high-strength ST16 steel and integrally stamped.
6063 aluminum piston (≥3 MPa strength).
TPV dust cover: better flexibility and lifespan than TPE.
20μm chrome-coated piston rod for wear resistance.
RIGOROUS TESTING
100% Air tightness testing.
24-hour air tightness test ≤0.02 MPa.
Stress test over 5,000,000 times: durable and safe.
Operates in -58°F (-50°C) to 302°F (150°C) extremes.
TRUSTED QUALITY
Manufactured to strict quality control standards and compliant with ISO 9001.
Precise OE fit and performance.
CNC machined components.
PERFORMANCE & COMFORT
Upgraded adaptive damping system for precise control.
Restores ride height and enhances ride quality.
High compressive strength and sound insulation for a smooth, quiet drive.
Efficient heat dissipation for reliability.
Easy to install, with no special tools required.
INSTALLATION TIPS
Replace the old air fitting with a new one, insert the air tube into the air fitting cap to establish a proper connection.
