Connecting rod suitable for Porsche 914 2.0 4-Cyl 1970cc 74kW/ 101PS Year 1972-1975
Connecting rod suitable for Porsche 914 2.0 4-Cyl 1970cc 74kW/ 101PS Year 1972-1975
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Product description

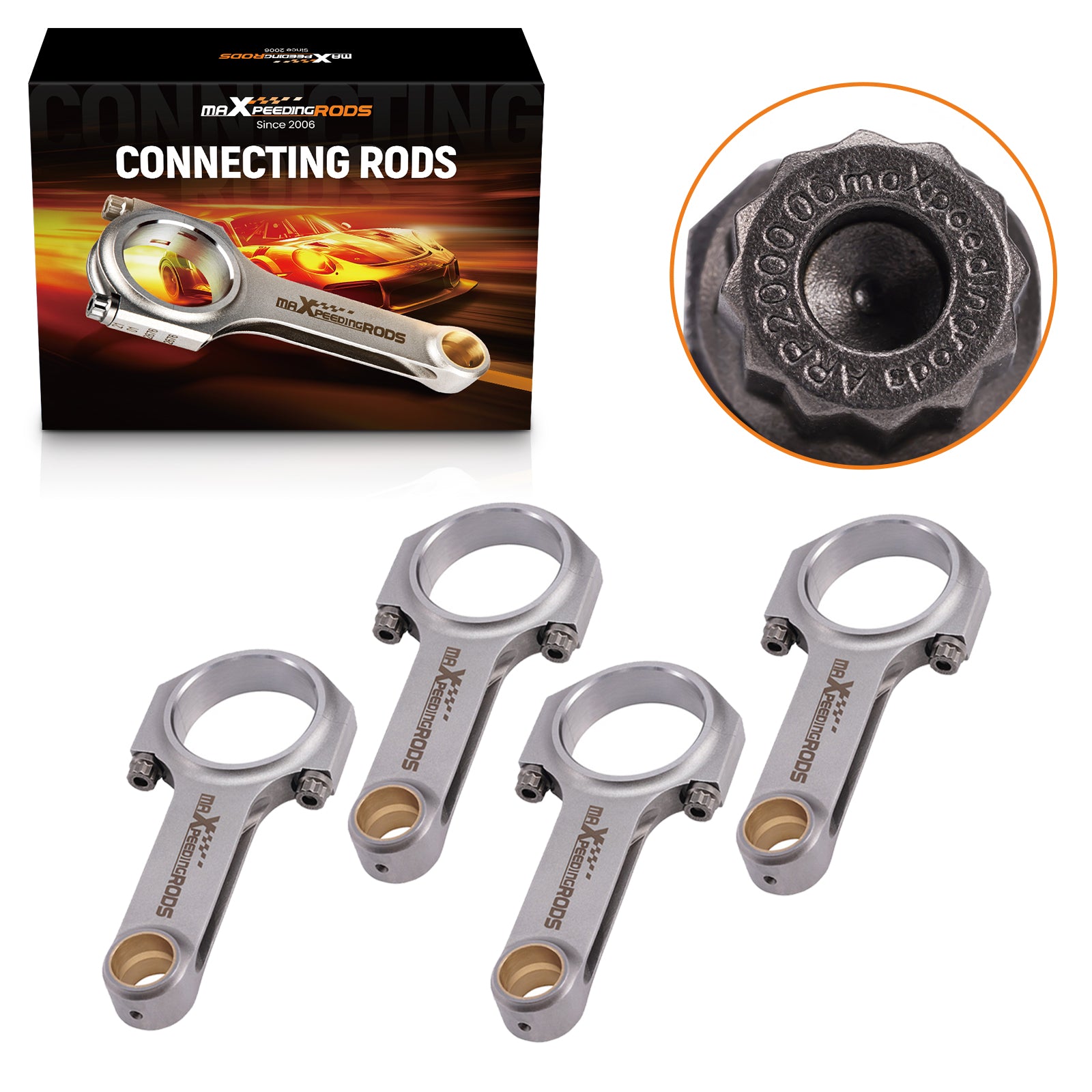

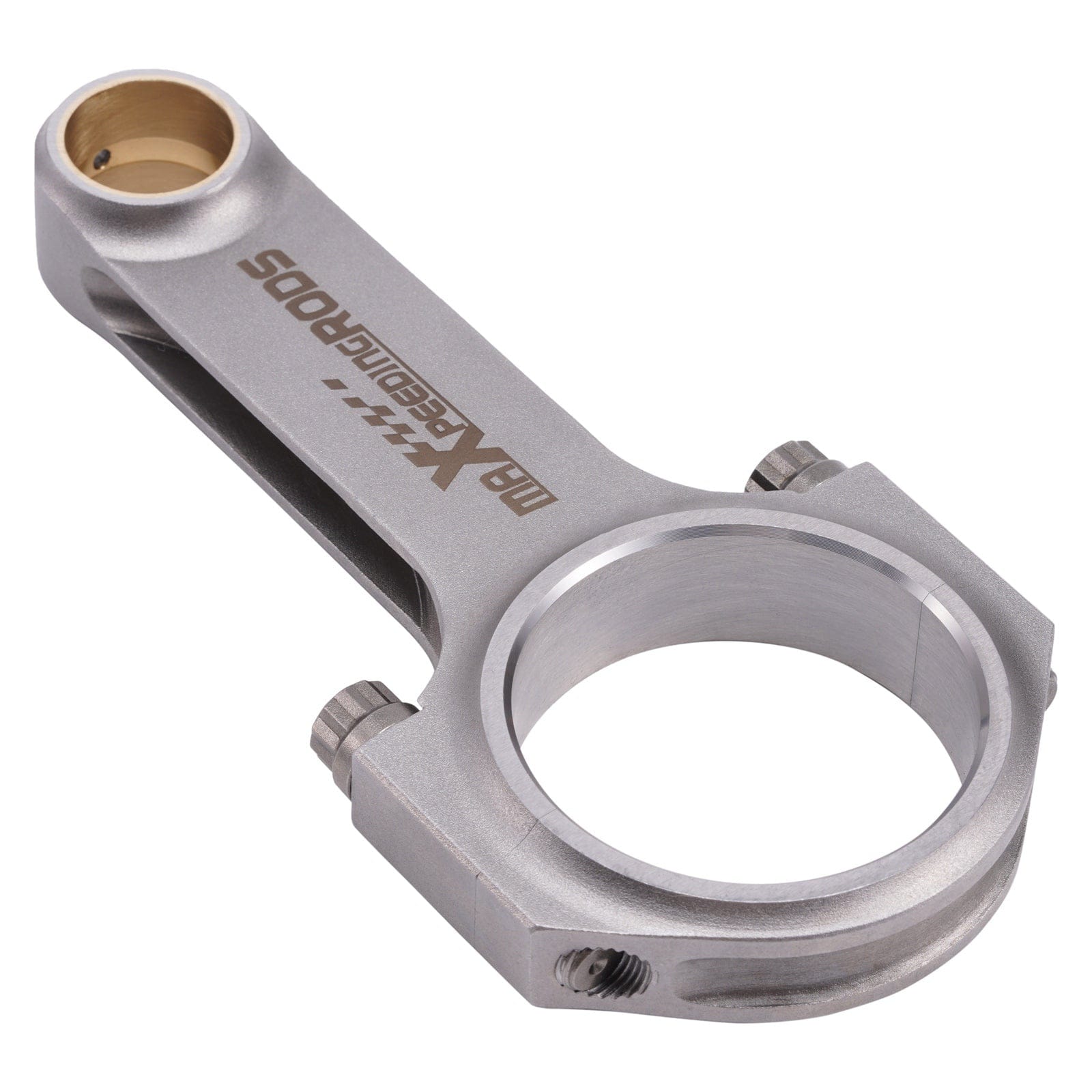

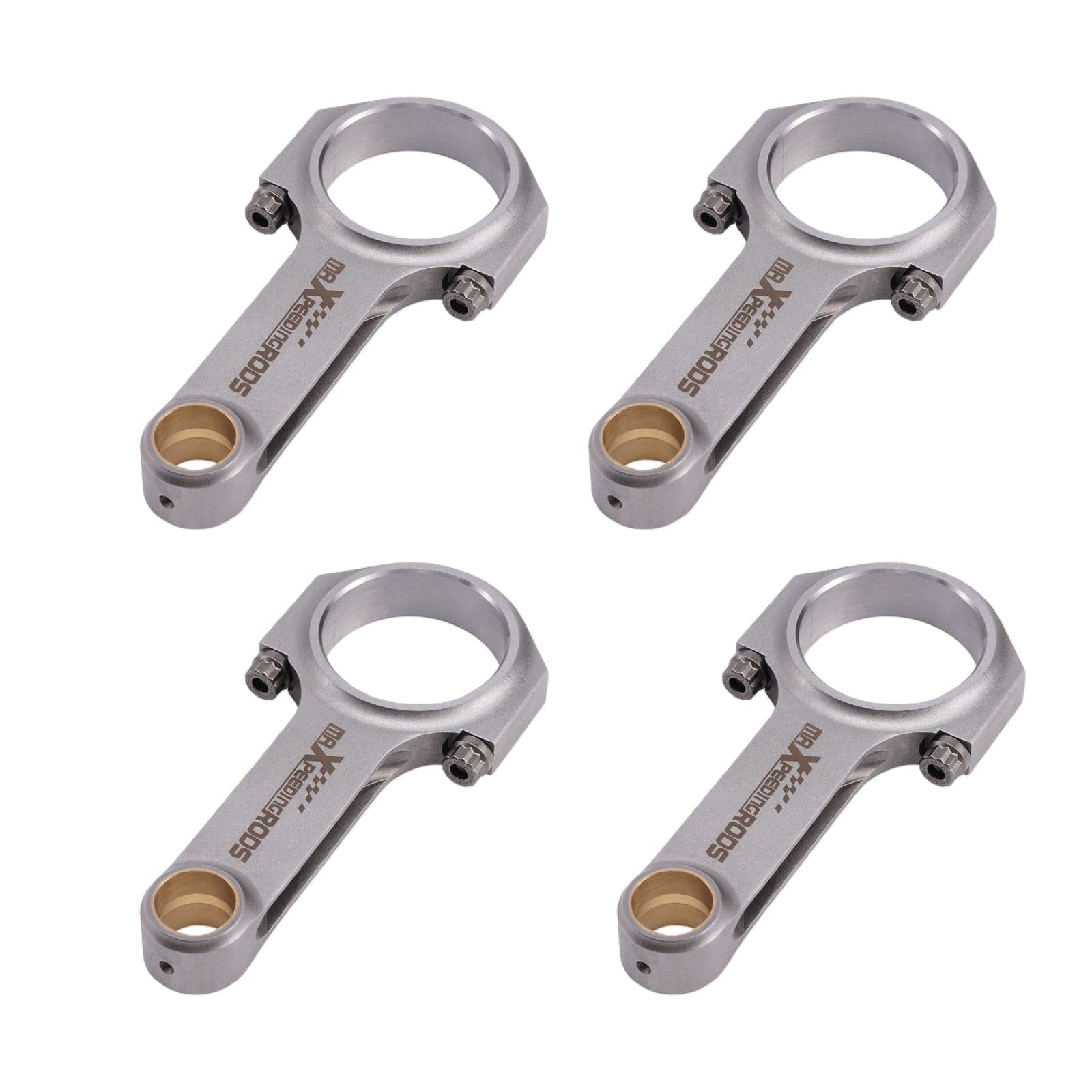

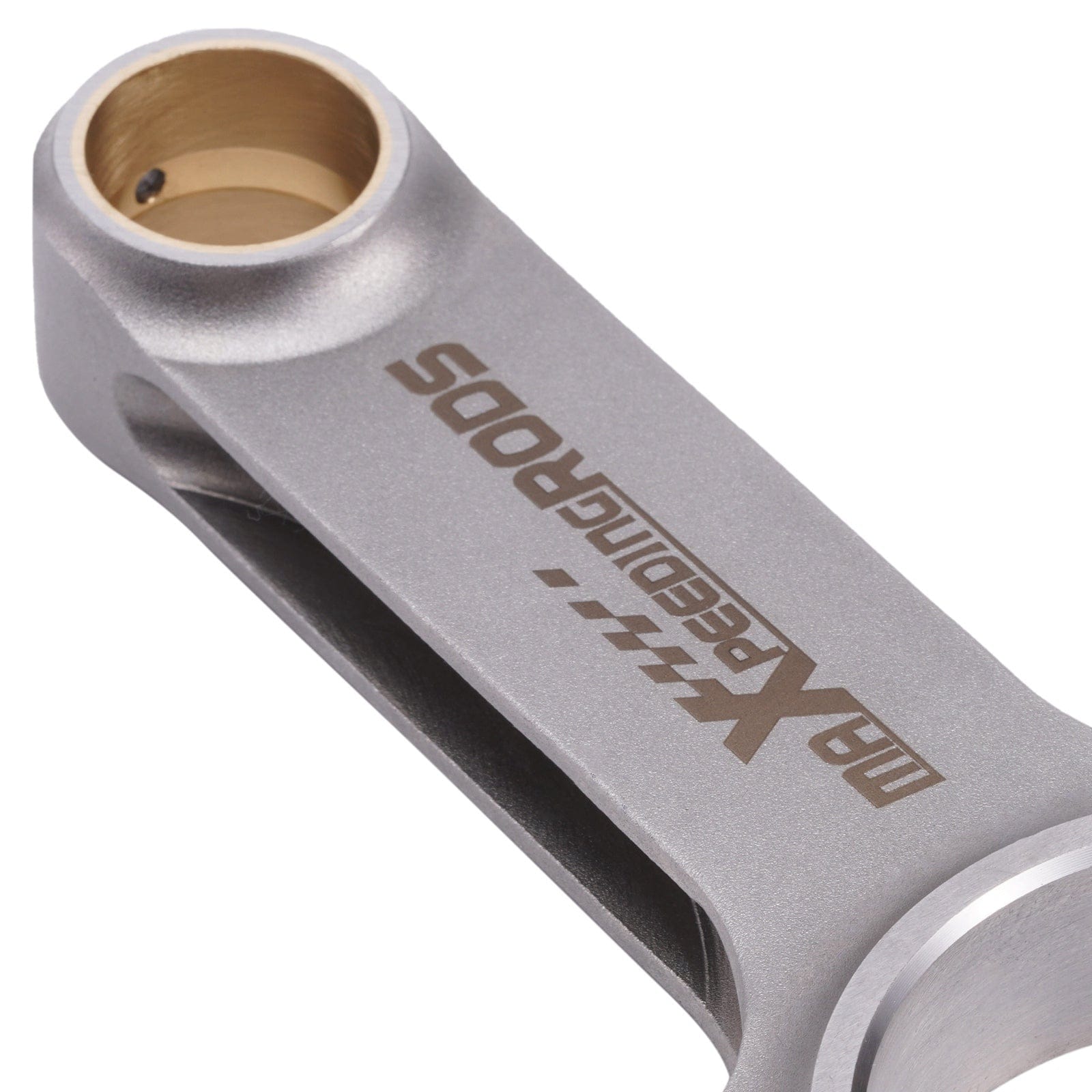

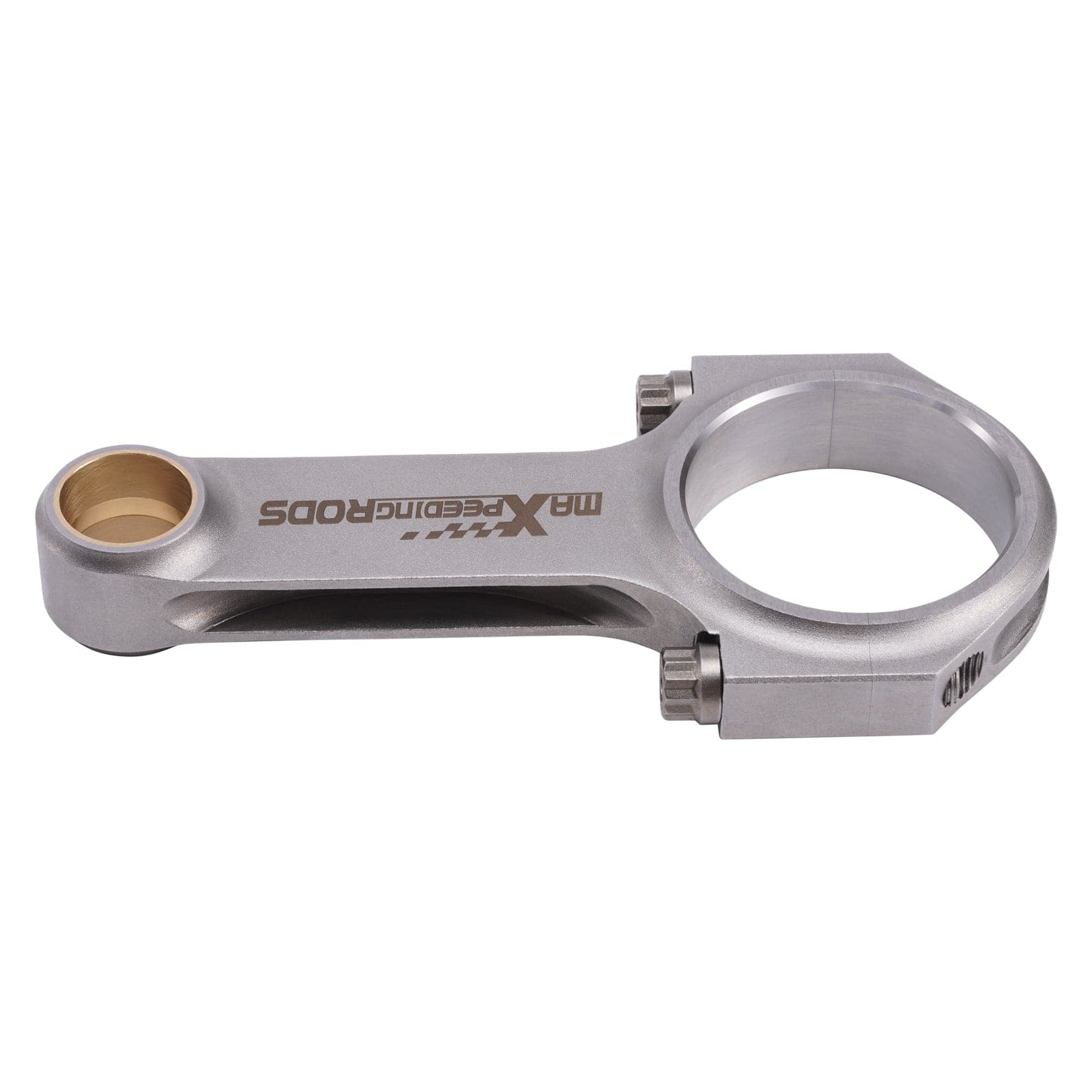

Forged H-beam connecting rods (conrods) for the engine, suitable for the Porsche 914 2.0L 4-cylinder.
Suitable for:
- Porsche 914 2.0L 4-cylinder
Specifications
- Type: forged aircraft quality 4340 chromoly steel, for racing; TÜV certified
- Number of H-beam connecting rods: 4 pieces per set
- Bolts: includes original 3/8" ARP 2000 bolts (upgrade to ARP L19 bolts at extra cost)
- Bolt size: 3/8"
- Tolerance: balanced to +/- 1 gram total
- Piston pin bore: +/- 4/1000 mm
- Power: 600 hp ~ 800 hp per set
- Clamping force: 220,000/230,000 PSI, torque 48 ft ≈ 65 Nm
- Maximum RPM: 9000 rpm
- Warranty: 1 year on manufacturing defects
- Center-to-center length: 131 mm
- Big end diameter: 52.8 mm
- Small end diameter: 24 mm
- Big end width: 25.68 mm
- Small end width: 25.68 mm
Features
- Forged SAE 4340 chromoly steel for maximum strength and durability
- Designed and machined with CNC machines; large and small ends finished with SUNNEN stone
- Precise alignment bushings accurately position the connecting rod cap
- 100% X-ray, ultrasonic, and magnetic tested
- Multi-stage heat treatment and shot-peened for stress relief
- Supplied with matching bronze bushing for the floating piston pin
Please note
No manual included; professional installation is highly recommended. Customization possible: if the desired connecting rod is not on our site, we will be happy to help you.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and version of your vehicle, as there may be differences per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
