Product Description

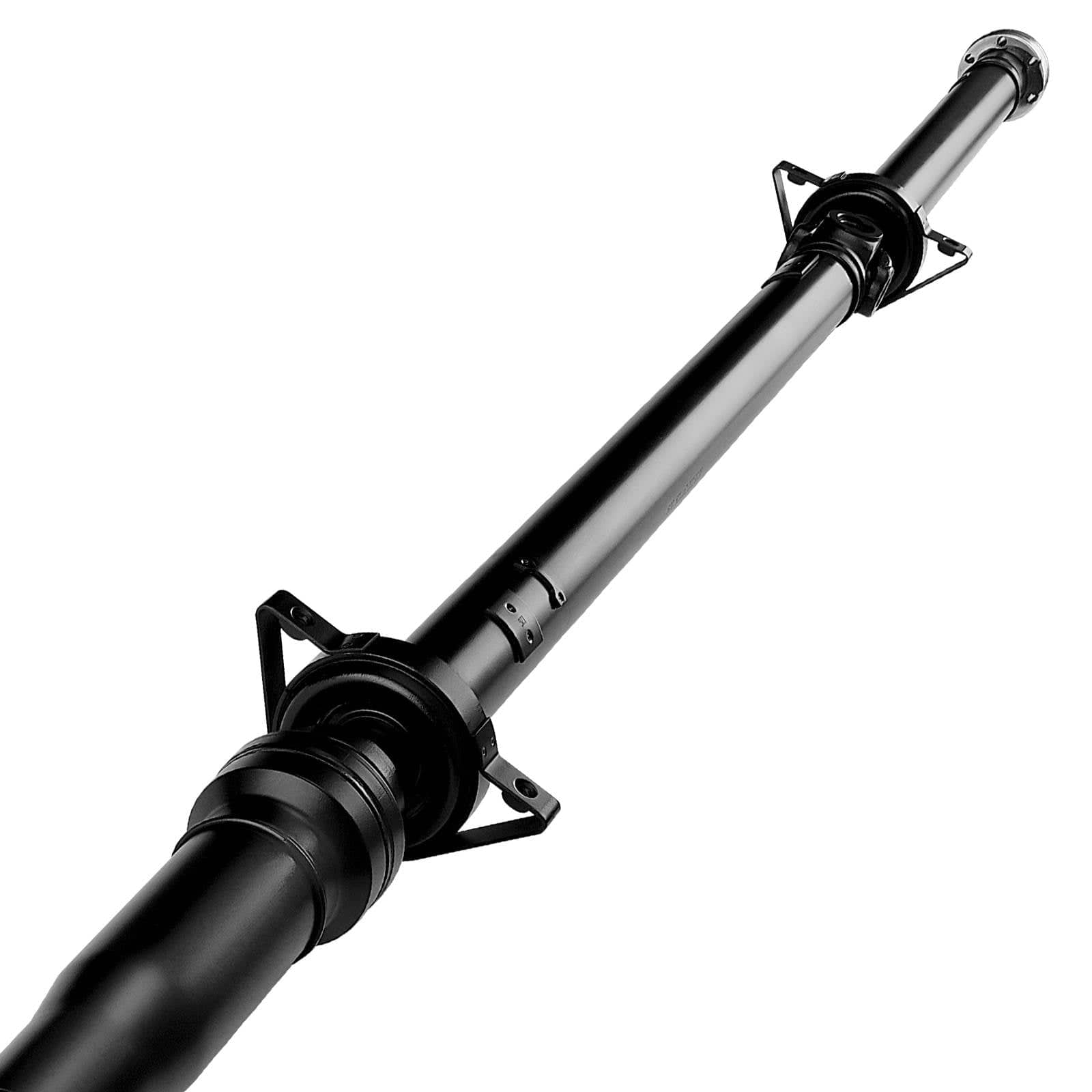

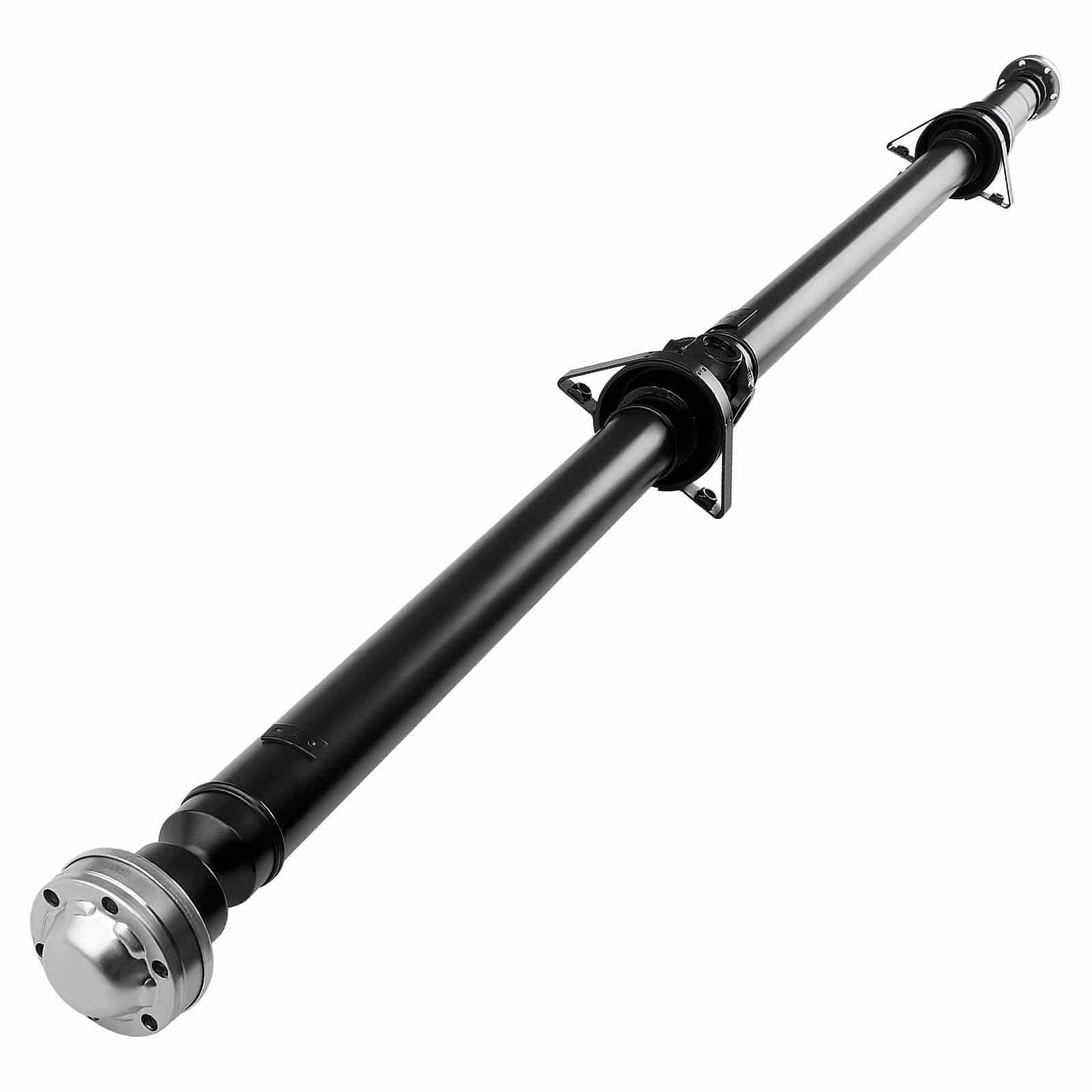

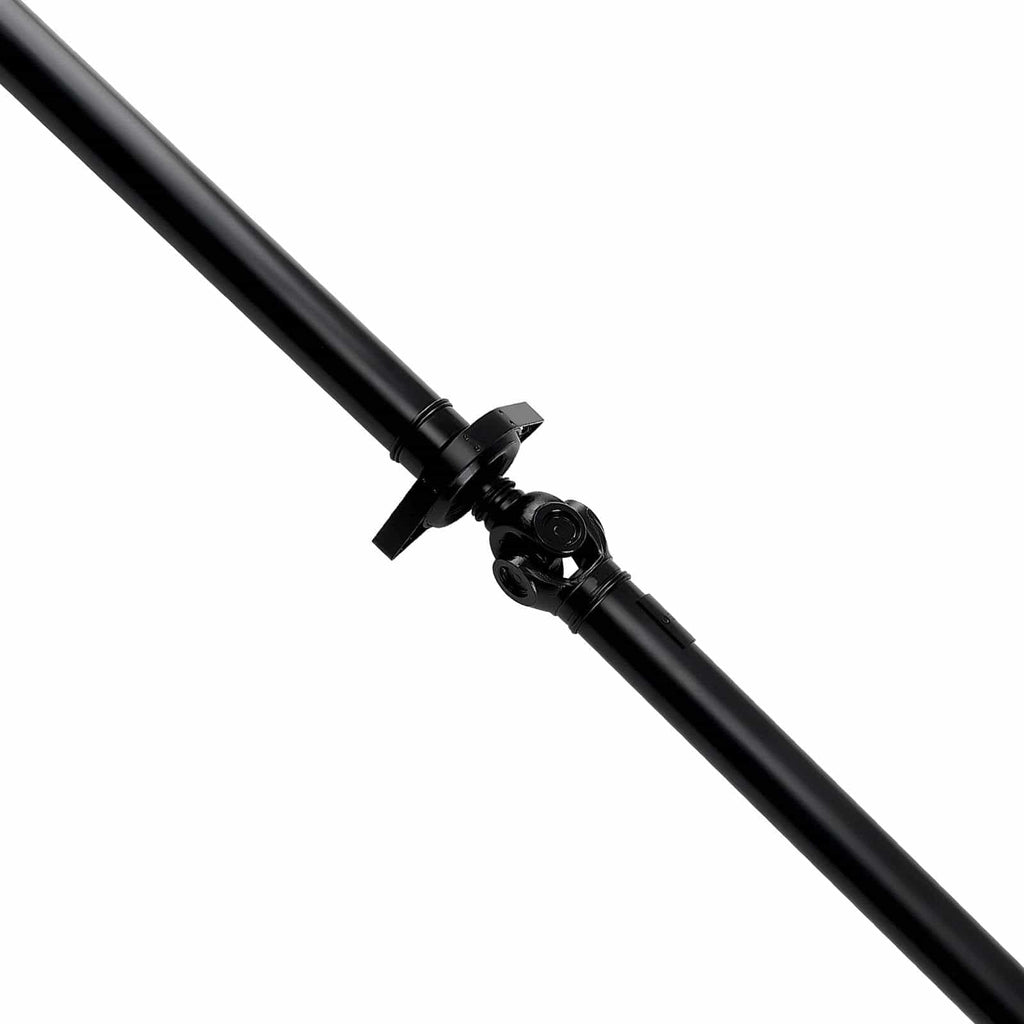

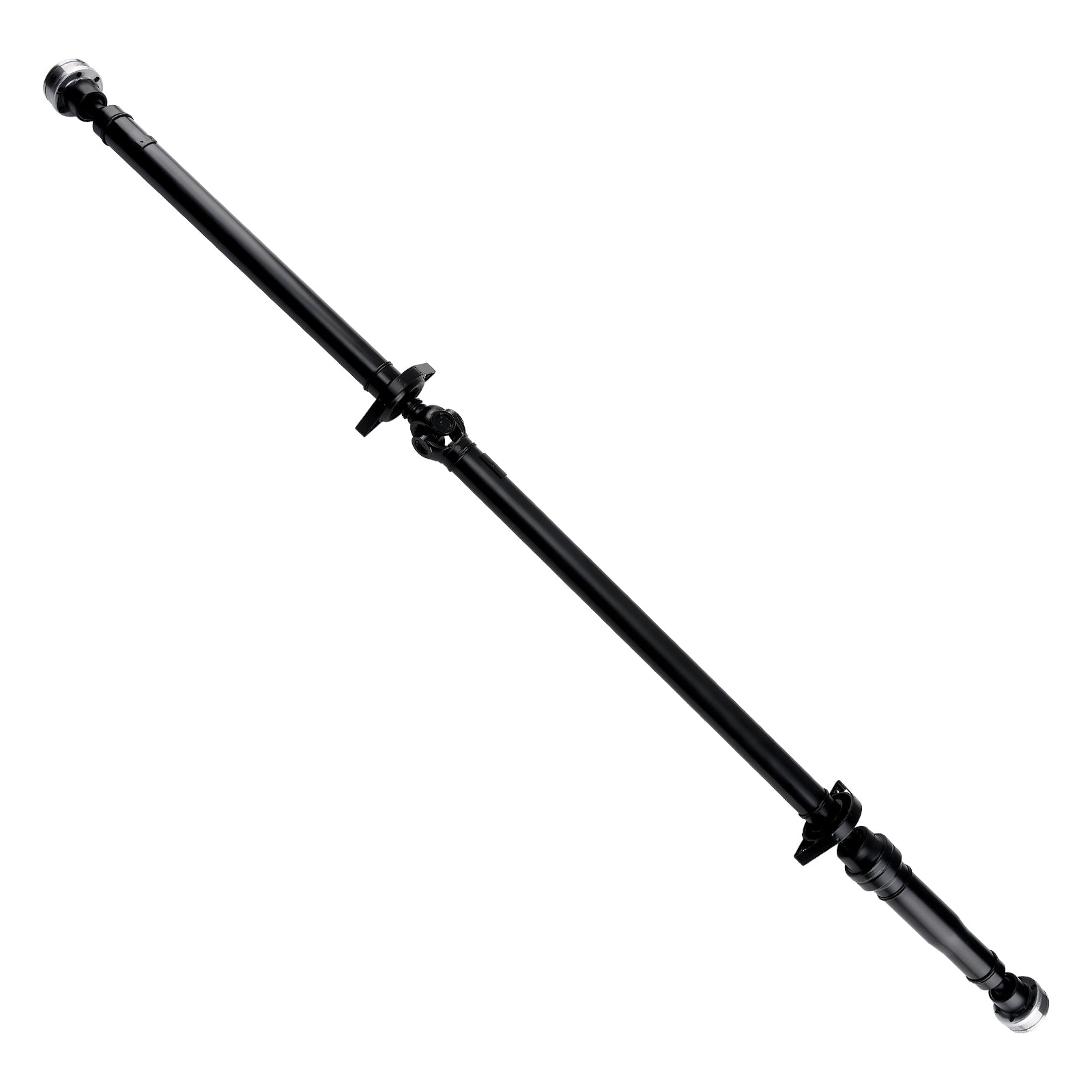

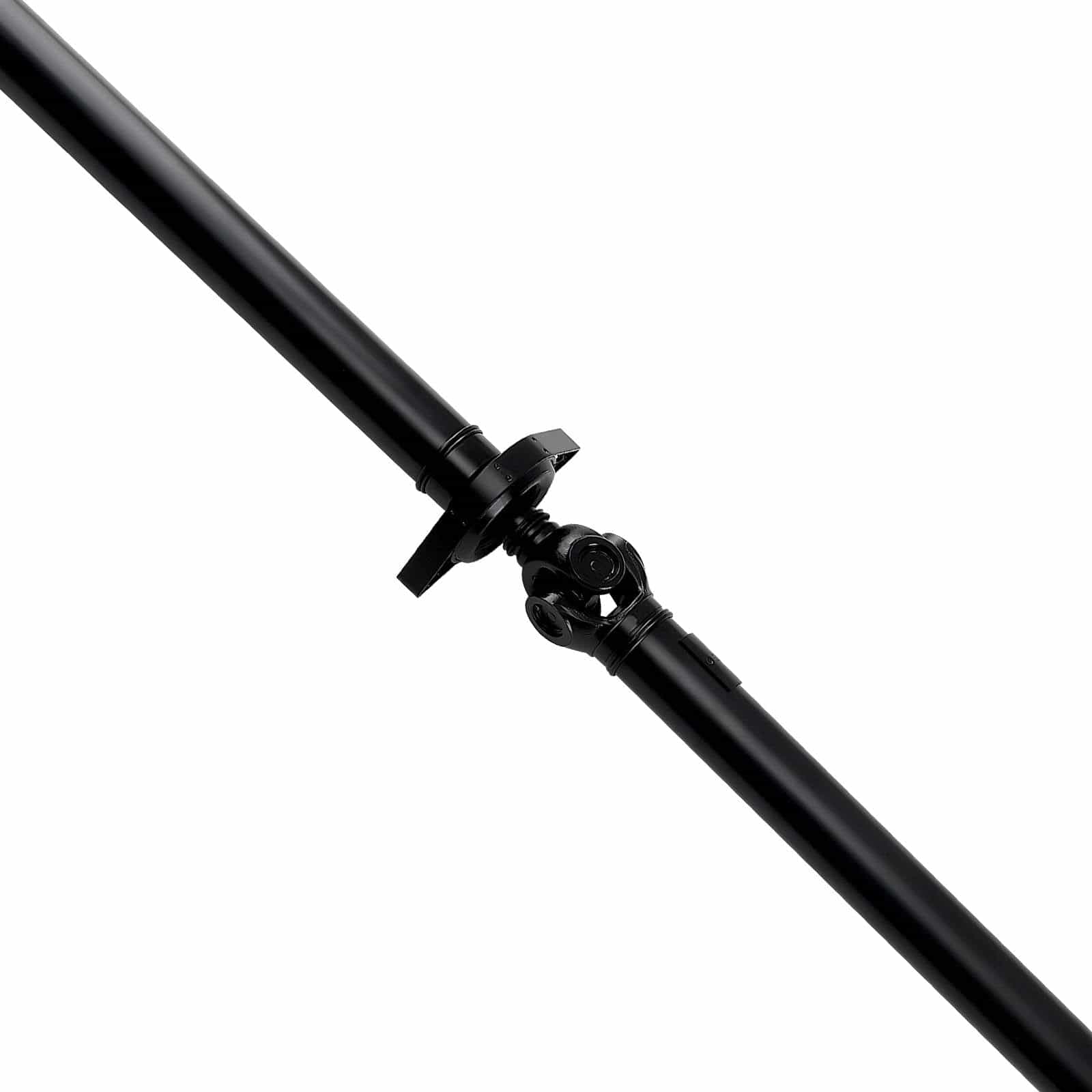

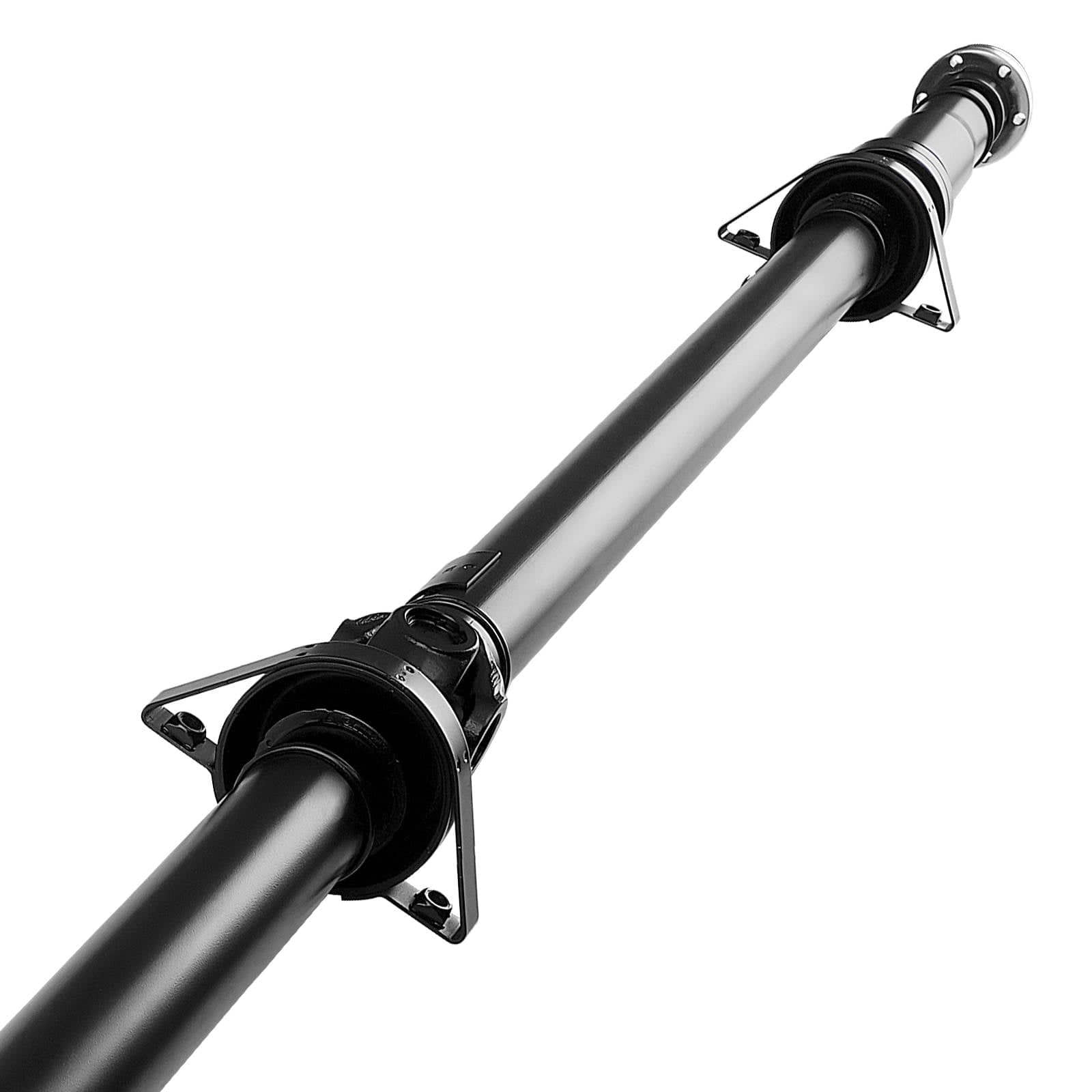

Steel driveshaft, suitable for the Ford Kuga II DM2.

Suitable for:

• Ford Kuga II DM2 2.0 TDCi, 1997 cc, 110 kW / 150 hp, 2014/09-2016/12
• Ford Kuga II DM2 2.0 TDCi, 1998 cc, 88 kW / 120 hp, 2014/09-2019/06
• Ford Kuga II DM2 2.0 TDCi, 1997 cc, 103 kW / 140 hp, 2013/03-2014/09
• Ford Kuga II DM2 2.0 TDCi, 1998 cc, 85 kW / 115 hp, 2013/03-2019/12
• Ford Kuga II DM2 2.0 TDCi, 1997 cc, 100 kW / 136 hp, 2013/03-2019/12
• Ford Kuga II DM2 2.0 TDCi 4x4, 1997 cc, 103 kW / 140 hp, 2013/03-2016/12
• Ford Kuga II DM2 2.0 TDCi 4x4, 1997 cc, 110 kW / 150 hp, 2014/09-2016/12
• Ford Kuga II DM2 2.0 TDCi 4x4, 1998 cc, 120 kW / 163 hp, 2013/03-2016/12
• Ford Kuga II DM2 2.0 TDCi 4x4, 1998 cc, 132 kW / 180 hp, 2014/09-2016/12
• Ford Kuga II DM2 2.0 TDCi 4x4, 1997 cc, 100 kW / 136 hp, 2013/03-2019/12
• Ford Kuga II DM2 1.5 EcoBoost, 1499 cc, 134 kW / 182 hp, 2016/06-2024/12
• Ford Kuga II DM2 1.5 EcoBoost, 1499 cc, 132 kW / 180 hp, 2015/10-2024/12
• Ford Kuga II DM2 1.5 EcoBoost, 1499 cc, 88 kW / 120 hp, 2016/01-2019/06
• Ford Kuga II DM2 1.5 EcoBoost, 1499 cc, 110 kW / 150 hp, 2014/09-2016/12
• Ford Kuga II DM2 1.5 EcoBoost 4x4, 1499 cc, 134 kW / 182 hp, 2014/09-2016/12
• Ford Kuga II DM2 1.5 EcoBoost 4x4, 1499 cc, 129 kW / 176 hp, 2018/08-2019/06
• Ford Kuga II DM2 1.5 EcoBoost 4x4, 1499 cc, 110 kW / 150 hp, 2016/07-2019/12
• Ford Kuga II DM2 1.5 EcoBoost E85, 1499 cc, 110 kW / 150 hp, 2019/02-2019/11
• Ford Kuga II DM2 1.5 TDCi, 1499 cc, 88 kW / 120 hp, 2016/07-2019/06
• Ford Kuga II DM2 1.6 EcoBoost, 1596 cc, 110 kW / 150 hp, 2013/03-2016/12
• Ford Kuga II DM2 1.6 EcoBoost, 1596 cc, 130 kW / 177 hp, 2013/01-2024/12
• Ford Kuga II DM2 1.6 EcoBoost 4x4, 1596 cc, 134 kW / 182 hp, 2013/03-2016/12
• Ford Kuga II DM2 1.6 EcoBoost 4x4, 1596 cc, 110 kW / 150 hp, 2013/03-2016/12
• Ford Kuga II DM2 1.6 EcoBoost 4x4, 1596 cc, 132 kW / 179 hp, 2012/10-2019/12
• Ford Kuga II DM2 2.0, 1999 cc, 179 kW / 243 hp, 2013/03-2016/06
• Ford Kuga II DM2 2.0 4x4, 1999 cc, 179 kW / 243 hp, 2013/03-2016/06
• Ford Kuga II DM2 2.5, 2488 cc, 110 kW / 150 hp, 2014/01-2023/12
• Ford Kuga II DM2 2.5, 2488 cc, 125 kW / 170 hp, 2013/09-2023/12
• Ford Kuga II DM2 2.0 EcoBoost 4x4, 1999 cc, 178 kW / 242 hp, 2017/08-2018/06
• Ford Kuga II DM2 2.0 EcoBoost 4x4, 1999 cc, 169 kW / 230 hp, 2019/03-2019/12

Specifications

• OEM / Part Number: 2126752, 1826578, CV61-4K357-AD, CV614K357AD, CV61-4K-357 AD, CV61-4K357-AE, CV614K357AE, CV61-4K-357 AE, CV61-4K357-AF, CV614K357AF, CV61-4K-357 AF
• Condition: new
• Installation Position: rear
• Material: steel
• Total Driveshaft Length: 78.268 inches (1988 mm)
• Extended Length: 1.575 inches (40 mm)
• Collapsed Length: 76.693 inches (1948 mm)
• Wall Thickness: 0.071 inches (1.8 mm)
• Driveshaft Diameter: 2.362 / 2.008 inches (60/51 mm)
• Greaseable: no
• Adjustable Total Length: yes
• Mounting Type: direct replacement

Features

• Built to strict quality control standards, 100% factory tested
• Manufactured to original equipment dimensions for reliable fitment and performance
• Comes pre-assembled and factory balanced for direct, smooth operation
• Made of high-quality steel, polished and rust-protected for long-lasting use
• Can reduce vehicle vibration and noise and improve driving comfort

Please Note

Before ordering, please confirm vehicle condition and OE number. This is an aftermarket part, not an original part. Professional installation is recommended.

Check Fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code and trim level of your vehicle, as differences may exist depending on the trim level. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
