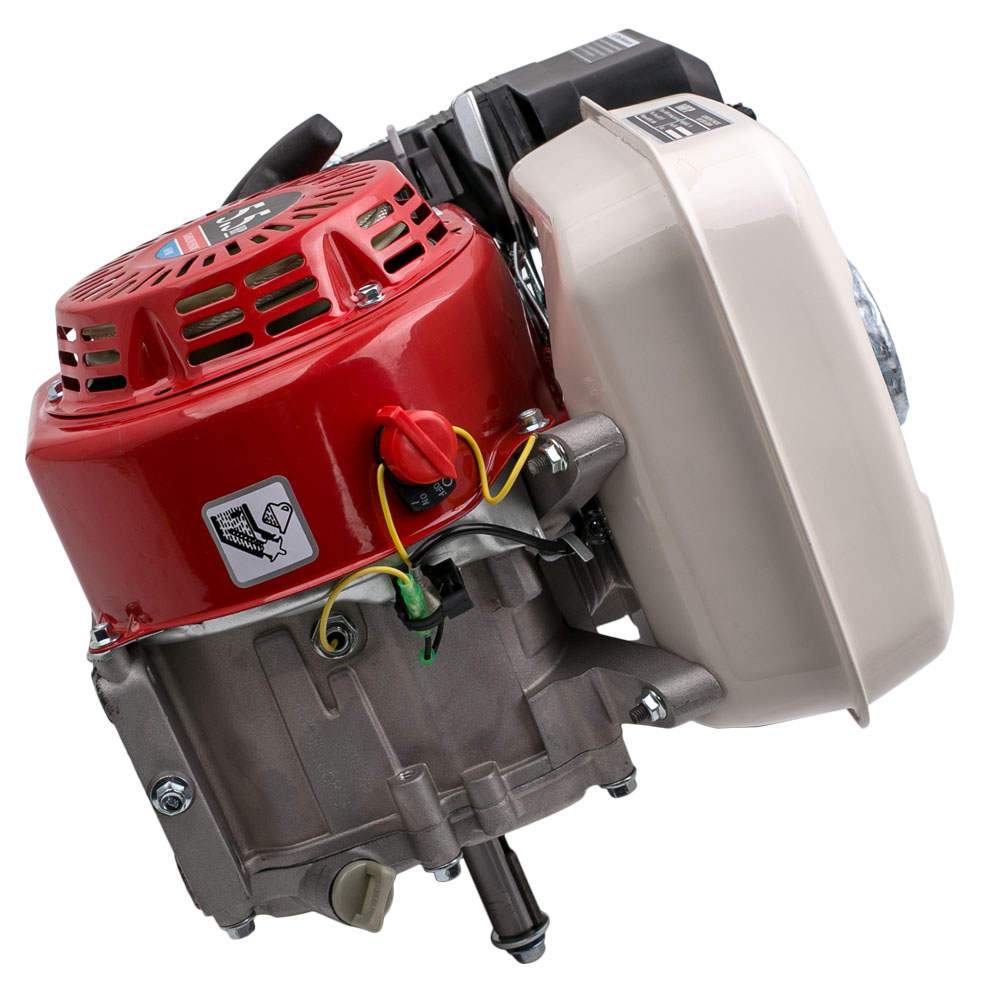

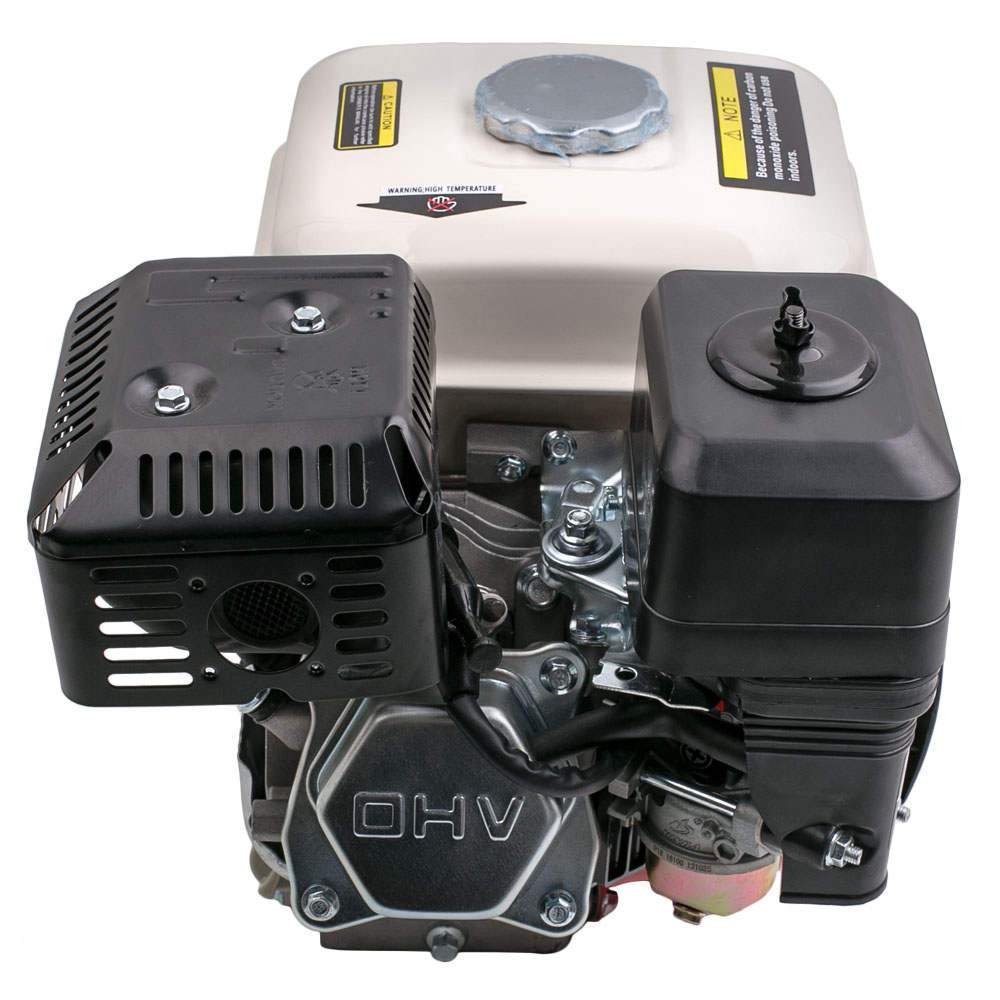

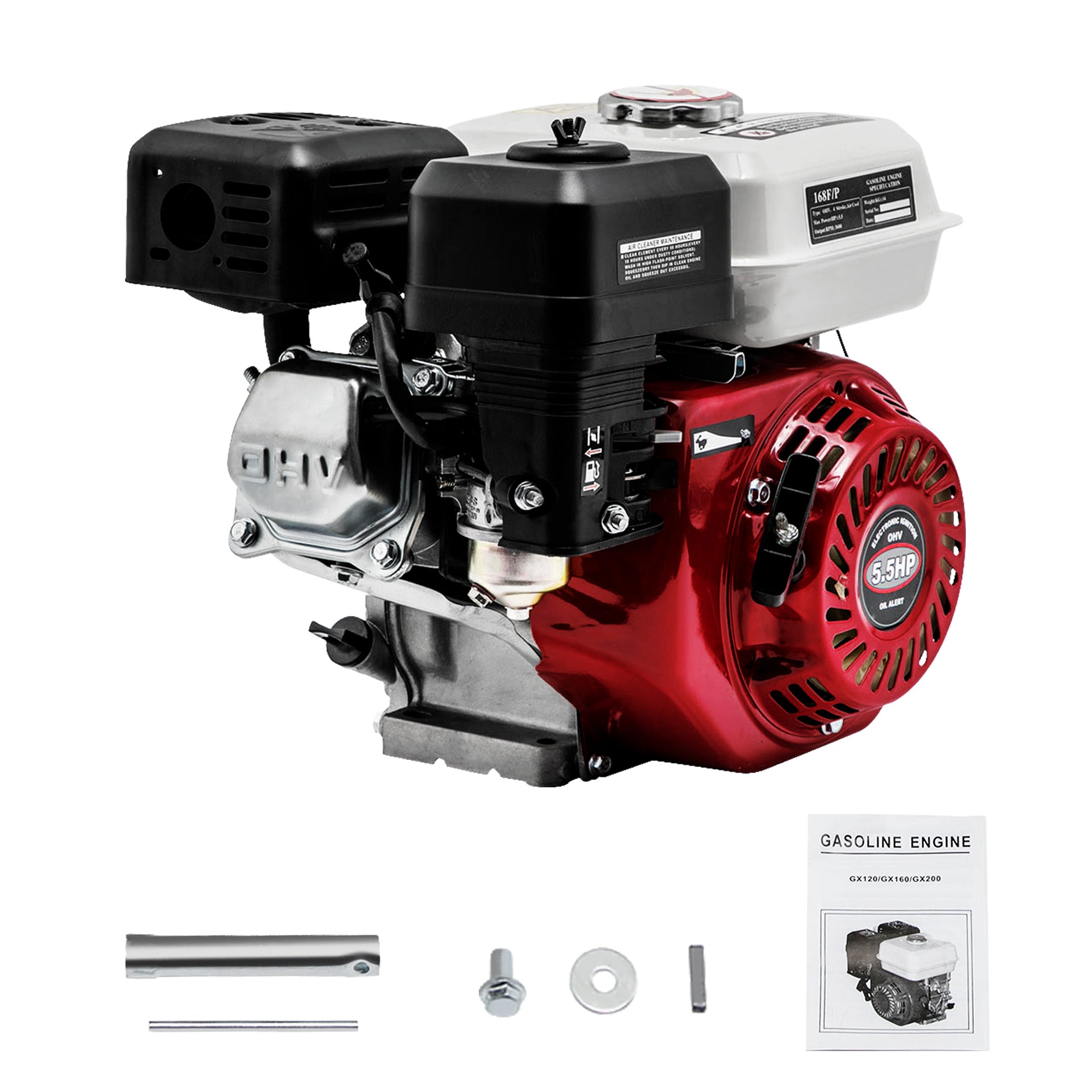

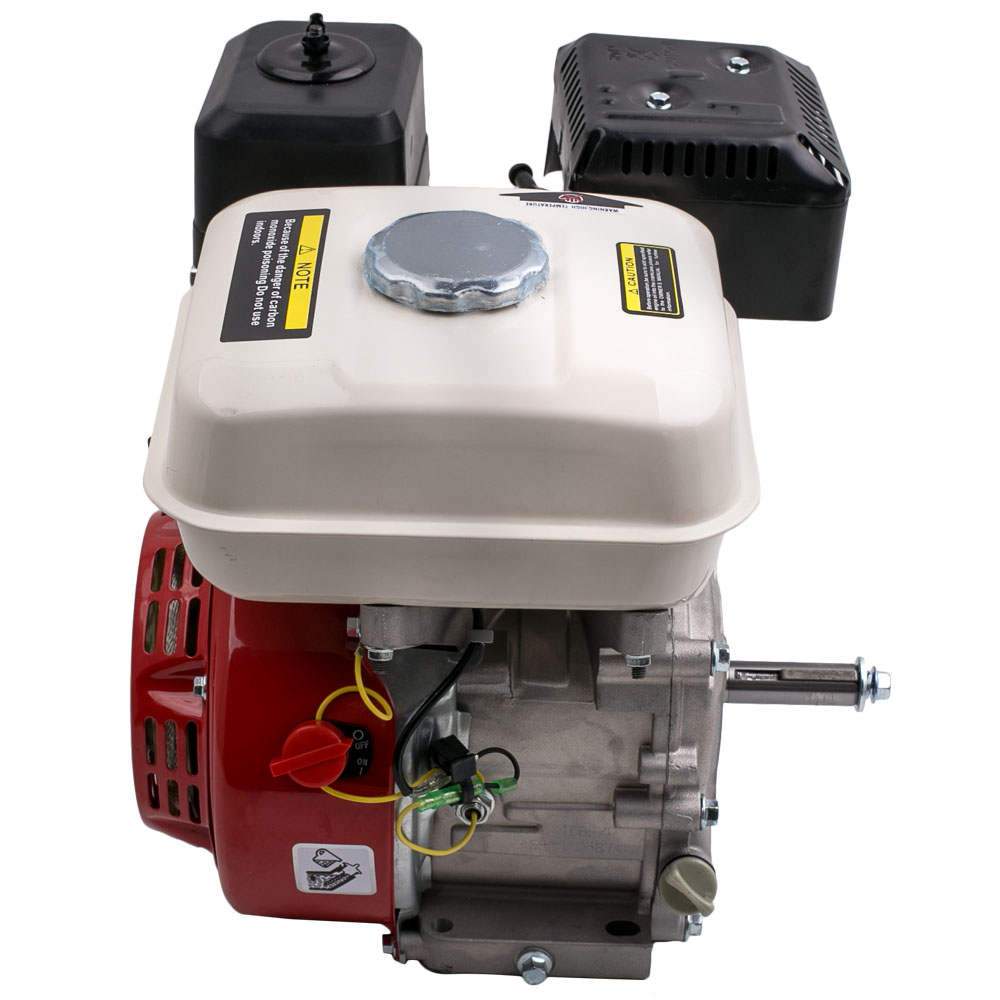

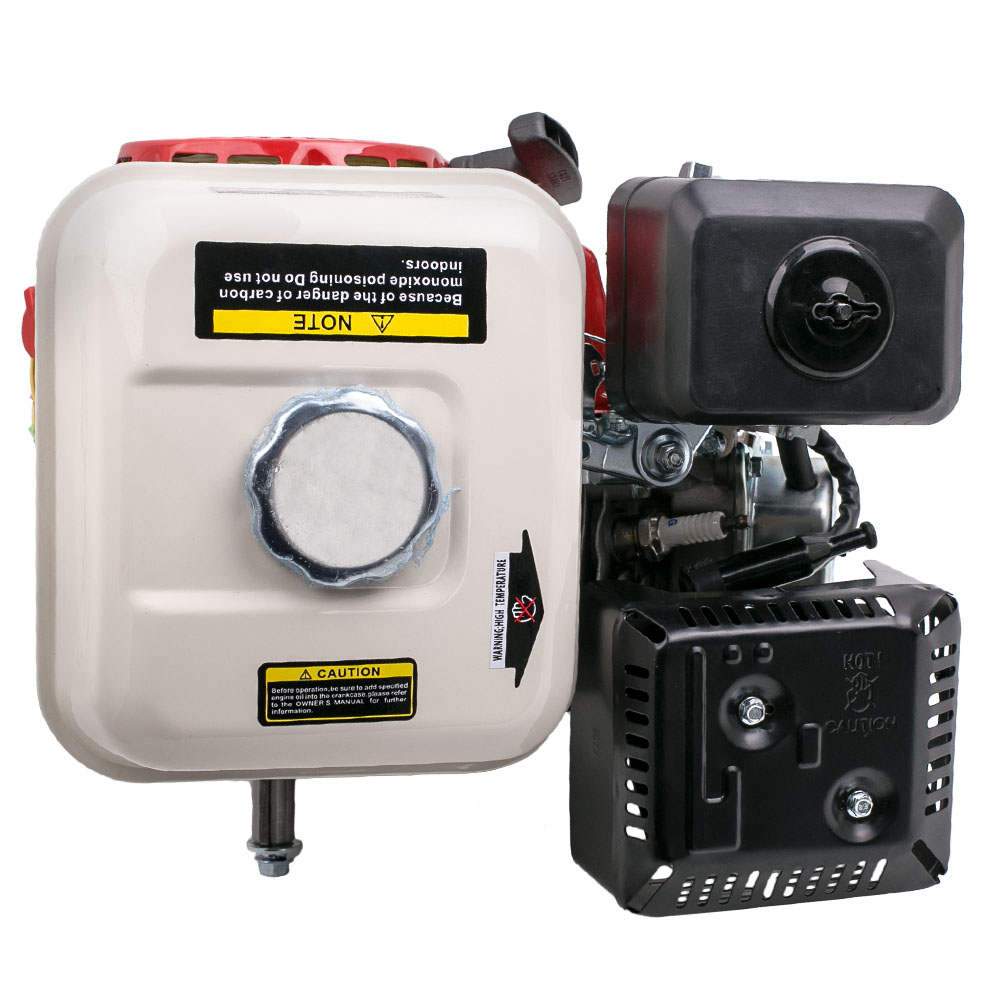

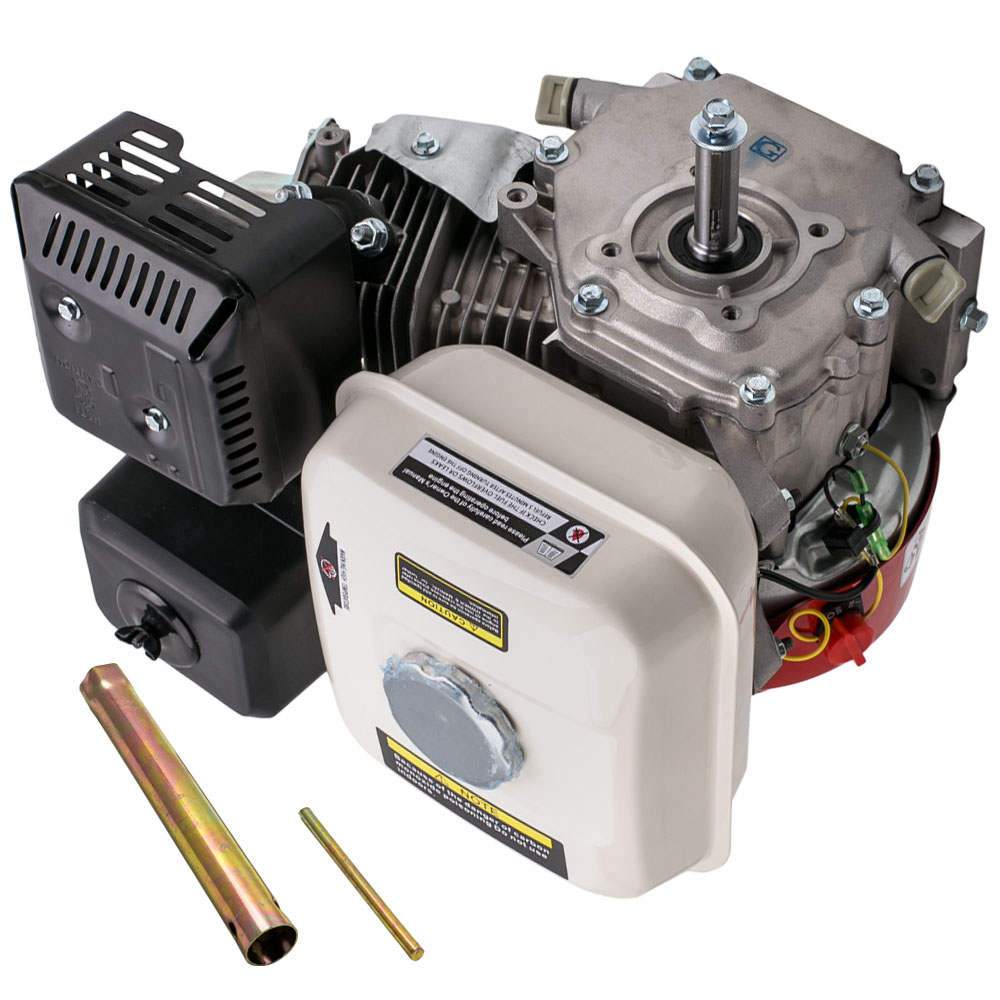

Replacement suitable for Honda GX160 4 Stroke Prokart Gokart Cadet Pro Kart 215cc Engine
Replacement suitable for Honda GX160 4 Stroke Prokart Gokart Cadet Pro Kart 215cc Engine
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product Description
4-stroke gasoline engine (type 168F), suitable as a direct replacement for the Honda GX160 engine. Usable for various machines such as compressors, scarifiers, lawnmowers, generators, pumps, high-pressure cleaners, go-karts, concrete mixers, dust extractors, and flail mowers.
Specifications
- Engine type: 168F / single-cylinder OHV 4-stroke, forced air cooling
- Bore and stroke: 70 × 54 mm
- Displacement: 168 cc
- Compression ratio: 8.5:1
- Maximum power: 5.5 hp
- Max. torque: 10.7 Nm / 2500 rpm
- Starting system: pull start
- Engine oil capacity: 0.6 liters
- Fuel tank: 3.6 liters
- Dimensions: 330 × 360 × 305 mm
- Air filter: semi-dry
- Crankshaft thread size: 7 mm
- Engine rotation direction: counter-clockwise
- Drive shaft length: 58.5 mm / 2.3"
- Drive shaft diameter: 20 mm / 0.79"
- Distance between bottom mounting holes (clutch side, center-to-center): 165 mm / 6.5"
- Distance between bottom mounting holes (pull start to clutch, center-to-center): 77.06 mm / 3.03"
- Warranty: 1 year on manufacturing defects
Features
- Pull start with manual starter and fuel shut-off
- Durable, reliable, and versatile for home and commercial use
Please note
Check the shaft diameter and crankshaft length beforehand. Professional installation is highly recommended (no manual included).
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle before ordering, as differences may exist per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
