4-stroke OHV 212cc gasoline engine horizontal shaft electric start engine
4-stroke OHV 212cc gasoline engine horizontal shaft electric start engine
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Product Description

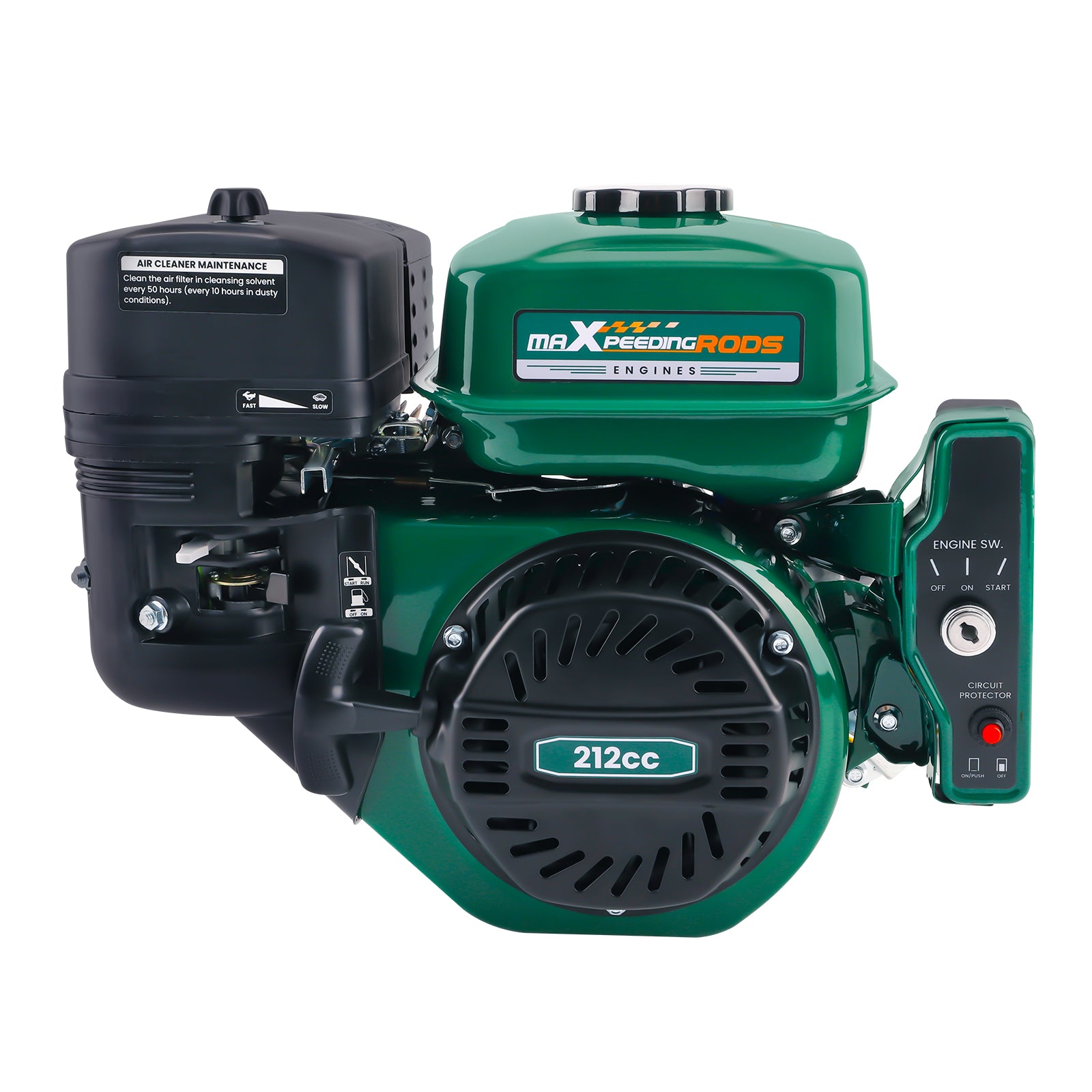

4-stroke gasoline engine (type MXR212E, 212 cc, OHV) with electric start, suitable for various machines such as go-karts, compressors, lawnmowers, water pumps, and high-pressure cleaners.
Specifications
- Model: MXR212E
- Engine type: single-cylinder, 4-stroke, forced air cooling, OHV
- Rated power: 3.6 kW
- Bore × stroke: 70 × 55 mm
- Displacement: 212 cc
- Compression ratio: 8.5:1
- Starting method: recoil start / electric (without battery)
- Ignition: transistor ignition
- Power: 7 hp
- Fuel type: gasoline
- Oil type: SAE 10W-30
- Fuel tank capacity: 3.6 liters
- Engine oil capacity: 0.6 liters
- Dimensions (l × w × h): 435 × 325 × 385 mm
- Net weight: 17.5 kg
- Gross weight: 18.5 kg
- Shaft direction: horizontal

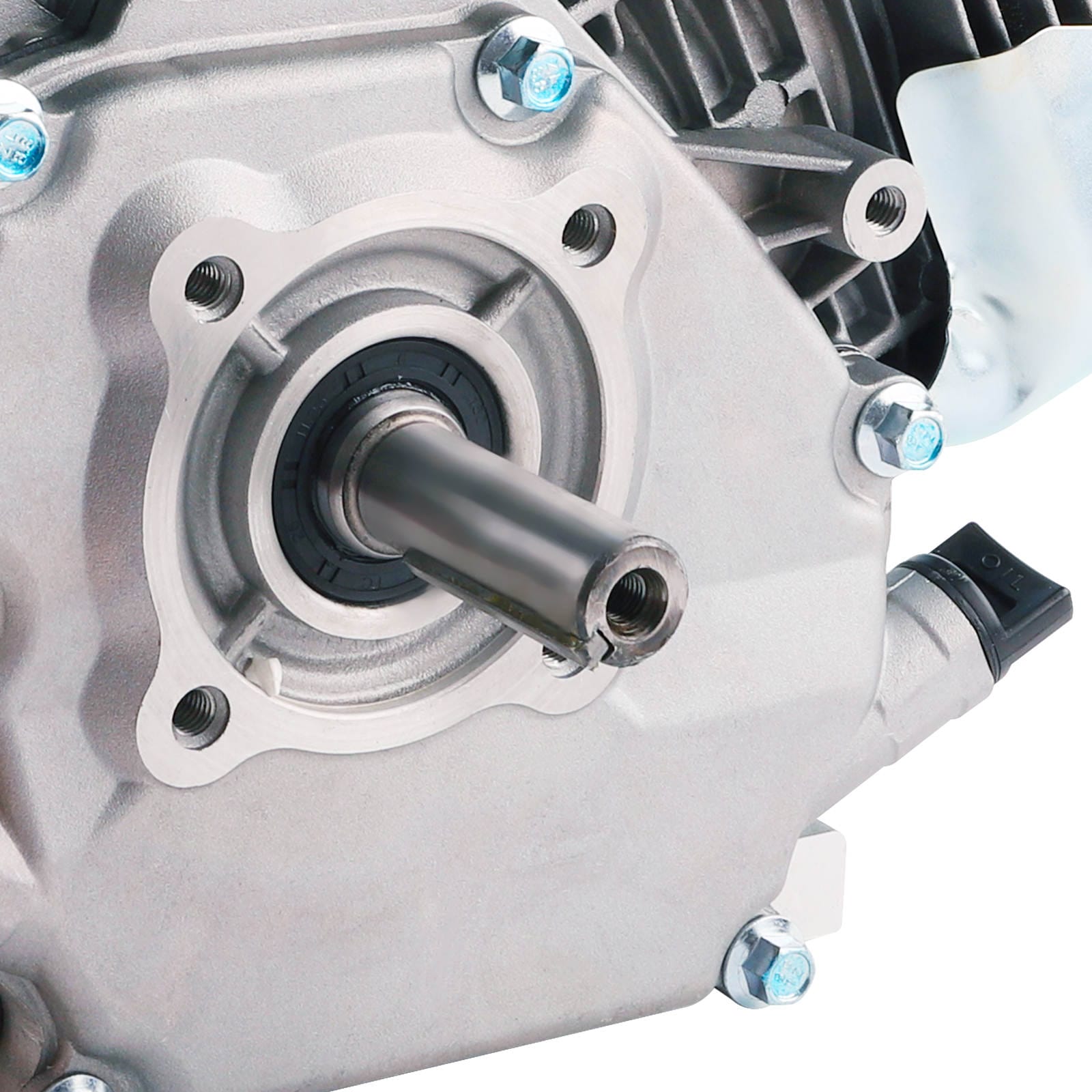

- Shaft diameter: 19.05 mm
- Shaft keyway: 4.78 mm
- Shaft length: 61.7 mm
- Shaft end: 5/16"-24 drilled and tapped
- CE certification: yes
- Euro V certification: yes
- Warranty: 1 year
Scope of delivery
- 1x gasoline engine
- 1x spark plug wrench
- 1x oil funnel
- 1x user manual
- 1x ignition key
Features
- Powerful 4-stroke 212 cc OHV engine
- OHV design improves power and energy efficiency
- Crankshaft on ball bearings for greater stability and less vibration
- Ergonomic and easy to operate and maintain
- Versatile for go-karts, compressors, lawnmowers, water pumps, high-pressure cleaners and more

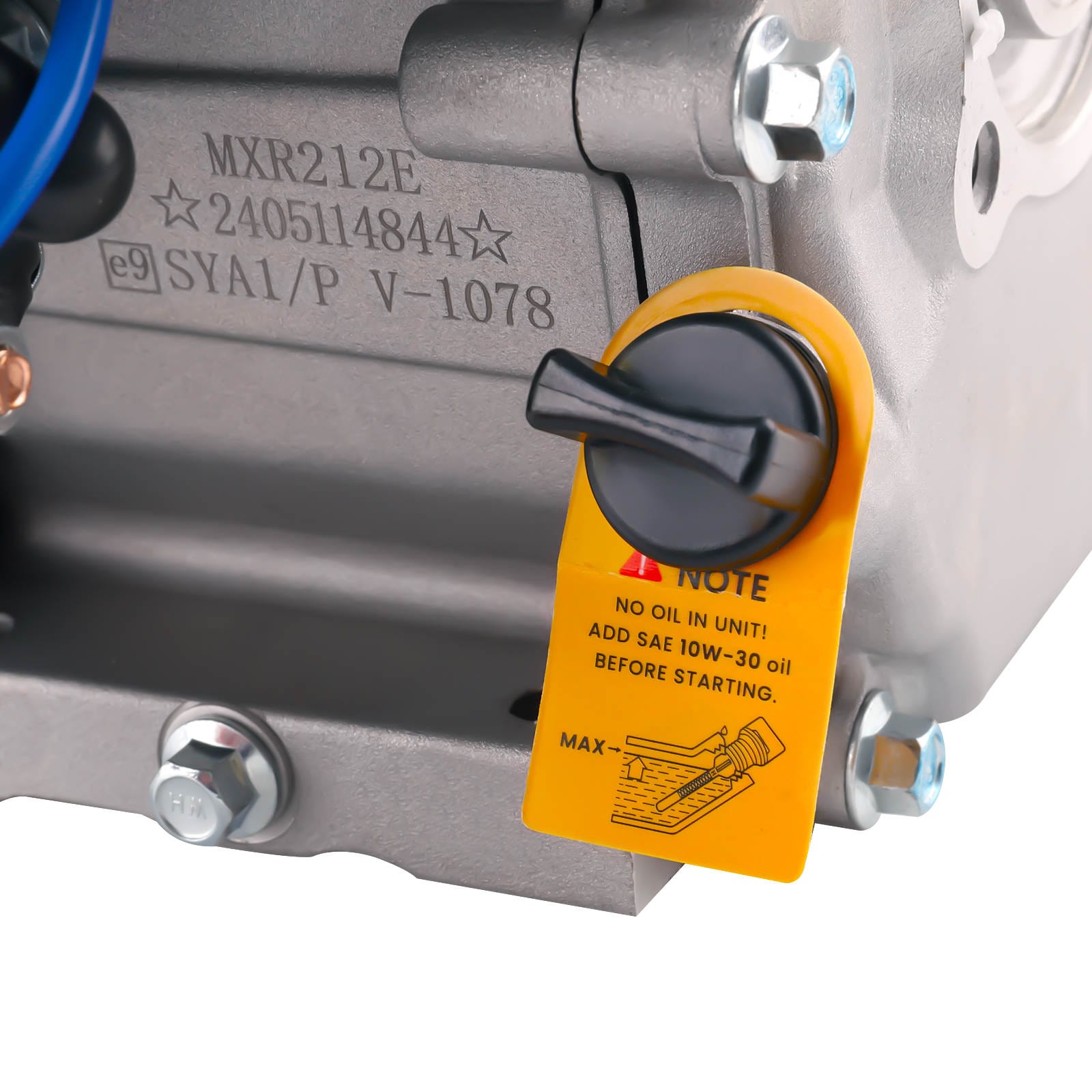

- Low oil sensor shuts off the engine when the oil level is too low

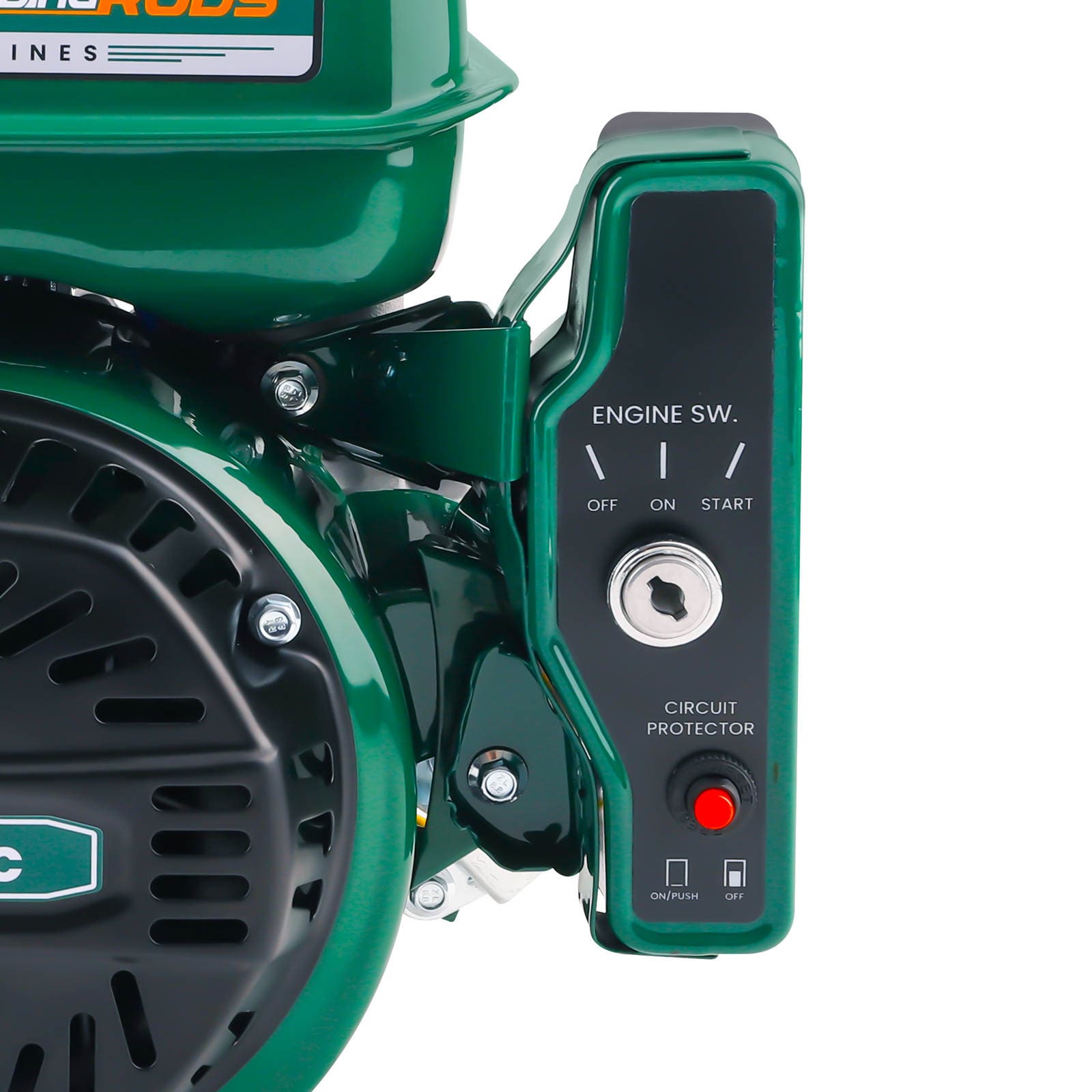

- Dual start: electric start with key plus recoil start (battery not included)
Please note
Warning: exhaust gases contain poisonous carbon monoxide; follow manufacturer's instructions when using the engine. Do not start the engine without refueling. All engines are factory tested and may have a slight residual odor of oil or fuel; this is normal. No assembly instructions included; professional installation is highly recommended. Do not disassemble or modify any engine parts, otherwise the warranty will be void.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. Are you unsure if this part fits your vehicle? Feel free to contact us before purchasing.
