Introduction

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

Application

Compatible for Volkswagen Golf MK2 1985-1992 (19E)
Compatible for Volkswagen Jetta MK2 1984-1992 (1G)
Compatible for Volkswagen Golf Mk3 1991-2000 (1H)
Compatible for Volkswagen Vento/Jetta MK3 1993-1998 (1H)
For Volswagen Corrado 1988-1995 (53I)

Specification

Top mounts: Front and rear OE top mounts required
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front: 5 kg/mm (336 lbs/in)
Spring Rate Rear: 5 kg/mm (336 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 62 mm
Spring length Front: 200 mm
Spring length Rear: 200 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring

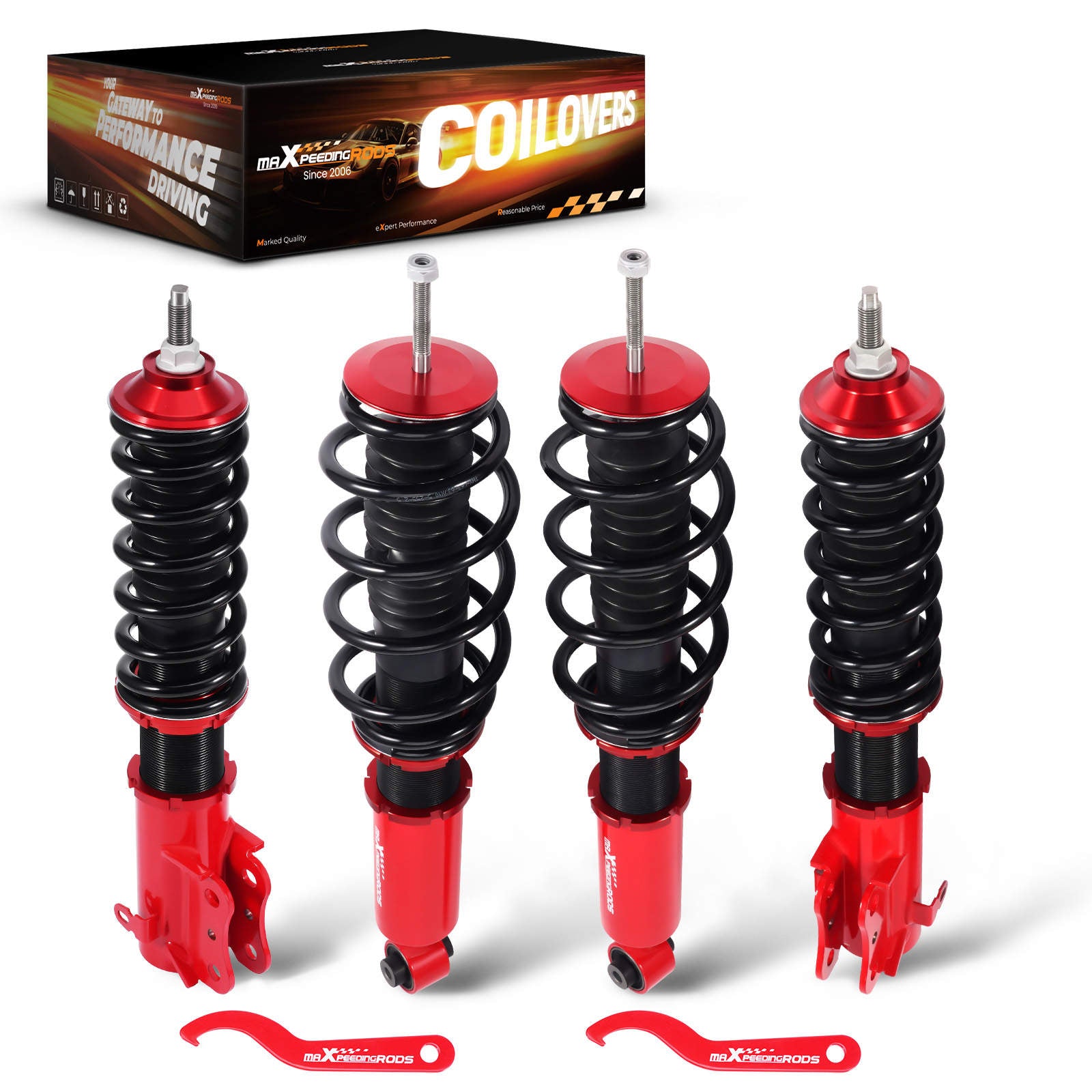

Package included

Package included：
2x Front coil-overs
2x Rear coil-overs
2x C spanners

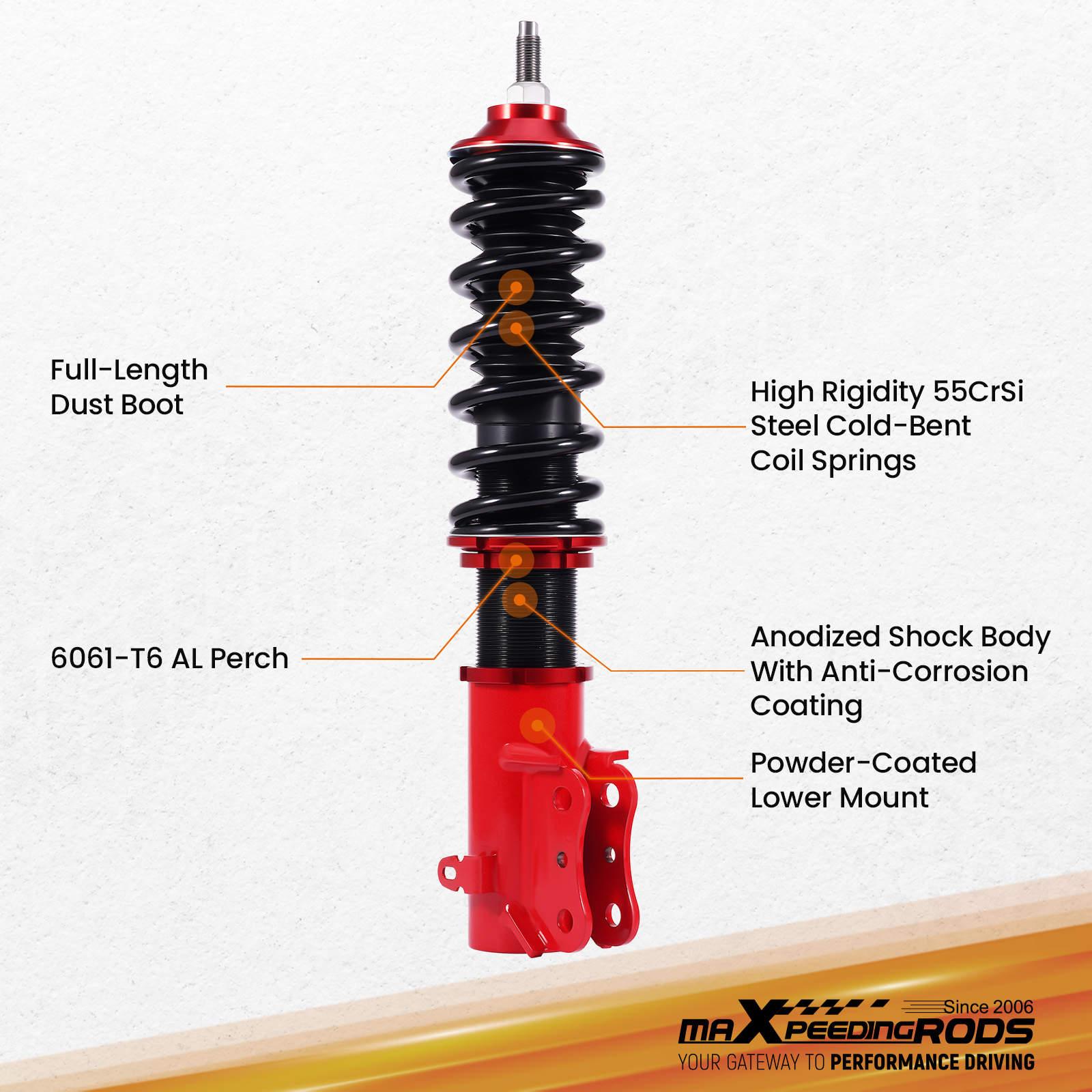

Feature

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
