Connecting Rods for Toyota Yaris Echo Vios, fit Scion XB 1NZFE 1.5L, Conrod ARP
Connecting Rods for Toyota Yaris Echo Vios, fit Scion XB 1NZFE 1.5L, Conrod ARP
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Product Description

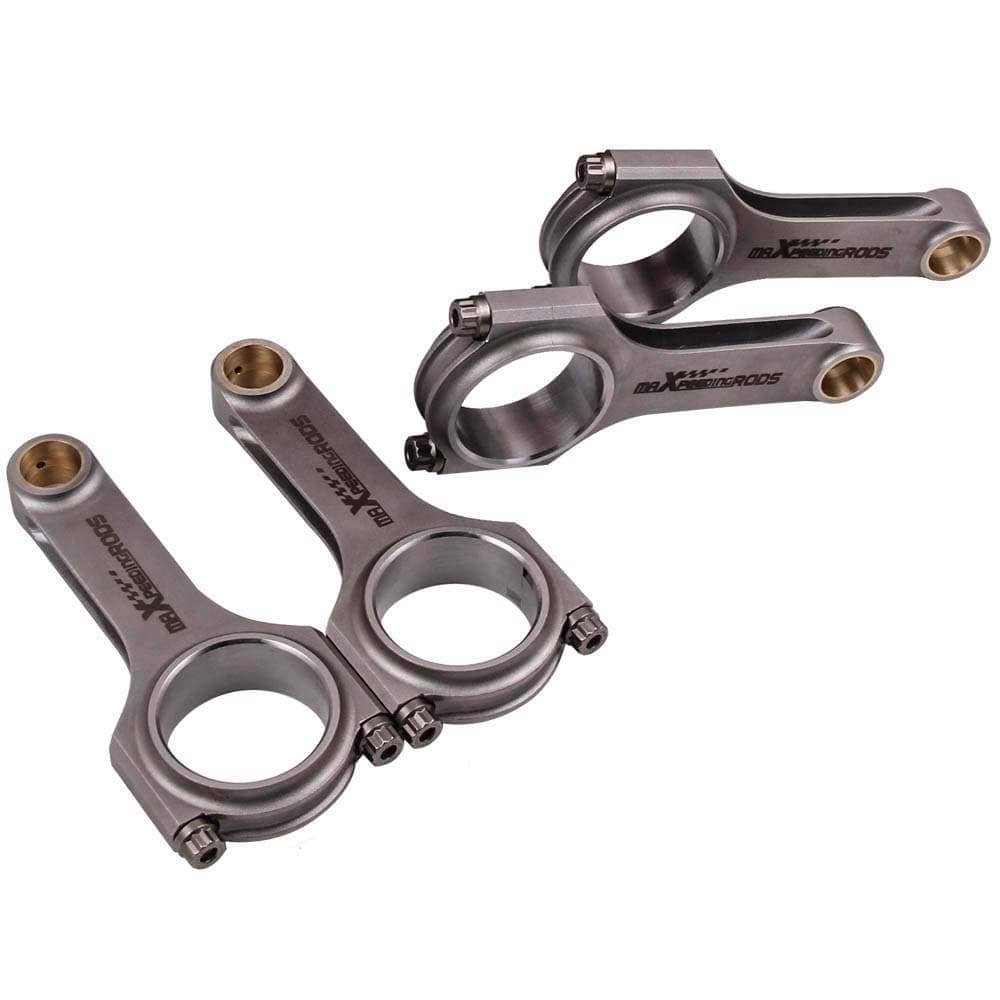

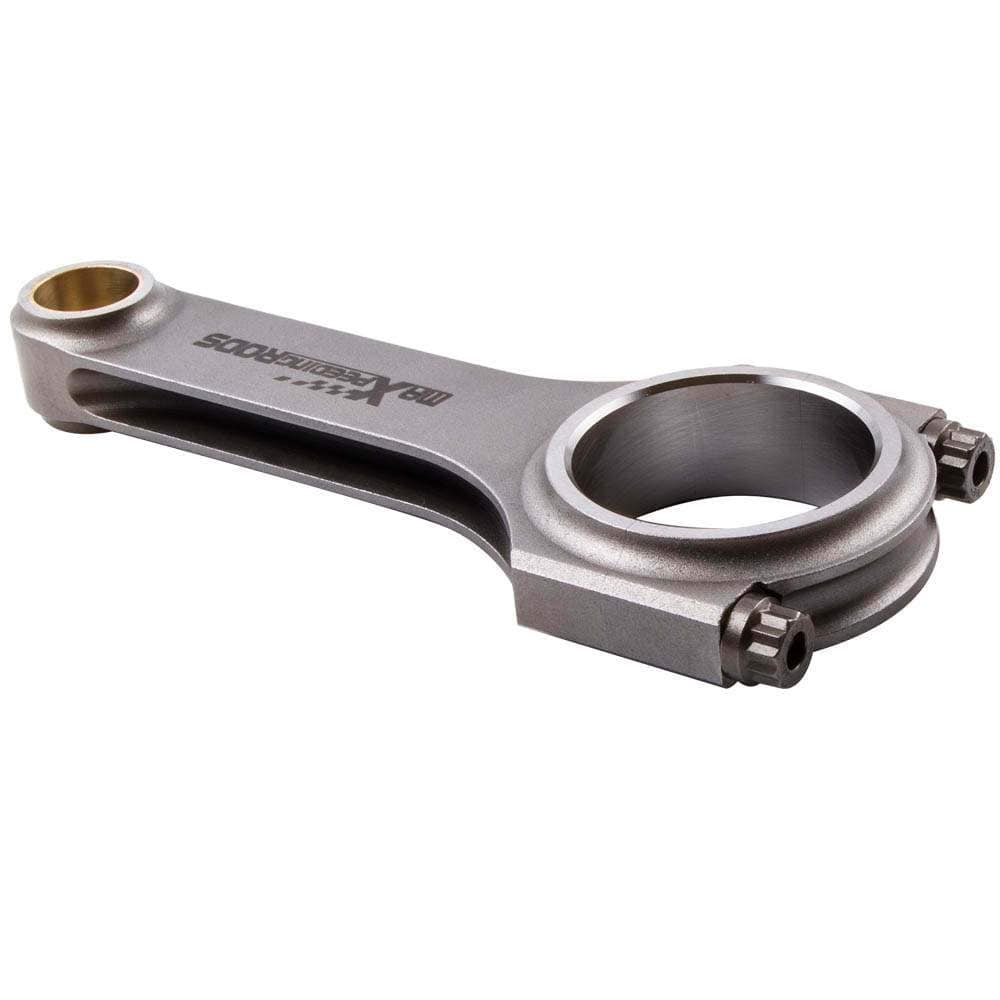

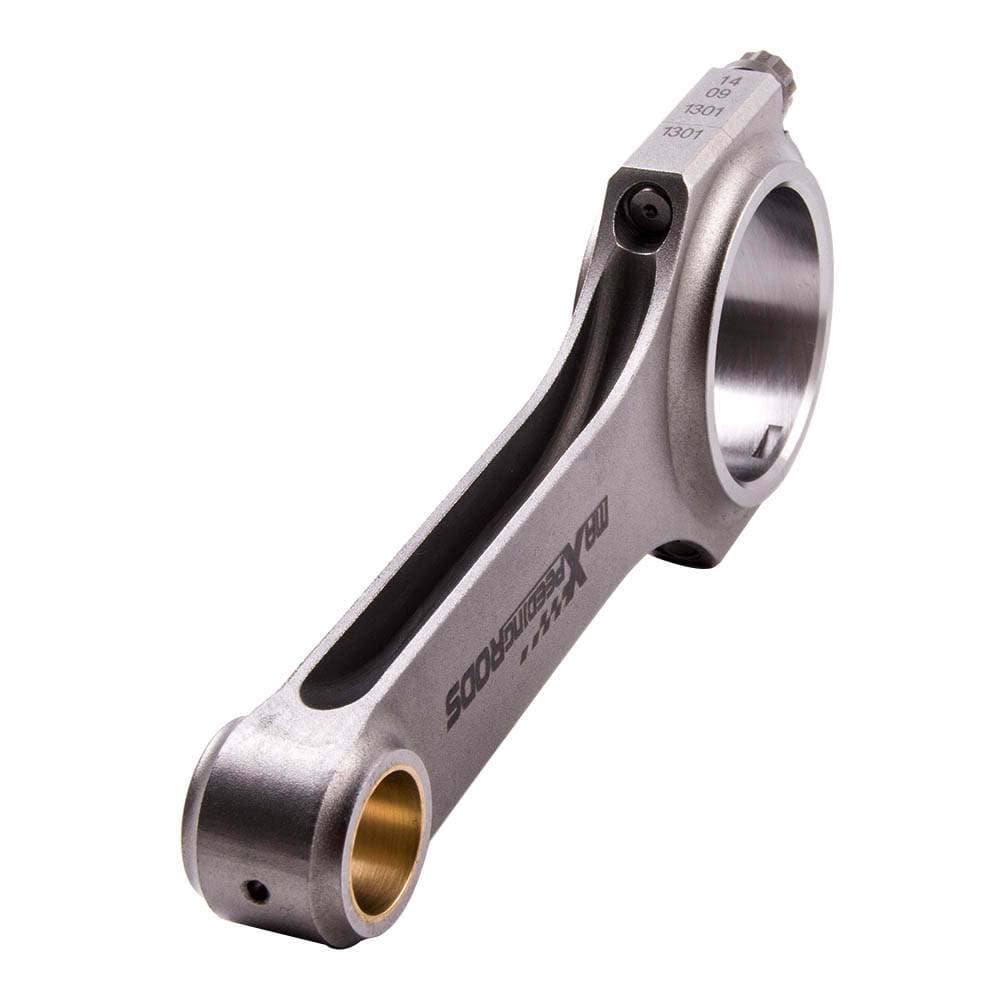

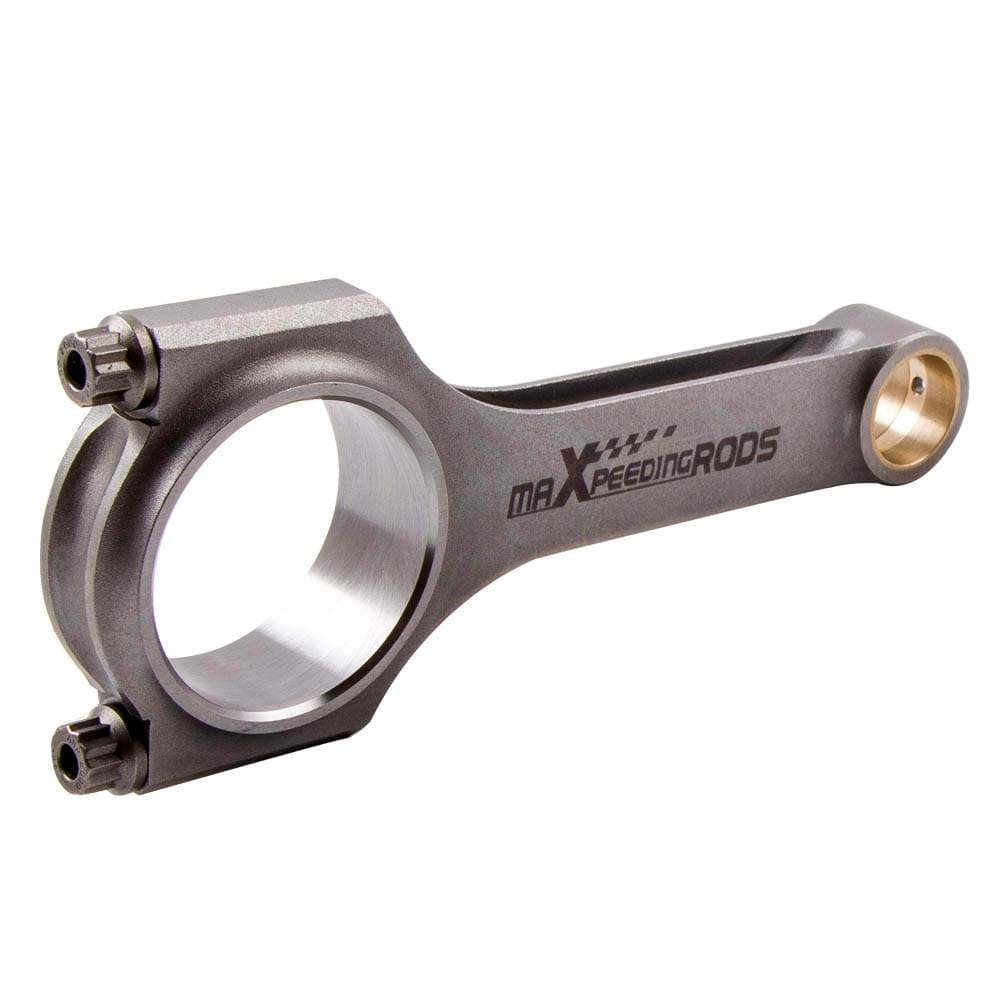

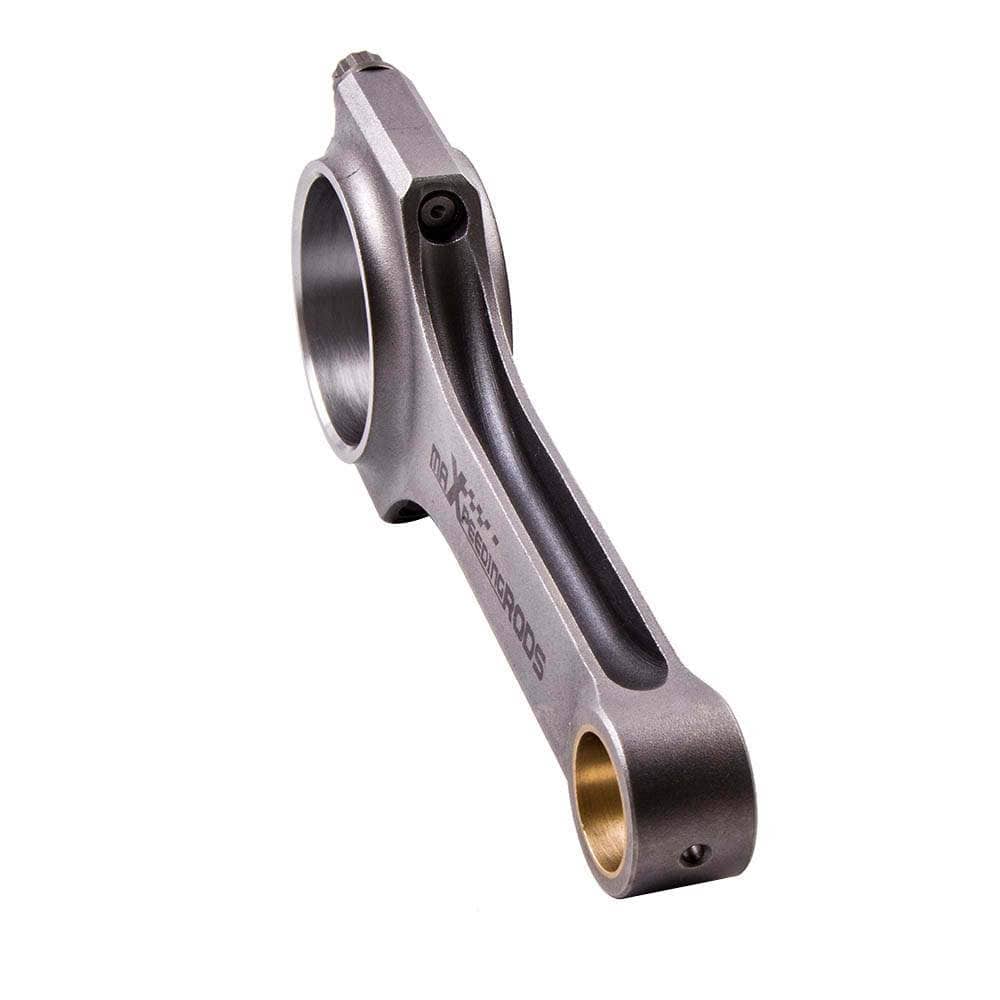

Set of connecting rods, suitable for the Toyota Yaris, Echo, Vios and Scion xB with the 1NZ-FE 1.5L engine.
Suitable for:
- Toyota Yaris, Echo, Vios with 1NZFE / 1NZ-FE 1.5L engine
- Scion xB with 1NZFE / 1NZ-FE 1.5L engine
Specifications
- Connecting rod length: 140.8 mm (≈ 5.5433 in)
- Crankshaft bearing bore: 43 mm (≈ 1.6929 in)
- Piston pin: 18 mm (≈ 0.70866 in)
- Width bottom: 17.91 mm (≈ 0.70512 in)
- Width top: 17.91 mm (≈ 0.70512 in)

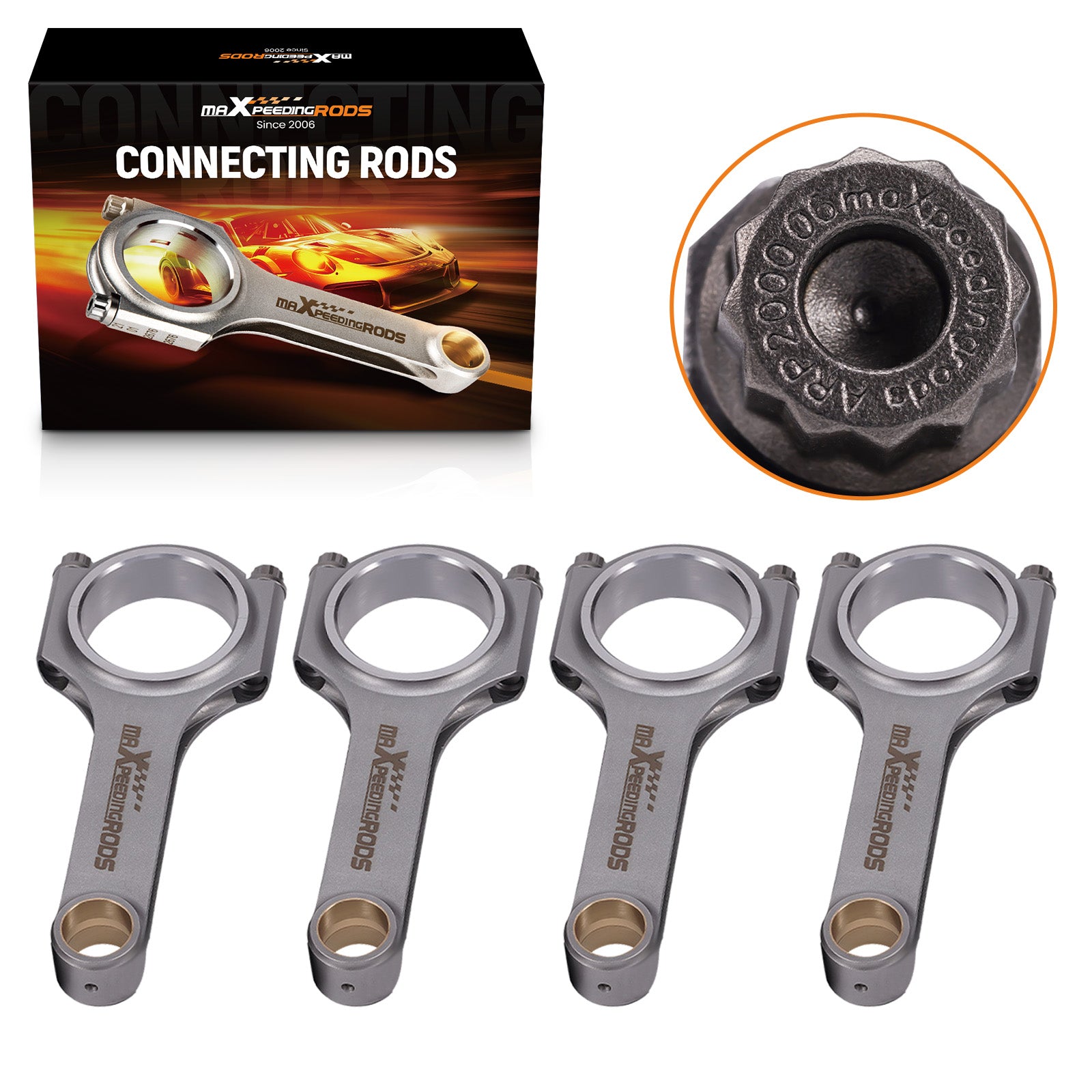

- Quantity / bolt set: 4x steel connecting rod H-shaft size, 1x set ARP 2000 3/8" bolts
- Material: forged 4340 EN24 (40CrNiMo) chrome-molybdenum steel
- Weight tolerance: +/- 1 gram
- Piston pin bore tolerance: +/-4/1000 mm
- Power: 600-800 hp per set
- Bolt strength: 220,000 / 230,000 psi
- Torque: 48 ft ≈ 65 Nm
- Max RPM: 9000 rpm
Features
- New, 100% tested and balanced
- TÜV certified
- Multiple heat treatments
- Bronze bushings for floating pistons
- 100% inspected with X-ray, ultrasound and Magnaflux
- Designed and manufactured with CNC machines
- Large and small bores machined on a SUNNEN honing machine
- Shot-peened for long service life, even under load
- Precise pilot hole alignment to prevent displacement
Please note: upgrade to ARP L19 bolts (up to 220,000/230,000 or 260,000/270,000 PSI) possible from 800 hp, at an additional cost of 10 EUR per piece. Professional installation is strongly recommended; no manual is included.
Check Fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
