H-Beam Connecting RodsConrods suitable for Ford Focus Duratec 2.0L suitable for Mazda B2000 MZR
H-Beam Connecting RodsConrods suitable for Ford Focus Duratec 2.0L suitable for Mazda B2000 MZR
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Product description

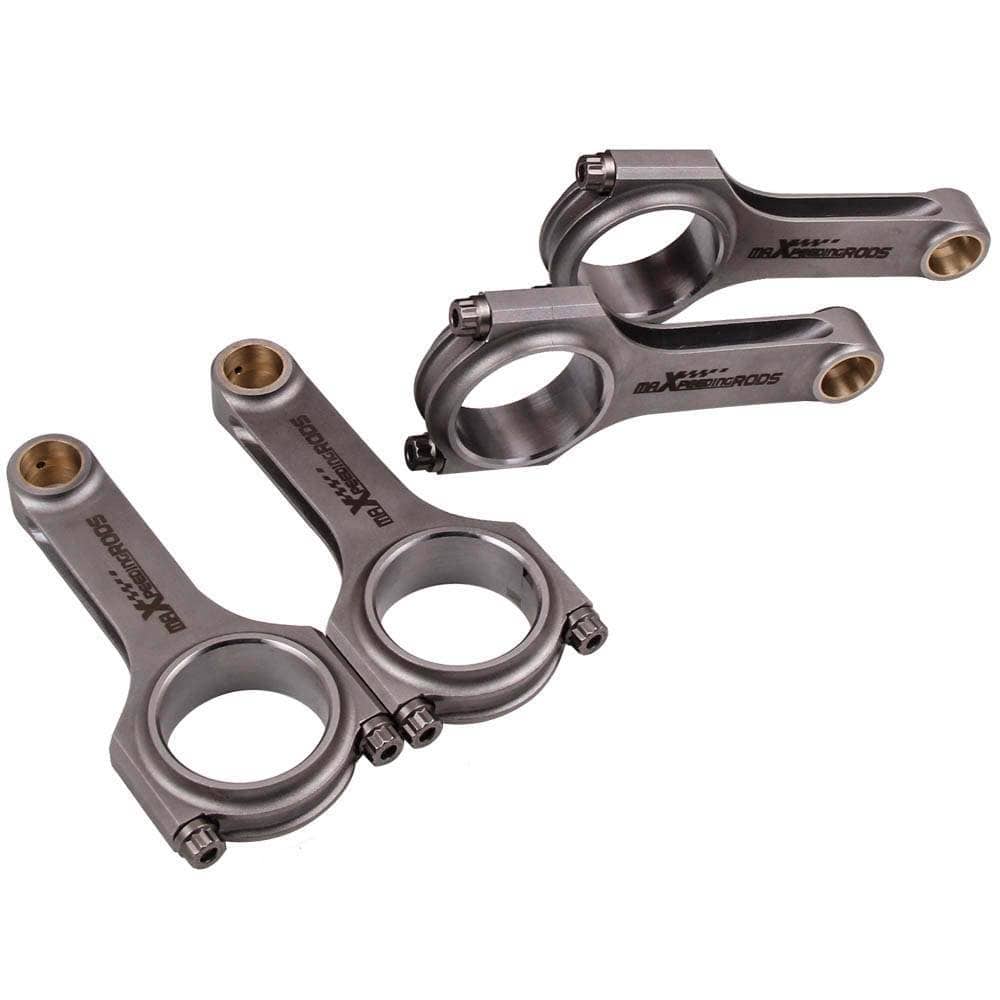

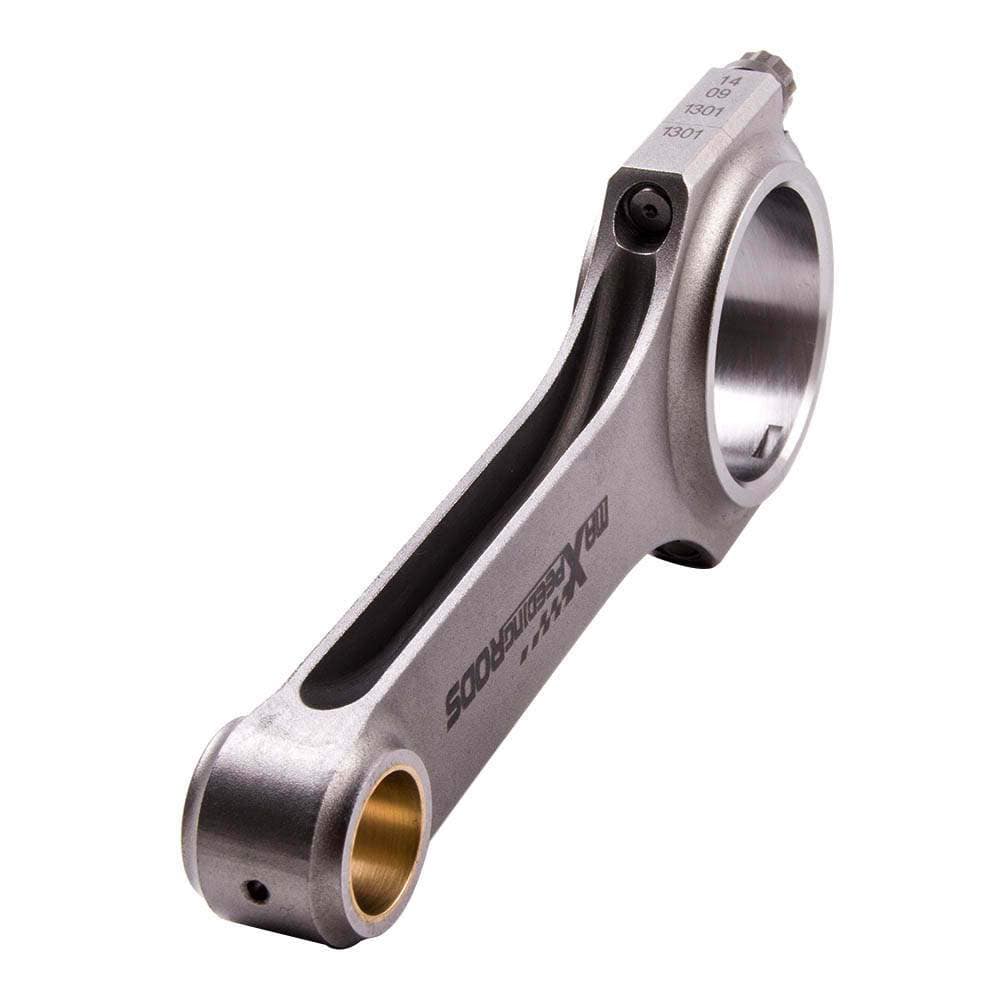

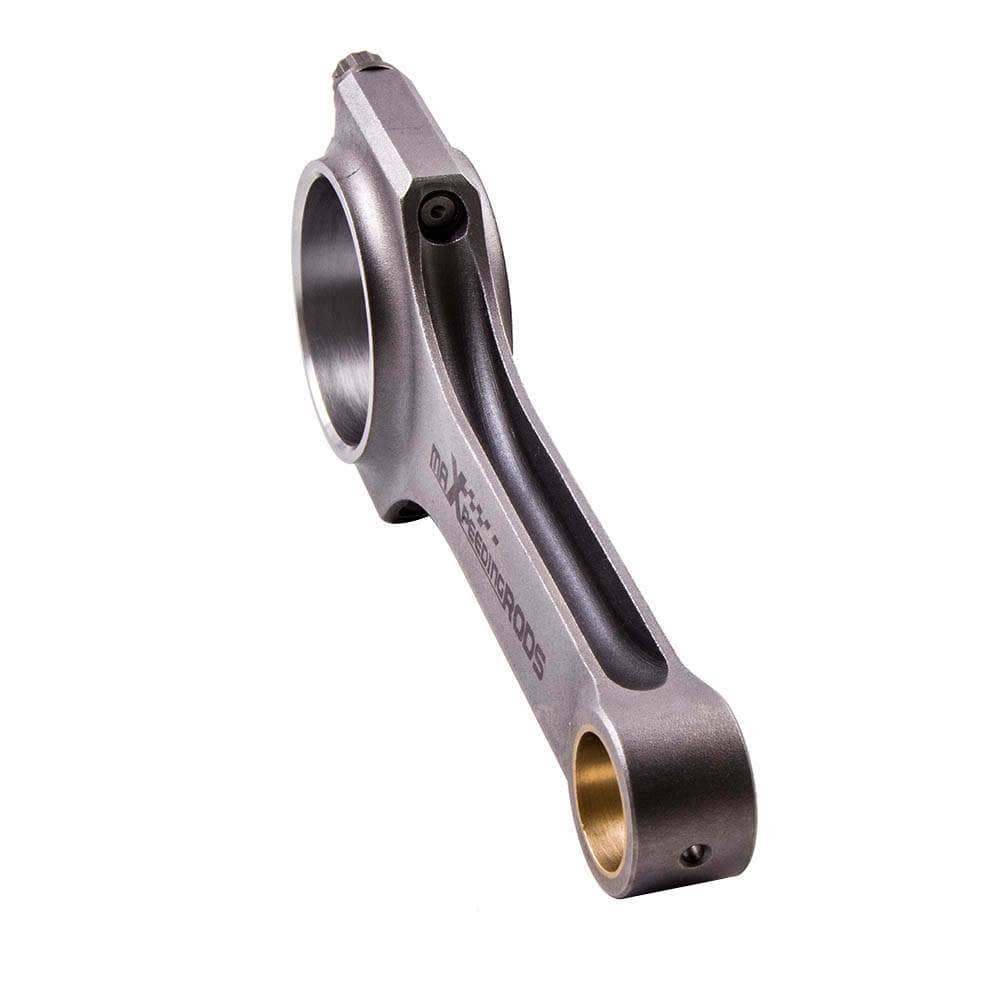

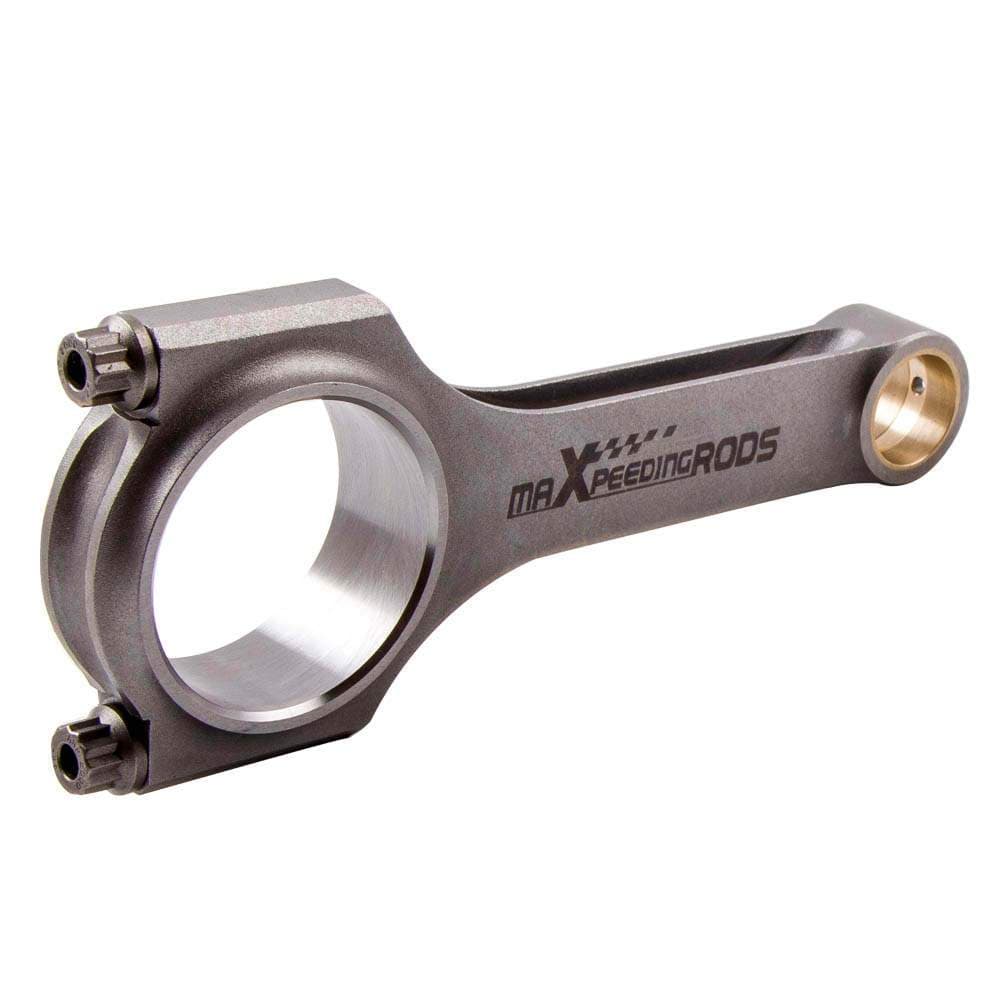

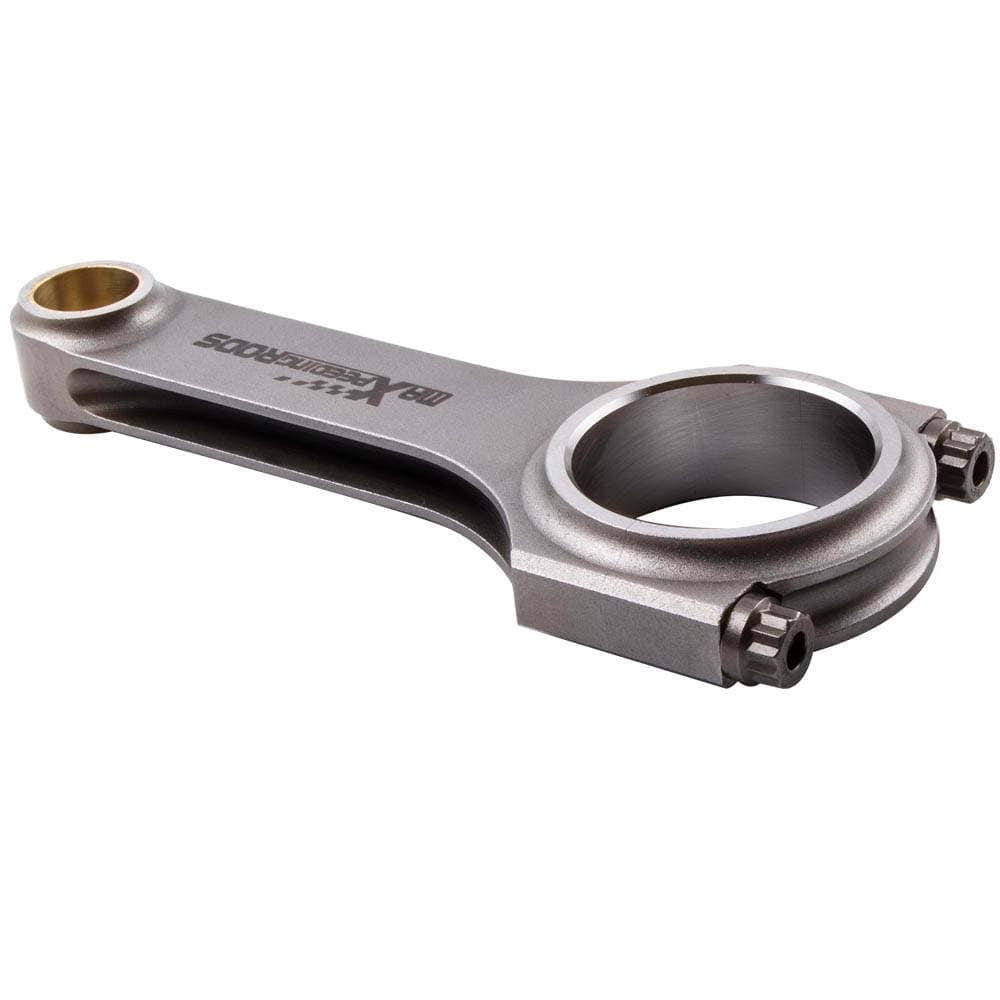

Forged connecting rod (conrod), TÜV-approved, for Ford Duratec and Mazda MZR 2.0 engines.
Suitable for:
- Ford Duratec, Focus 2.0L
- Mazda MZR 2.0
Specifications
- Conrod length: 146.25 mm (≈ 5.75788 inch)
- Crankshaft-conrod drive (big end): 50.035 mm (≈ 1.96988 inch)
- Piston pin (small end): 21 mm (≈ 0.8268 inch)
- Width below: 21.82 mm (≈ 0.8591 inch)
- Width above: 18.03 mm (≈ 0.7098 inch)
- Material: forged 4340 EN24 (40CrNiMo) chrome-molybdenum steel
- Weight tolerance: +/- 1 gram
- Piston pin bore: +-4/1000 mm
- Power: 600-800 hp per set
- Fastener tensile strength: 220,000-230,000 psi
- Torque: 48 ft (≈ 65 Nm)
- Maximum RPM: 9000 rpm
Scope of delivery

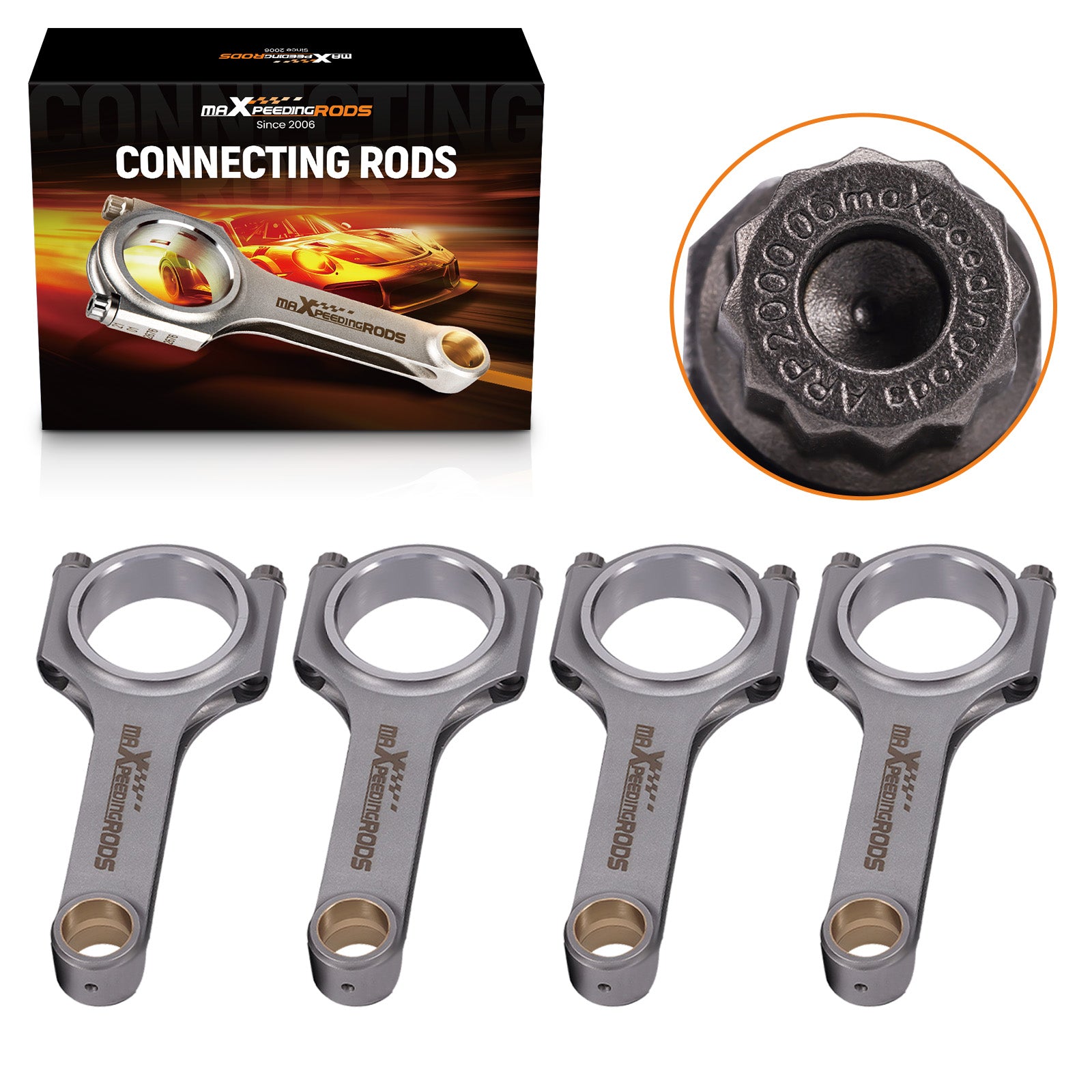

4x steel connecting rods (H-beam shape), 1x set ARP 2000 3/8 bolts.
Features
- New, 100% tested and balanced, TÜV-approved
- Multiple heat treatments
- Equipped with bronze bushings for the floating piston pin
- 100% inspected with X-rays, ultrasonic waves, and Magnaflux
- Designed and manufactured using advanced CNC machines
- All large and small conrod eyes machined on a SUNNEN honing machine
- Shot-peened for long lifespan, even under load
- Precise alignment of the bore for the conrod bearings to prevent shifting
Please note
No manual is included; professional installation is recommended.
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and vehicle version before ordering, as there may be differences depending on the version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
