H-Beam Connecting Rod suitable for Subaru Impreza STI Legacy EJ20 H-Shaft Con Rod tct
H-Beam Connecting Rod suitable for Subaru Impreza STI Legacy EJ20 H-Shaft Con Rod tct
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Product Description

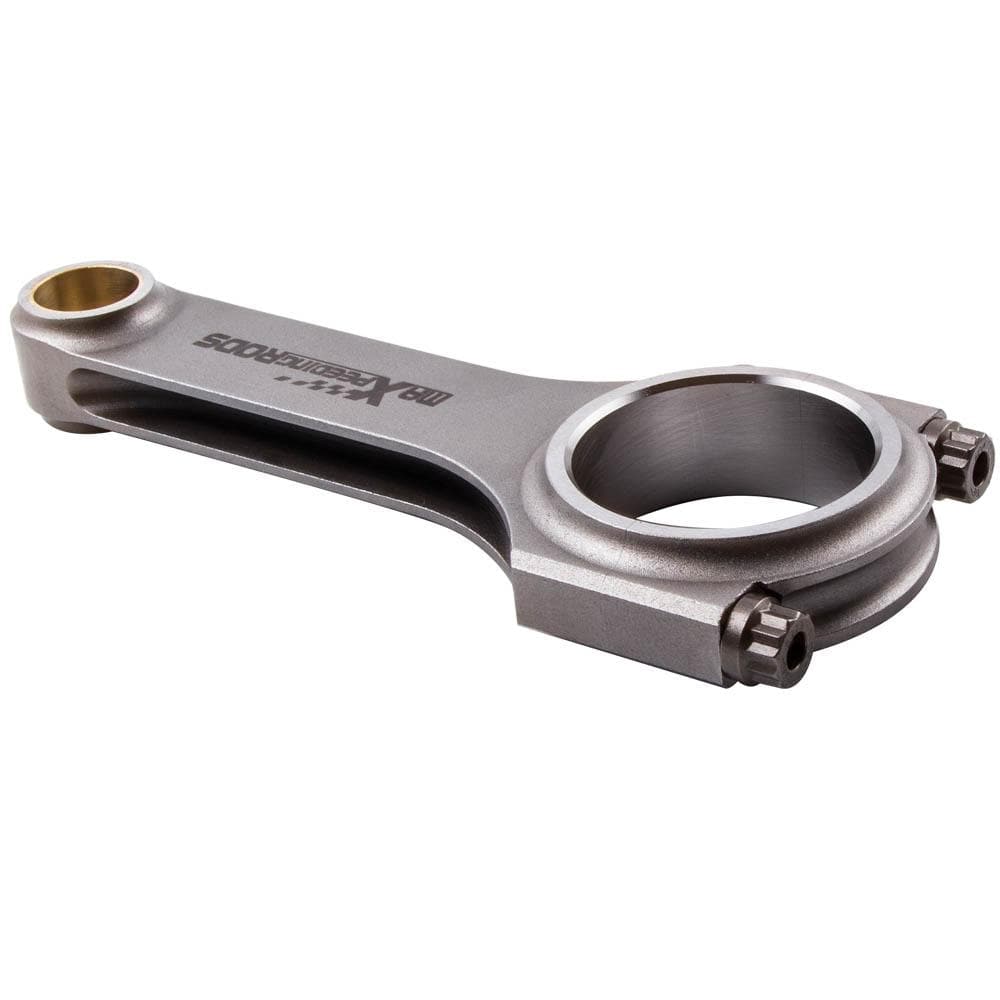

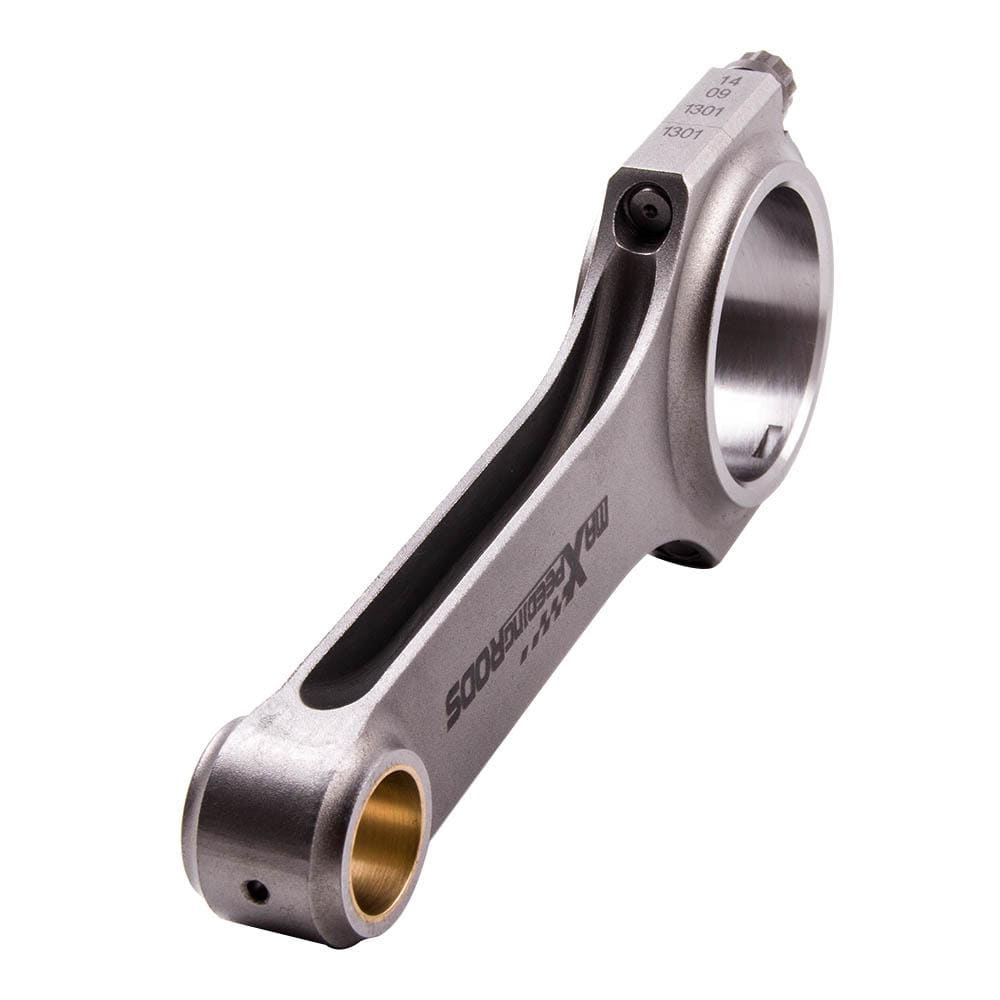

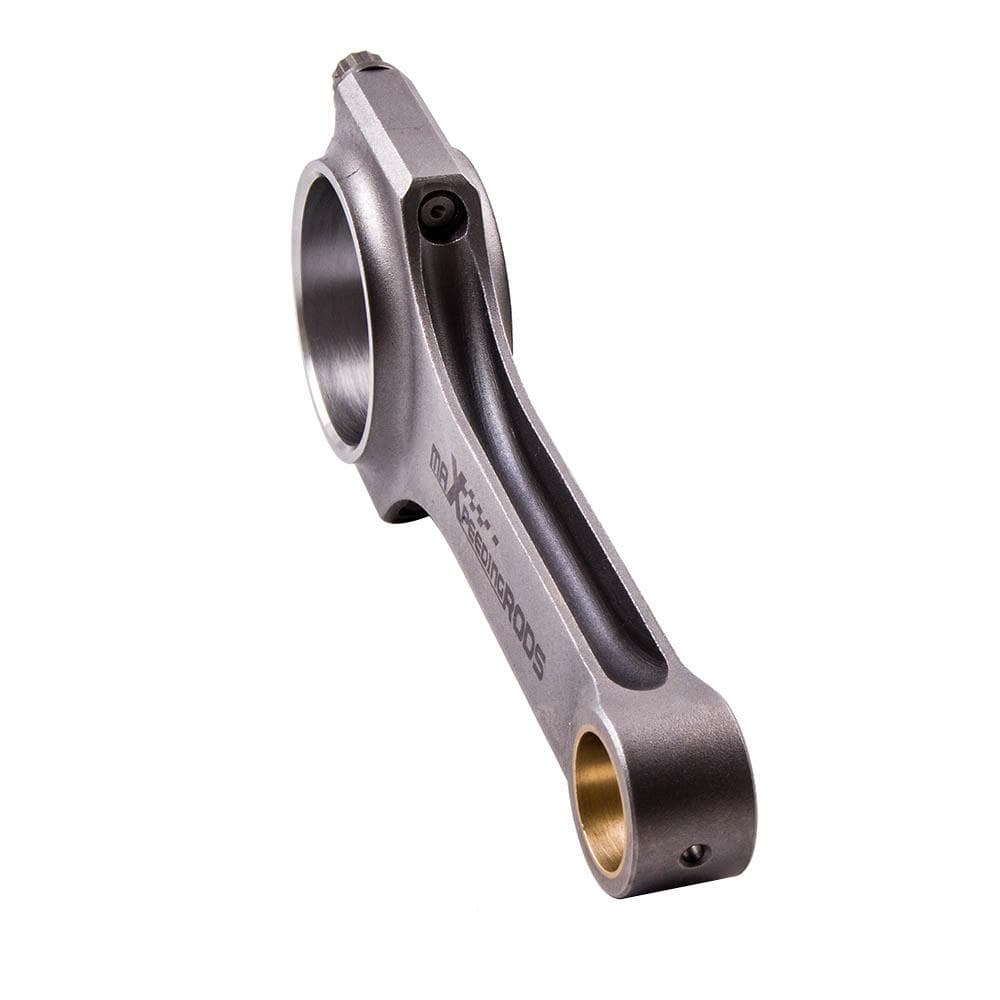

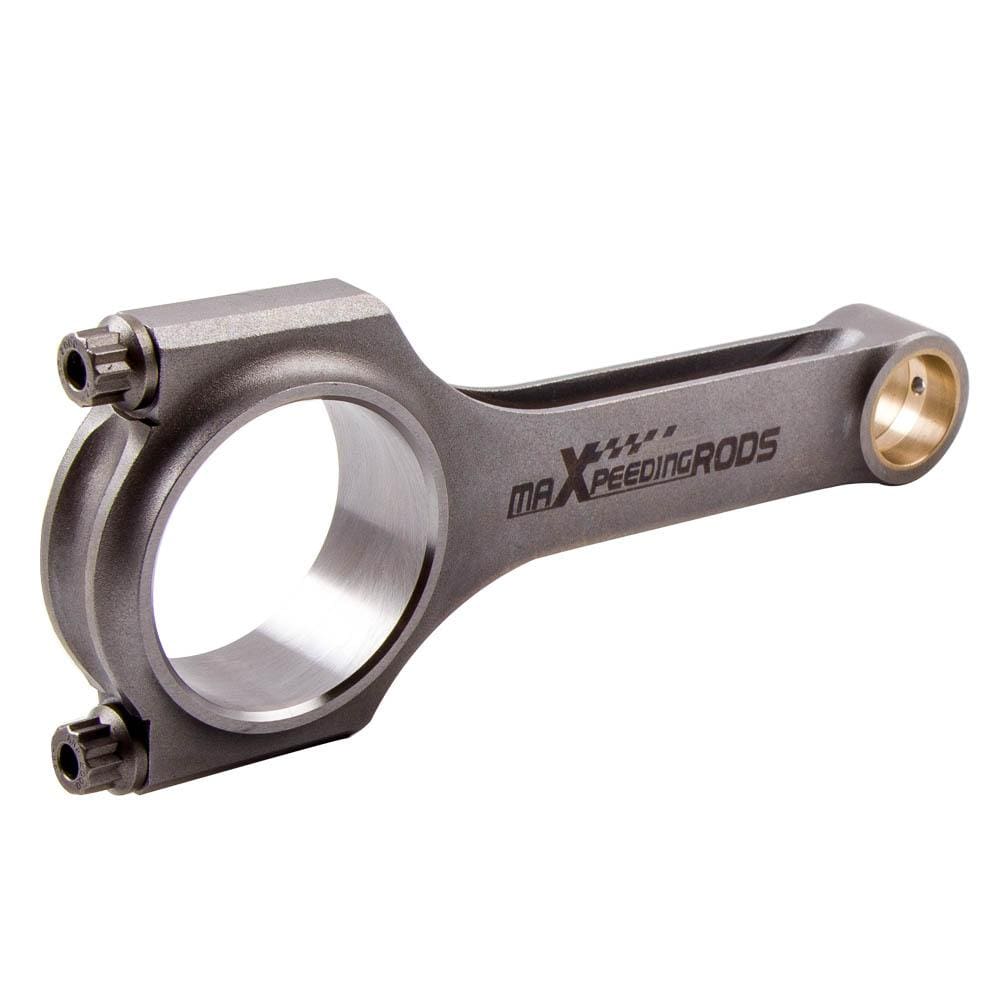

These H-beam connecting rods made of high-quality steel are designed for performance-oriented Subaru boxer engines.
Suitable for:
- Subaru Impreza WRX STI, EJ20 EJ22 EJ25 engines
- Subaru Legacy, EJ20 EJ22 EJ25 engines
- Subaru Impreza WRX STI / Forester Legacy WRX 2.0L Turbo (EJ205 engine), 2002-2005
- Subaru Impreza WRX STi 2.0L Turbo (EJ207 engine), from 1998
- Subaru Impreza WRX 2.5L Turbo (EJ255 engine), 2006-2014
- Subaru Impreza WRX STI 2.5L Turbo (EJ257 engine), 2004-2016
- Saab 9-2X, 2005-2006
- Isuzu Aska, 1990-1993
- Subaru Legacy (JDM), 1989-2009
- Subaru Forester (JDM SF series), 1997-2002
- Subaru Impreza WRX, 2006-2014
- Subaru Forester XT, 2004-2013
- Subaru Outback XT, 2005, 2007-2009
- Impreza, 1995-2001
- Outback, 1995-1996
Specifications
- Center-to-center length: 130.5 mm / 5.137"
- Big end bore: 55 mm / 2.165"
- Small end bore: 23 mm / 0.905"
- Big end width: 21.38 mm / 0.840"
- Small end width: 21.38 mm / 0.840"
- Bolt type: ARP 2000 3/8" bolts
- Material: 4340 EN24 Chrome-molybdenum steel, H-beam design
- Weight tolerance: +/- 1 gram
- Piston pin bore: +/- 4/1000 mm
- Power: 600-800 hp per set
- Fastening strength: 220/230 psi
- Tightening torque: 48 ft ≈ 65 Nm
- Maximum RPM: 9000 rpm
Scope of Delivery

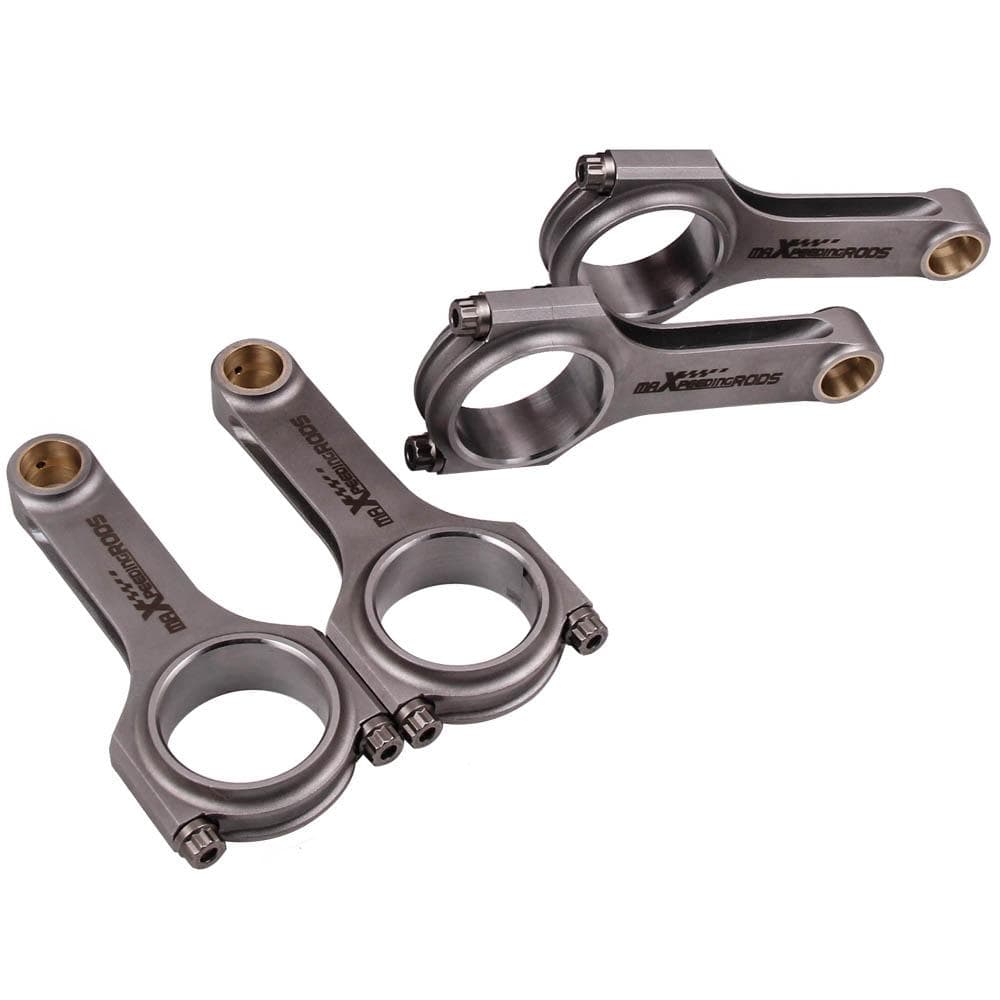

4x steel connecting rods (H-beam design), 1x set ARP 2000 3/8" bolts
Features
- TÜV certified rods
- Material: forged SAE 4340 chrome-moly steel for maximum strength and durability, especially for racing use
- Genuine ARP 2000 bolts; optional ARP L19 fasteners available as an upgrade (up to 220,000/230,000 or 260,000/270,000 psi, from 800 hp, at extra cost for necessary tools)
- H-beam construction reduces weight without sacrificing strength
- Heat-treated and shot-peened for consistent strength and to prevent stress contraction
- 100% CNC machined precision alignment dowels for the rod caps
- Bores finished to +/-0.01mm, balanced to +/-1g per rod
- Each rod magnetic particle tested to rule out defects
- 100% X-rayed and acoustically tested
Check Fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the specific version of your vehicle, as differences may exist between versions. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
