Con rod connectors suitable for Peugeot 106 II S16 suitable for Citroen Saxo VTS 1.6L GTI TU5J4 TU5JP4
Con rod connectors suitable for Peugeot 106 II S16 suitable for Citroen Saxo VTS 1.6L GTI TU5J4 TU5JP4
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Product Description

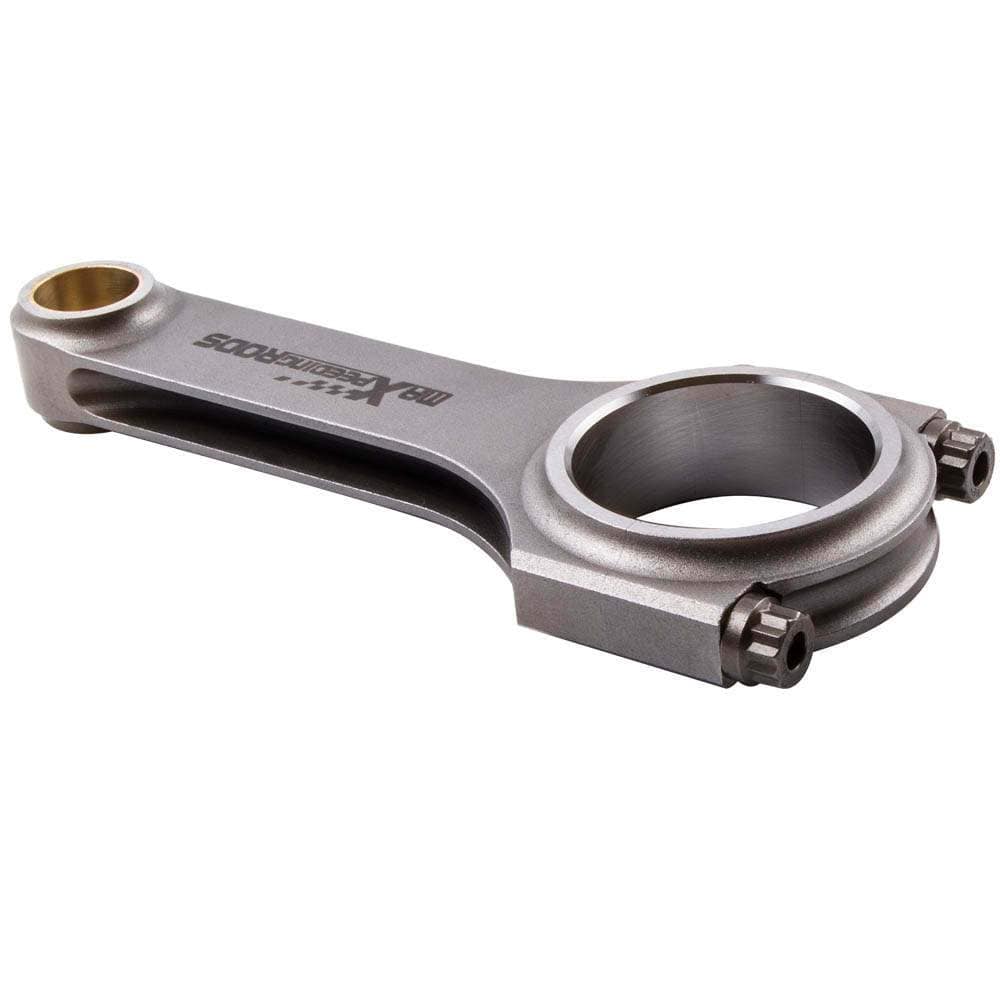

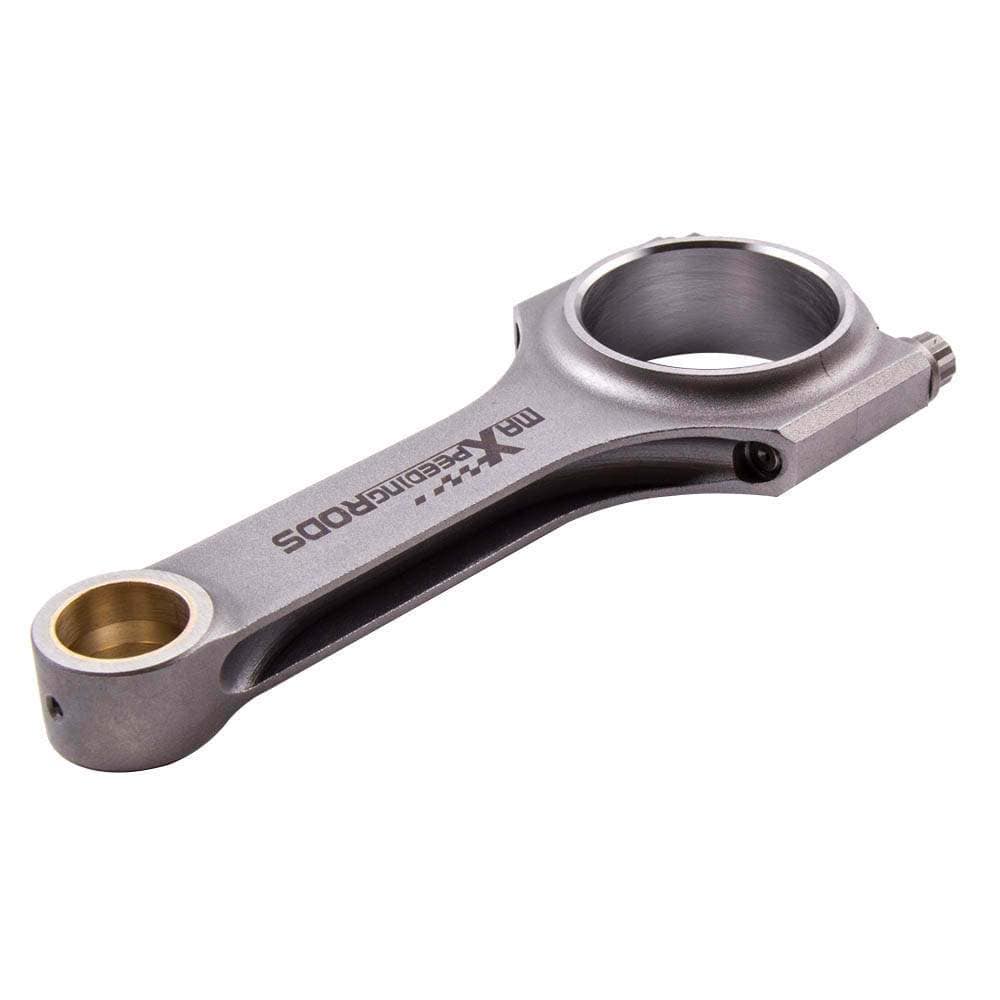

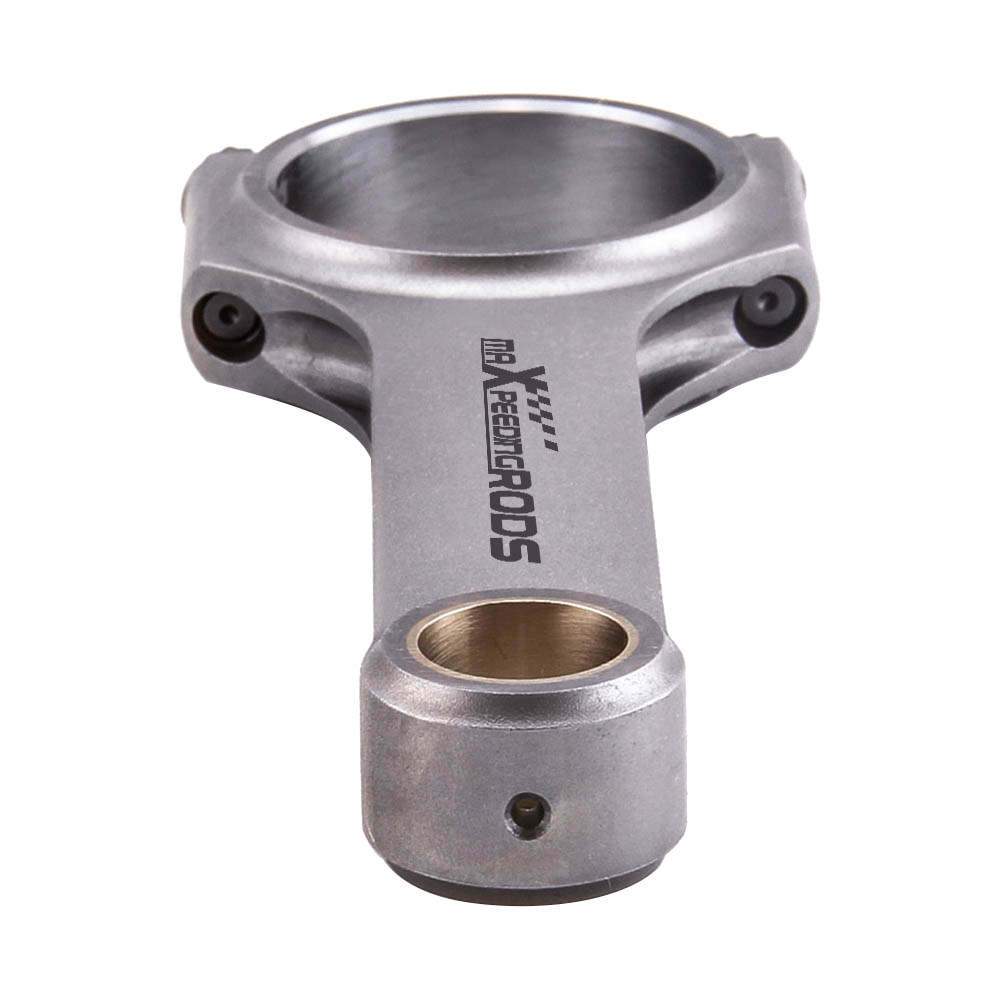

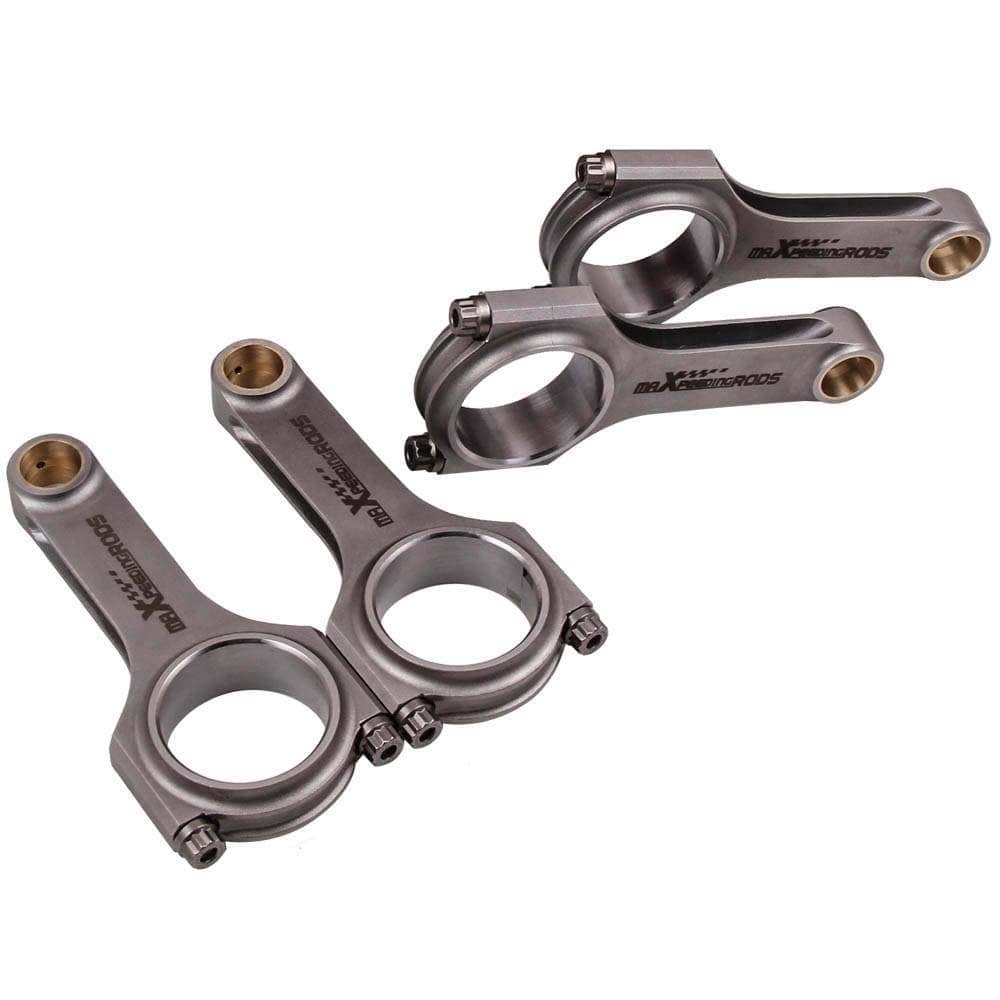

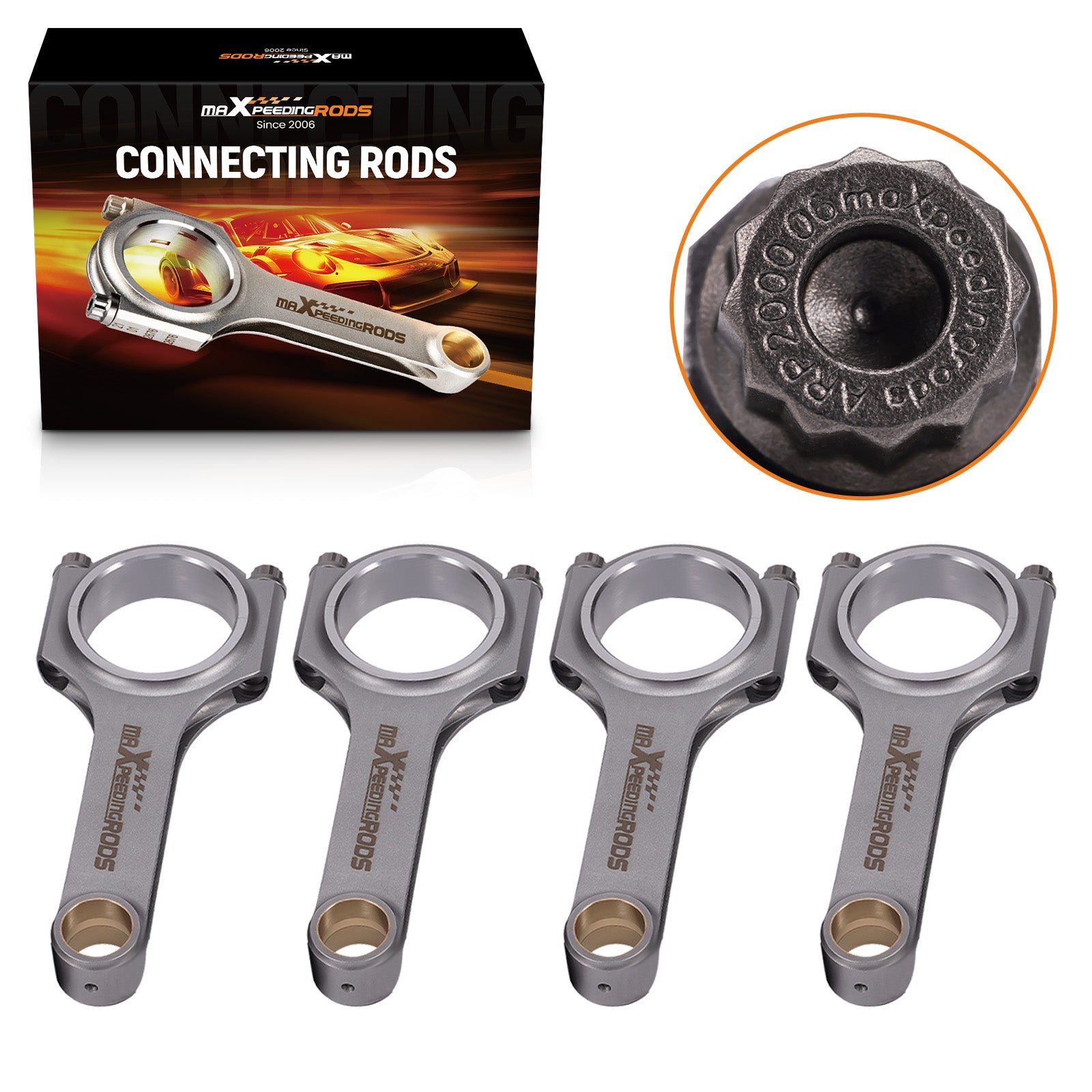

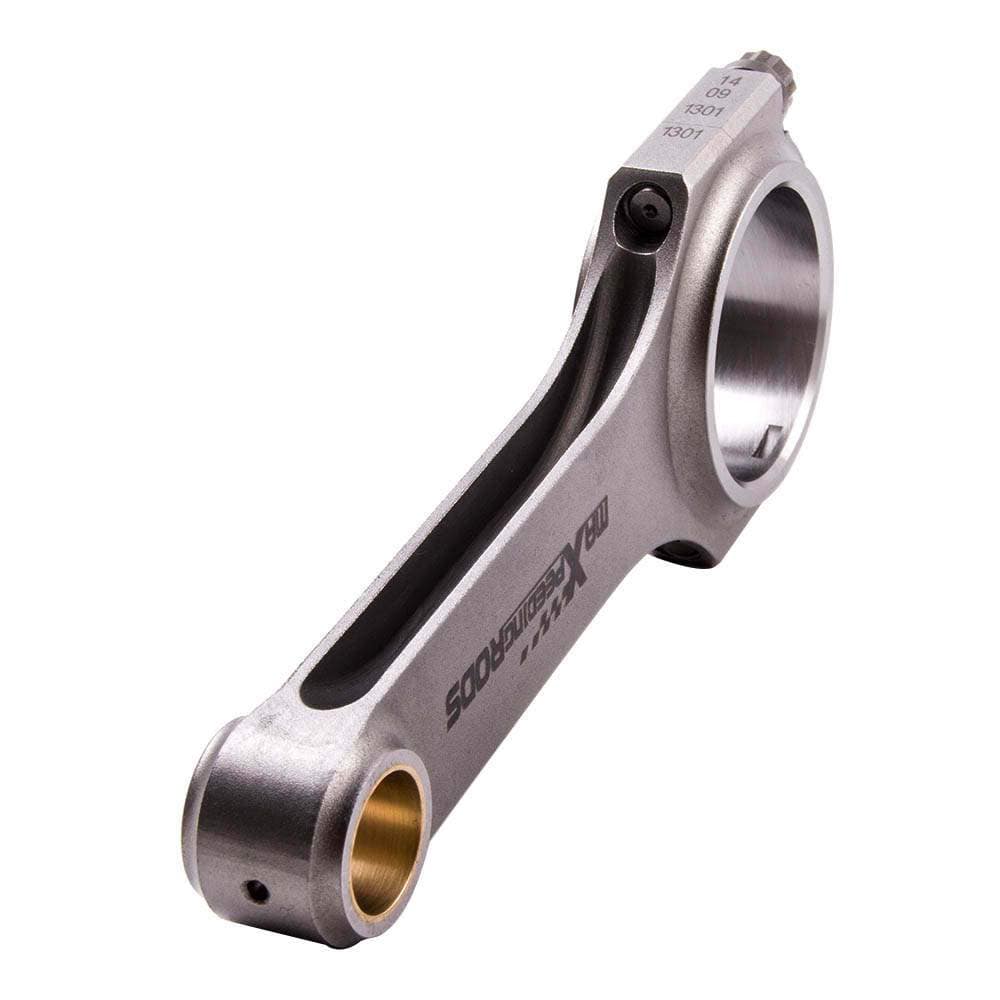

Set of 4 racing connecting rods (bielles) for the Peugeot 306 RS S16 and Citroën Saxo/106 GTI S16.
Suitable for:
- Peugeot 306 RS S16, engine XU10J4RS 2.0L 16V Turbo
- Citroën Saxo / 106 GTI S16, engine TU5J4
Specifications
- Piston pin bore tolerance: ±4/1000 mm
- Power: 600-800 hp per set
- Tensile strength: 220,000 / 230,000 PSI
- Torque: 48 ft ≈ 65 Nm
- Max RPM: 9000 rpm
- Quantity: 4 pieces per set
- Bolts: includes standard 3/8" ARP 2000 bolts (upgrade to ARP L19 bolts at extra cost)
- Material: forged 4340 chromoly steel (aircraft grade) for racing use
- Weight tolerance: balanced to ±1 gram per set
- Center-to-center length: 158 mm
- Big end bore: 53.7 mm
- Small end bore: 20 mm
- Big end width: 24.15 mm
- Small end width: 19.5 mm
Features
- 100% tested and balanced
- 1 year warranty against manufacturing defects
- Multiple heat treatments
- Bronze bushings for floating piston pins
- 100% inspected by X-ray, ultrasonic, and Magnaflux
- Designed and manufactured with CNC machines
- Big and small ends machined on a SUNNEN honing machine
- Shot peened for long life, even under load
- Precise alignment of the dowel hole to prevent shifting
Please note
Upgrade to ARP L19 bolts is possible (up to 220,000/230,000 or 260,000/270,000 PSI, from 800 hp, extra charge). Instructions are not included; professional installation is recommended.
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and vehicle version before ordering, as differences may exist per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
