Fits Ford X-flow Fits Lotus Twin Cam 1600/ Fits Lotus TC Wide Journal Conrod Rods
Fits Ford X-flow Fits Lotus Twin Cam 1600/ Fits Lotus TC Wide Journal Conrod Rods
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Product Description

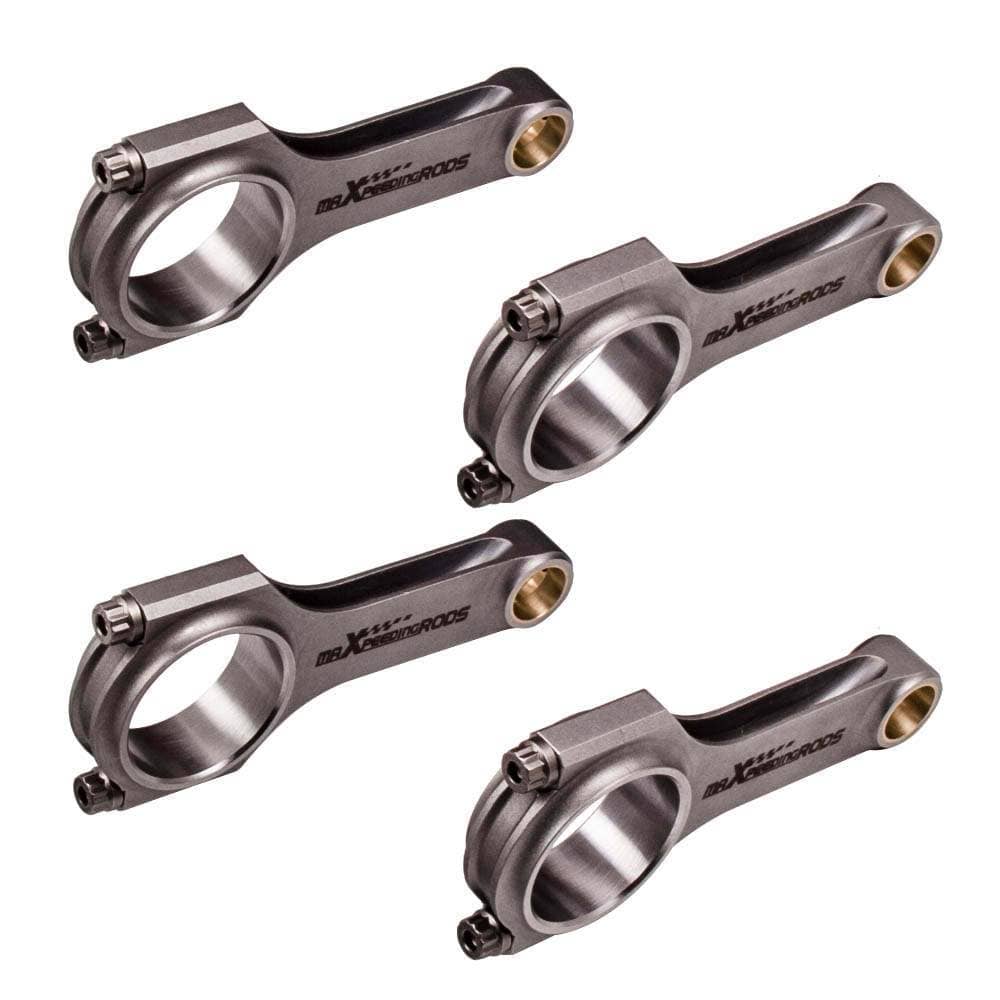

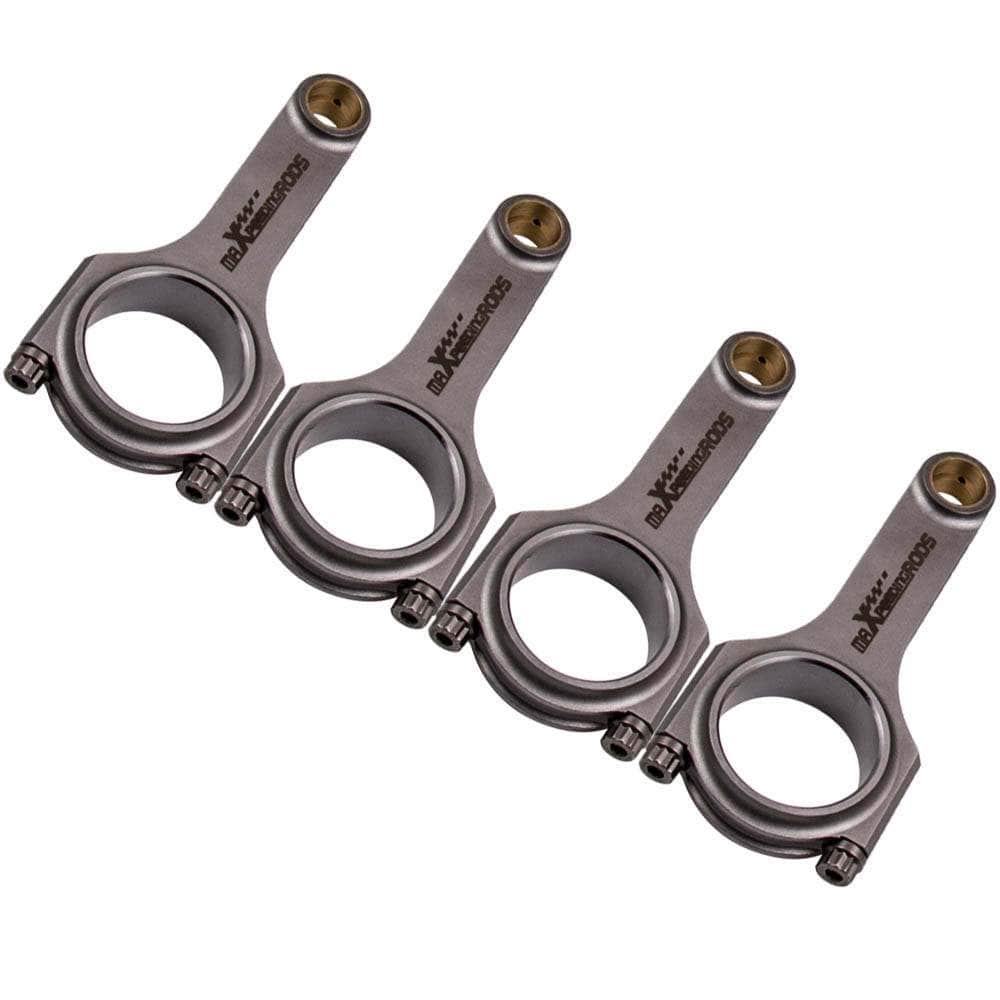

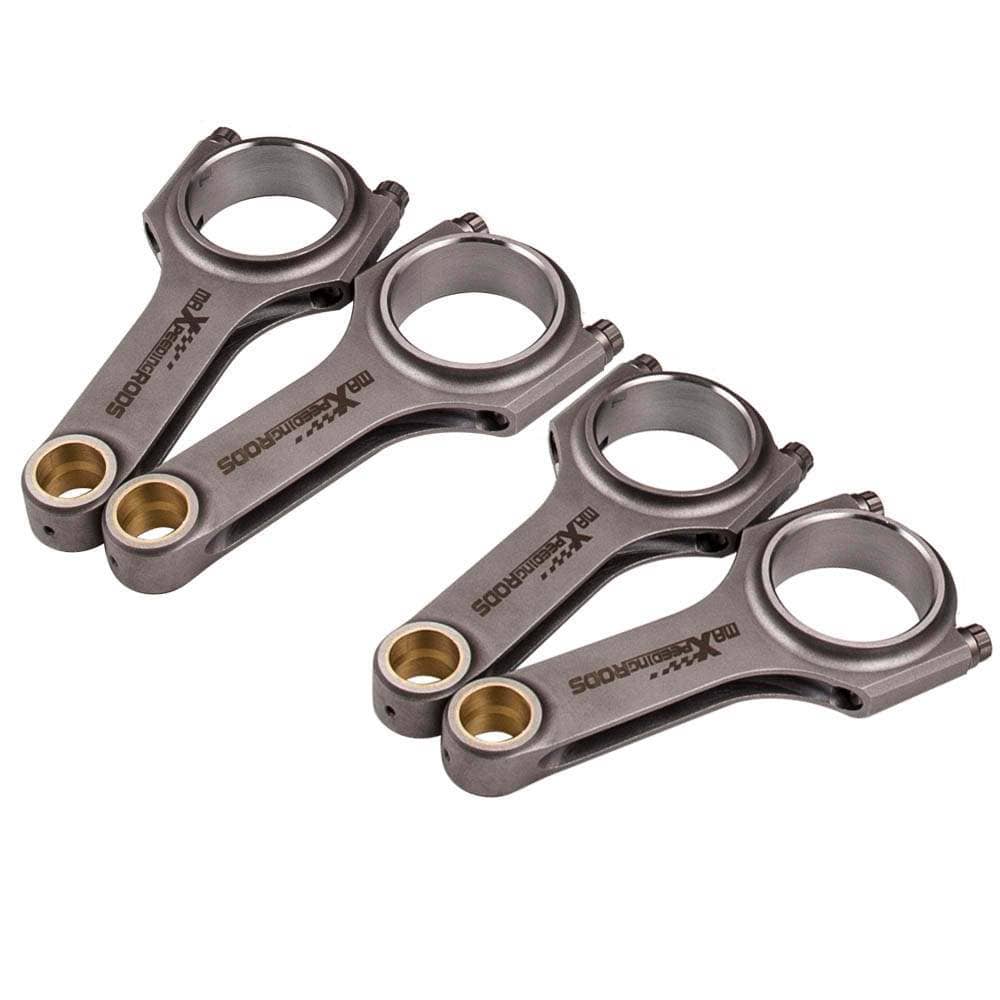

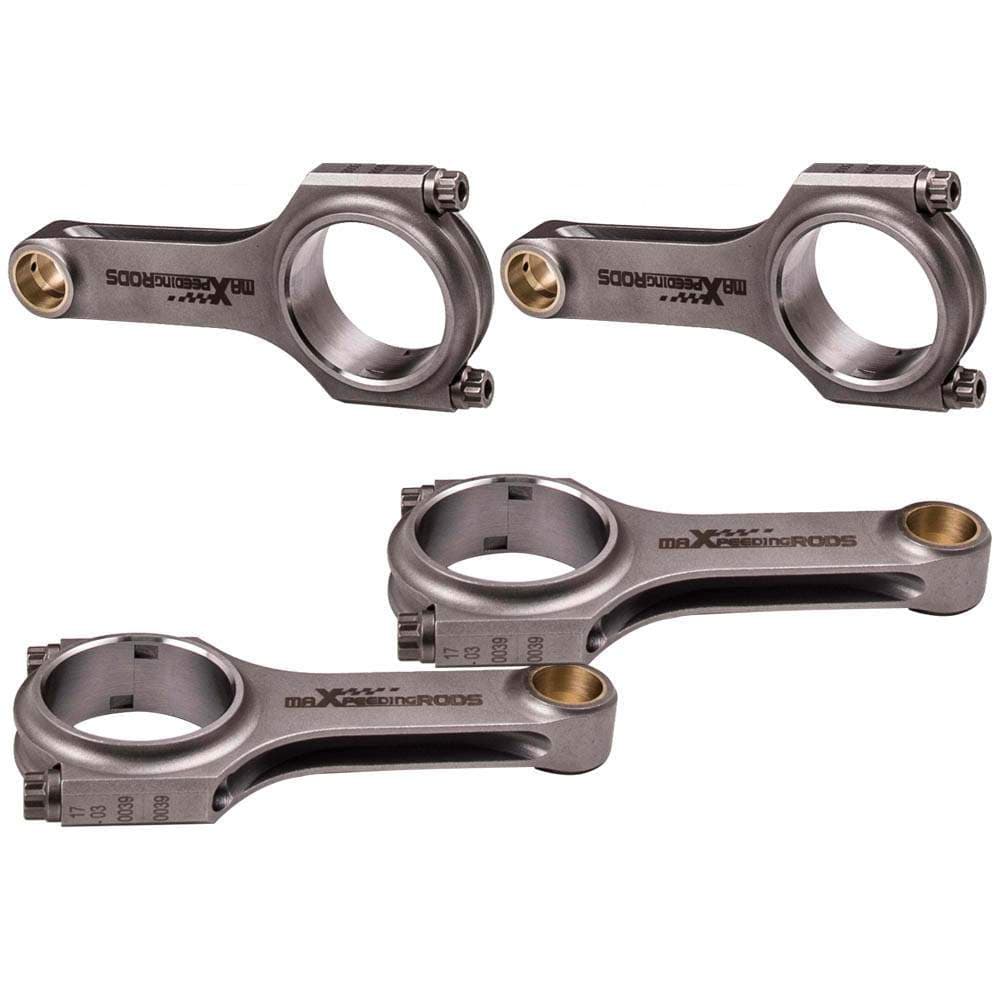

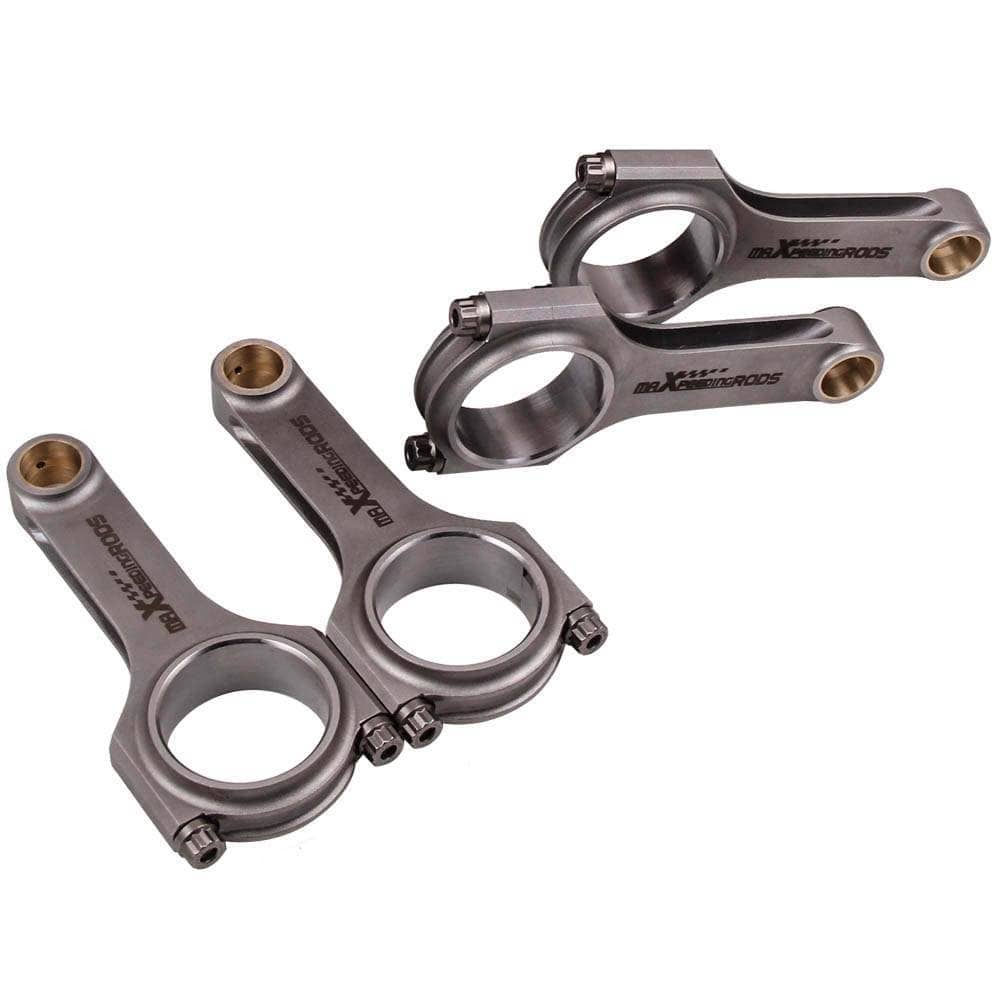

Connecting rod set for Ford X-Flow / Lotus Twin Cam 1600 TC engine, wide crank pin.
Suitable for:
- Lotus Twin Cam 1600 / Lotus TC / Ford X-Flow
Specifications
- Center-to-center length (C-C): 122.58 mm (wide crank pin)
- Big end bore: 52.91 mm / 2.08307 inch
- Small end bore: 20.62 mm / 0.8118 inch
- Big end width: 26.77 mm
- Small end width: 24.13 mm
- Bolt type: ARP 2000 3/8"
- Material: Forged SAE 4340 / EN24 (40CrNiMo) chrome-molybdenum steel
- Weight tolerance: +/- 1 gram
- Piston pin bore: +/- 4/1000 mm
- Power: 600-800 hp per set
- Fastener yield strength: 220,000/230,000 psi Torque: approx. 65 Nm
- Maximum RPM: 9000 rpm
Scope of delivery

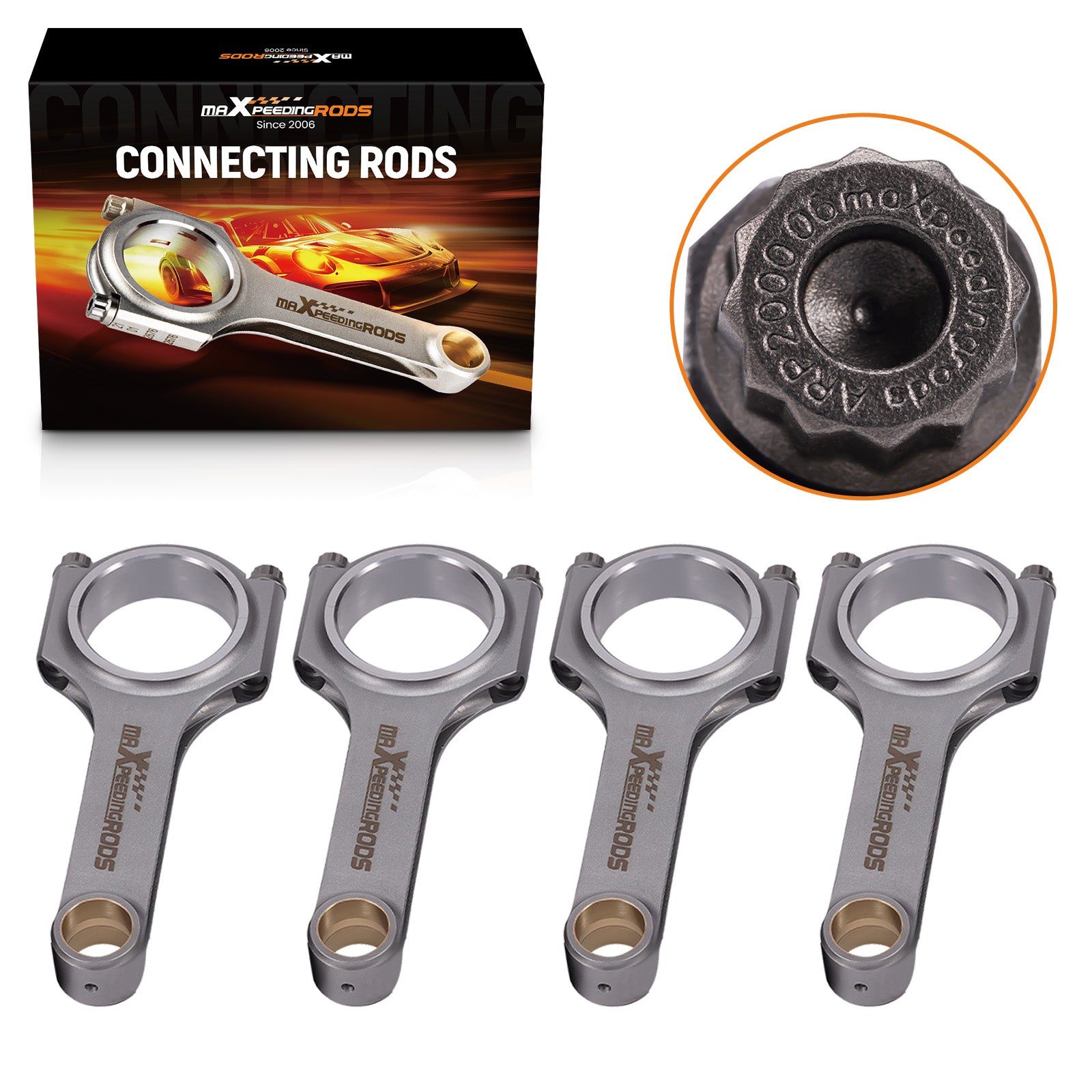

4x steel connecting rod (H-beam profile) + 1x set ARP 2000 3/8" bolts
Features
- New, forged and ready for installation
- Forged SAE 4340 chrome-molybdenum steel for maximum strength and durability, especially for racing use
- Designed and machined on a CNC machine
- Big and small ends finished with a Sunnen honing machine
- Precision alignment sleeves correctly position the rod cap
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated and shot peened to reduce stress
- Equipped with bronze bushing, suitable for floating piston pin
Please note: upgrade to ARP L19 bolts possible at an additional cost. Check if your old connecting rod matches the dimensions above.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences depending on the version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchase.
