H-beam Connecting Rods suitable for Fiat 500 Old Model 130 mm Connecting Rods ARP Conrods Connecting Rods
H-beam Connecting Rods suitable for Fiat 500 Old Model 130 mm Connecting Rods ARP Conrods Connecting Rods
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Product Description

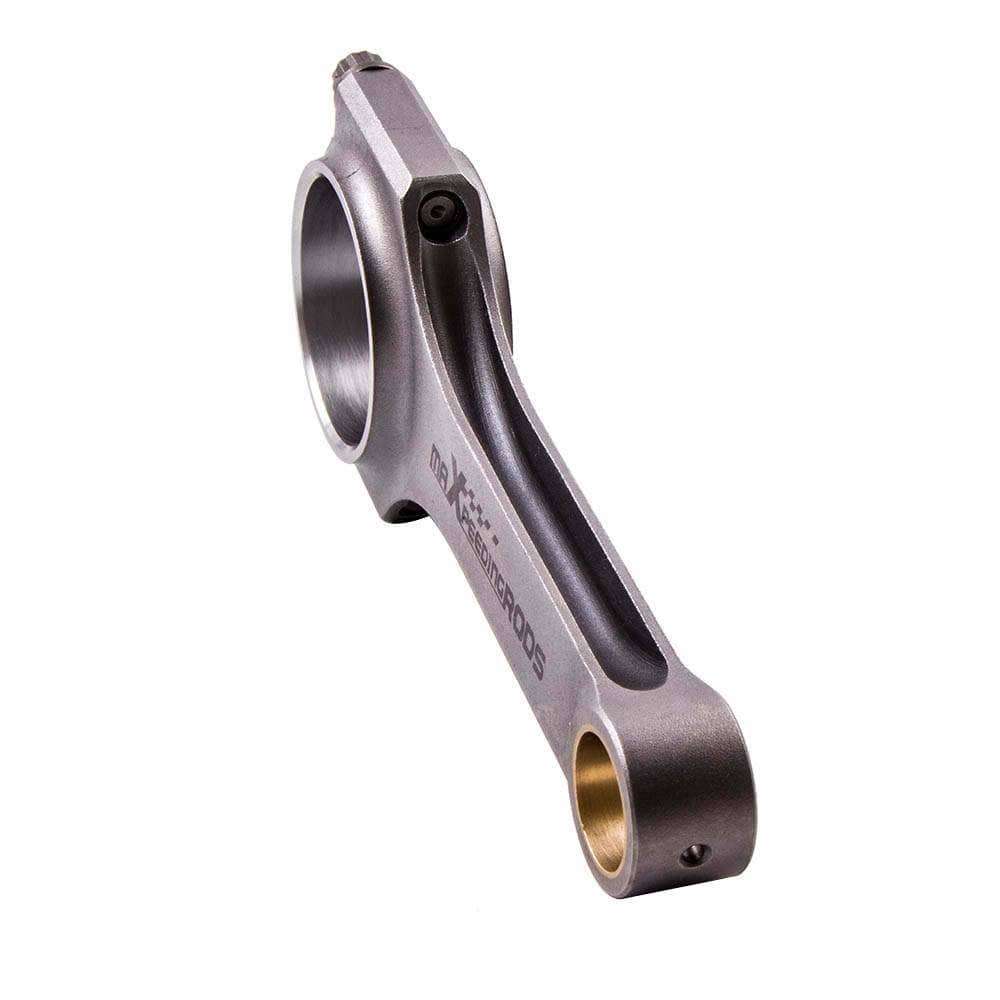

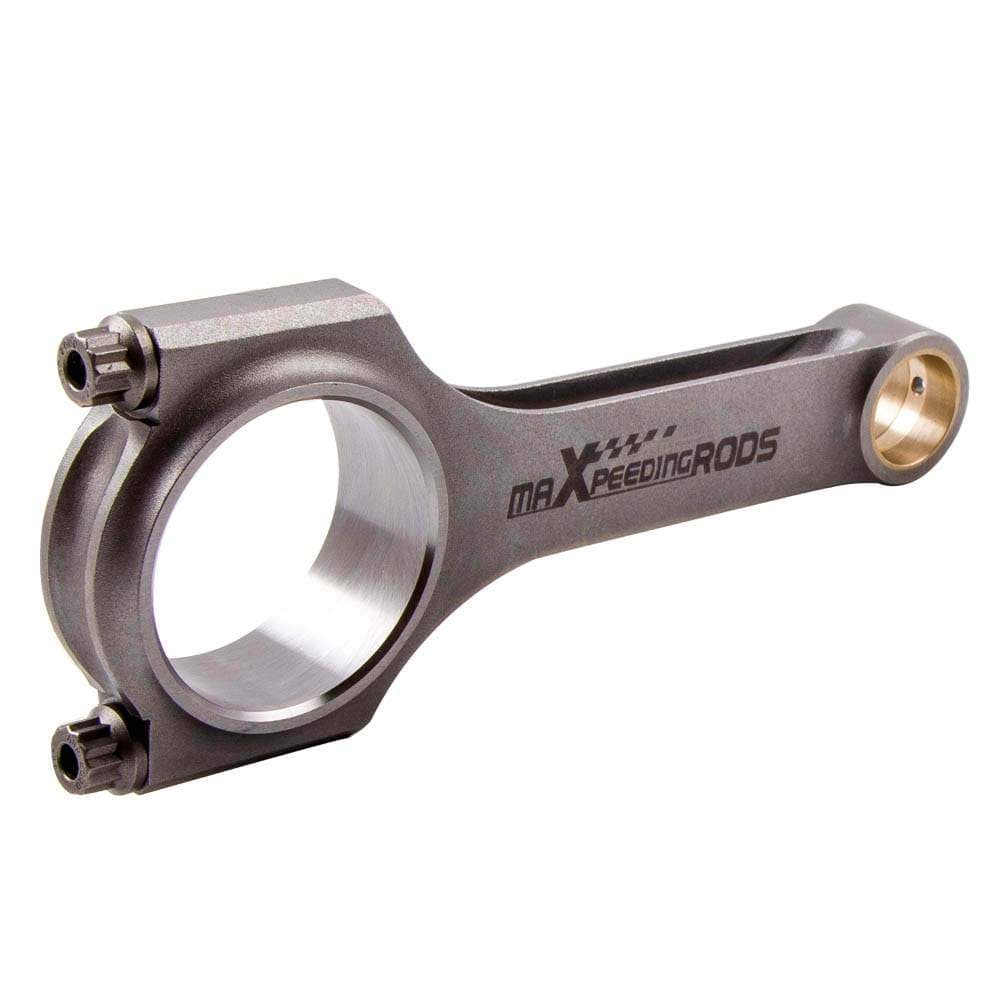

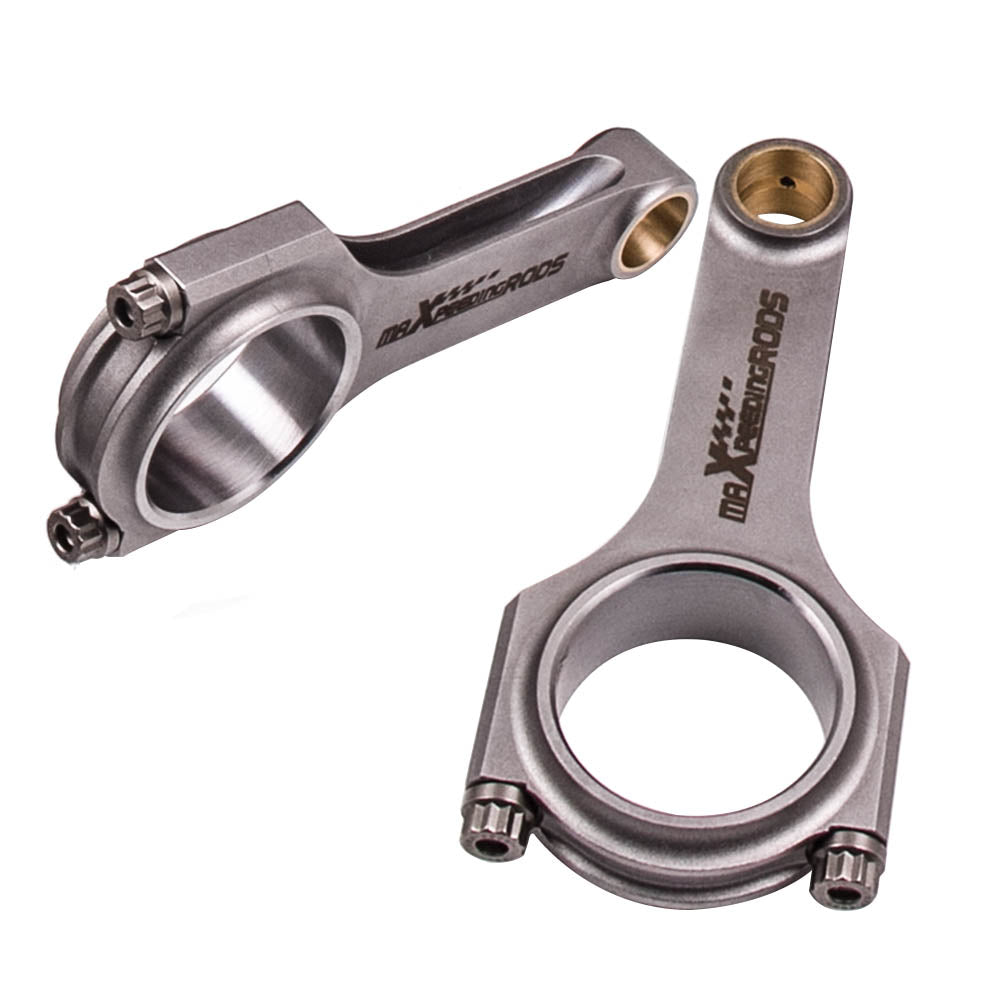

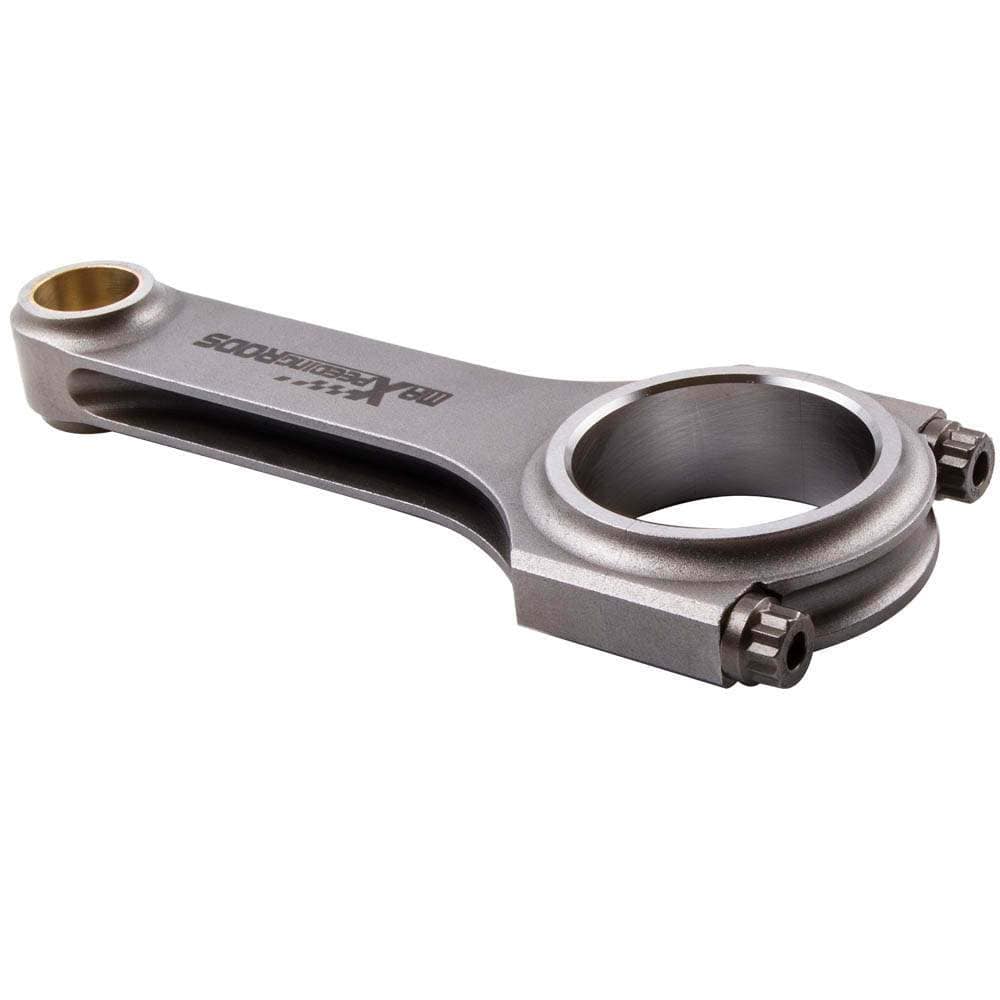

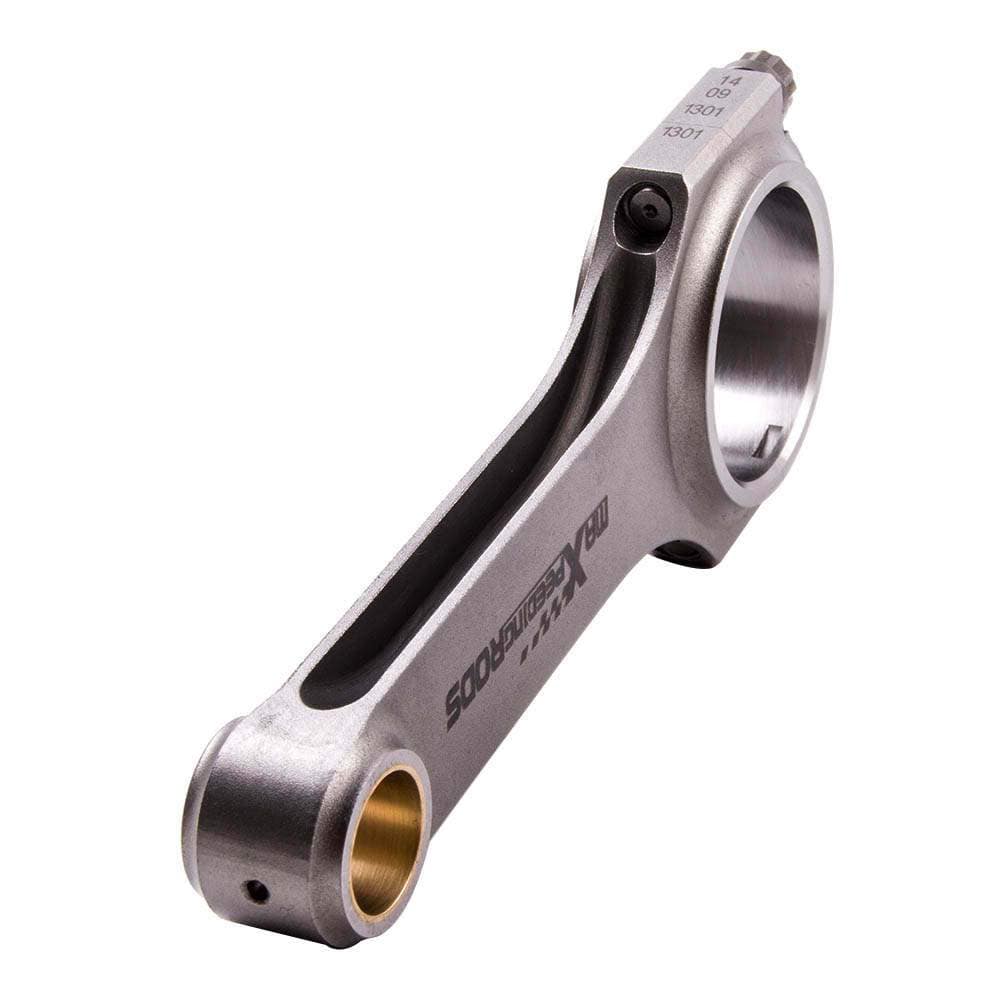

Set of forged H-beam connecting rods made of chromoly steel, with ARP 2000 bolts, for the old model Fiat 500 (2-cylinder), length 130 mm.
Suitable for:
- Fiat 500 old model 2-cylinder 130 mm
Other C/C options: 118 / 120 / 124 / 126 mm.
Specifications
- Quantity: set of 2 pieces + original 5/16" ARP 2000 bolts (optional ARP L19 as upgrade)
- Material: 4340 forged aircraft-grade chromoly steel
- Weight Tolerance: balanced to +/- 1 g
- Center-to-Center Length: 130 mm / 5.118"
- Big End Bore: 47.13 mm / 1.856"
- Small End Bore: 20 mm / 0.787"
- Big End Width: 24.7 mm / 0.972"
- Small End Width: 18.5 mm / 0.728"
- Warranty: 1 year against manufacturing defects
Features
- Forged SAE 4340 chromoly steel for maximum strength, dedicated to racing
- ARP 2000 bolts, optional ARP L19 as an upgrade; 100% CNC machined
- Bronze bushing for the floating piston pin
- 100% X-rayed and sonic tested; heat-treated and shot-peened
- H-beam design saves weight without sacrificing strength
Please note
Upgrade to ARP L19 bolts possible (up to 220,000/230,000 or 260,000/270,000 PSI) at an additional cost. No manual included; professional installation is recommended.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and version of your vehicle, as there may be differences per version. Are you unsure if this part fits your vehicle? Feel free to contact us before purchase.
