Application

Compatible for Audi A3 8P1 1.2L-1.9L 1ZF, 1ZM, 1KQ, 1KD 2003/05-2012/08
compatible for Audi A3 Cabriolet 8P7 1.2L-1.9L 1ZF, 1ZM, 1KQ, 1KD 2008/04-2013/05
compatible for Audi A3 Sportback 8PA 1.2L-1.9L 1ZF, 1ZM, 1KQ, 1KD 2004/09-2013/03
compatible for Seat Altea 5P1 1.2L-1.9L 1ZF, 1KD, 1KQ 2004/03-2015/07
compatible for Seat Altea XL 5P5, 5P8 1.2L-1.9L 1ZF, 1KD, 1KQ 2006/10-2015/07
compatible for Seat Leon 1P1 1.2L-1.9L 1ZF, 1ZM, 1KD 2005/07-2013/08
compatible for Seat Toledo III 5P2 1.4L-1.9L 1ZF, 1KD 2004/10-2009/05
compatible for Skoda Octavia II 1Z3 1.2L-2.0L 1ZF, 1ZM, 1KD 2004/02-2013/06
compatible for Skoda Octavia II Combi 1Z5 1.2L-2.0L 1ZF, 1ZM, 1KD 2004/02-2013/06
compatible for Skoda Yeti 5L 1.2L-2.0L 1ZF, 1KD 2009/09-2017/12
compatible for VW Beetle 5C1, 5C2 1.2L-2.0L 1ZM, 1ZQ, 1KD, 1KU 2011/07-2019/07
compatible for VW Beetle Cabriolet 5C7, 5C8 1.2L-2.0L 1ZM, 1ZQ, 1KD, 1KU 2011/12-2019/07
compatible for VW Caddy III Großraumlimousine 2CB, 2CJ, 2KB, 2KJ 1.2L-2.0L 1ZF, 1ZM 2007/12-2015/05
compatible for VW Caddy III Kasten/Großraumlimousine 2CA, 2CH, 2KA, 2KH 1.2L-2.0L 1ZF, 1ZM 2007/12-2015/05
compatible for VW Golf Plus 521, 5M1 1.2L-2.0L 1ZF, 1ZM, 1KD 2004/12-2013/12
compatible for VW Golf V 1K1 1.4L-2.0L 1ZF, 1ZM, 1ZC, 1KD, 1KQ 2003/10-2008/11
compatible for VW Golf VI 5K1 1.2L-2.0L 1ZF, 1ZM, 1ZC, 1KD, 1KQ 2008/10-2012/11
compatible for VW Jetta IV 162, 163, AV2, AV3 1.2L-2.0L 1ZM, 1ZQ, 1KD, 1KU 2010/04-2018/04

OE/Part number

Rear Brake Disc: 1K0615301AC, 1K0615301AK, 1K0615301S, 5C0615301

Front Brake Disc: 1K0615601K, 1K0615601AB

Rear Brake Pads:1J0698151D, 1J0698151E, 1J0698151F, 1J0698151G,
1K0698151A, 1K0698151D, 1K0698151F, 1K0698151G, JZW698151

Front Brake Pads:1E0698451, 1E0698451B, 1E0698451C, 1E0698451D, 1E0698451E,1E0698451G, 1H0615415, 1H0615415A, 1H0615415D, 1H0698451, 1H0698451A, 1H0698451D,1J0698451, 1J0698451B, 1J0698451C, 1J0698451D, 1J0698451E, 1J0698451F, 1J0698451G,1J0698451H, 1J0698451J, 1J0698451K, 1J0698451L, 1J0698451M

Specification

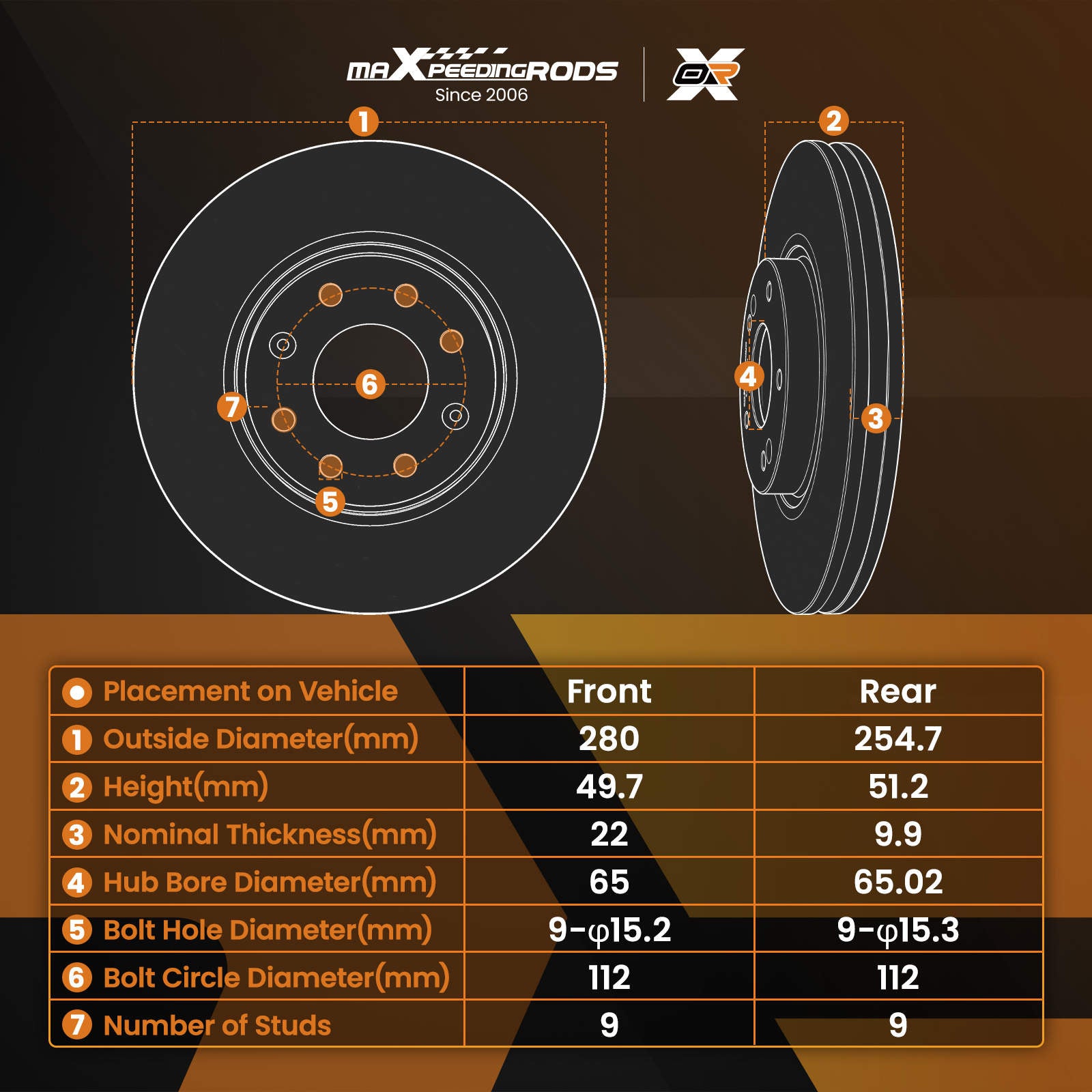

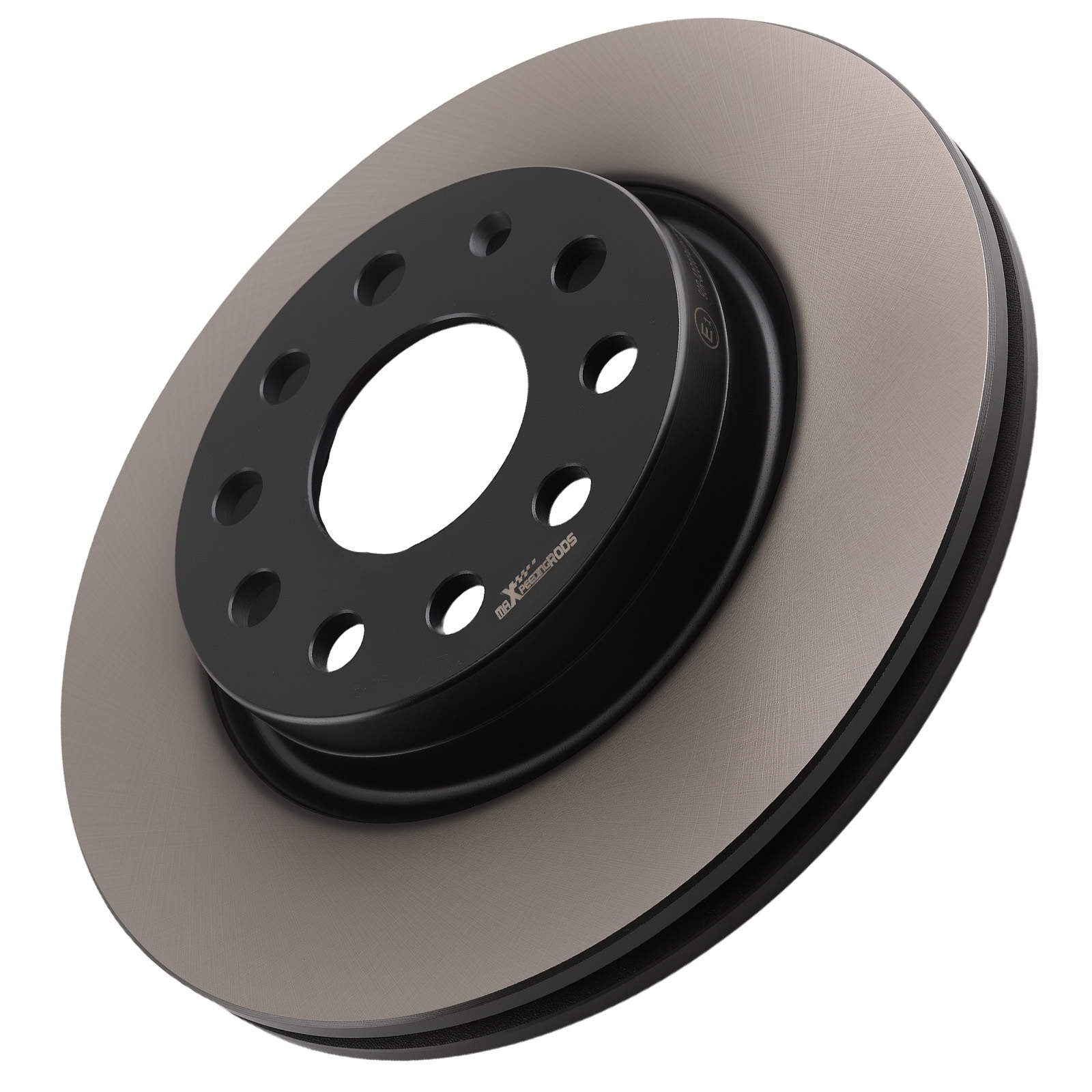

Item Type 1: Brake Discs
Conditiion: New
Installation position: Front Dirver & Passenger Side
Material: Iron Alloy
Solid Or Vented Type Rotor: Vented
Rust Resistant Coating: Black Painting
Directional or Non-Directional Brake Surface: Non-Directional
ABS Tone Ring Included: No
Bearings Included: No
Mounting Bolt Hole Quantity: 9
Mounting Bolt Hole Circle Diameter(mm): 112
Outside Diameter(mm): 280
Overall Height(mm): 49.7
Nominal Thickness(mm): 22
Packaging Type: Box
Fitment: Direct Replacement

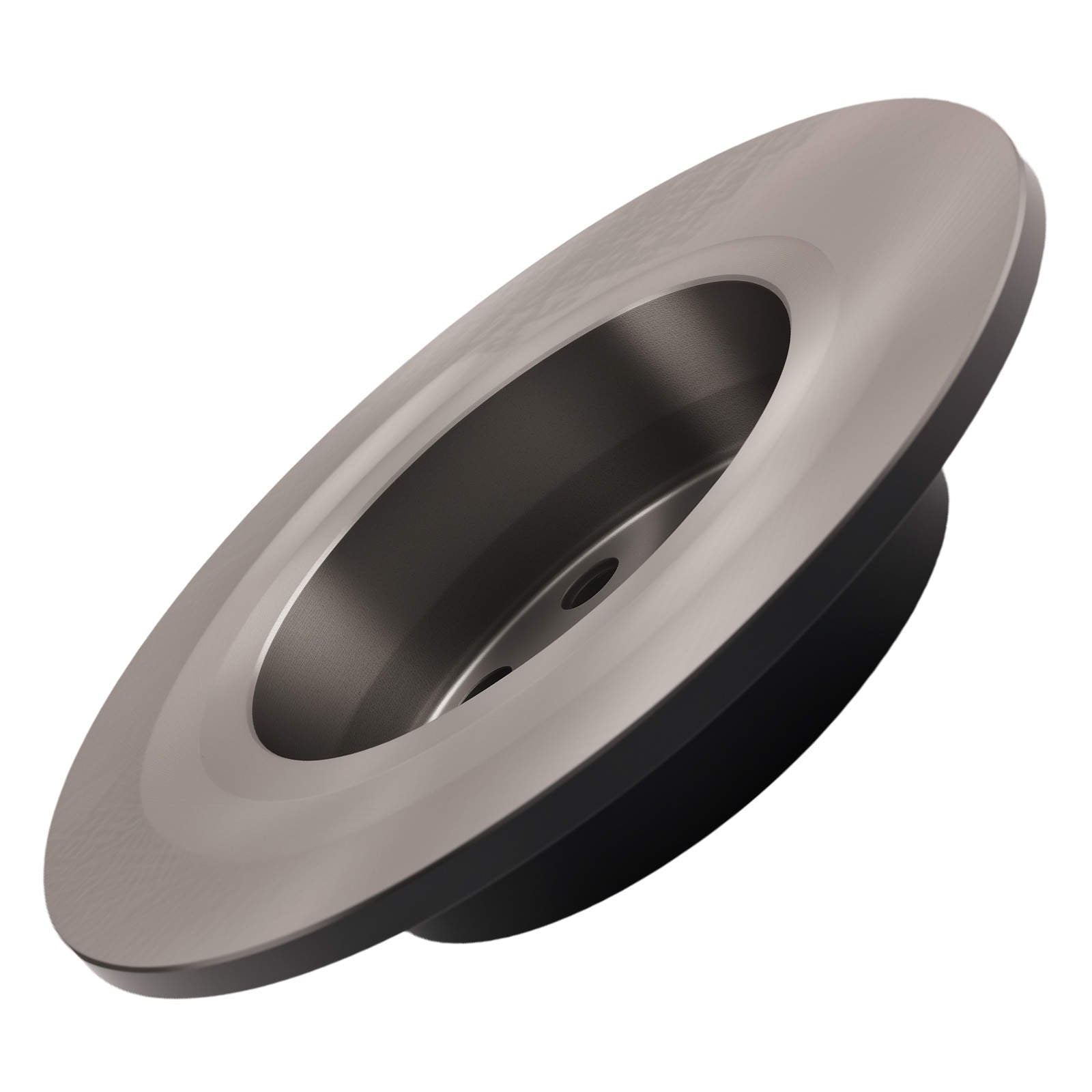

Item Type 2: Brake Discs
Conditiion: New
Installation position: Rear Dirver & Passenger Side
Material: Iron Alloy
Solid Or Vented Type Rotor: Solid
Rust Resistant Coating: Black Painting
Directional or Non-Directional Brake Surface: Non-Directional
ABS Tone Ring Included: No
Bearings Included: No
Mounting Bolt Hole Quantity: 9
Mounting Bolt Hole Circle Diameter(mm): 112
Outside Diameter(mm): 254.7
Overall Height(mm): 51.2
Nominal Thickness(mm): 9.9
Packaging Type: Box
Fitment: Direct Replacement

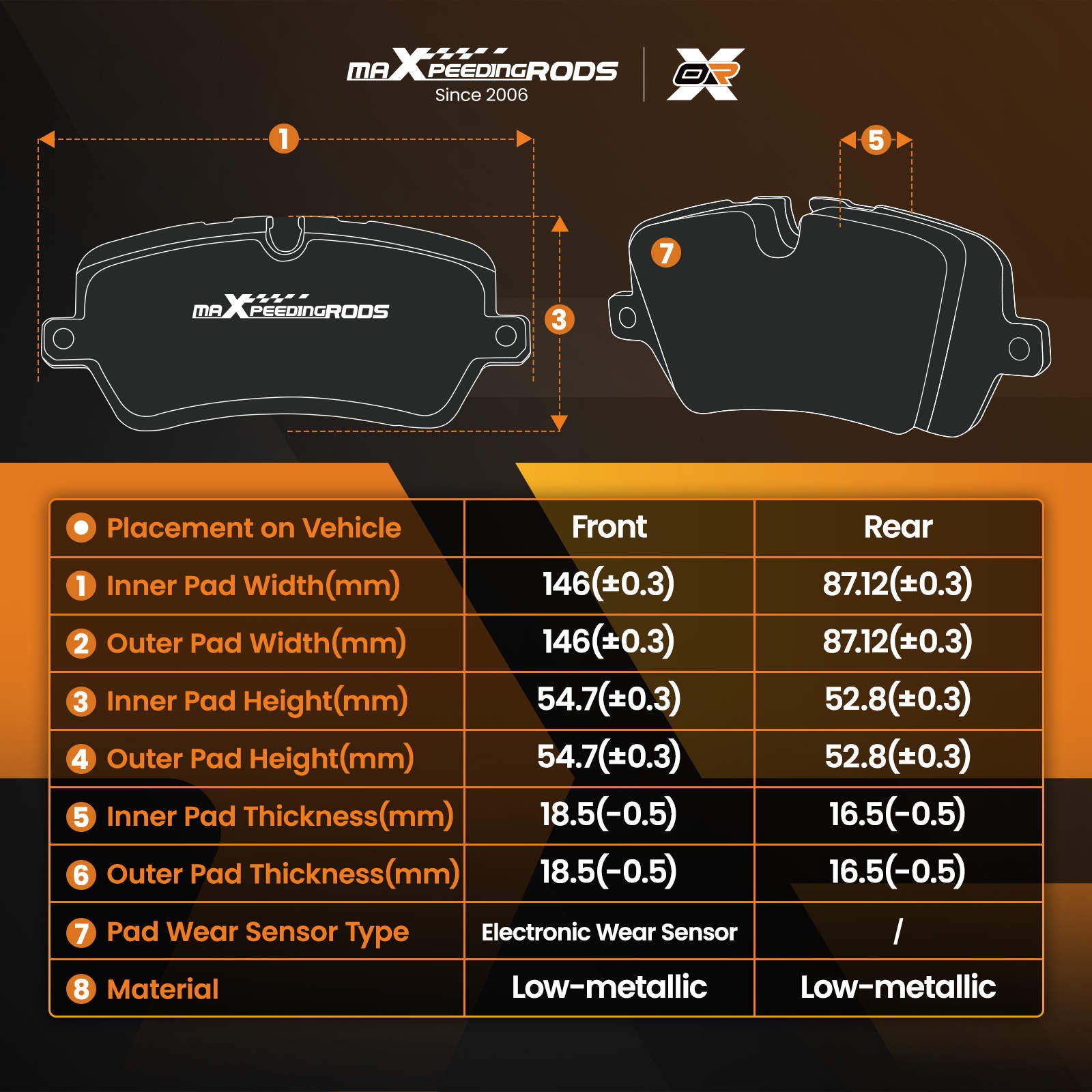

Item Type 3: Brake Pads
Conditiion: New
Installation position: Front Dirver & Passenger Side
Backing Material: Steel
Pad Material: Low-metallic
Pad Shims Included: Yes
Mounting Hardware Included: Yes
Mounting bolt: No
Lubricant Included: Yes
Pad Wear Sensor Included: Yes
Pad Wear Sensor Type: Electronic Wear Sensor
Inner Pad Width(mm): 146
Inner Pad Height(mm): 54.7
Inner Pad Thickness(mm): 18.5
Outer Pad Width(mm): 146
Outer Pad Height(mm): 54.7
Outer Pad Thickness(mm): 18.5
Packaging Type: Box
Fitment: Direct Replacement

Item Type 4: Brake Pads
Conditiion: New
Installation position: Rear Dirver & Passenger Side
Backing Material: Steel
Pad Material: Low-metallic
Pad Shims Included: Yes
Mounting Hardware Included: Yes
Mounting bolt: Yes
Lubricant Included: Yes
Pad Wear Sensor Included: No
Pad Wear Sensor Type: /
Inner Pad Width(mm): 87.12
Inner Pad Height(mm): 52.8
Inner Pad Thickness(mm): 16.5
Outer Pad Width(mm): 87.12
Outer Pad Height(mm): 52.8
Outer Pad Thickness(mm): 16.5
Packaging Type: Box
Fitment: Direct Replacement

Package included

4x Brake Discs
8x Brake Pads

Note

●Please confirm your vehicle condition and OE number before placing an order!
●Please note that this is an after-sales part, not an original part.
●We suggest that you seek professional installation to avoid unnecessary trouble.
●If you have any questions, please contact us.
