Introduction

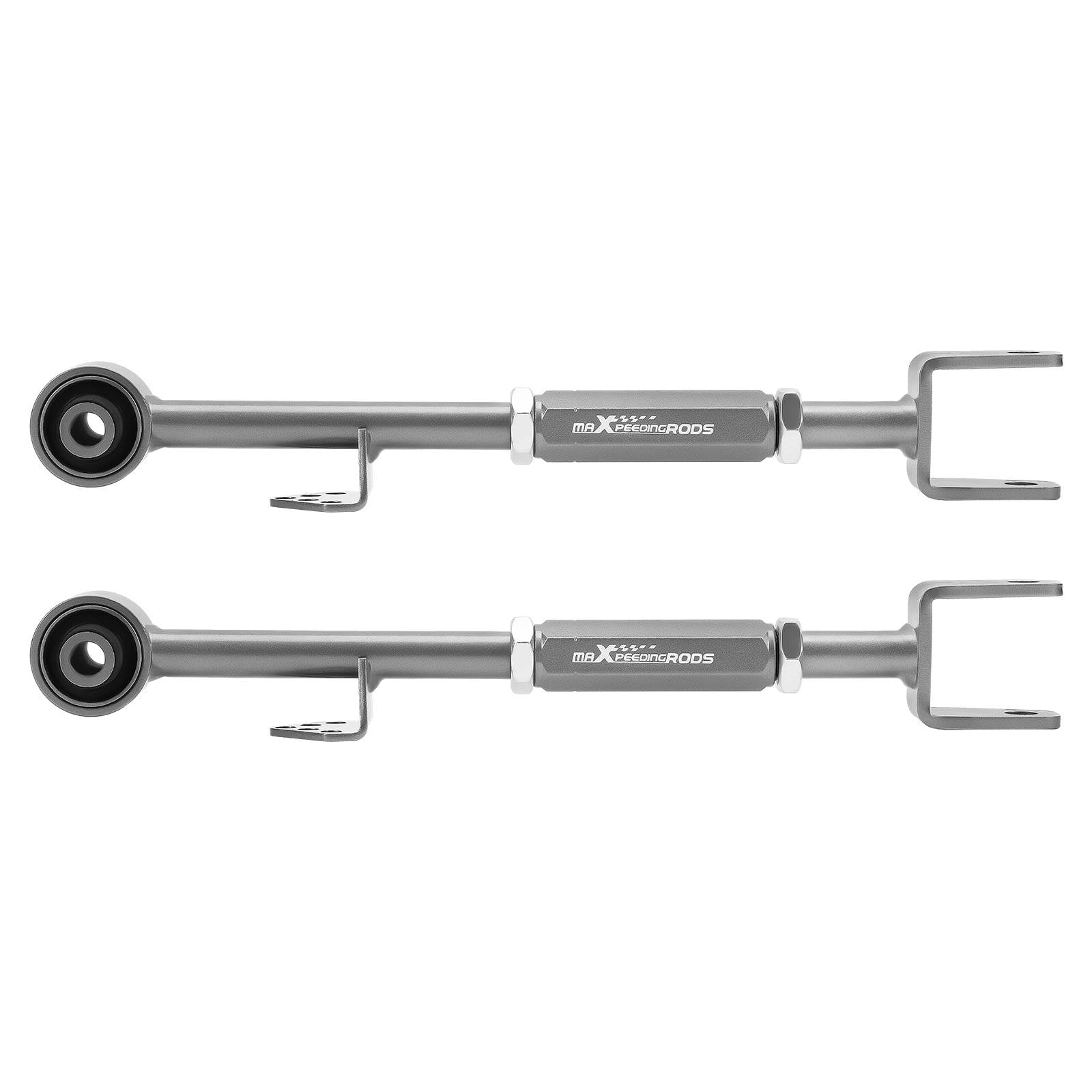

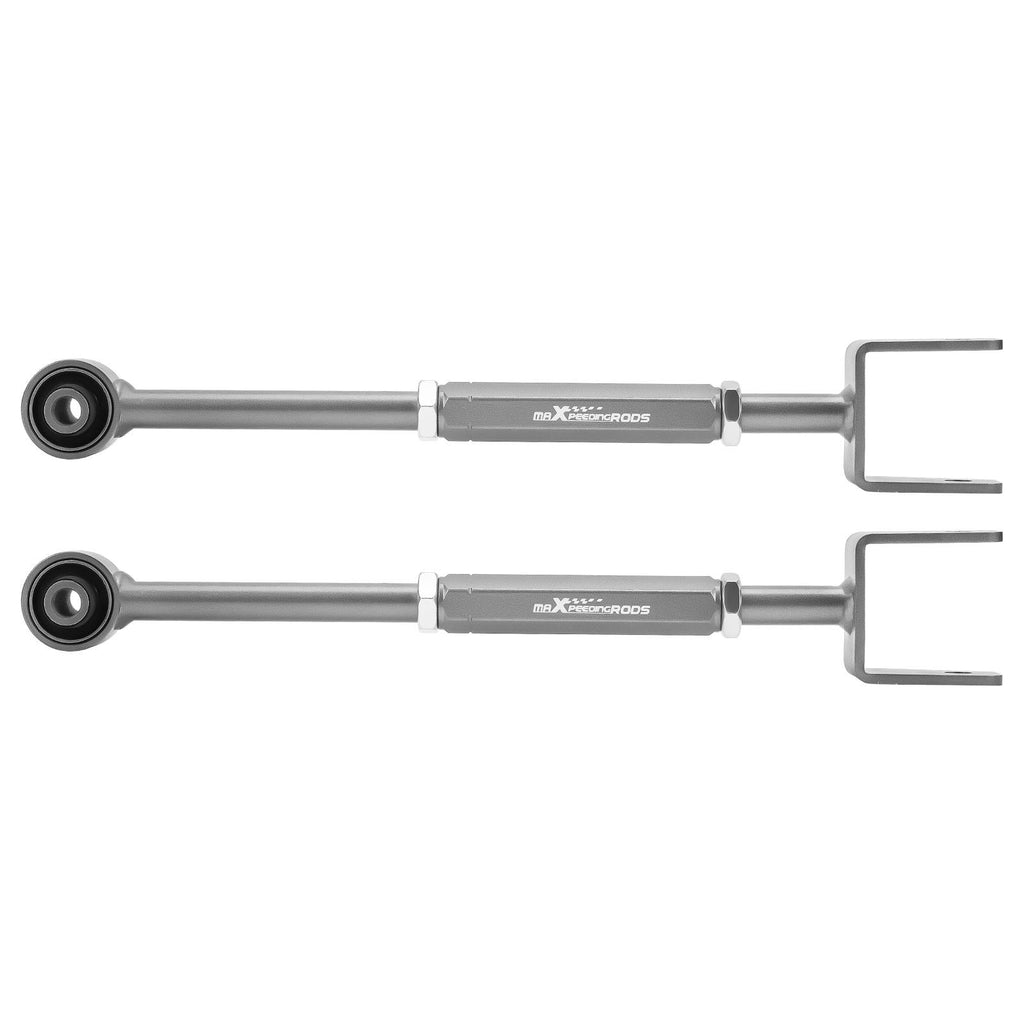

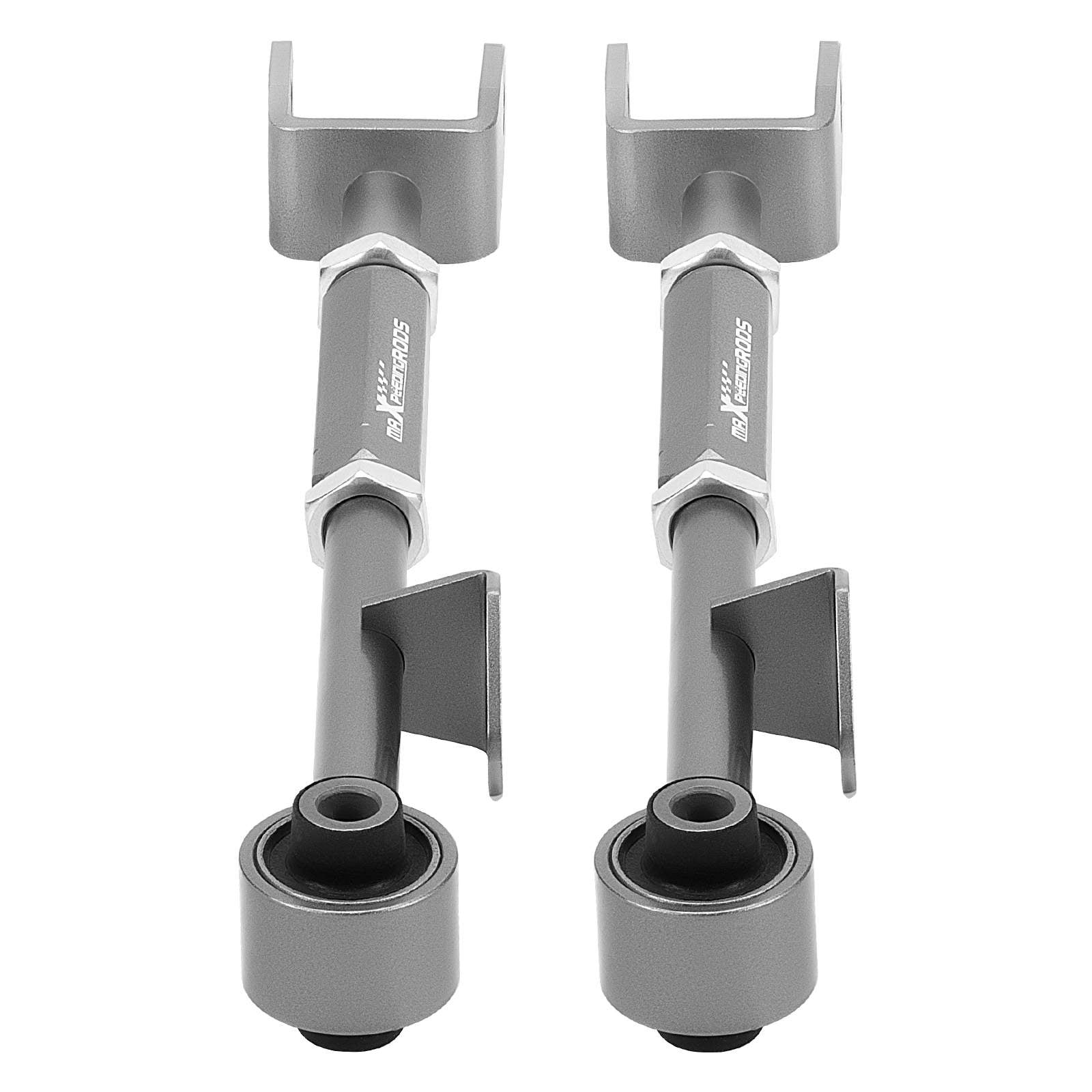

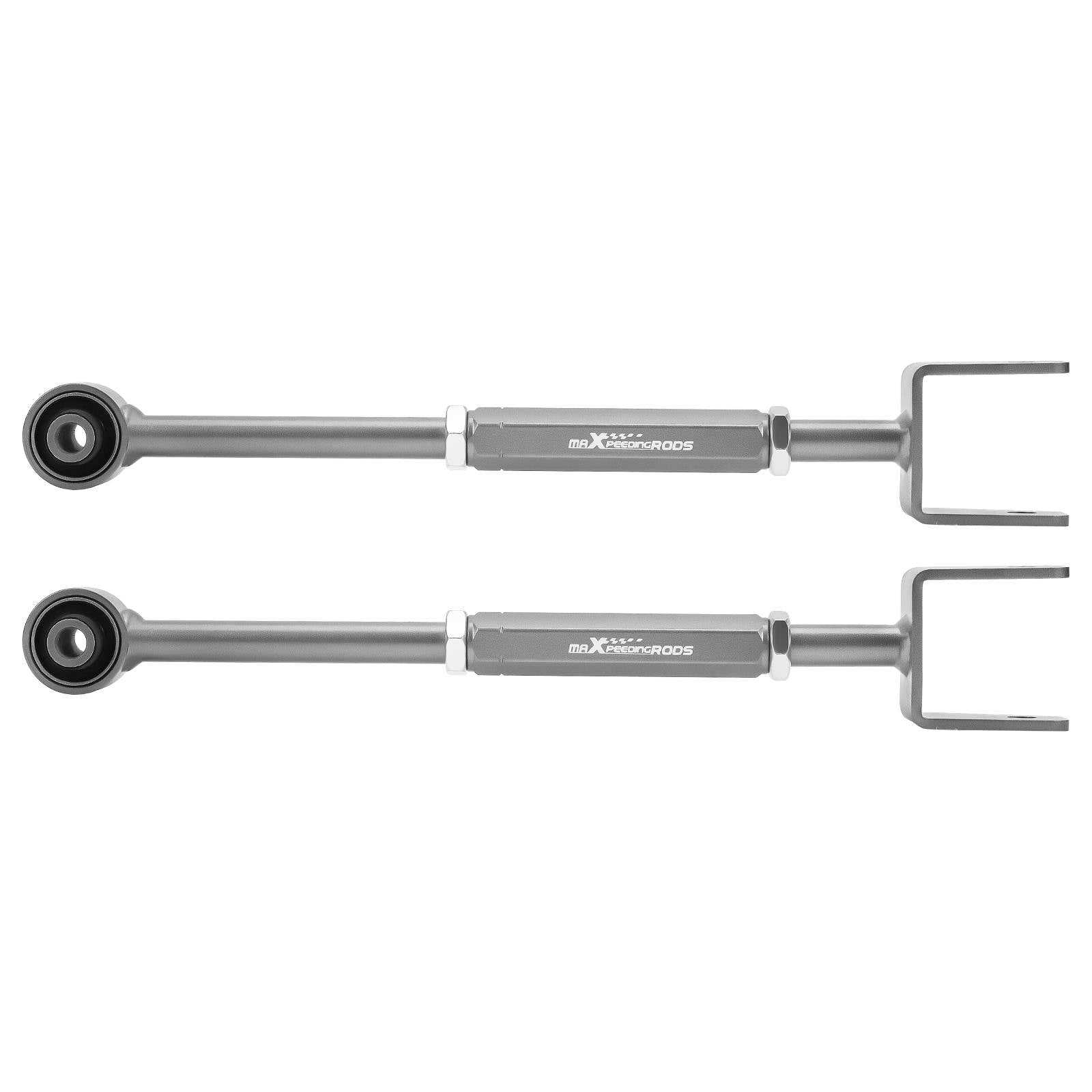

Brand new in original packaging. Exactly the same as shown in the picture! Package will come in 1 pair of front adjustable lower ball joints & 6 pieces of rear adjustable camber arm kit. The camber kit allows for precise changes when fine tuning suspension alignment angles necessary when racing or drifting. Front Ball Joints Adjustment: -max to +1.5 Degrees. Rear Camber Adjustment: -3.0 to +3.0 Degrees. Rear Toe Adjustment: -1.0 to +1.0 Degree. Eliminates tire wear while improving stability. Professional installation highly recommend. Fitment : 08-13 compatible for Honda Accord models only. 09-13 compatible for Acura TL models only. 09-13 compatible for Acura TSX models only.

Application

for 2010-2011 ACCORD CROSSTOUR
for 2008-2017 ACCORD
for 2012-2015 CROSSTOUR
for 2009-2014 TL
for 2009-2014 TSX

Specification

1. Material: High Tensile Strength Carbon Steel
Bushing: High-quality rubber bushings
2. Durable Powder Coating Treatment： provides superior corrosion resistance.
Precision Welding
3. Eye-to-eye length range:
Toe Arm：188-225MM
Rear lower rearward arms: 395-445MM
Rear lower forward arms: 350-380MM
4. Overall length range：
Toe Arm：233-270MM
Rear lower rearward arms: 415-465MM
Rear lower forward arms: 385-415MM
5. Camber Adjustment: -3.0 to +3.0 Degrees
6. Toe Adjustment: -1.0 to +1.0 Degree
7. Item Weight：8.16kg
8. Package Dimension: 71*19*12cm

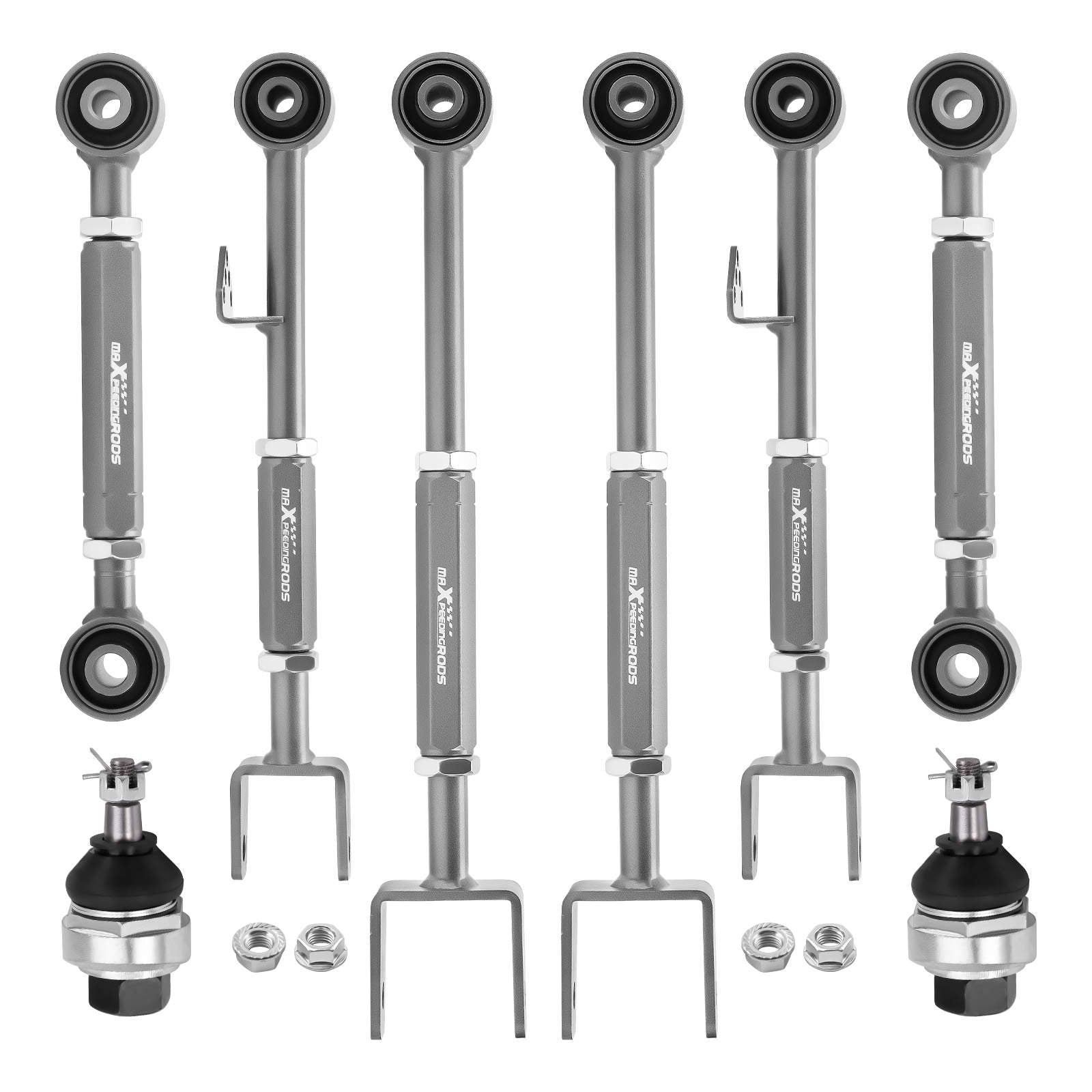

Package included

2* Front Lower Ball Joints
2*Rear Control Arm Toe Kit
2*Rear lower rearward arms
2*Rear lower forward arms

Feature

* Front adjustable lower ball joints, Rear adjustable camber arm, and toe kit
* Strong, lightweight construction - made from high-quality carbon steel!
* Provides maximum of +/-3.0 degrees camber & +/-1.0 degree toe adjustment of rear wheels.
* Improves Rear Suspension, Handling, Predictable Response and even Prevents Premature Tire Wearing

Note

* Instruction is not included. Professional installation is highly recommended.
* Will not work with vehicles equipped with drum brakes. Some modifications may be required! Works only with disc brake applications only, no drum brakes.
