Forged Connecting Rods+ARP Bolts compatible for VW Golf MK3 Jetta 2.0L ABA 8V ABF 16V
Forged Connecting Rods+ARP Bolts compatible for VW Golf MK3 Jetta 2.0L ABA 8V ABF 16V
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Application
Compatible for VW Golf MK3 / Jetta MK3 2.0L – ABA (8V) & ABF (16V GTi) Engines
Specification

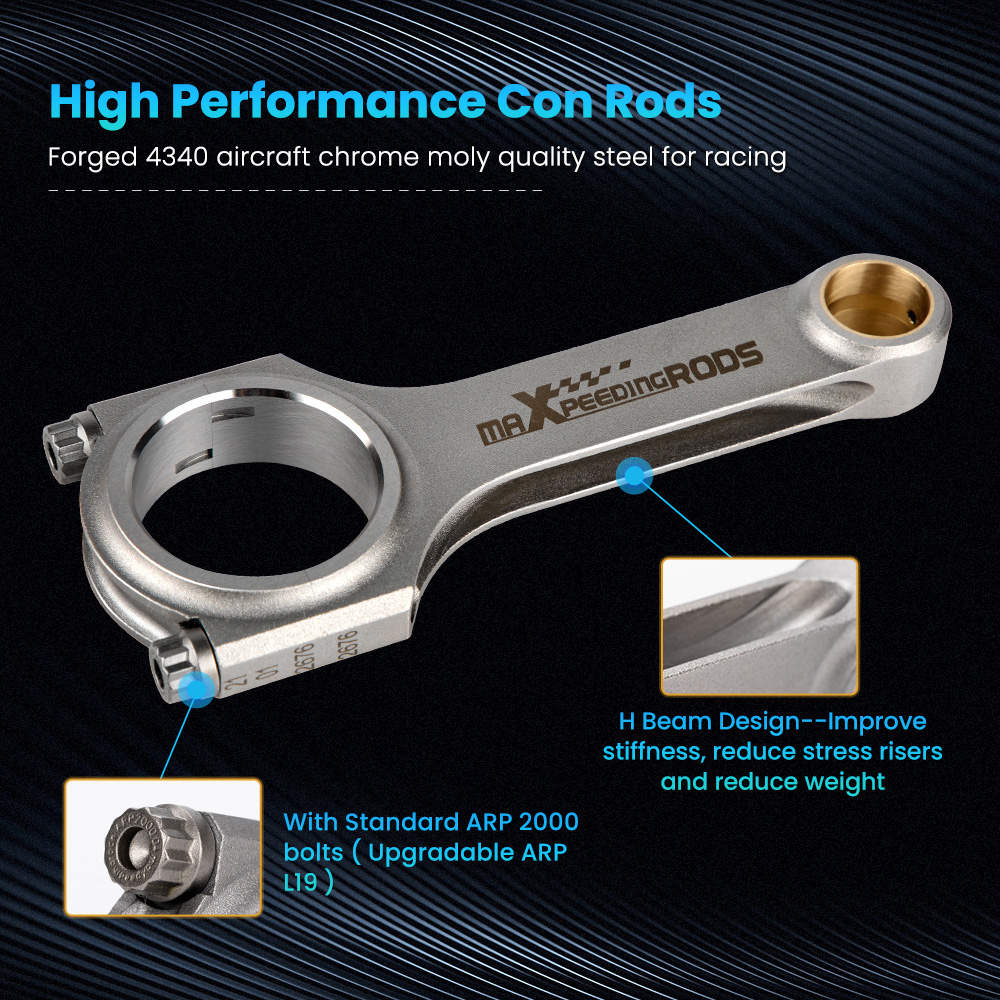

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

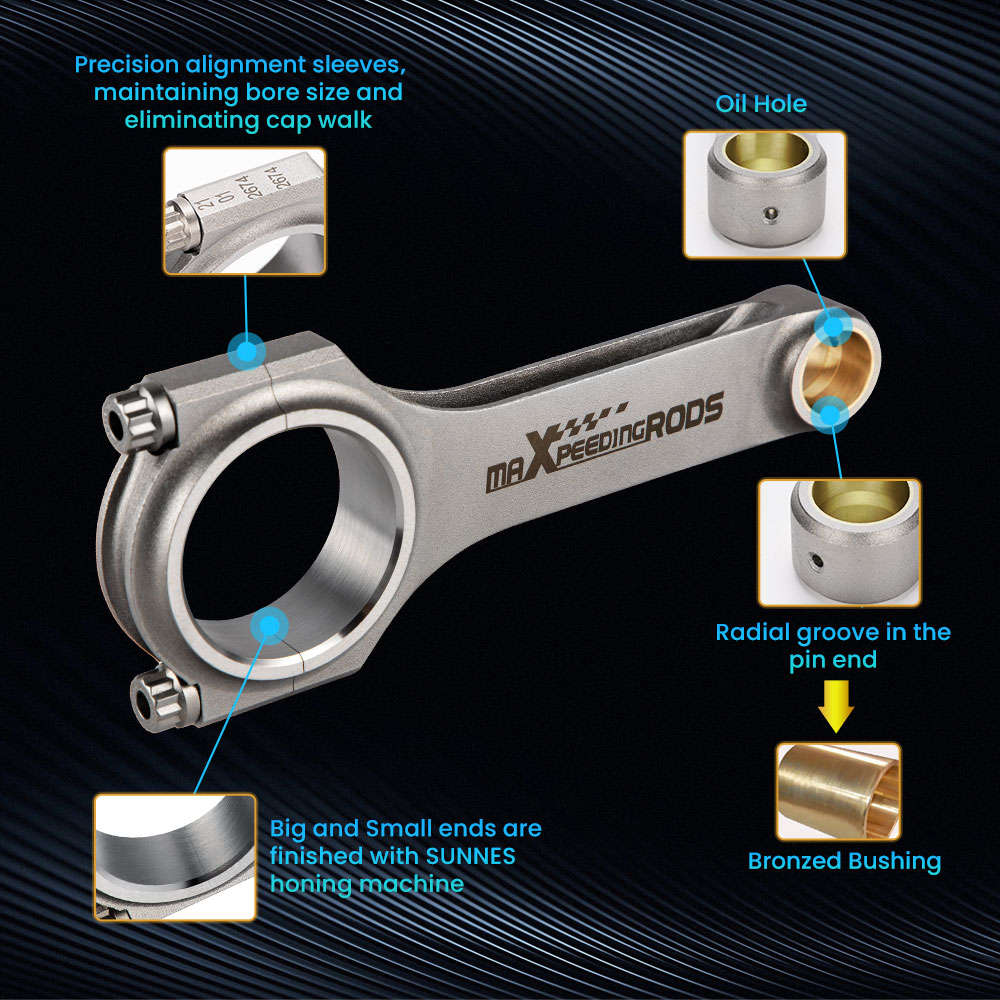

Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Dimension
Connecting Rod Length Center to Center: 159.00mm/6.260in
Approximate Connecting Rod Weight: 638g
Big End Bore Diameter: 50.60mm/1.992in
Pin End Bore Diameter: 21.00mm/0.827in
Big End Width: 24.90mm/0.980in
Small End Width: 24.90mm/0.980in
Performance Ratings

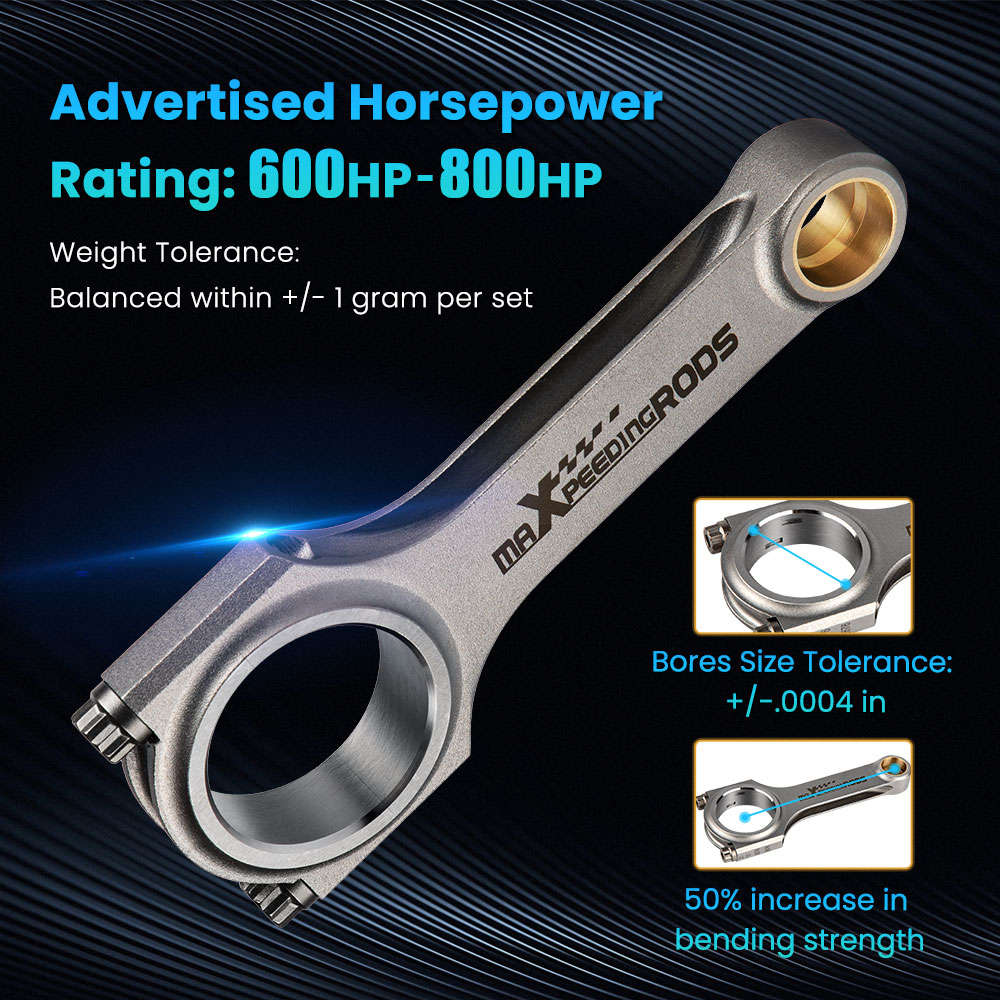

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm
Packaging

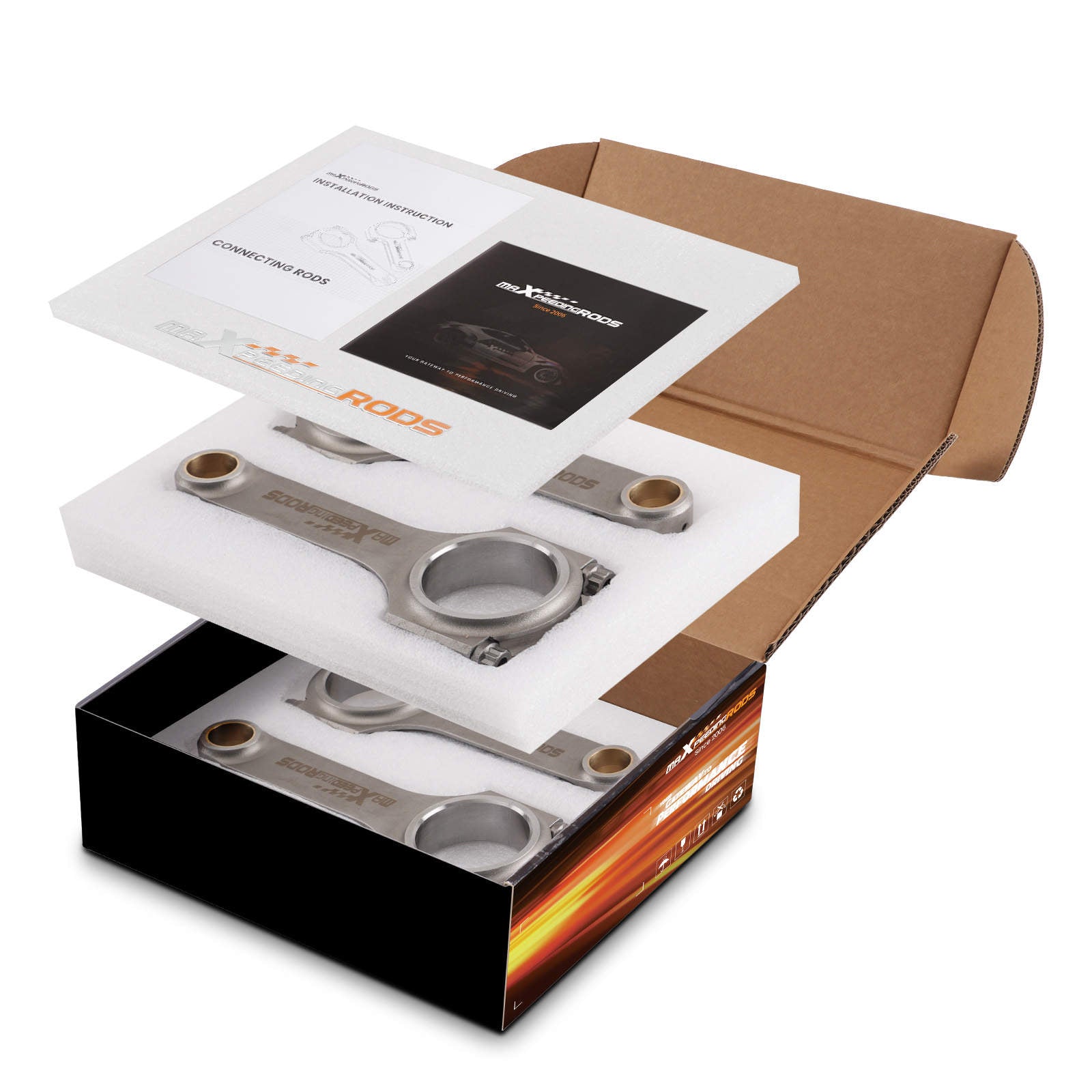

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
