Application

Compatible for Opel Corsa GSi (1993-1994) – Fits C16XE 1.6L 16V engine
compatible for Opel Astra G 1.6L 16V – Fits X16XE 1.6L 16V engine
compatible for Opel Corsa B 1.6L 16V – Fits X16XE 1.6L 16V engine
compatible for Opel Tigra A 1.6L 16V – Fits X16XE 1.6L 16V engine
compatible for Opel Vectra B 1.6L 16V – Fits X16XE 1.6L 16V engine
compatible for Opel Zafira B 1.6L 16V – Fits X16XE 1.6L 16V engine
Pin Type: Floating Pin Piston

Specification

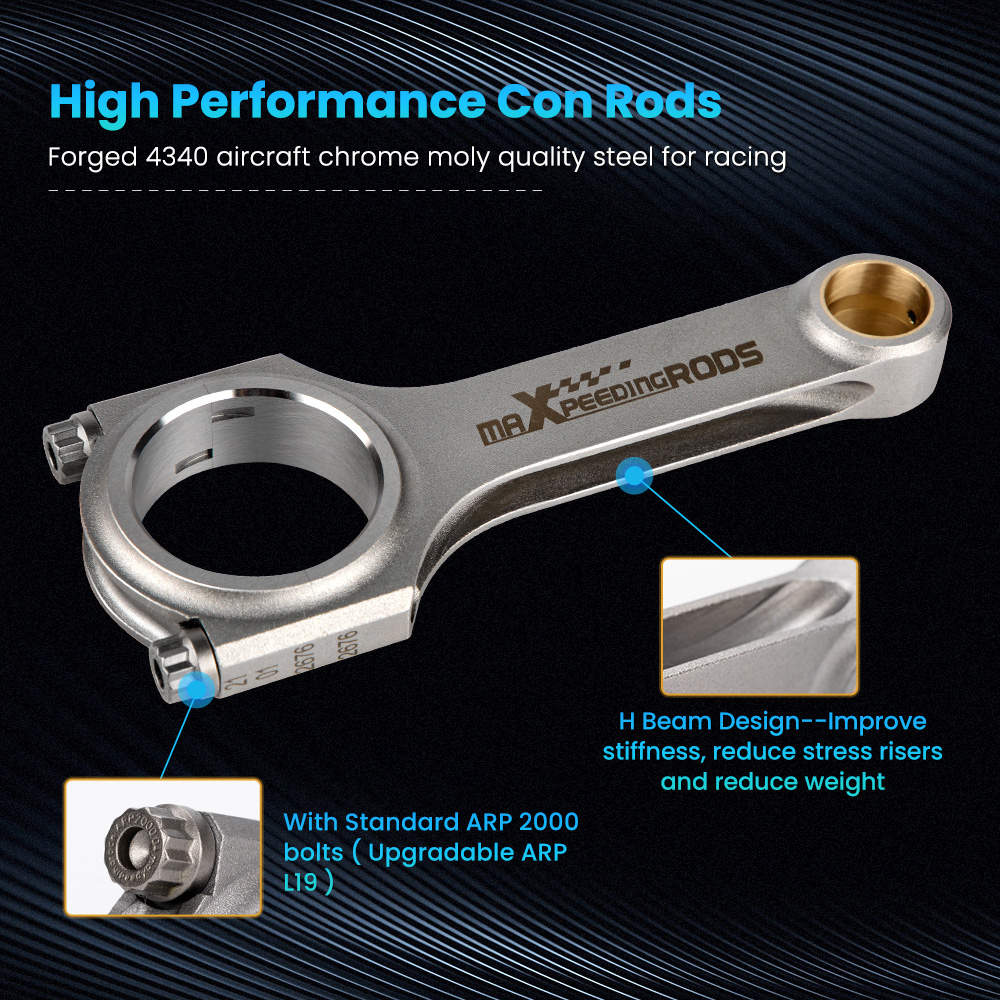

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 5/16"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

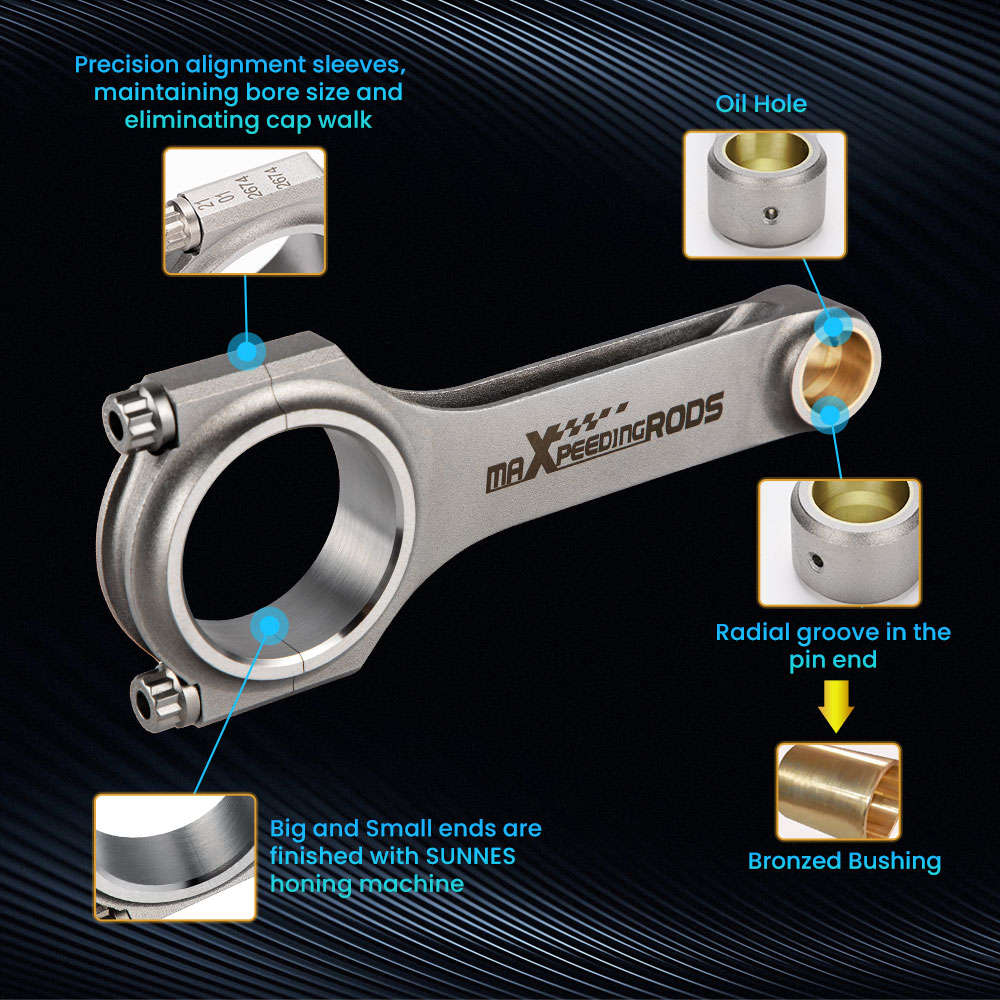

Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Dimension

Connecting Rod Length Center to Center: 129.75mm/5.108in
Approximate Connecting Rod Weight:458g
Big End Bore Diameter: 46.00mm/1.811in
Pin End Bore Diameter: 18.00mm/0.709in
Big End Width: 21.80mm/0.858in
Small End Width: 17.90mm/0.705in

Performance Ratings

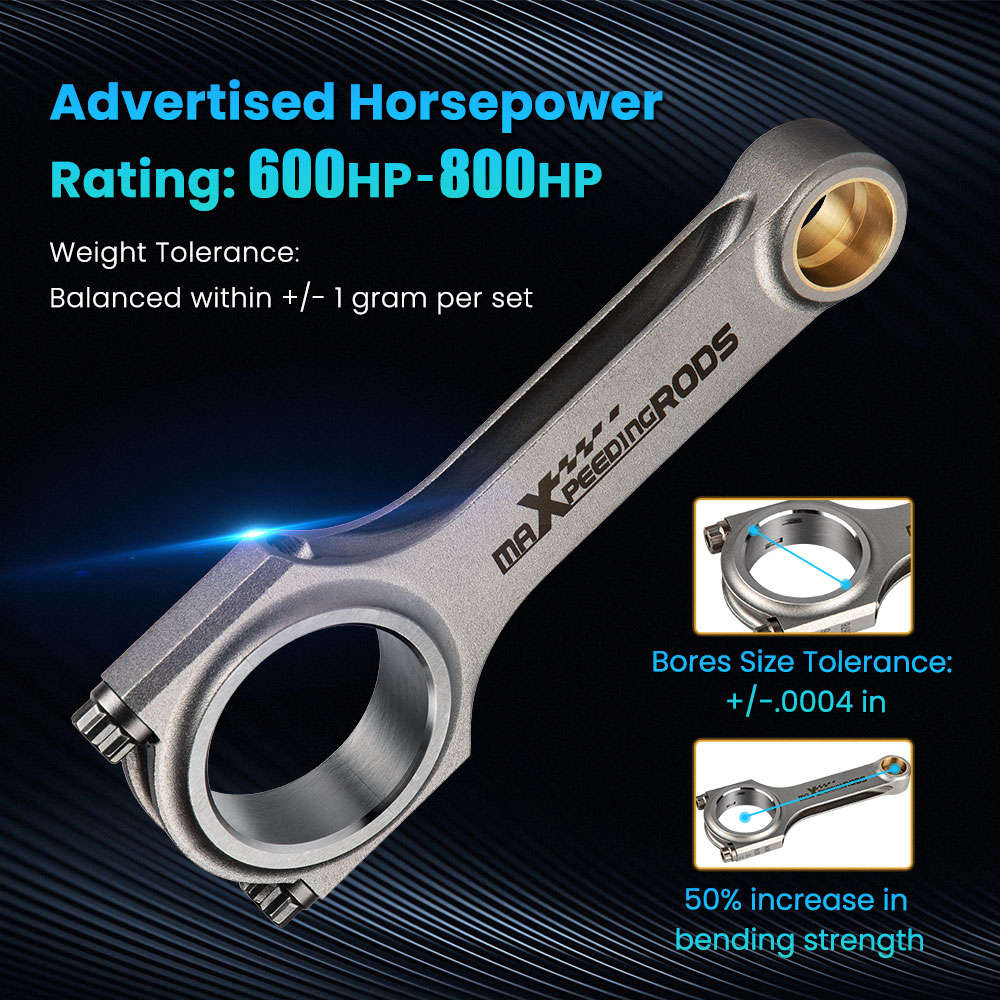

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9000rpm

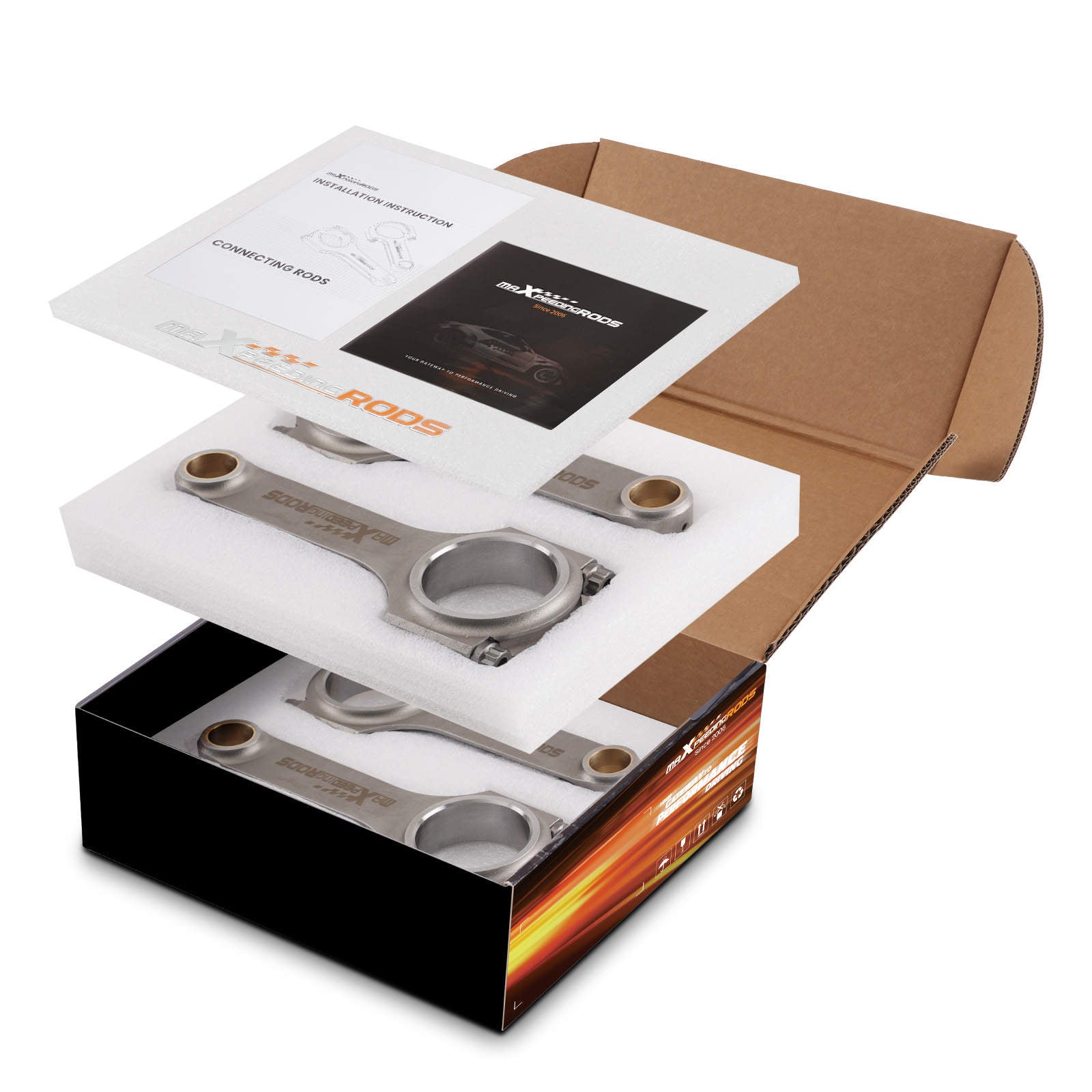

Packaging

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
