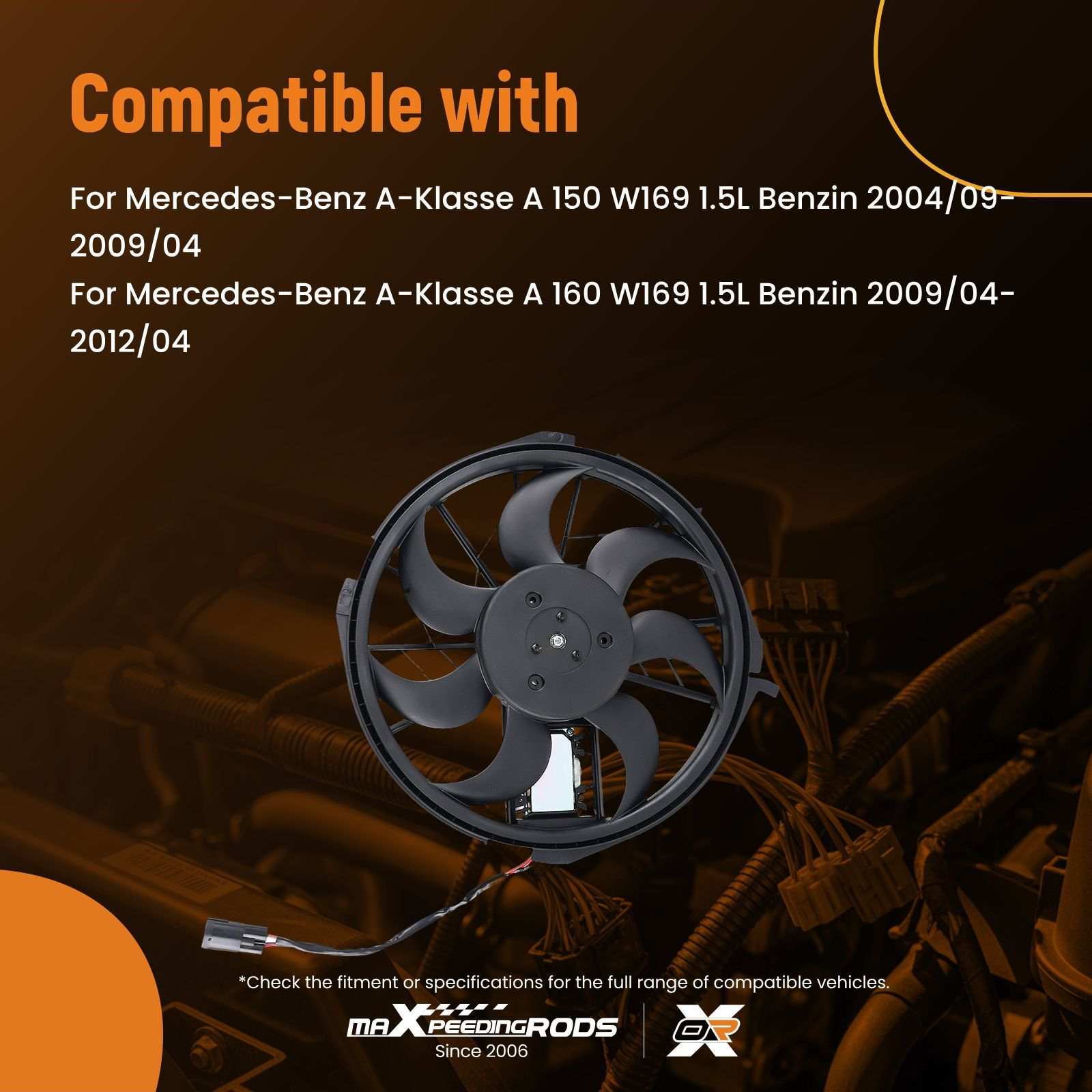

Application

For Mercedes-Benz A-Klasse A 150 W169 1.5L Benzin 2004/09-2009/04

For Mercedes-Benz A-Klasse A 170 W169 1.7L Benzin 2004/09-2009/04

For Mercedes-Benz A-Klasse A 160 CDI W169 2.0L Diesel 2007/01-2012/04

For Mercedes-Benz A-Klasse A 180 CDI W169 2.0L Diesel 2007/01-2012/04

For Mercedes-Benz A-Klasse A 200 W169 2.0L Benzin 2005/12-2012/04

For Mercedes-Benz A-Klasse A 200 CDI W169 2.0L Diesel 2007/01-2012/04

For Mercedes-Benz A-Klasse A 200 Turbo W169 2.0L Benzin 2005/12-2010/10

For Mercedes-Benz B-Klasse B 150 W245 1.5L Benzin 2005/03-2009/04

For Mercedes-Benz B-Klasse B 160 W245 1.5L Benzin 2009/04-2011/04

For Mercedes-Benz B-Klasse B 170 W245 1.7L Benzin 2005/03-2009/04

For Mercedes-Benz B-Klasse B 170 NGT W245 2.0L Benzin 2008/04-2009/04

For Mercedes-Benz B-Klasse B 180 W245 1.7L Benzin 2009/04-2011/04

For Mercedes-Benz B-Klasse B 180 CDI W245 2.0L Diesel 2001/01-2011/05

For Mercedes-Benz B-Klasse B 180 NGT W245 2.0L Benzin 2008/04-2011/04

For Mercedes-Benz B-Klasse B 200 W245 2.0L Benzin 2005/12-2011/04

For Mercedes-Benz B-Klasse B 200 Turbo W245 2.0L Benzin 2005/03-2011/10

Note：

Large diameter fan only. Does not fit 2009-2012 A160/A180 1.5L/1.7L petrol. Verify fan size before ordering.

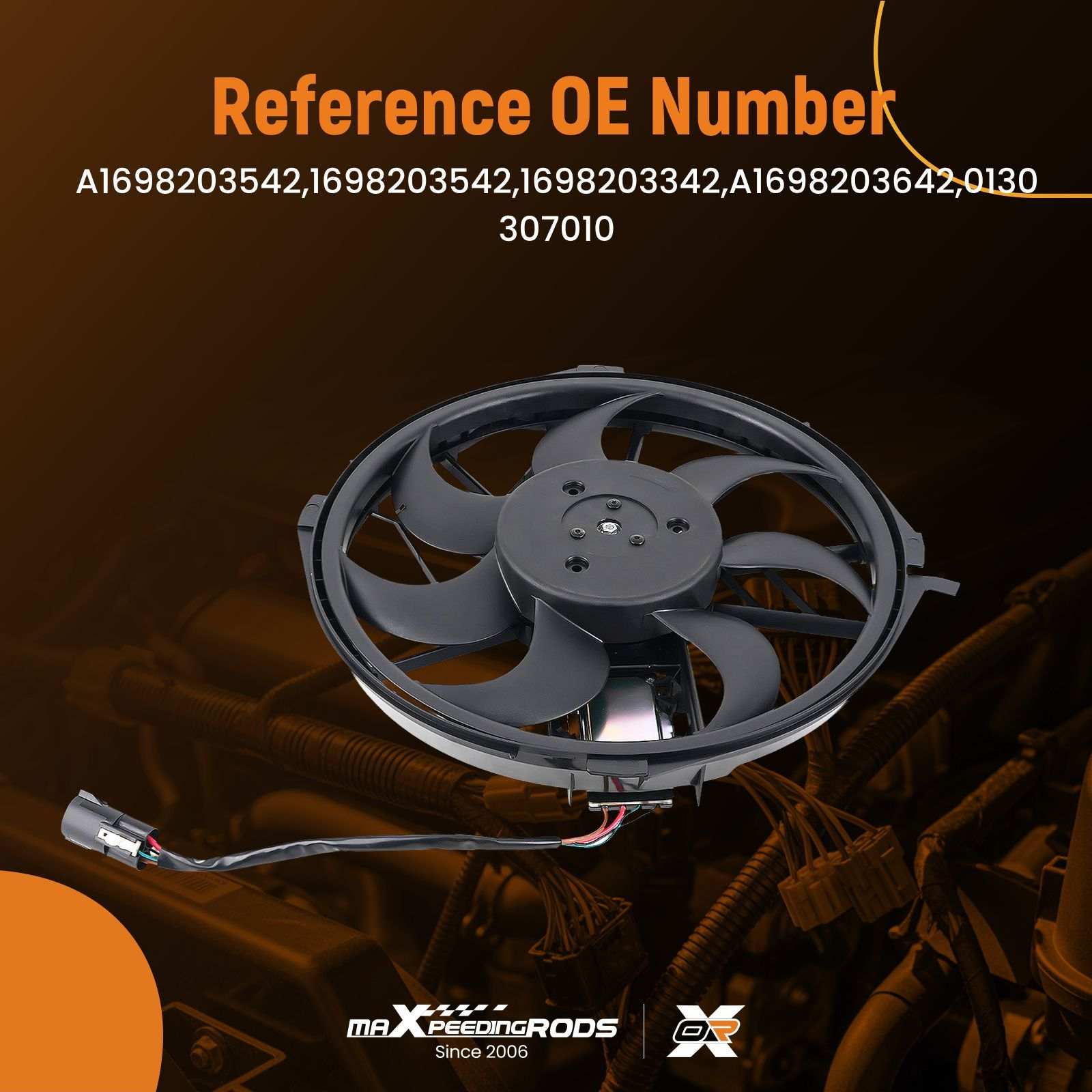

OE/Part number

A1698203542, 1698203542, 1698203342, A1698203642, 0130307010, A1695060399, 1695060399, A1698202842, 1698202842, A1698203342

Specification

Fitment Type: Direct Replacement
Type: Cooling Fan Assembly
Material: Plastic
Style: Modern
No.of fan blades: 7

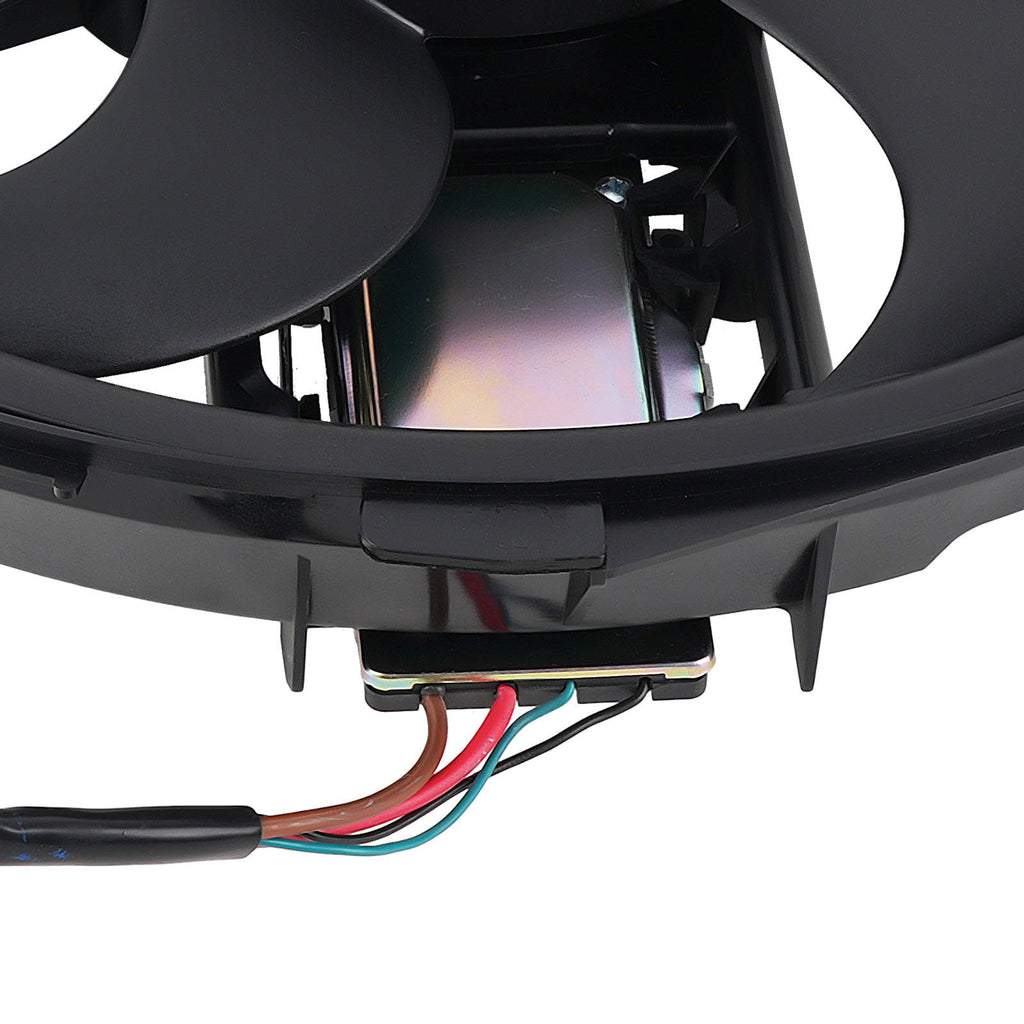

Terminal Quantity: 4 Pins
Wattage: 350 W
Noise Level: ≤ 76 dB
Maximum Rotational Speed: 2600±150 RPM

Feature

1. High-quality Material: The fan is made of plastic, durable, wear-resistant, heat-resistant and corrosion-resistant, and can be used for a long time without frequent replacement.
2. The fan is designed in one piece, the structure is simple, you can directly replace the installation, do not need to spend too much time.

Note

1. Large diameter fan only. Does not fit 2009-2012 A160/A180 1.5L/1.7L petrol. Verify fan size before ordering.
2. Please check the part number and OE part number to make sure it is the product you need
3. Professional Installation Is Highly Recommended
