Application

Compatible for Volvo S60R (2004–2009) – Fits B5254T2 2.5L Turbo engine
compatible for Volvo S60 2.5T / 2.5T AWD (2003–2009) – Fits B5254T2 2.5L Turbo engine
compatible for Volvo V70 II 2.5T / 2.5T AWD (2003–2008) – Fits B5254T2 2.5L Turbo engine
compatible for Volvo XC70 2.5T AWD (2003–2007) – Fits B5254T2 2.5L Turbo engine
compatible for Volvo S80 2.5T (2003–2006) – Fits B5254T2 2.5L Turbo engine
compatible for Volvo XC90 2.5T AWD (2003–2012) – Fits B5254T2 2.5L Turbo engine

Pin Type: Floating Pin Piston（浮动活塞销）

Specification

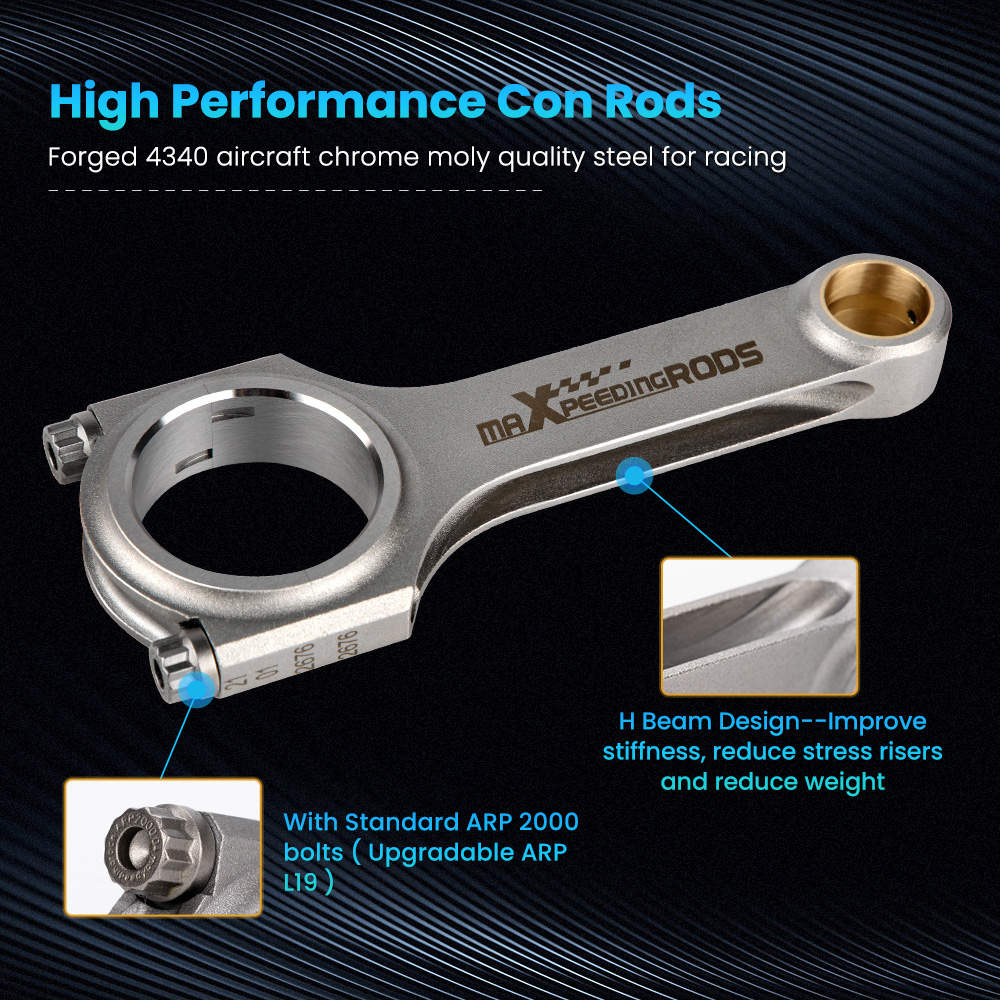

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

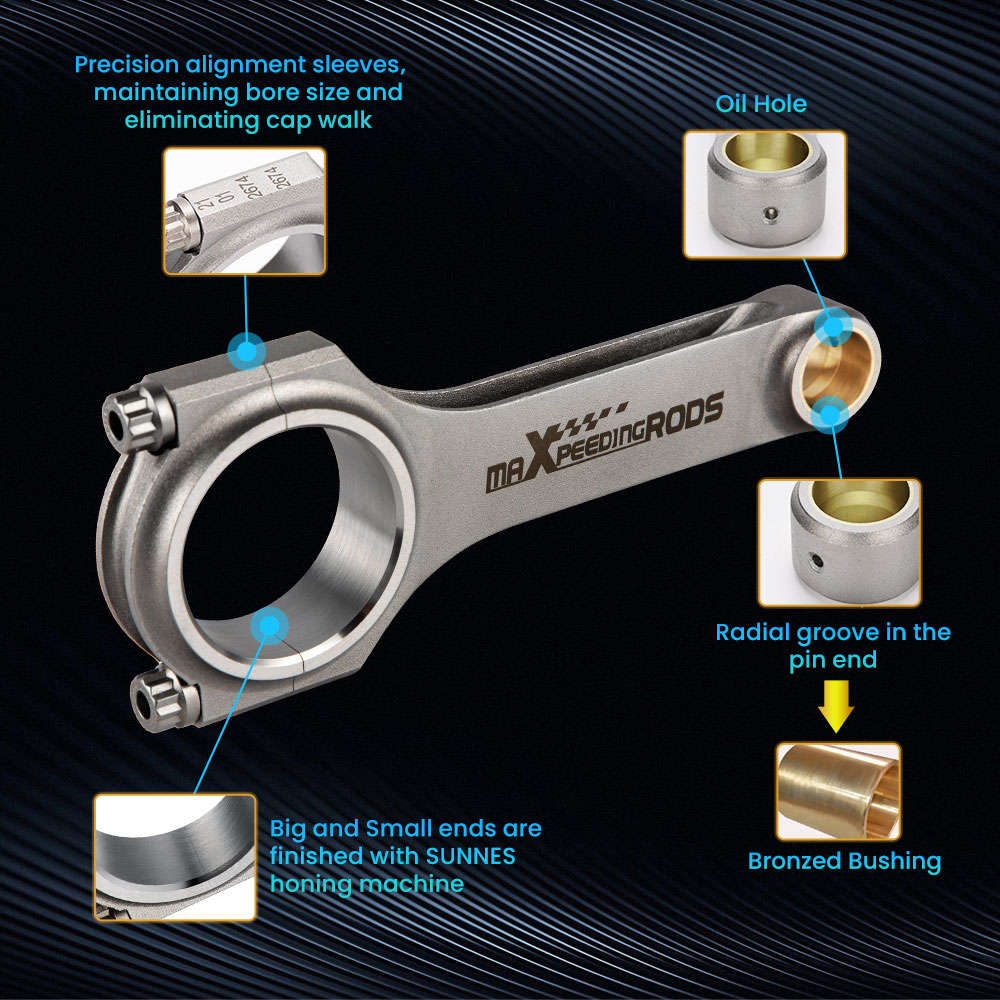

Rod Cap Alignment: Precision dowels

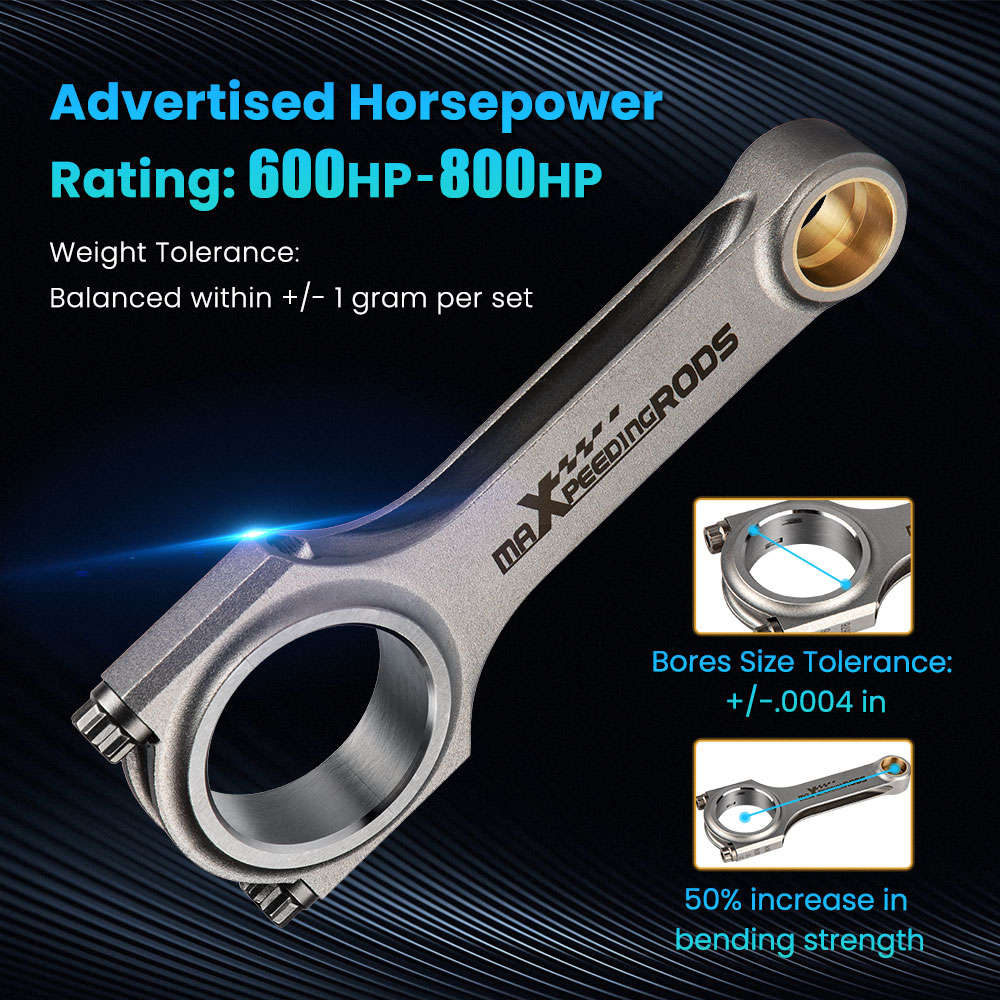

Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No

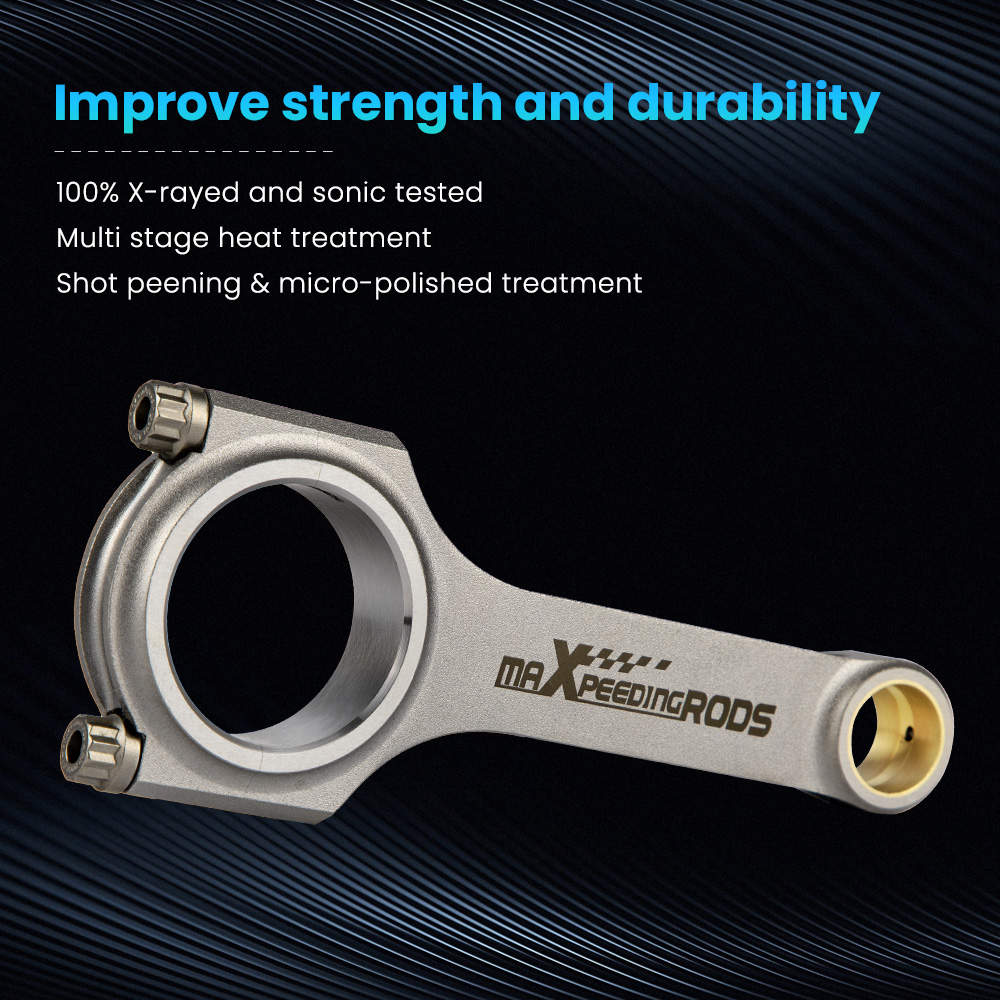

Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Dimension

Connecting Rod Length Center to Center: 143.00mm/5.630in
Approximate Connecting Rod Weight:596g
Big End Bore Diameter: 53.00mm/2.087in
Pin End Bore Diameter: 23.00mm/0.906in
Big End Width: 25.70mm/1.012in
Small End Width: 25.70mm/1.012in

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9000rpm

Packaging

Quantity: Sold as a set of 5
Package Size: 28CM*20CM*14CM
