Complete Shock Absorber Suspension suitable for Toyota Corolla E12 E130 2003-2008
Complete Shock Absorber Suspension suitable for Toyota Corolla E12 E130 2003-2008
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product description

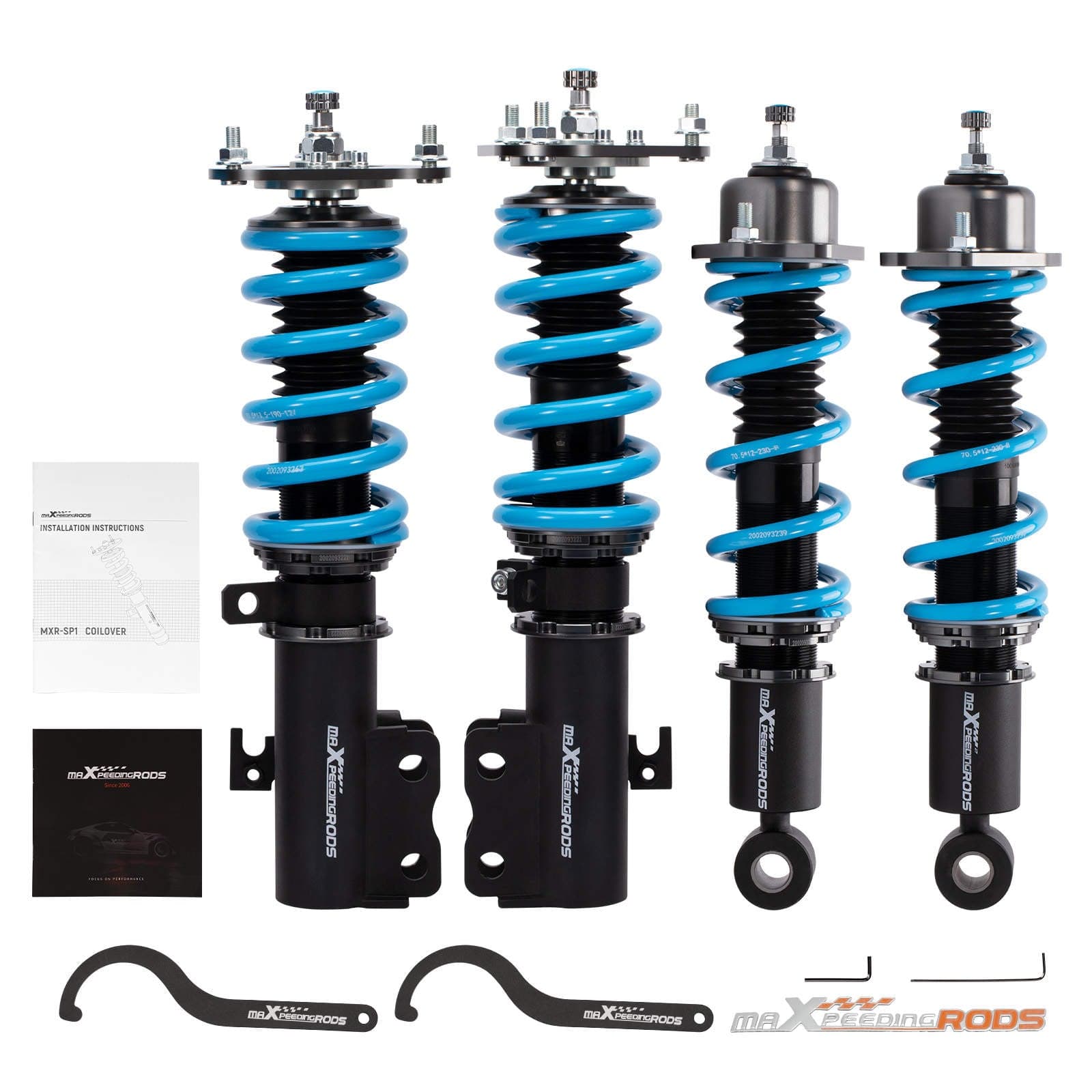

Complete adjustable threaded undercarriage set (coilovers).
Suitable for:
- Toyota Corolla 9th generation (E120) (01/2001-12/2007)
- Toyota Corolla 9th generation (E130) (2003-2008)
- Toyota Matrix XRS (E130) (2003-2008)
Please note: this product is not suitable for the Corolla E150 "Ascent".
Specifications
- Adjustable height: yes, 25 to 75 mm lowering depending on the model
- Adjustable damping: yes, 24 positions damping force (rebound)
- Damper structure type: twin-tube (bitube)

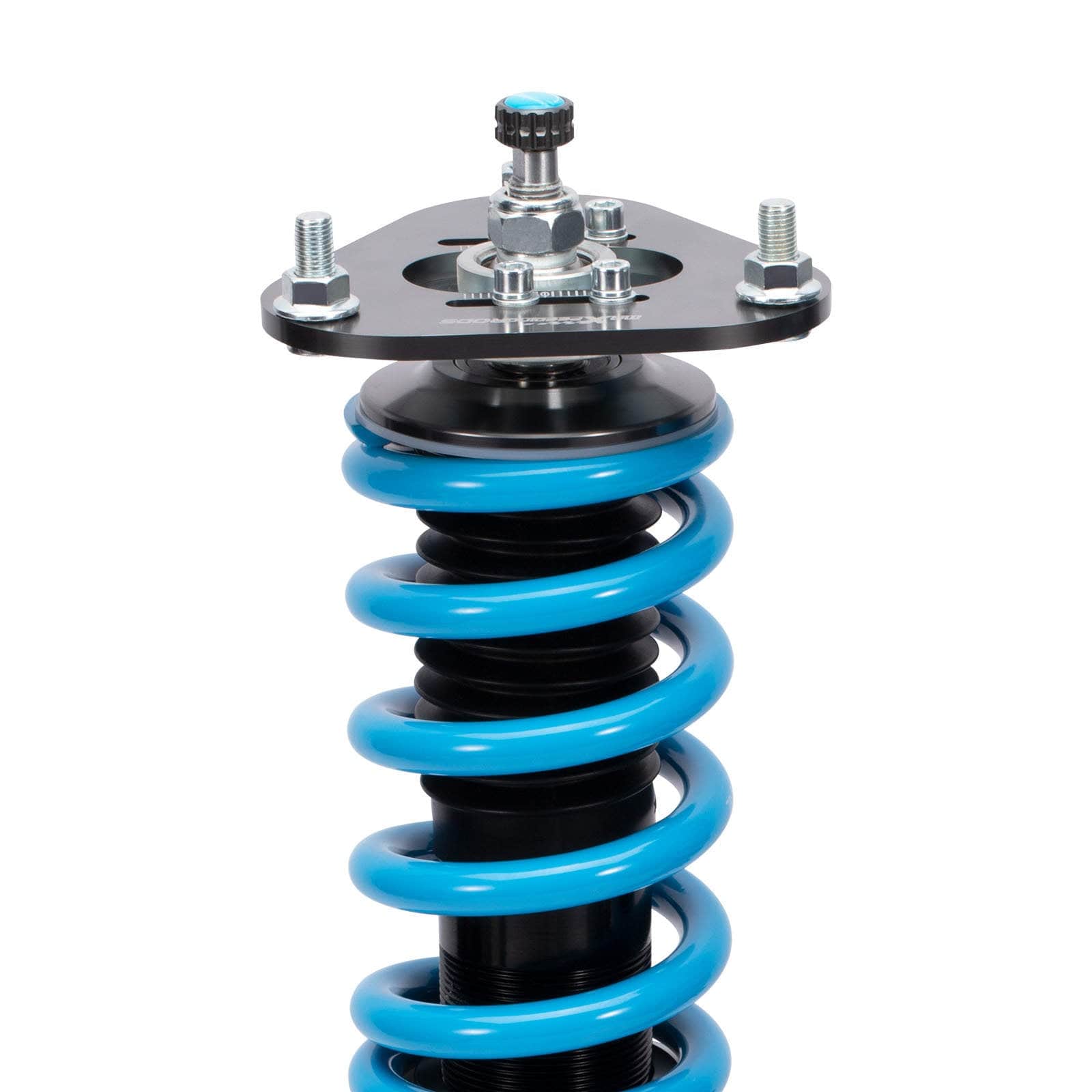

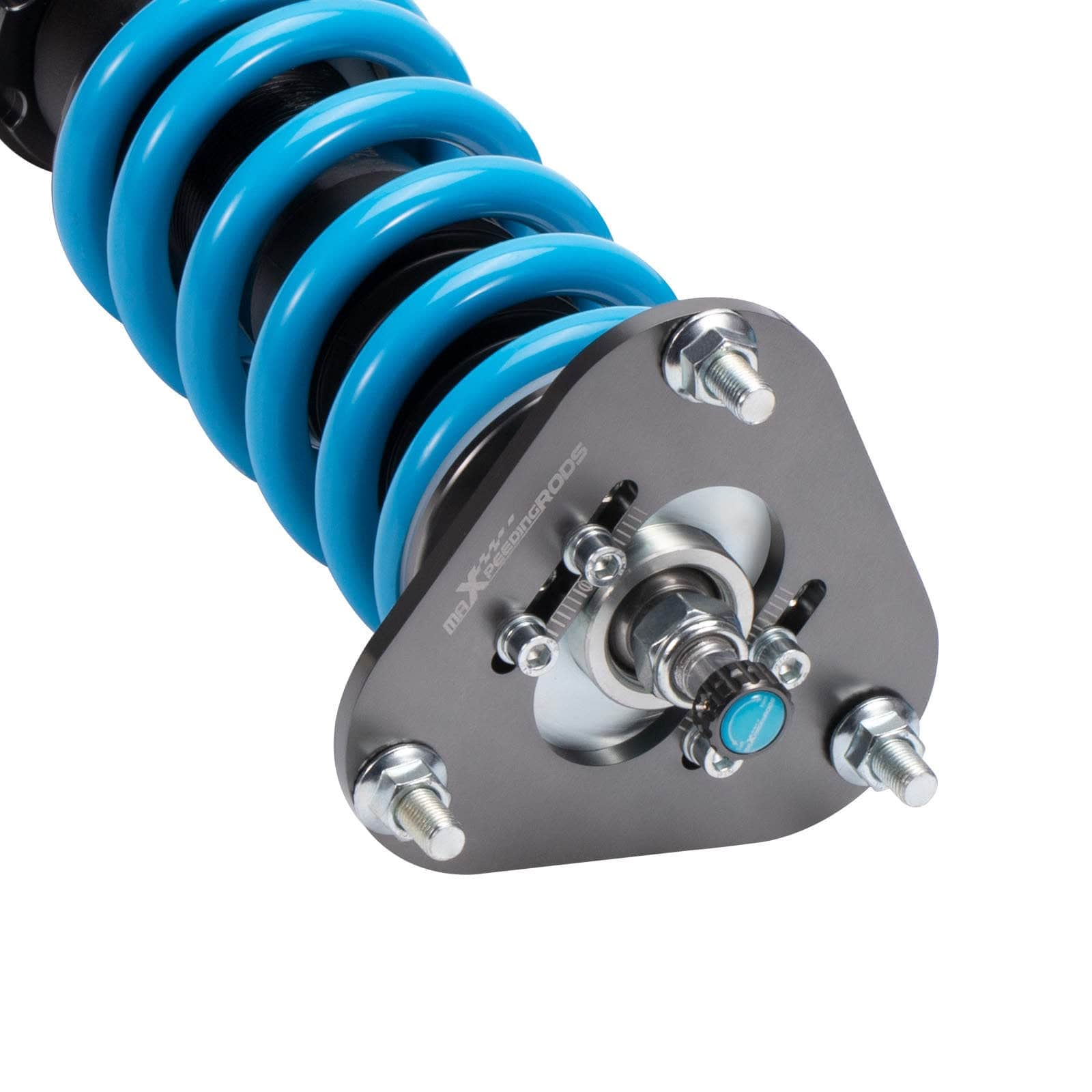

- Upper front mounting: spherical bearing with camber plate

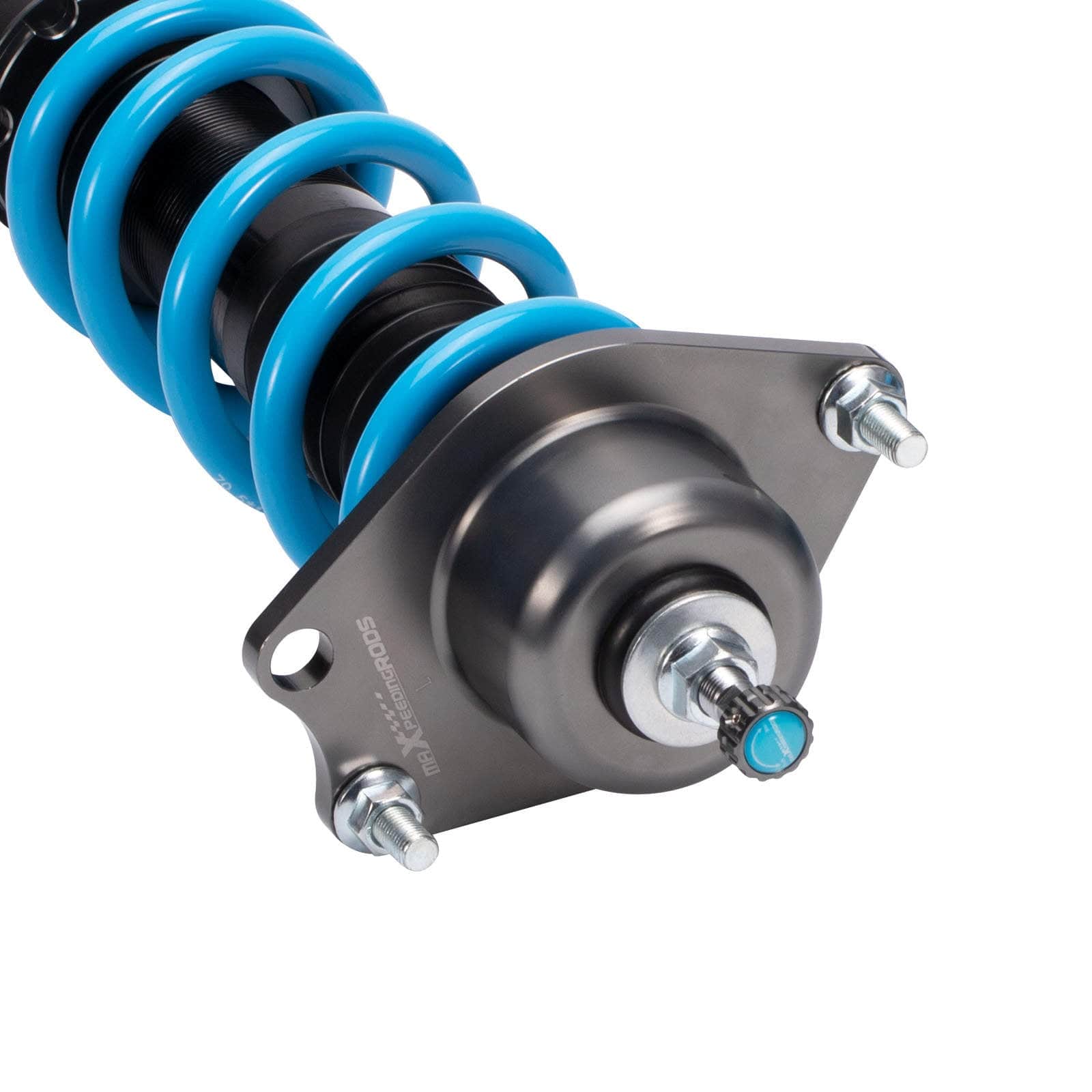

- Upper rear mounting: standard rubber
- Adjustable camber: yes
- Spring rate front: 12kg/mm (672 lbs/in)
- Spring rate rear: 8kg/mm (448 lbs/in)
- Inner spring diameter front: 70.5 mm
- Inner spring diameter rear: 70.5 mm
- Spring length front: 190 mm
- Spring length rear: 180 mm
- Recommended spring preload: 7-10 mm
Features
- Adjustable ride height from 25 to 75 mm for a lower center of gravity and more aggressive stance
- Adjustable spring preload
- 24-step adjustable damper
- CNC machined aluminum top mounts and washers
- Lower mounts made of high-grade steel
- Improved spring, tested over 600,000 times for high tensile strength
- Rubber protective boots on all inserts
- Twin-tube structure for excellent handling
- Anti-corrosion finish: powder coating on steel parts and anodized aluminum
- Each component tested on a professional testing machine
- Assembly in a clean room for precision and reliability
- Improved damper oil for stable damping at varying temperatures
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and trim level of your vehicle, as there may be differences between trim levels. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
