Application

Compatible for Alfa Romeo 1.8L 2.0L 156 147 145 166 Twin Spark TS

Specification

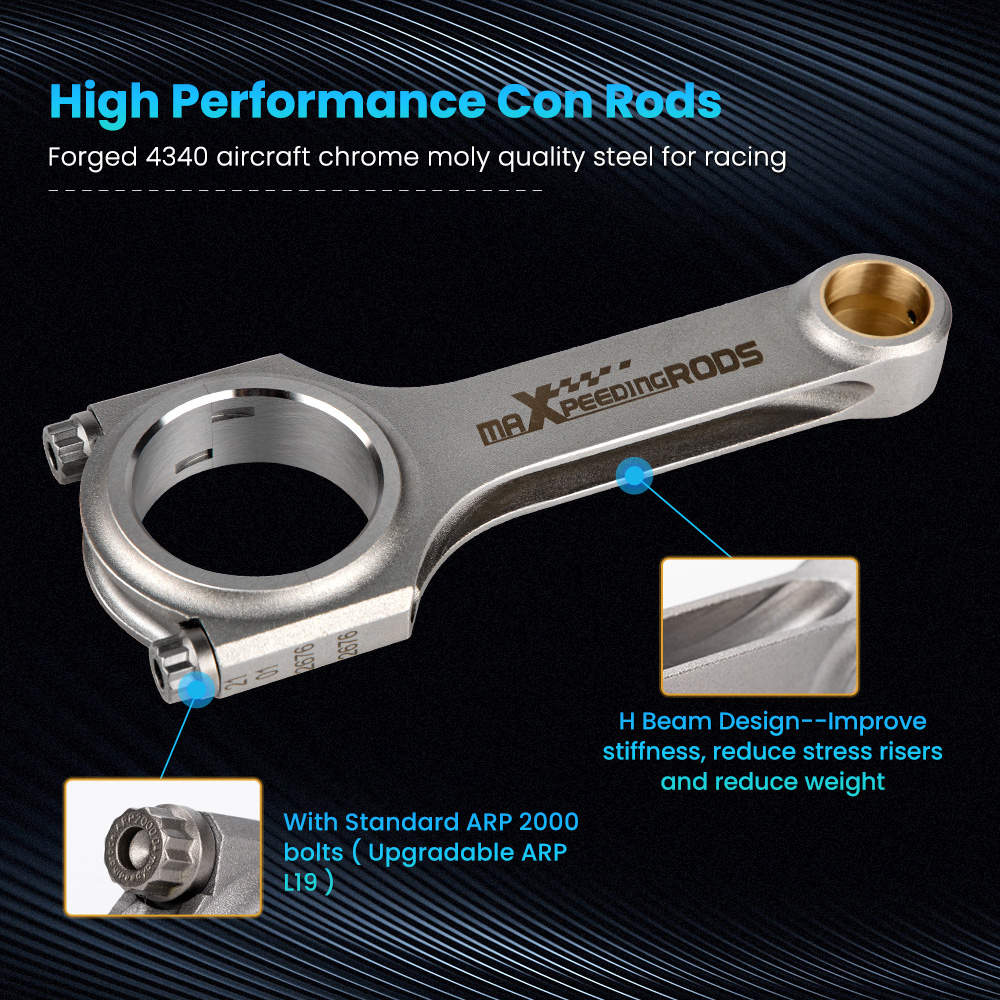

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts

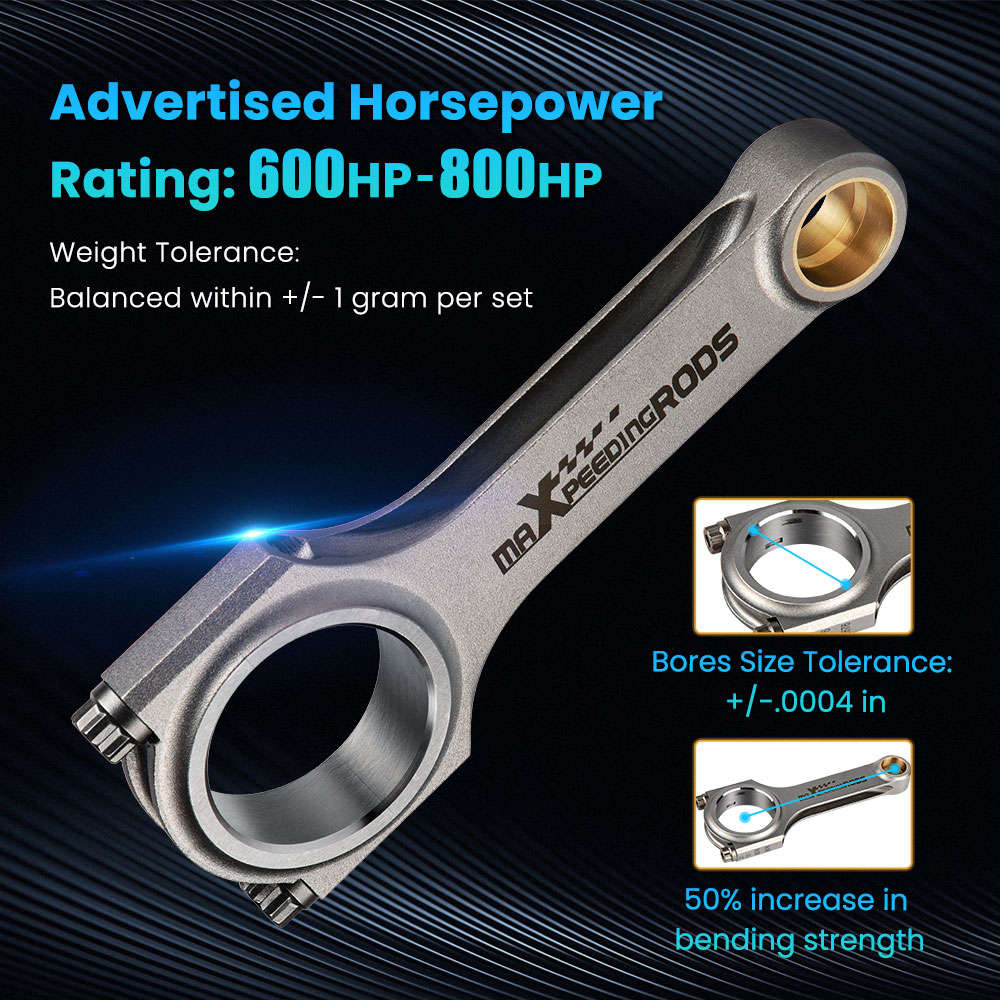

Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600~800HP
Strength of the fastening (PSI): 200,000 - 230,000 psi Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000 rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 145mm
Big end diameter: 53.9mm
Small end diameter: 20mm
Big end width: 22mm
Small end width: 22mm

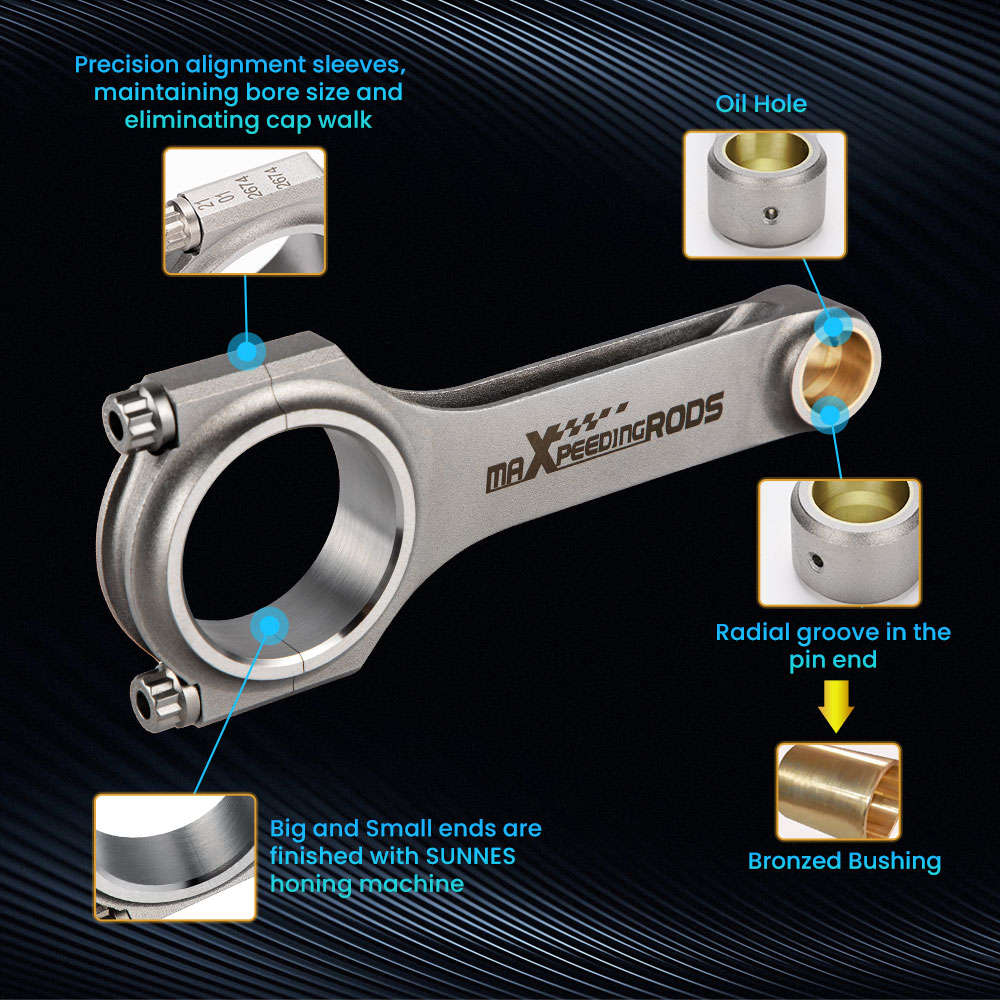

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
