Air Suspension Kit + Double Gauges suitable for Mercedes Benz Sprinter 2006-
Air Suspension Kit + Double Gauges suitable for Mercedes Benz Sprinter 2006-
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Product Description
Air suspension kit with double manometer for the rear axle.
Suitable for:
- Mercedes-Benz Sprinter 2006-2022, single rear wheel RWD and suitable for FWD, round axle
Specifications
- Body Type: Van, Tipper, Motorhome, Campervan, Box Van, Minibus, Luton, Passenger Transport Van, Breakdown Recovery, Horsebox, Dropside Van
- Chassis Type: All standard chassis types, except Alko chassis with torsion bars
- Load: 4000 KG (8818 LBS)
- Condition: Brand new
- Material: High-quality galvanized steel S355, rubber
- Placement on Vehicle: Rear left and right
- System: Double circuit system
- Air spring stroke: 140 mm
- Max. extended: 230 mm
- Min. compressed: 90 mm
- Working pressure: ≤2.0 MPa
- Temperature range: ≤+70° / ≥-40°
- Air pump power: 150W
- Output voltage: 12V
- Max. current: 10A
- Max. working pressure air pump: 10bar (1MPa)
Scope of delivery

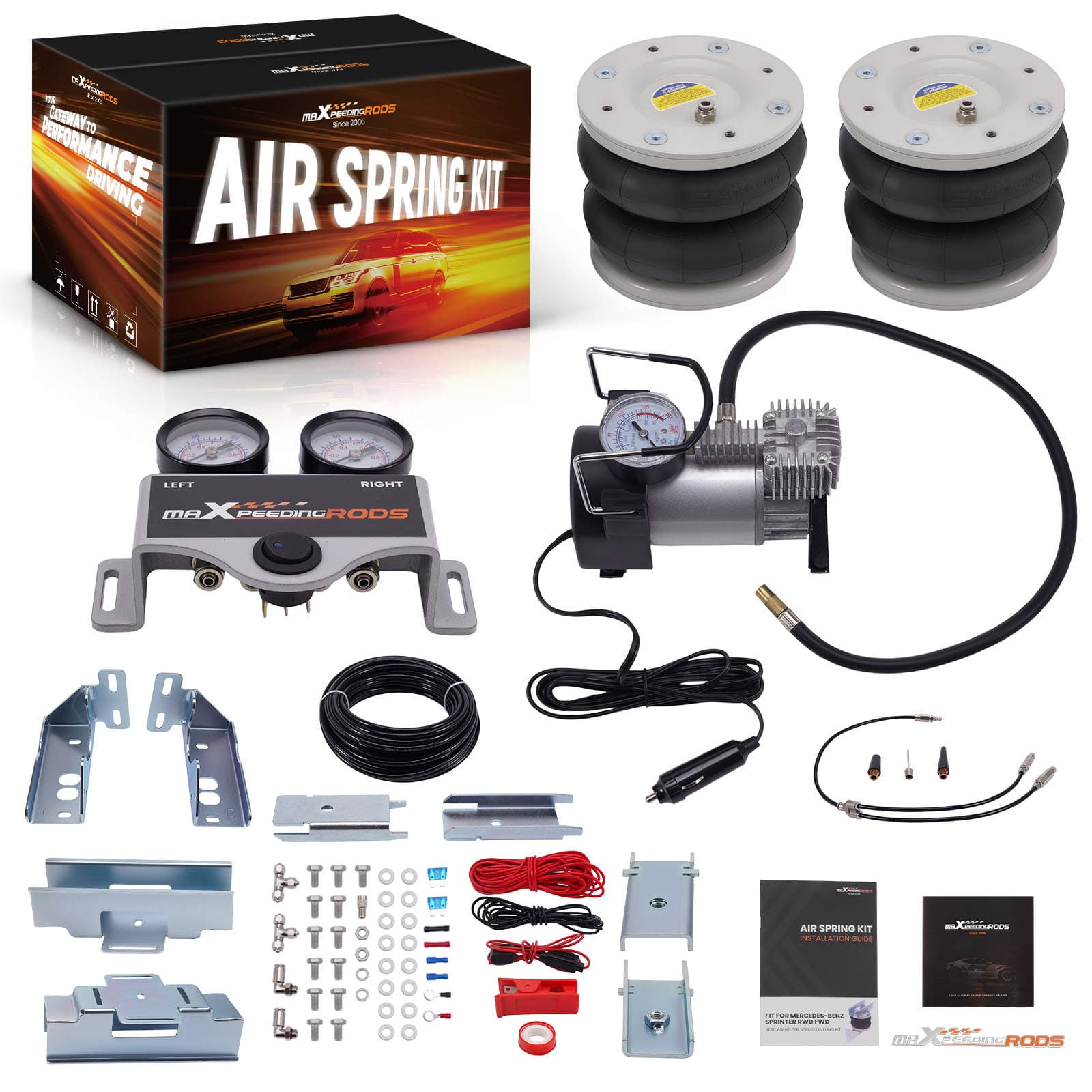

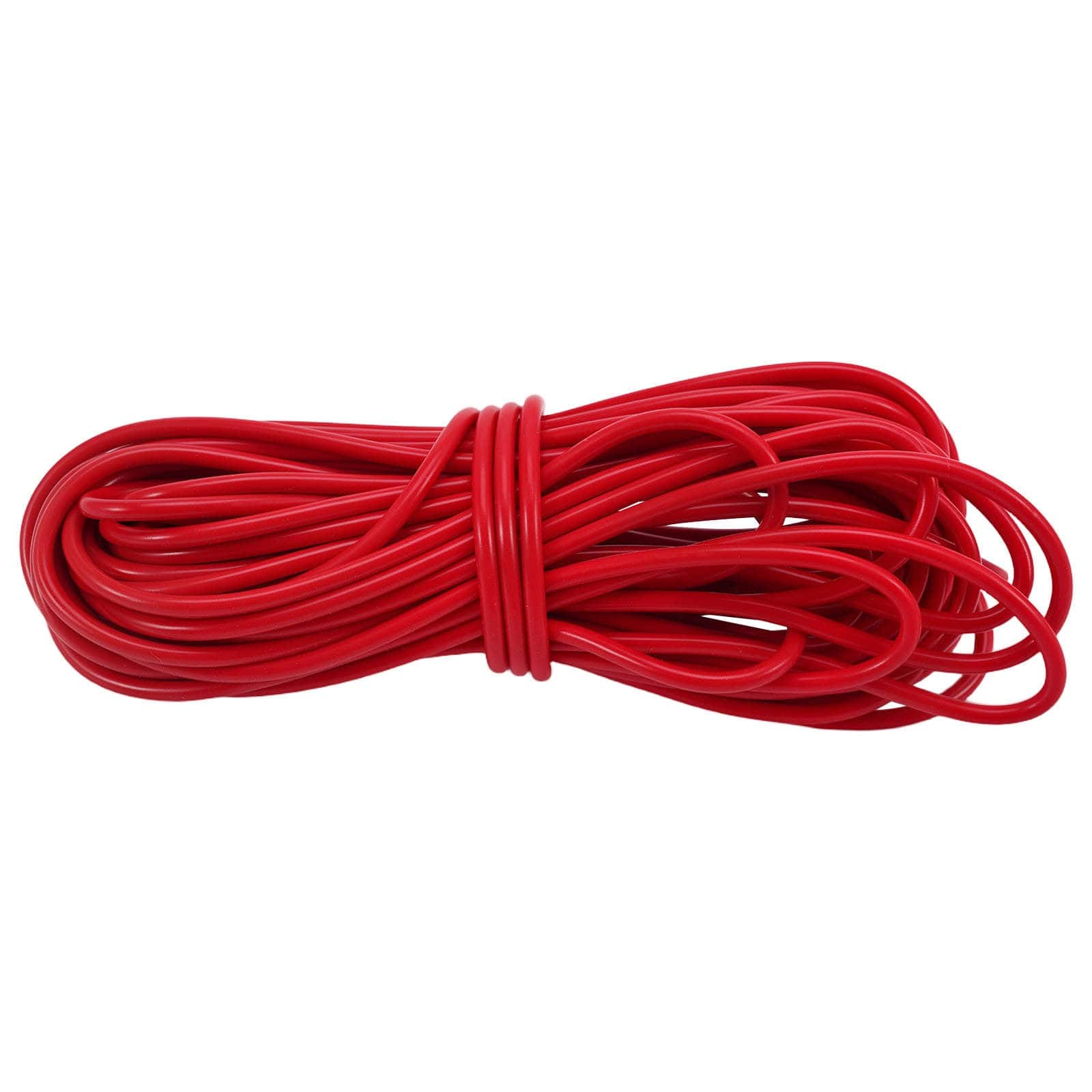

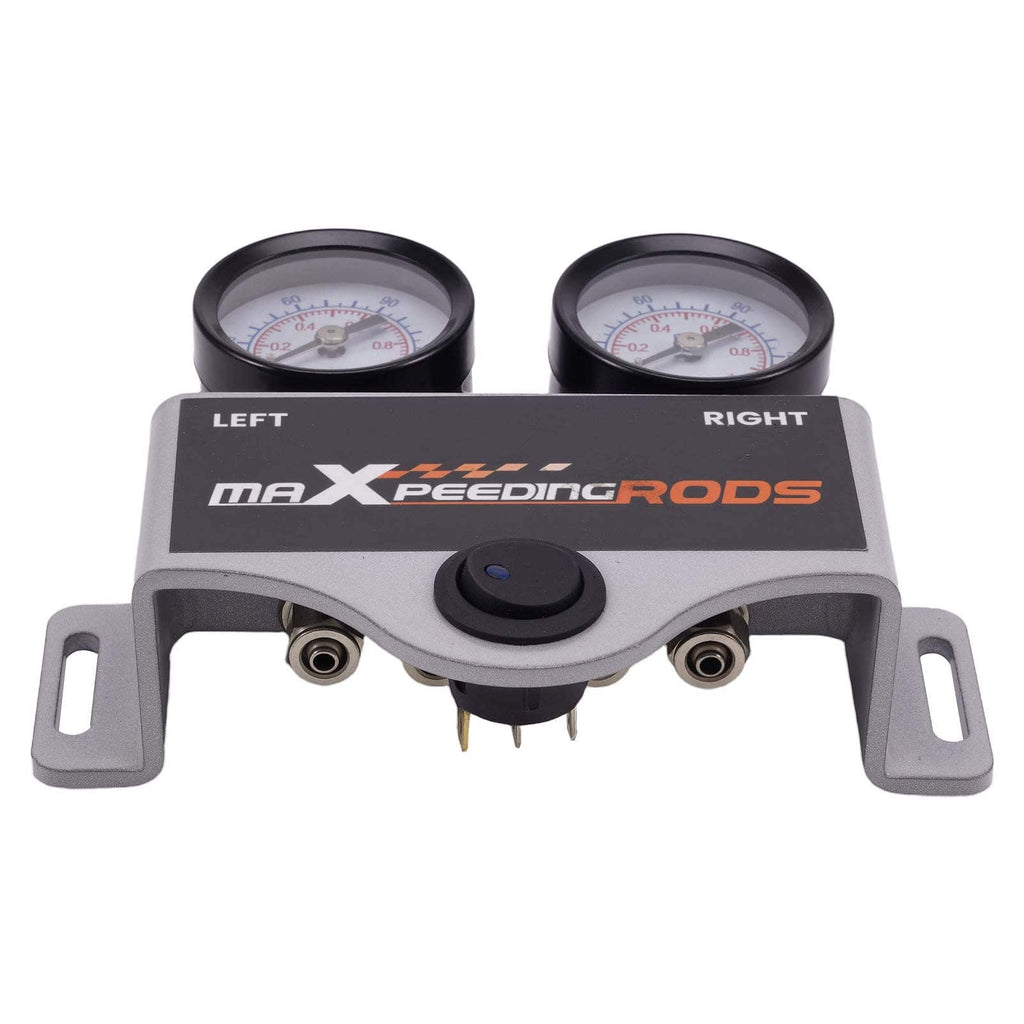

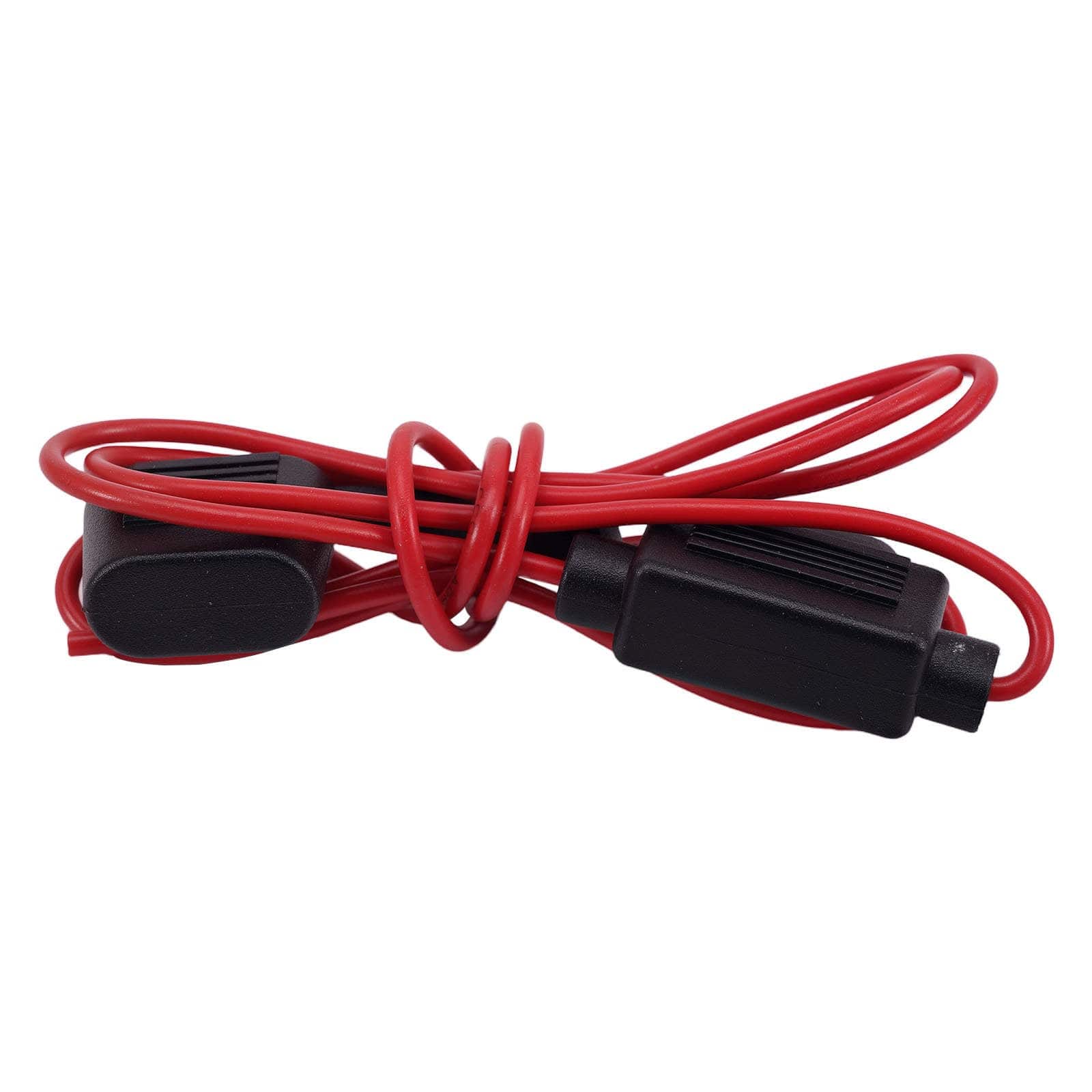

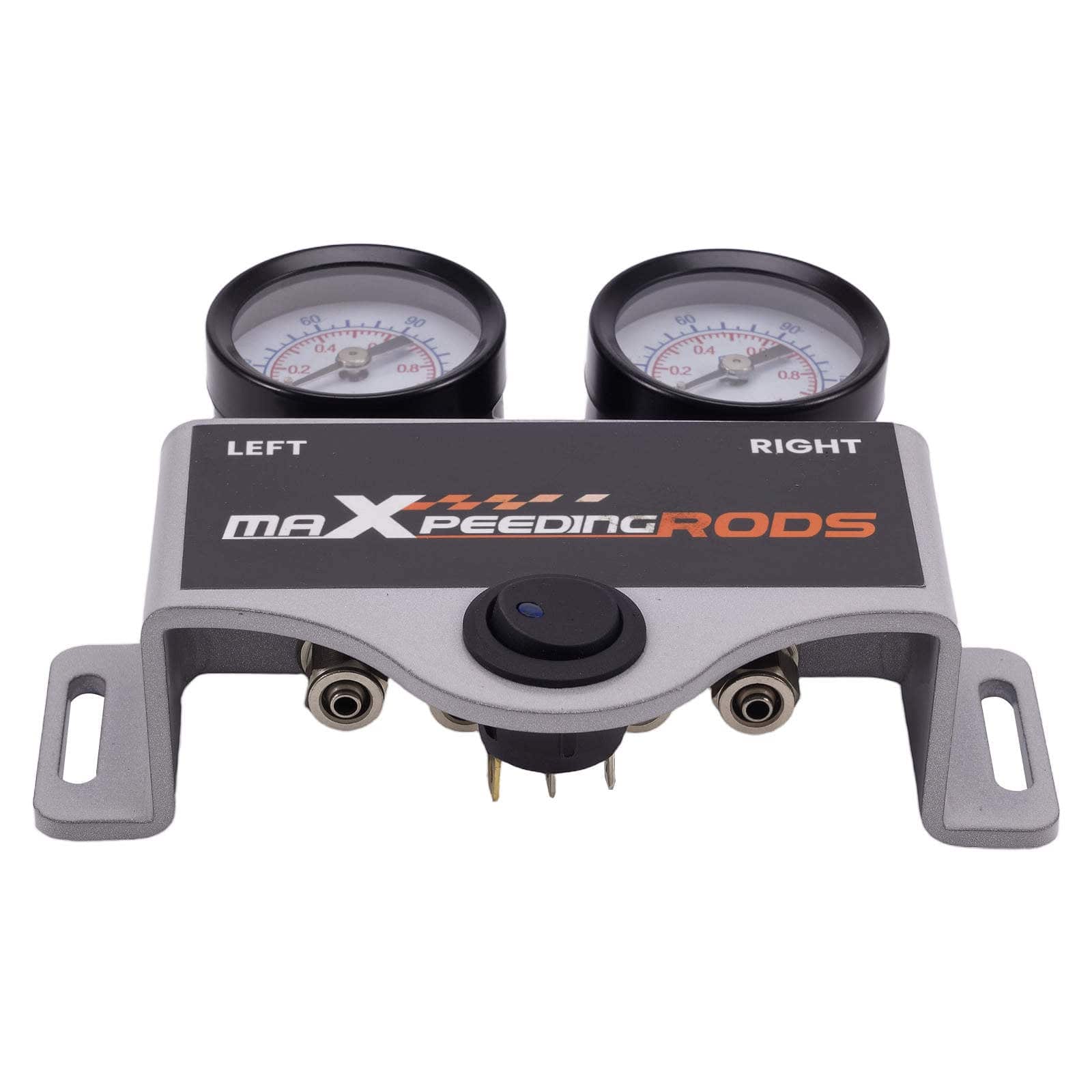

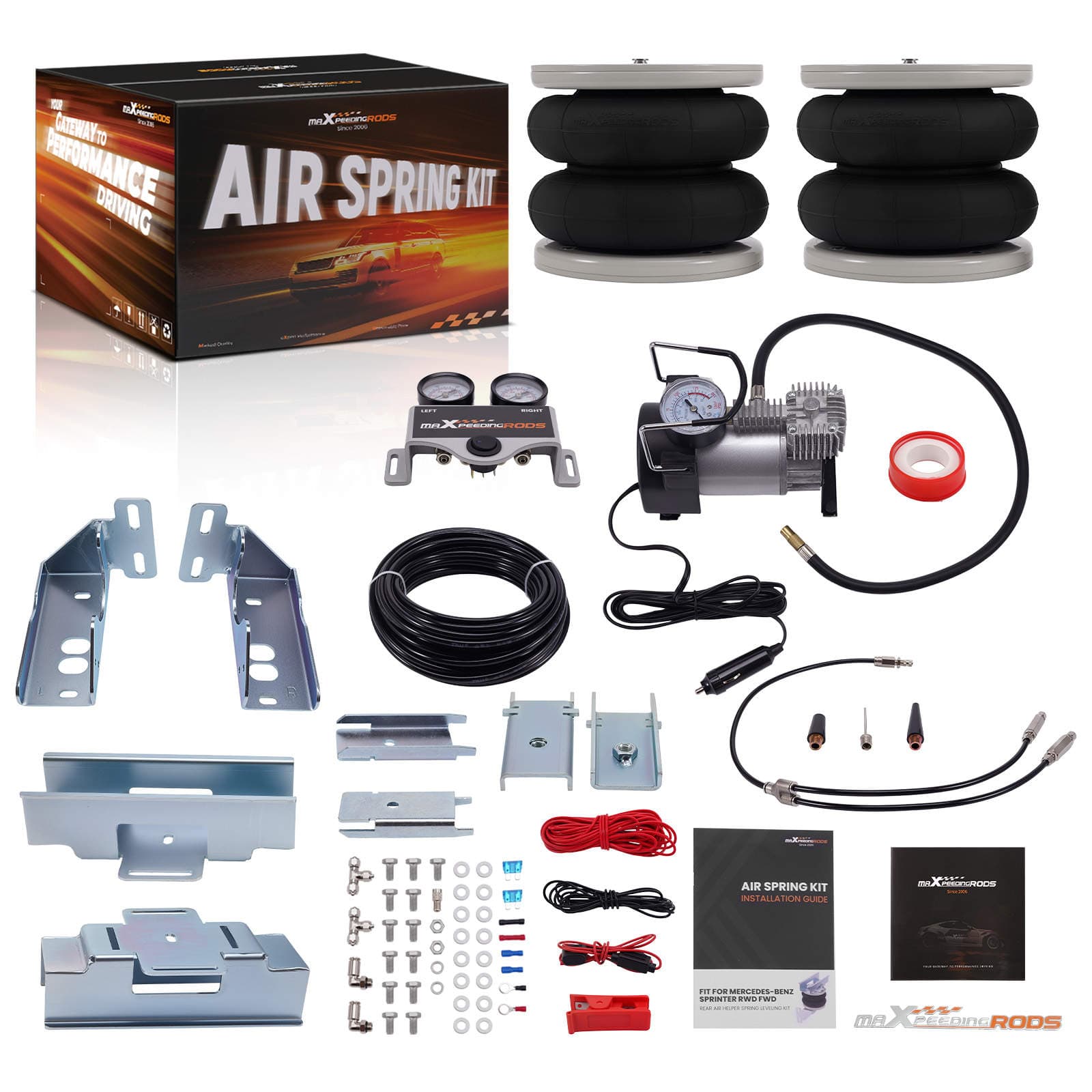

2x air spring bellows, 1x air suspension compressor, 1x double manometer, 4x mounting bracket, 1x air line 13m, 1x fuse wiring, 1x Y-connector for air line, mounting bolts and air fittings.
Features
- Load test over 5,000,000 times: durable and safe
- Burst pressure ≥2.0 MPa: high pressure resistance and less noise
- 100% airtightness guarantee
- Temperature range ≥-40℃/≤70℃: premium natural rubber material
- 4-layer reinforced construction: enhances the load-bearing capacity of the air spring
- High-quality steel with high load capacity and long service life
- Excellent and practical bolt-on mounting
- Restores original ride height and improves ride quality
- Ensures driving comfort and reduces tire wear
- Dacromet surface treatment with excellent corrosion resistance compared to traditional galvanizing
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences between versions. If you are unsure whether this part fits your vehicle? Please feel free to contact us before purchase.
