Product description

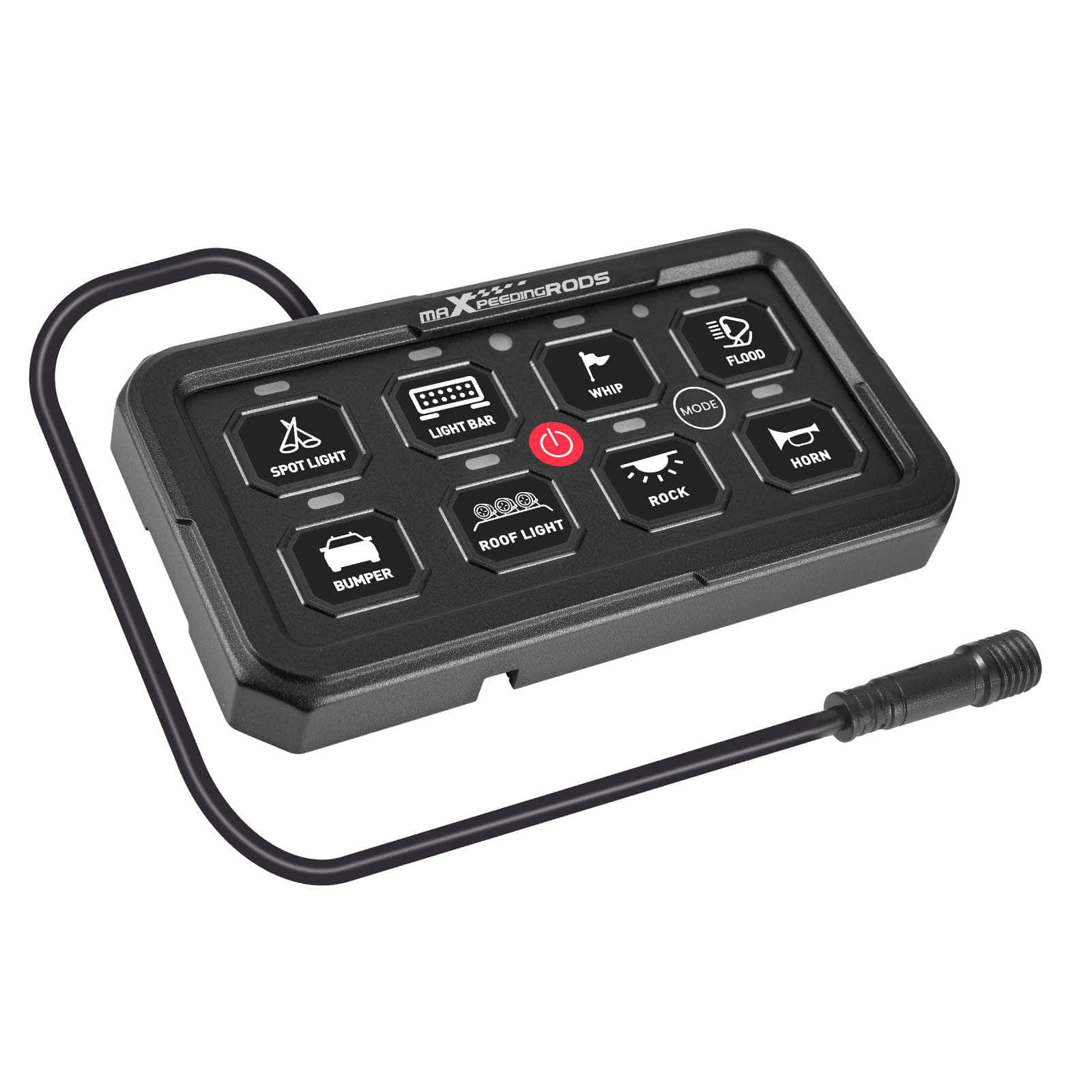

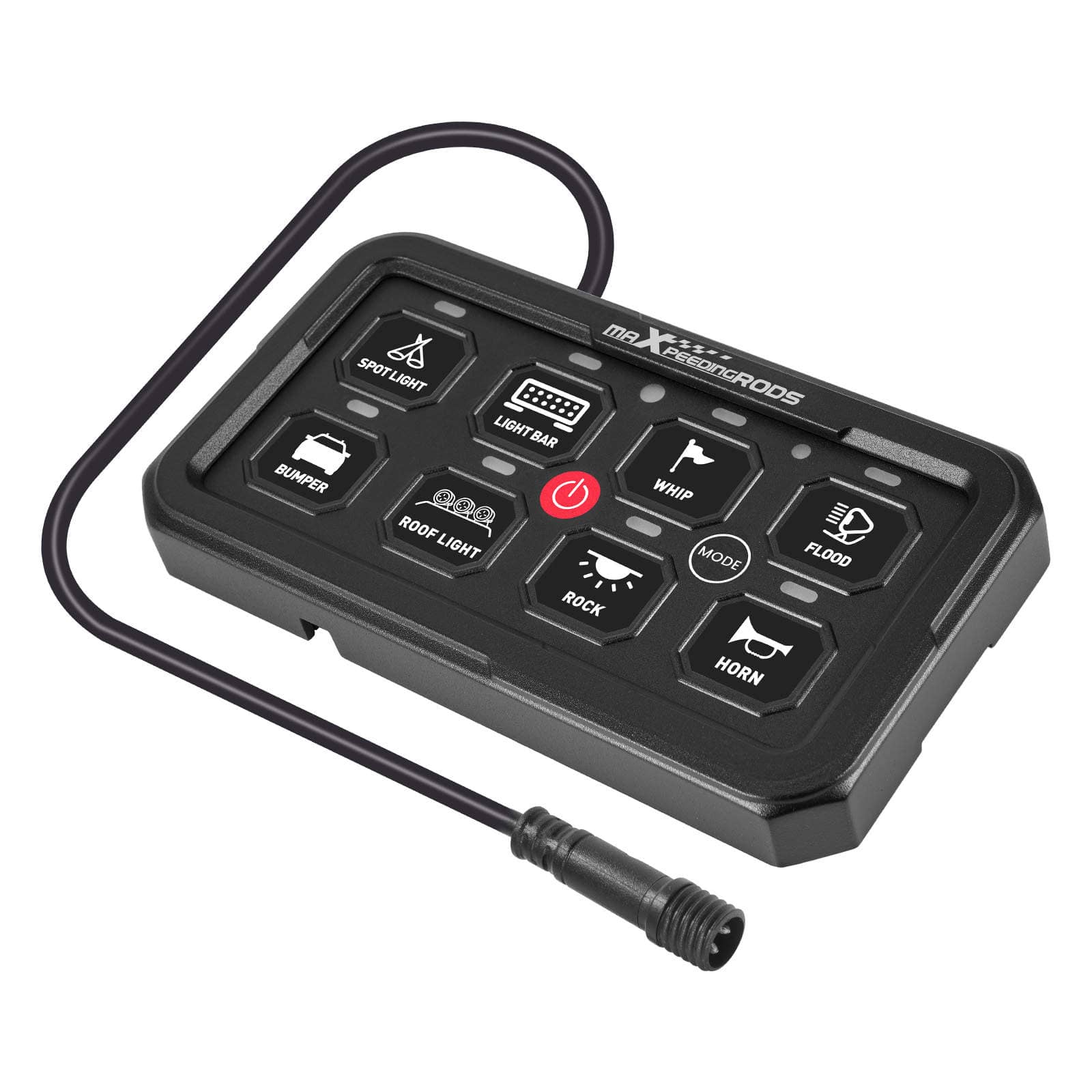

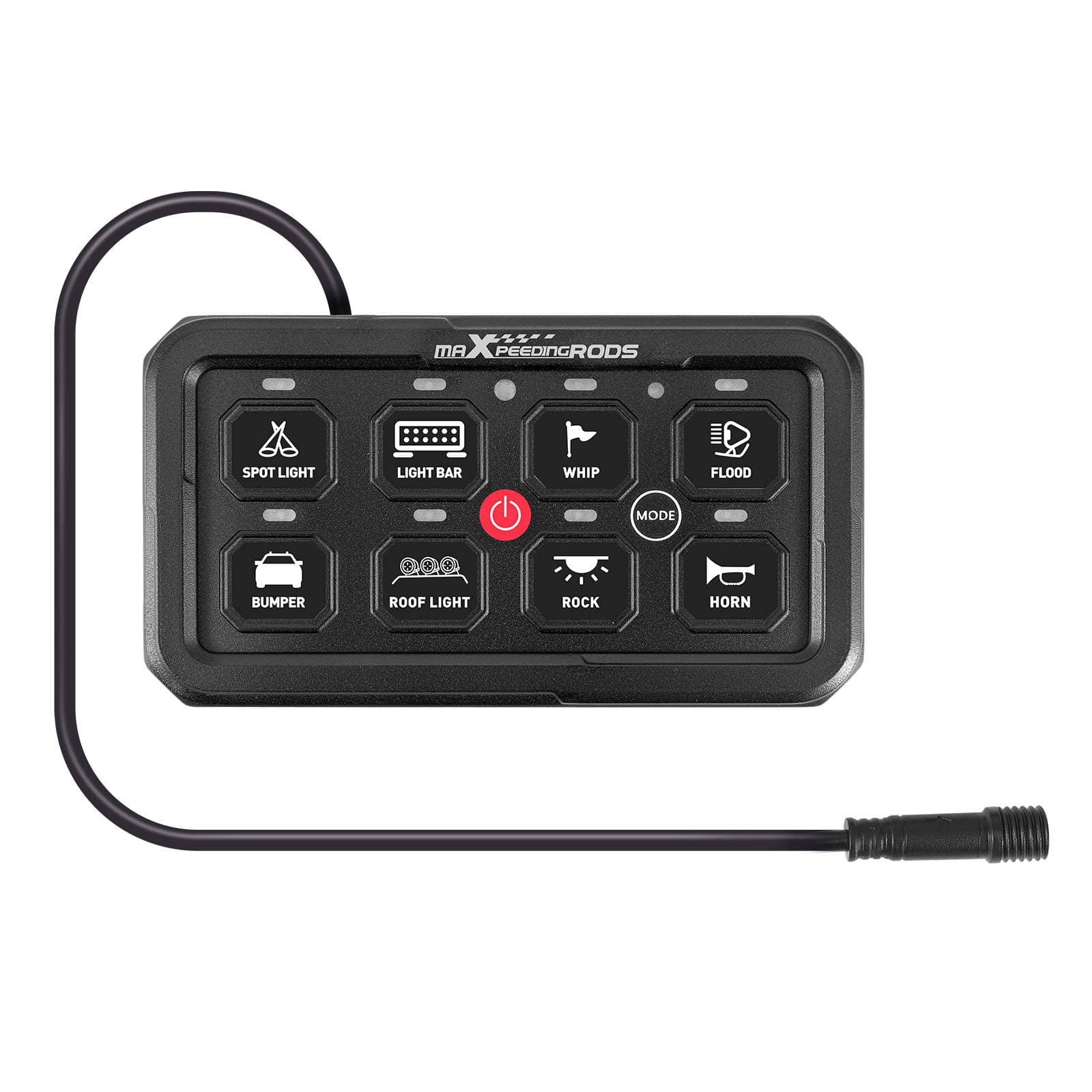

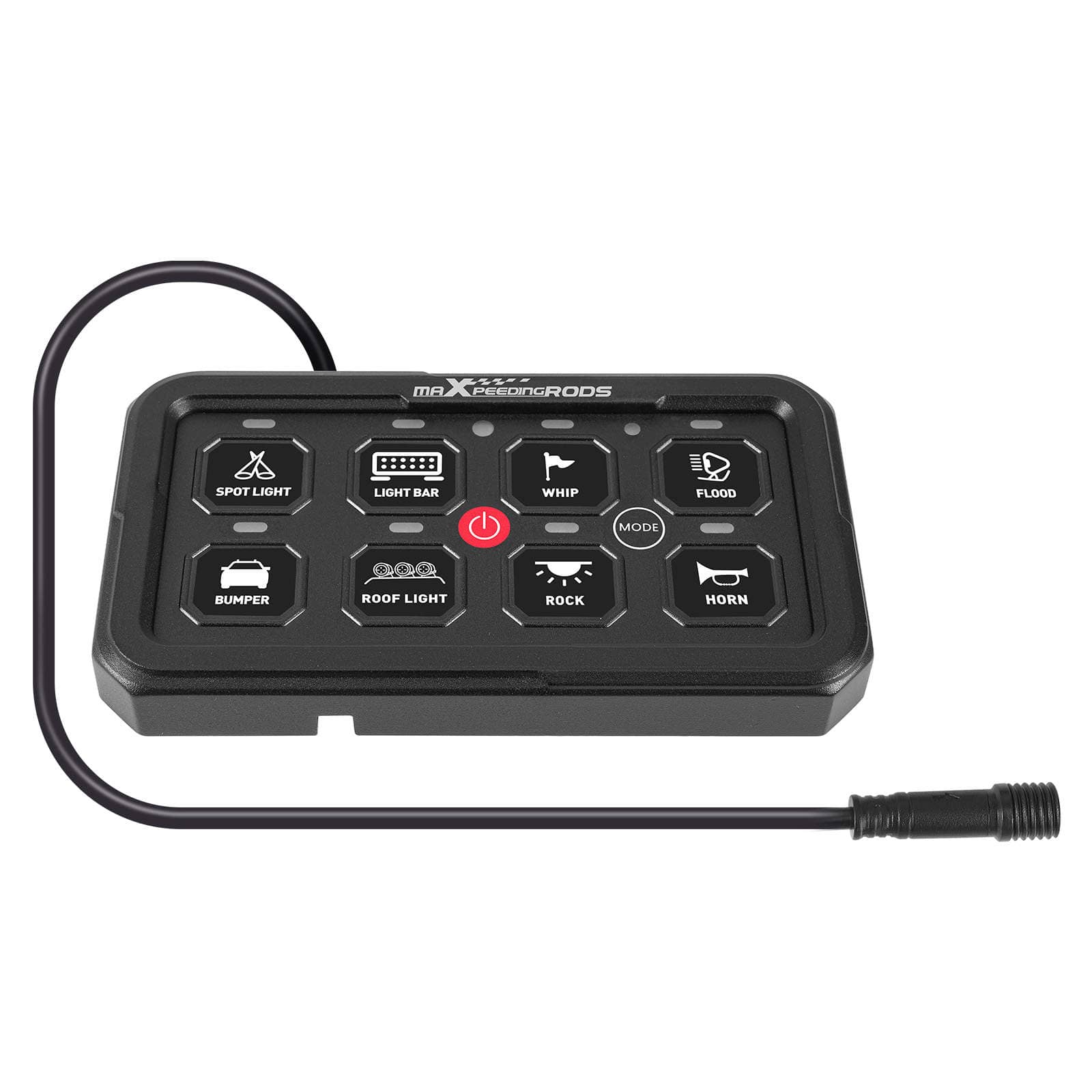

This 8-gang touch switch panel is universally applicable for clearly controlling electrical equipment in vehicles, boats, and machinery.

Suitable for:

• Universal for cars, pickups, off-road vehicles (UTV/ATV), boats, and more
• Including vans, station wagons, SUVs, trucks, buses, tractors, campers, road rollers, bulldozers, cranes, excavators, and agricultural or marine applications

Specifications

• Number of buttons: 8-gang
• Button type: touch
• Operating modes: 4 types: Toggle (red light), Momentary (blue light), slow flashing (purple light), and fast flashing (green light)
• Backlight color: blue
• Backlight adjustment: automatic
• Max. current: 60A
• Rated power: 720W/12V, 1440W/24V
• Voltage: 12V-24V
• Housing material: aluminum
• Housing color: black
• Panel mounting bracket: 2 ways
• Control box mounting bracket: 2 ways
• Mounting bracket material: carbon steel
• Control box power supply: ACC
• Operating temperature: -40° ~ +85°

Scope of delivery

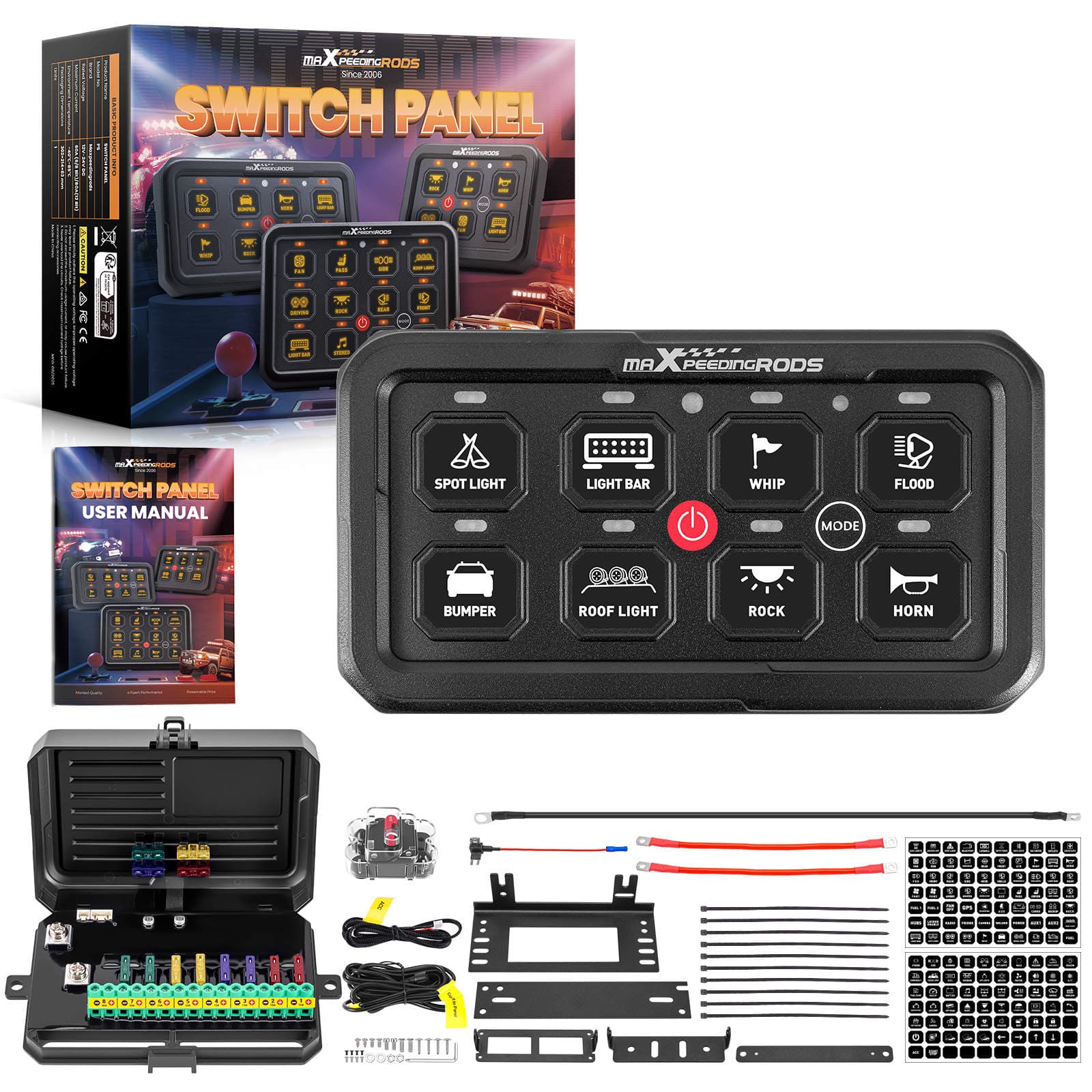

1x switch panel, 1x control box, 1x circuit breaker, 1x wiring harness kit, 1x mounting kit, 1x installation instruction, 2x panel mounting bracket, 2x control box mounting bracket, 2x set of 70 stickers, 4x spare fuse, 10x cable ties.

Features

• 4 operating modes with color indication and memory function for the buttons
• Automatic dimming function: the panel dims in tunnels/dark environments and brightens in bright light
• High-quality aluminum and heat-resistant ABS material: good heat dissipation and corrosion resistance; the buttons withstand 200,000+ presses and feature double overload and polarity protection
• 140 stickers to personalize the switch panel to your liking
• Organizes the wiring in the vehicle for connected electronic devices

Check fitment

Always check the original OEM part number, year of manufacture, engine code, and vehicle model before ordering, as there may be differences depending on the version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchasing.
