Cylinder kit suitable for Kawasaki KX 250 F 2004-2008 suitable for Suzuki RM-Z 250 2004-2006
Cylinder kit suitable for Kawasaki KX 250 F 2004-2008 suitable for Suzuki RM-Z 250 2004-2006
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product Description

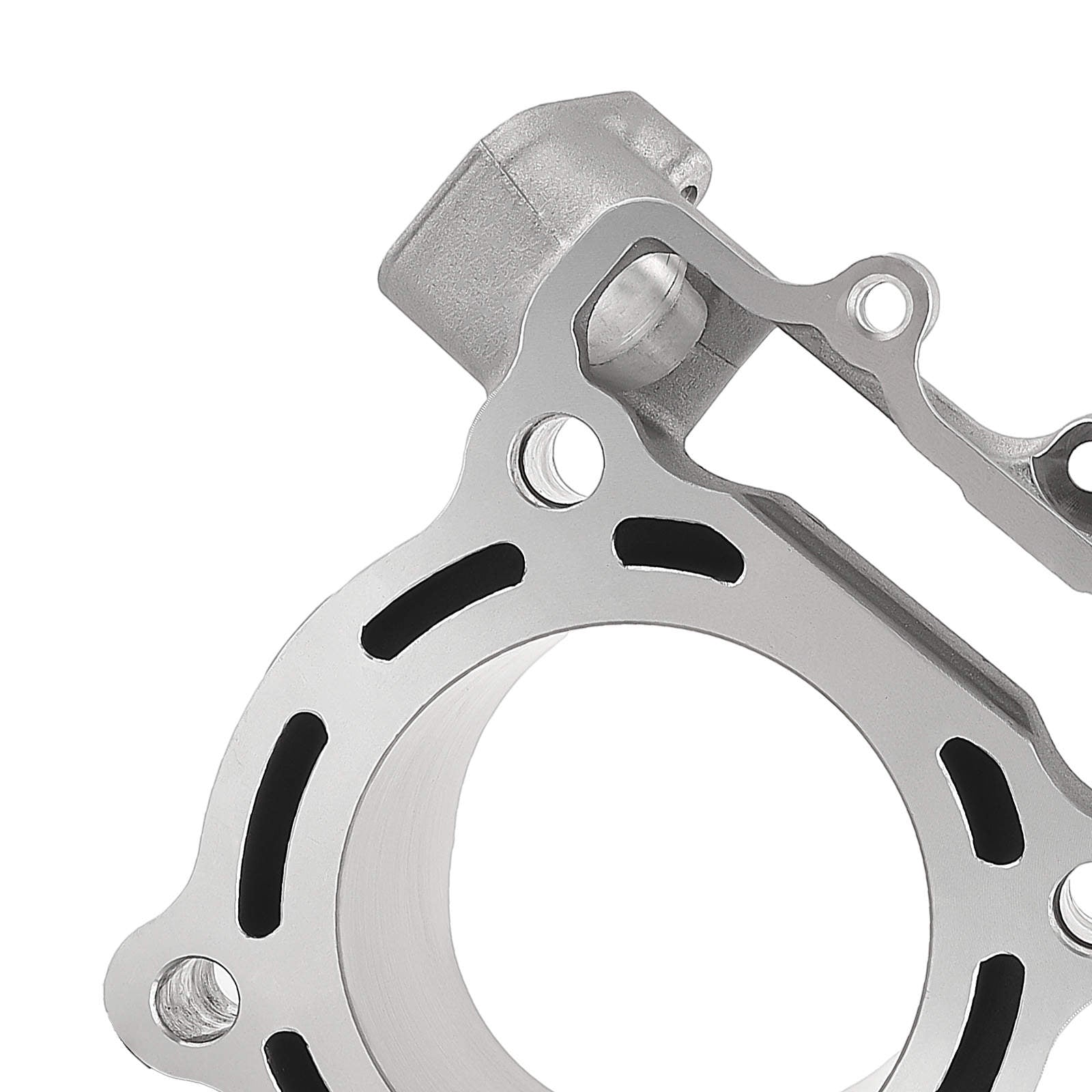

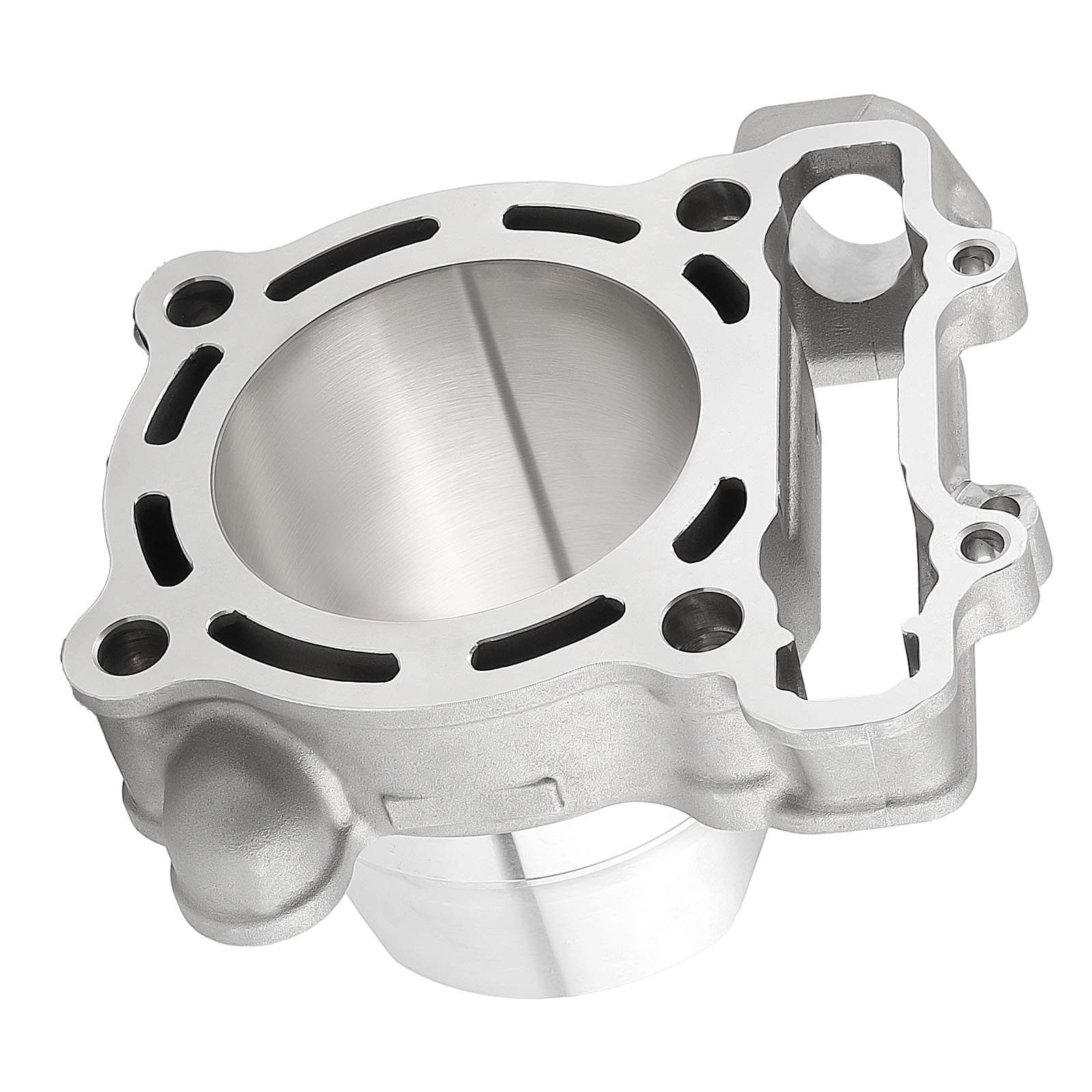

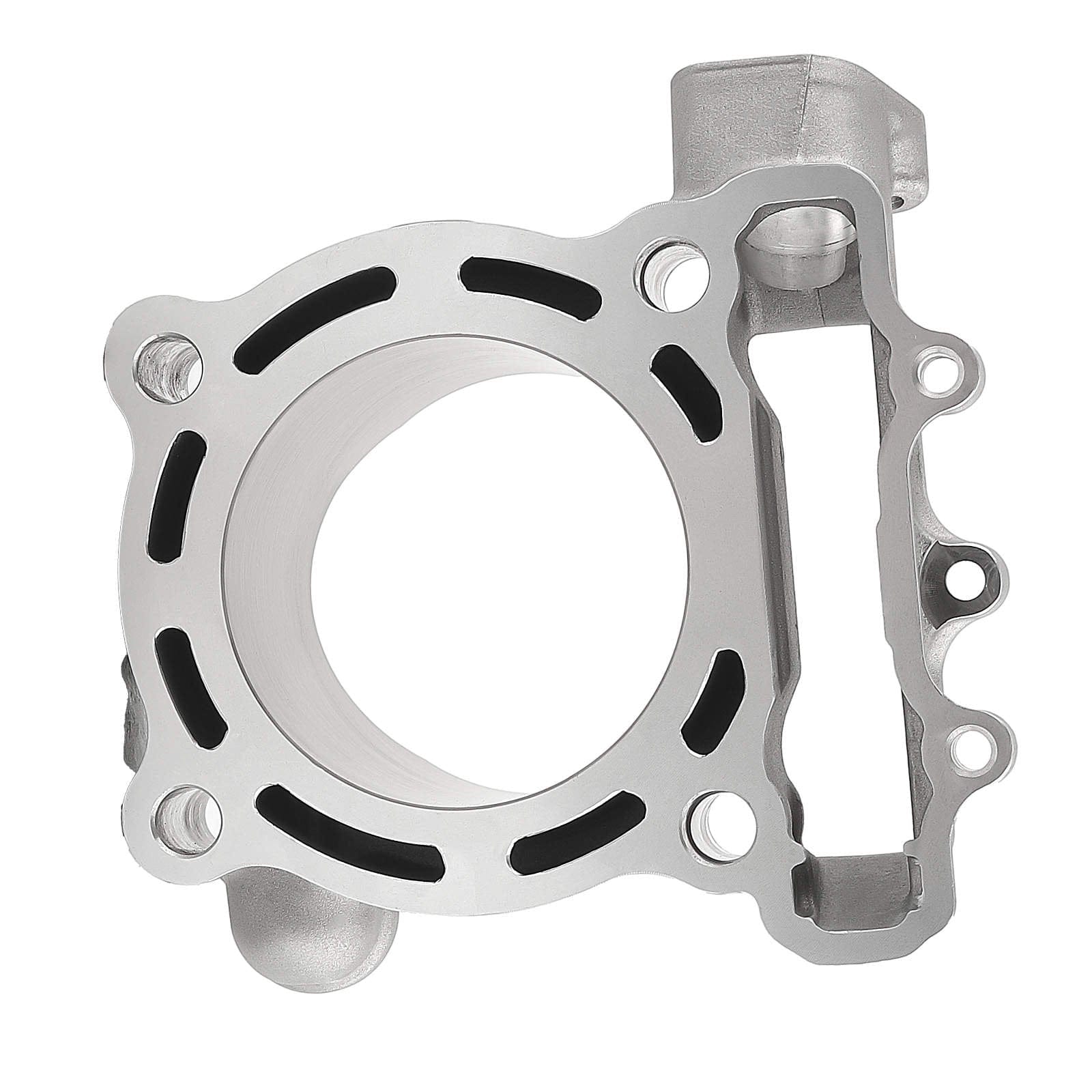

This cylinder kit is a top-end overhaul kit for various Kawasaki and Suzuki dirt bikes.
Suitable for:
- Kawasaki KX250F (2004-2008)
- Suzuki RMZ250 (2004-2006)
Specifications
- OEM / Part Number: 11005-0005, 11005-0037, 11005-0069, K1100-50005, K1100-50037, 11061-0025, K1106-10025, 11004-0090, K1100-40090, 13001-0052, K1300-10052, 13001-0088, 13002-0018, K1300-20018, 13008-0028, K1300-80028, 92033-1161, K9203-31161, 110050005, 110050037, 110050069, K110050005, K110050037, 110610025, K110610025, 110040090, K110040090, 130010052, K130010052, 130010088, 130020018, K130020018, 130080028, K130080028, 920331161, K920331161
- Bore size: 77 mm
- Stroke: 53.6 mm
- Piston pin diameter: 16 mm
- Displacement: 249cc
- Compression ratio: 13.5:1
- Material: Ceramic
- Type: Top-end overhaul kit
- Bore type: Standard bore
Scope of delivery

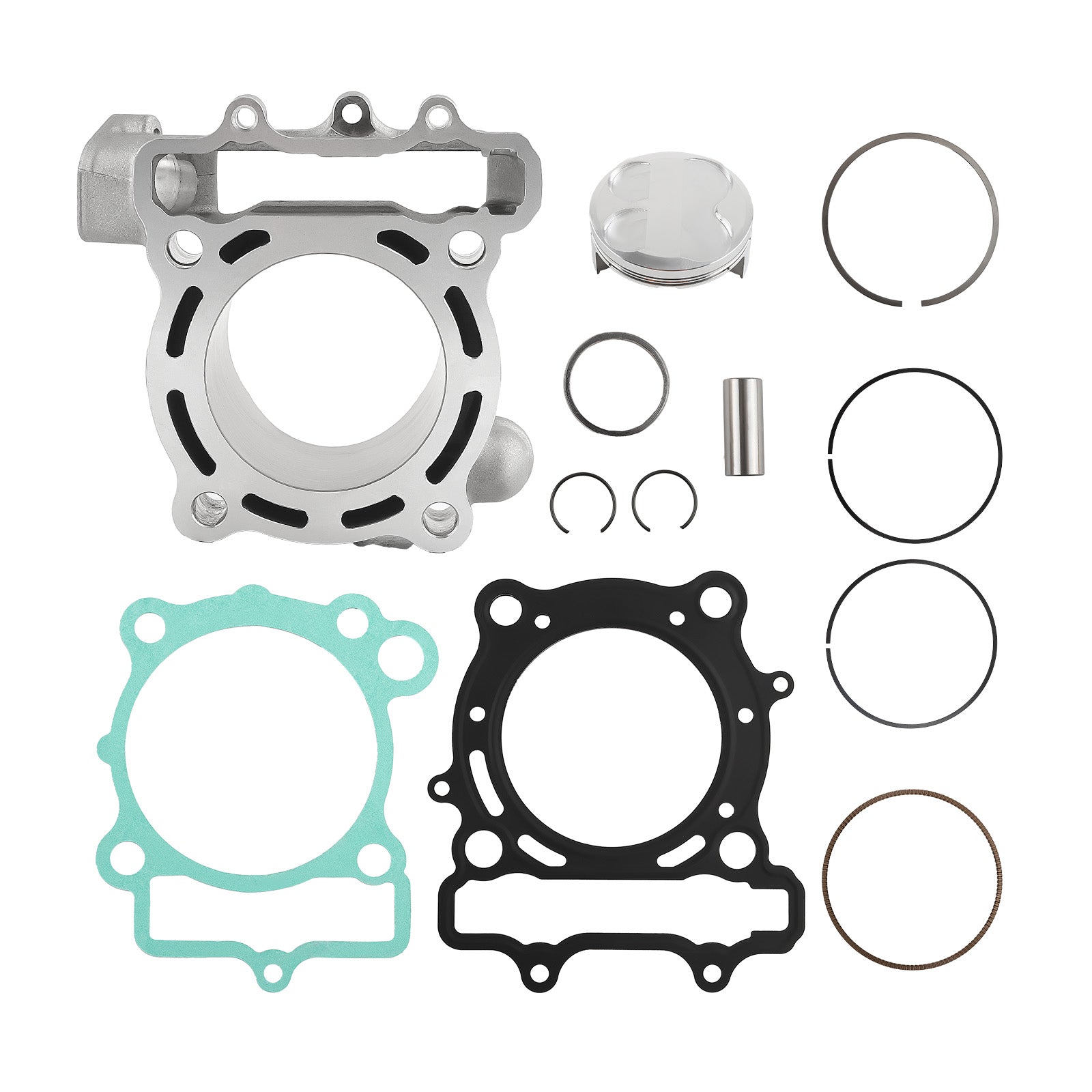

1x cylinder, 1x piston, 1x piston ring set, 1x piston pin, 2x circlip, 1x cylinder base gasket, 1x cylinder head gasket
Features
- Direct OEM replacement
- High-quality material processing
- Excellent wear and heat resistance
- Optimal sealing properties
- Professional quality

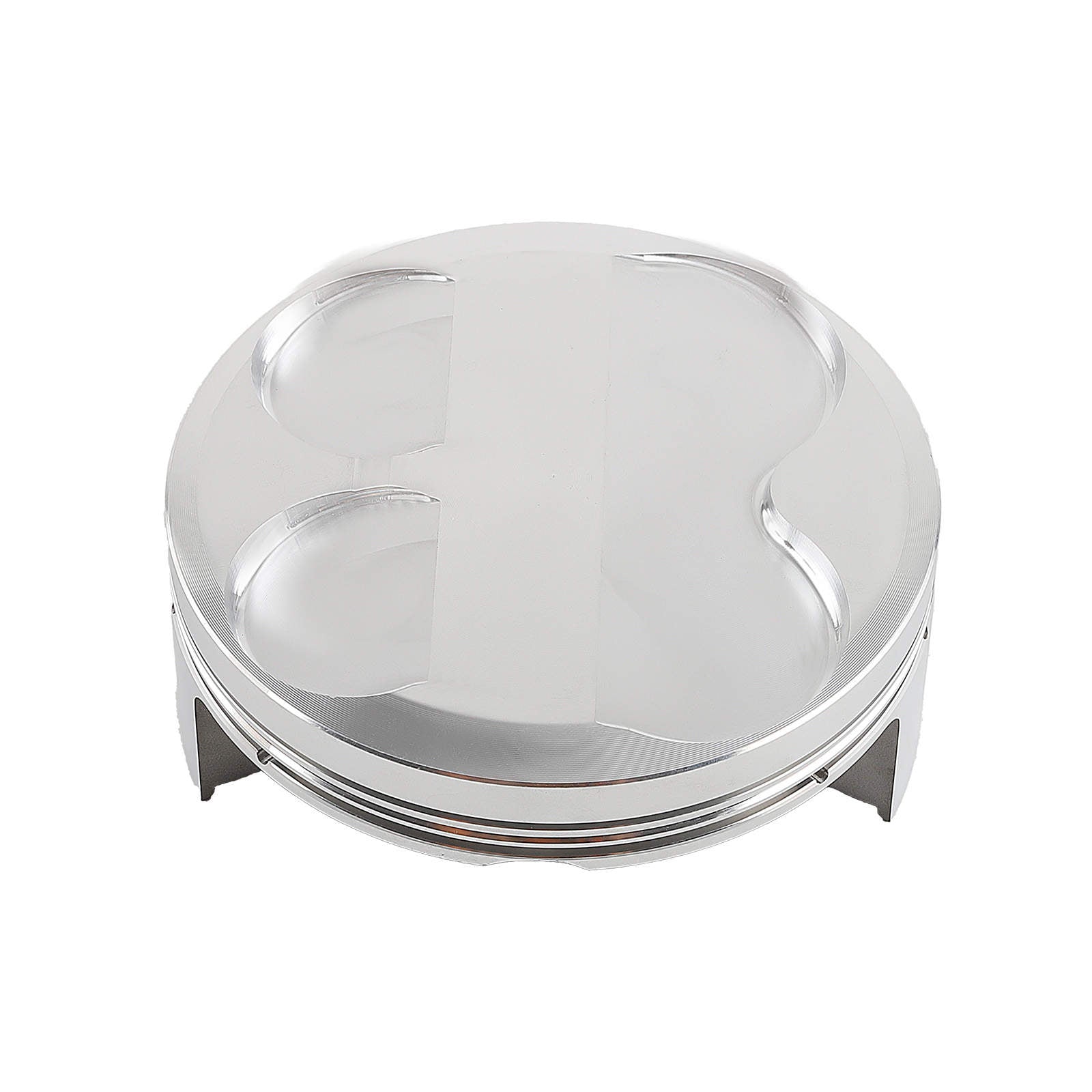

- Anodized piston for better heat resistance
- High-quality gaskets for greater durability
Please note: The fitment above is for reference only; please check the part number and cylinder bore before purchasing. Dimensions are manually determined and may vary by 1-3 mm. The actual color may differ slightly from the image due to screen settings.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and version of your vehicle, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
