Application

Compatible for Ford Focus LT / LS (2.0L) – Fits Duratec 2.0L engine
compatible for Mazda 3 BK Series 2 (2.0L) – Fits MZR LF-VE 2.0L engine
compatible for Mazda 3 BL Series 1 (2.0L) – Fits MZR LF-VE 2.0L engine
compatible for Mazda 3 BL Series 2 (2.0L) – Fits MZR LF-VE 2.0L engine
compatible for Mazda MX-5 NC (2.0L) – Fits MZR LF-VE 2.0L engine
compatible for Mazda MX-5 NC Series II (2.0L) – Fits MZR LF-VE 2.0L engine

Specification

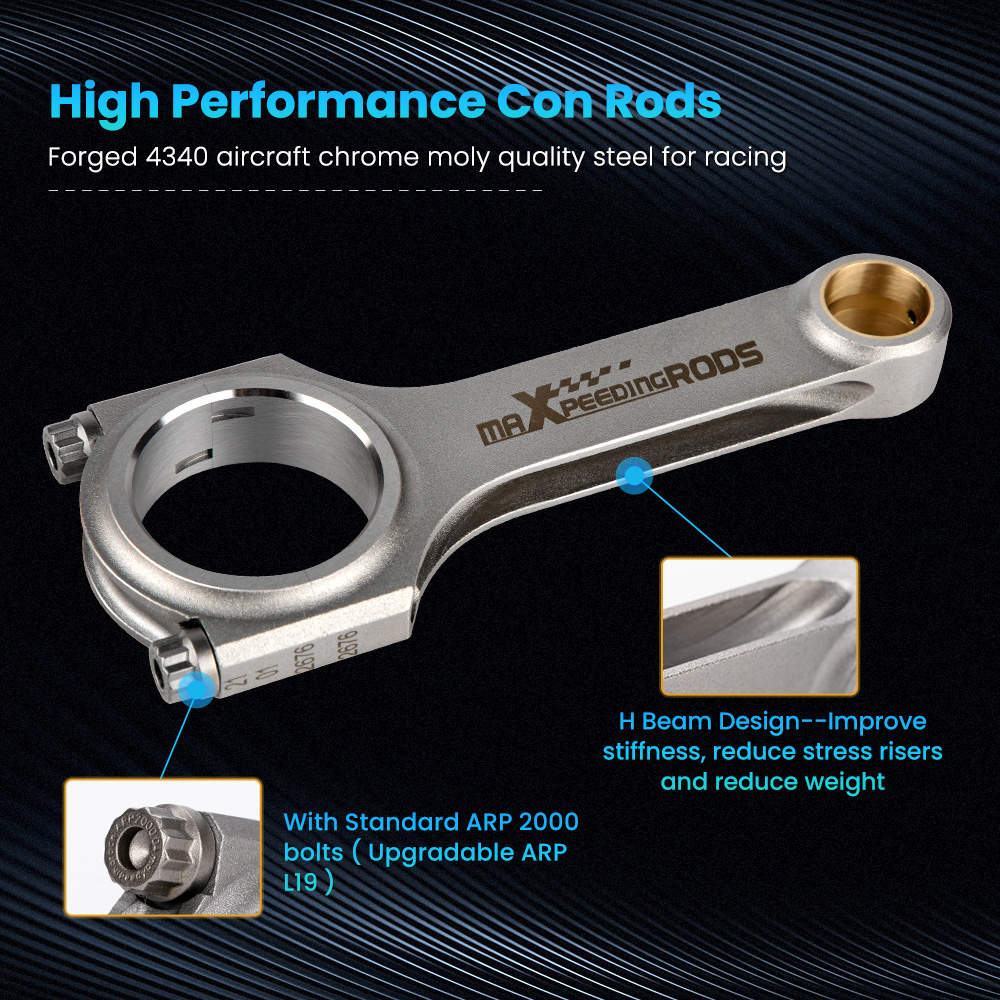

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

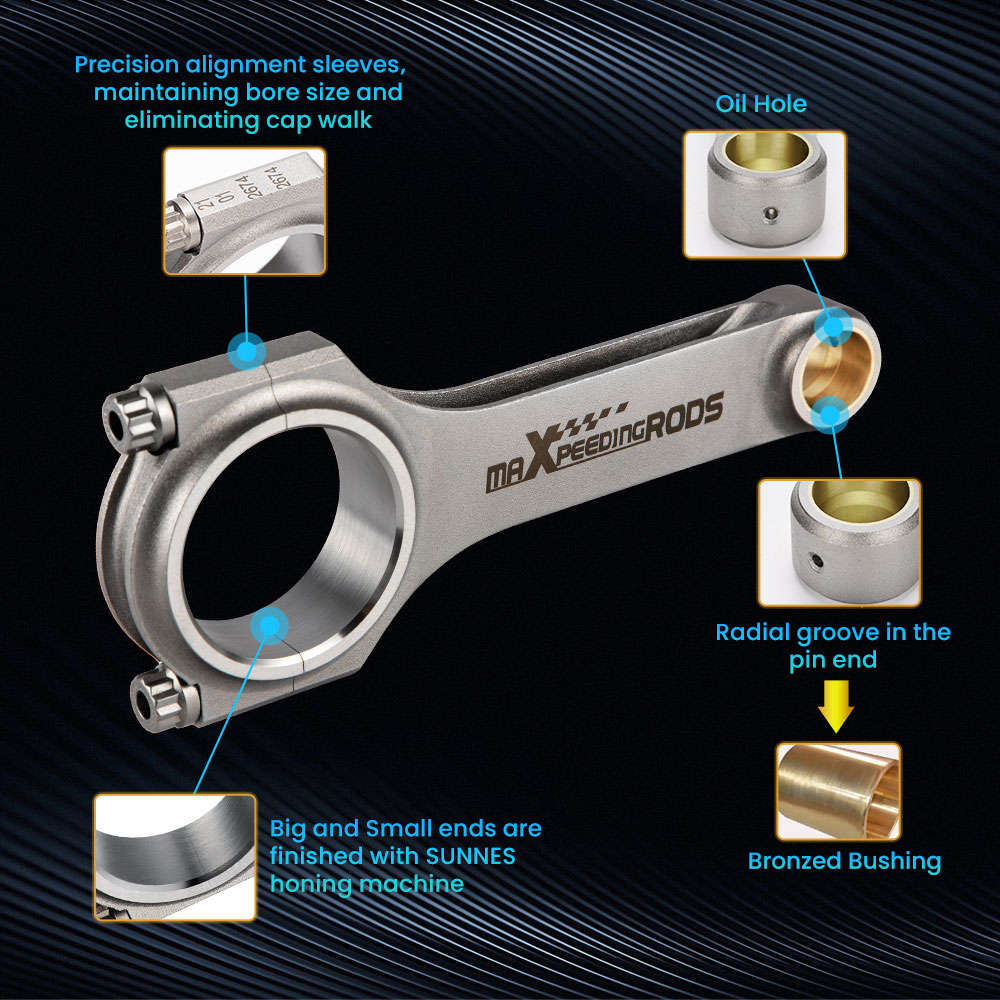

Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Dimension

Connecting Rod Length Center to Center: 146.25mm/5.758in
Approximate Connecting Rod Weight:566g
Big End Bore Diameter: 50.04mm/1.984in
Pin End Bore Diameter: 21.00mm/0.827in
Big End Width：21.82mm/0.859in
Small End Width: 18.03mm/0.710in

Performance Ratings

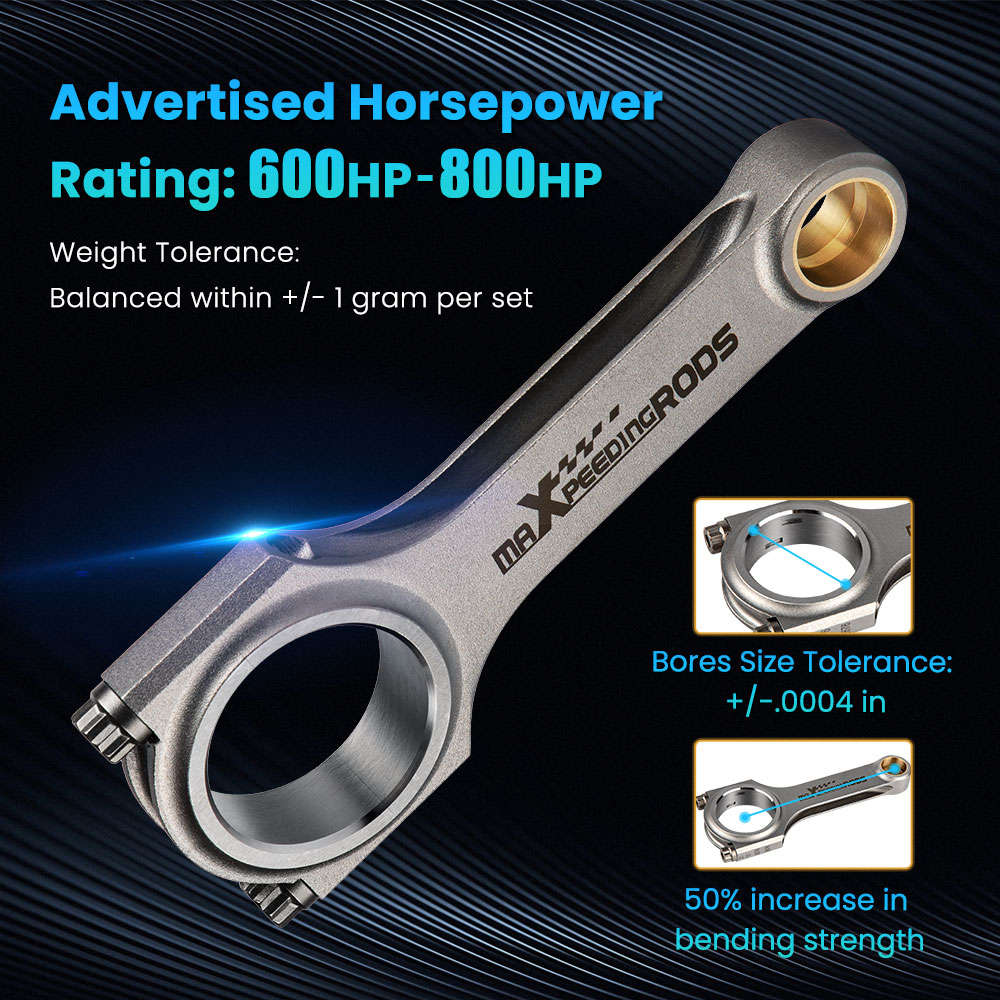

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9000rpm

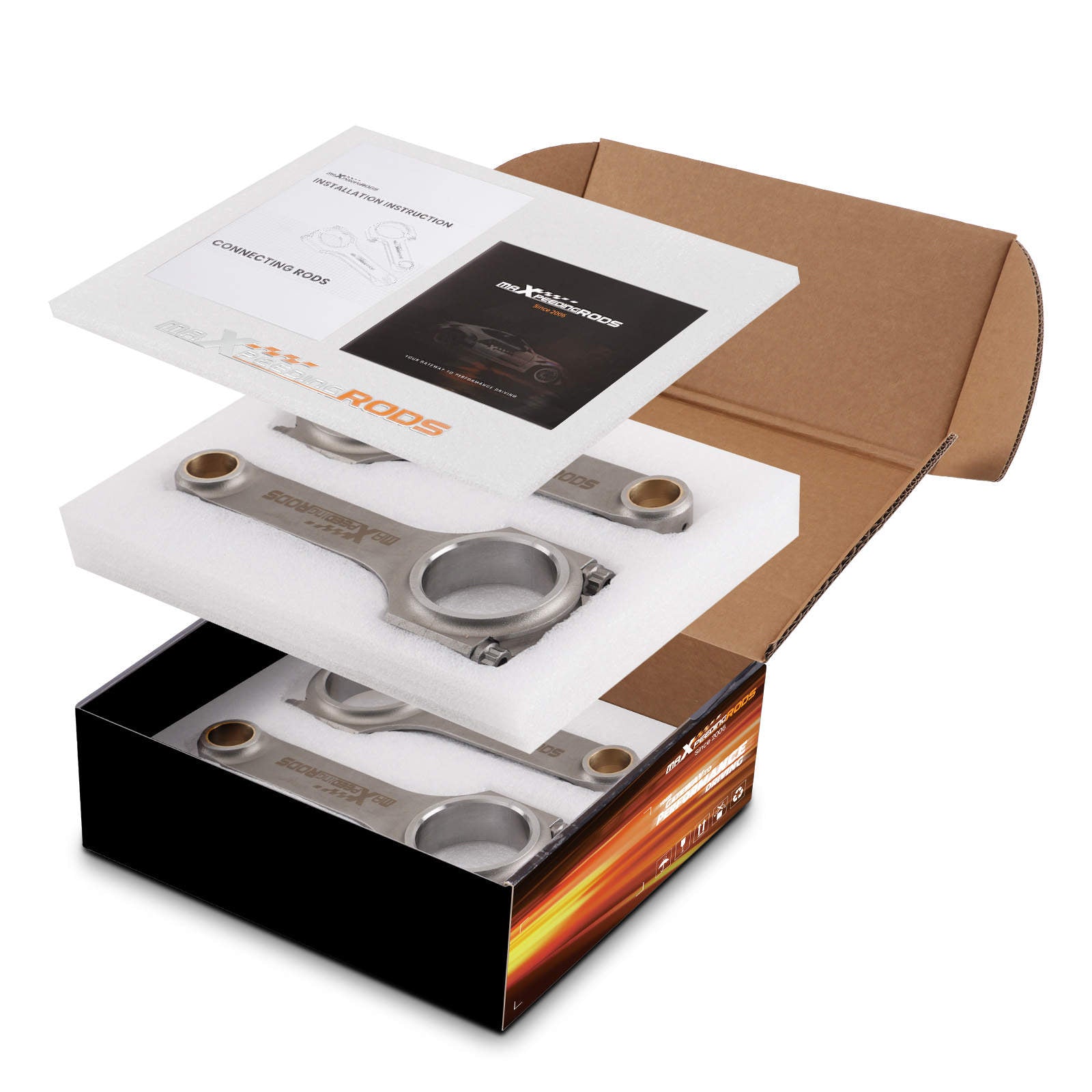

Packaging

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
