2x Air Bellow + 12V Compressor Kit suitable for Iveco Daily 35S 35L 2006-2014 RWD, suitable for FWD
2x Air Bellow + 12V Compressor Kit suitable for Iveco Daily 35S 35L 2006-2014 RWD, suitable for FWD
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Product Description

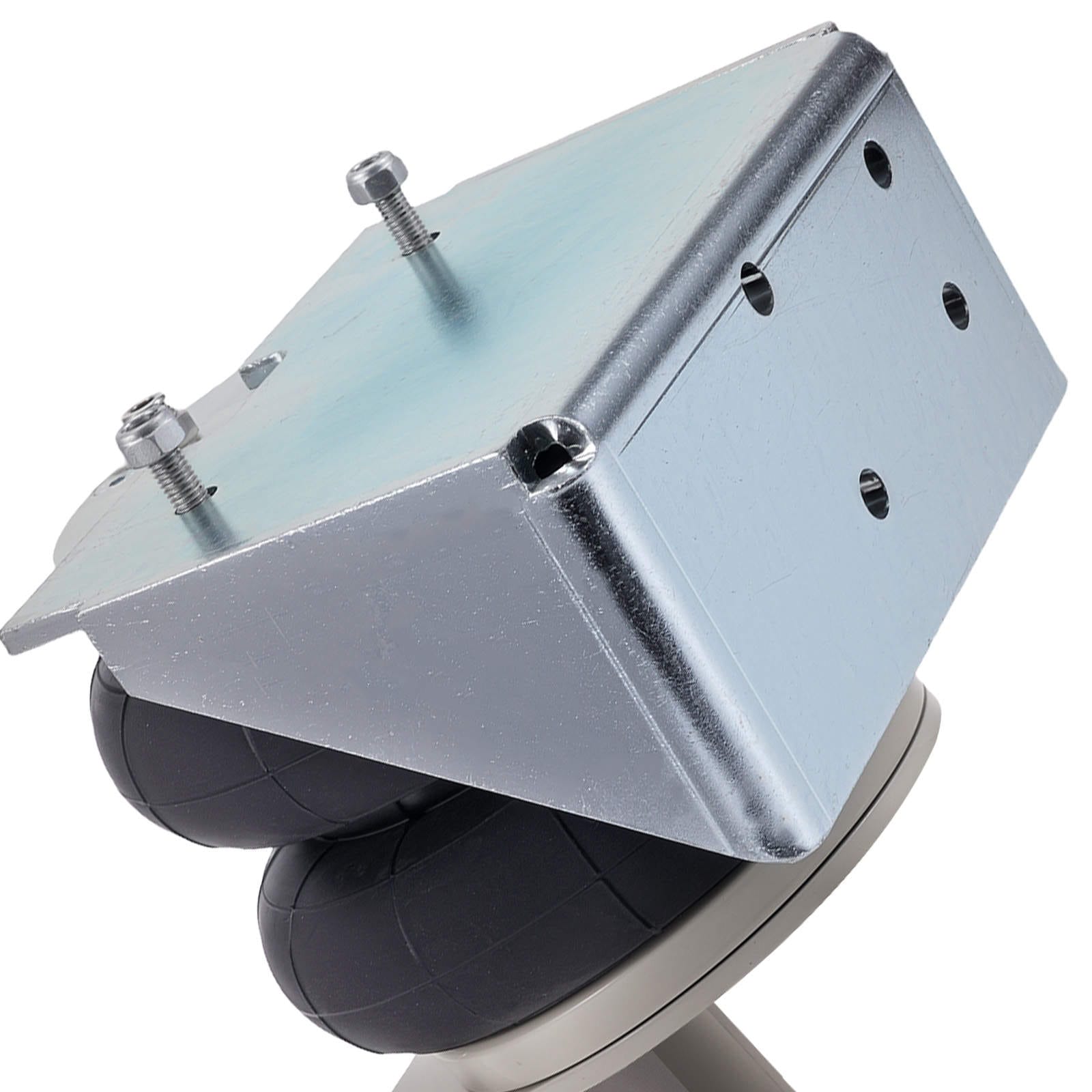

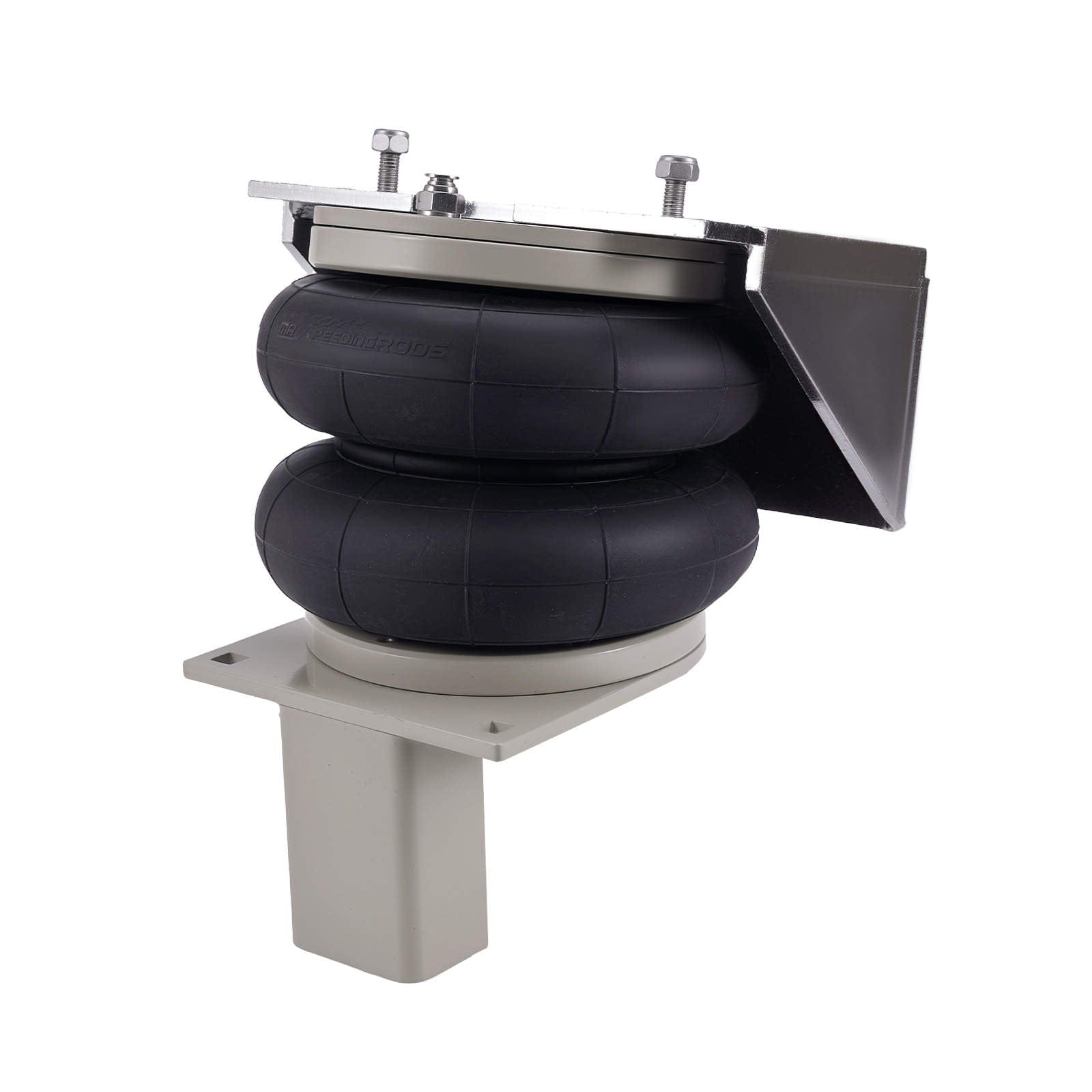

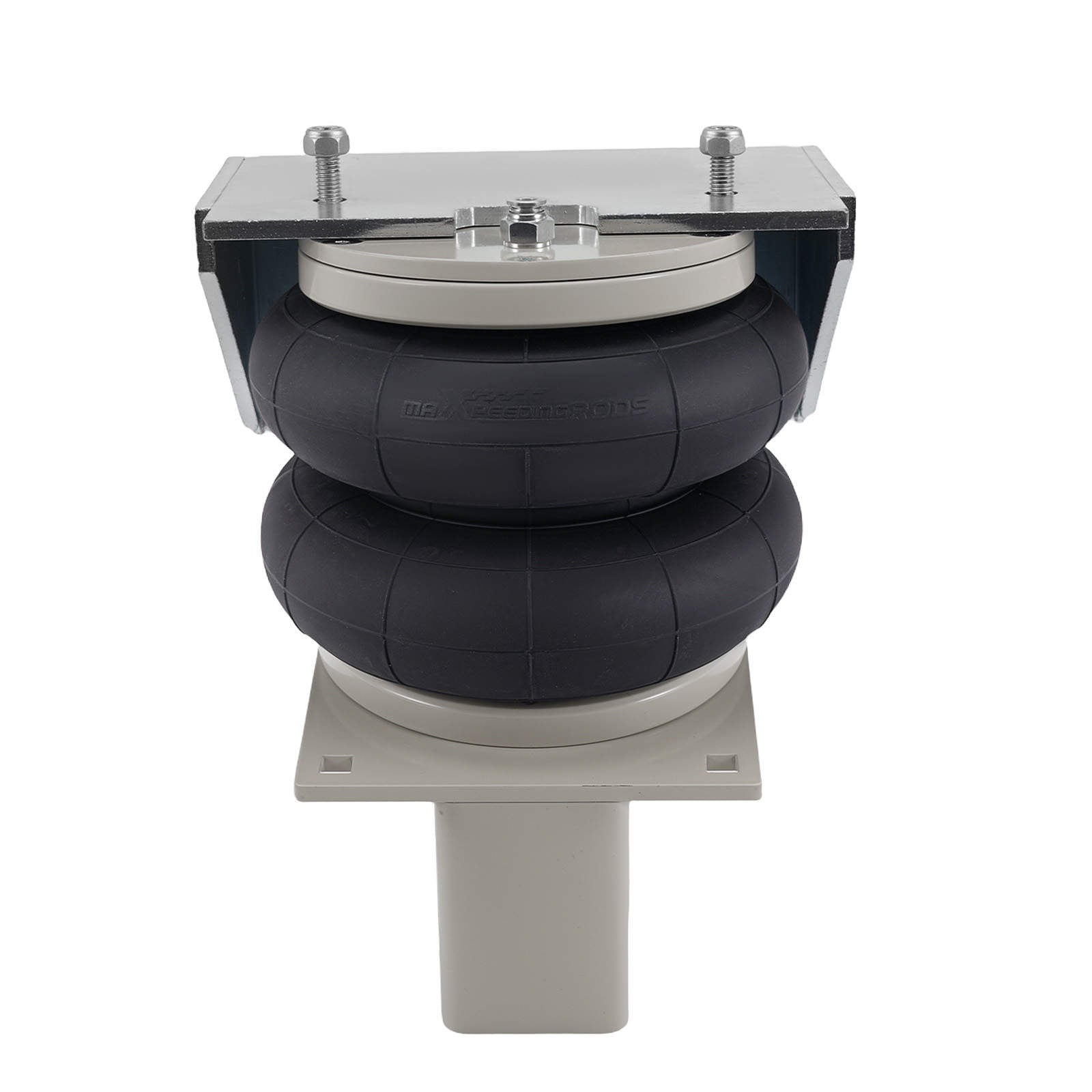

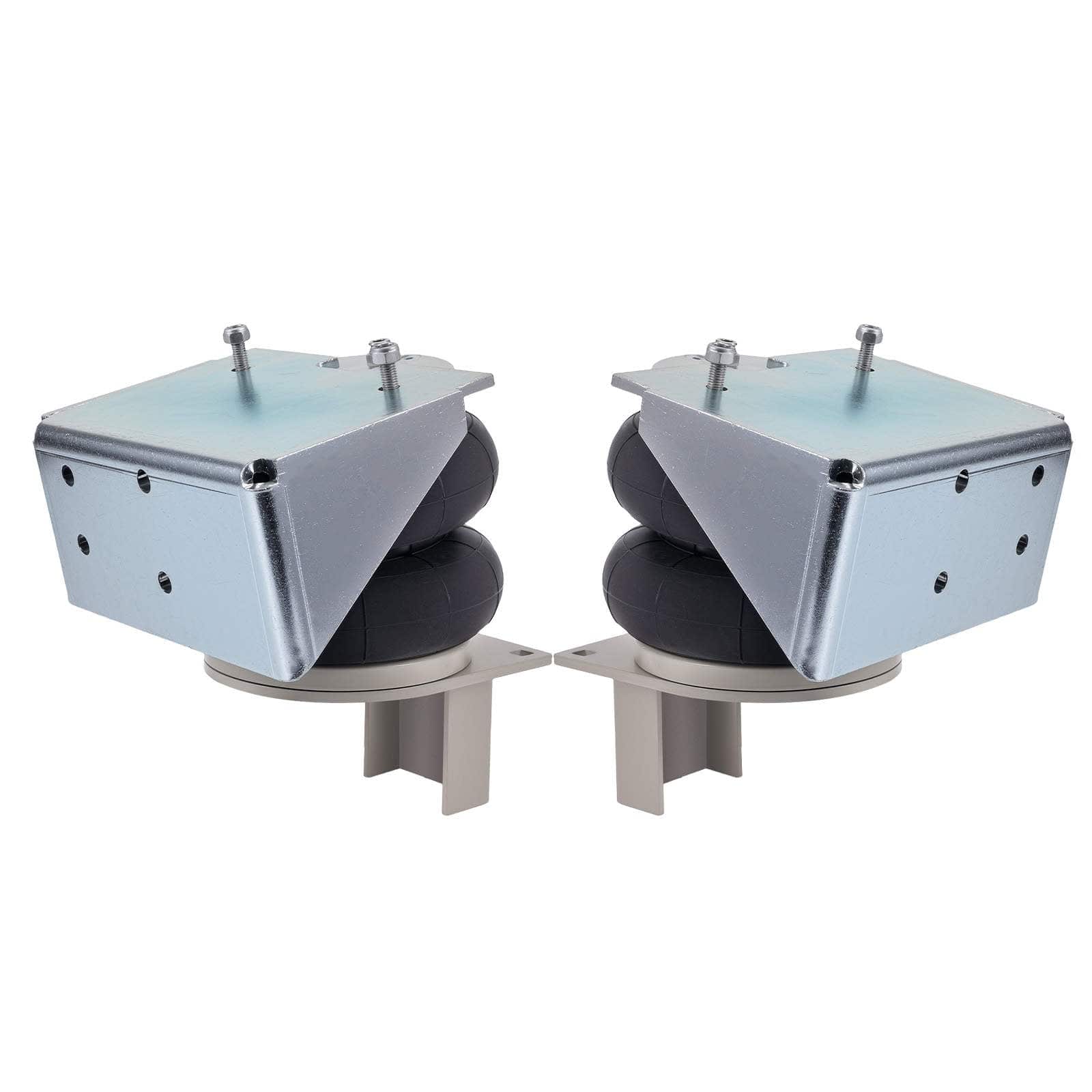

Air suspension kit with 2 air springs and a 12V compressor for the rear axle, suitable for light commercial vehicles.
Suitable for:
- Iveco Daily 35S 2006-2014 RWD, suitable for FWD
- Iveco Daily 35L 2006-2014 RWD, suitable for FWD
- Rear wheel arrangement: single rear wheel only
Specifications
- Condition: New
- Material: Galvanized high-grade steel S355, rubber
- Maximum load capacity: 8800 LBS / 4000 KG
- Recommended air pressure: minimum 10 PSI when unloaded and 75 PSI when loaded
- Drive: Rear-wheel drive and front-wheel drive
- Installation position: Rear left and right
- Package dimensions: 58 × 21 × 20 cm
Air spring:
- Stroke: 140 mm
- Max. extended: 230 mm
- Min. compressed: 90 mm
- Working pressure: ≤2.0 Mpa
- Temperature range: ≤+70°, ≥-40°
Compressor:
- Power: 150 W
- Output voltage: 12 V
- Maximum current: 10 A
- Maximum working pressure: 10 bar (1 MPa)

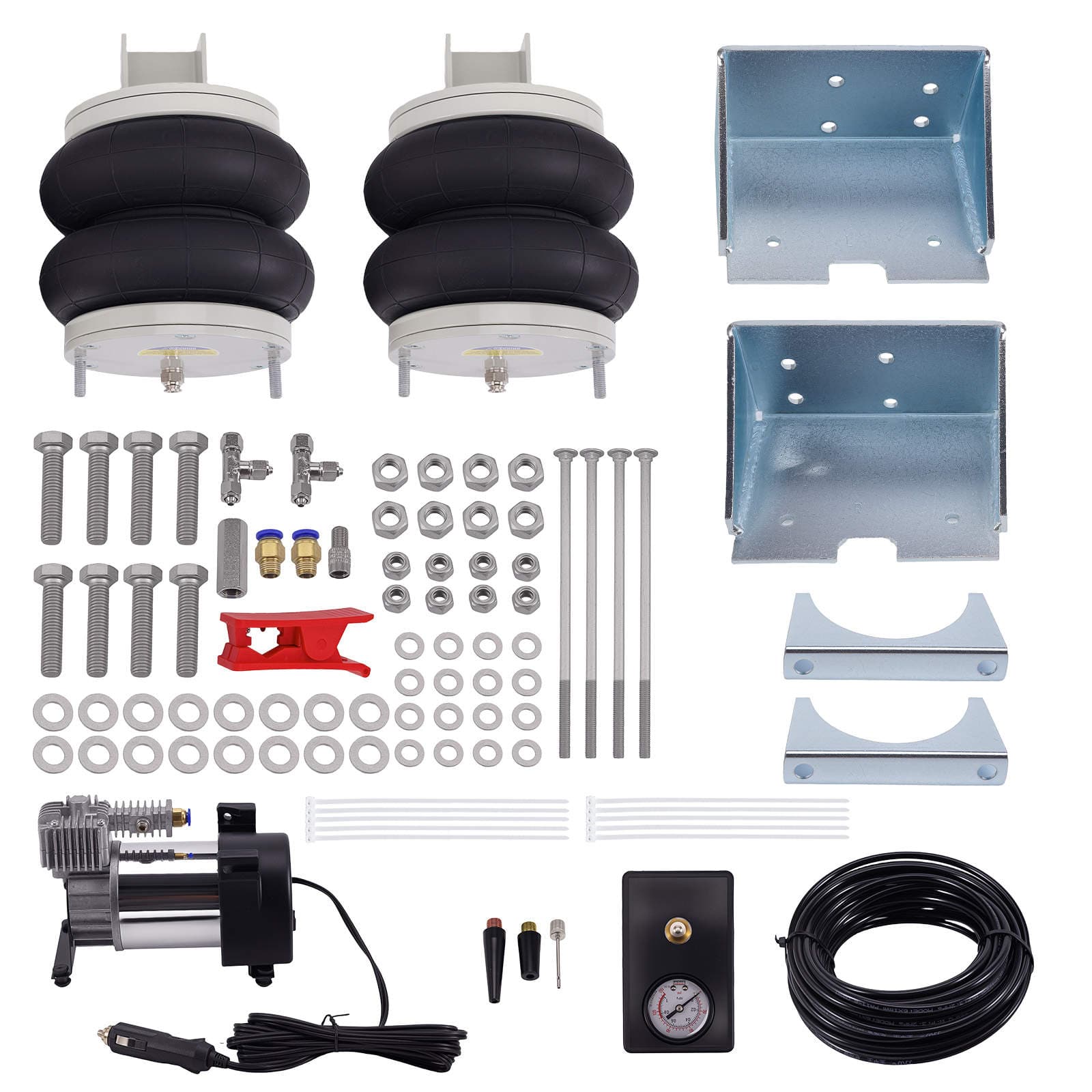

Scope of delivery
- 2x air springs
- 1x air compressor
- 1x barometer
- 4x mounting bracket
- 4x air fitting
- 1x air line 12 m
- 10x nylon cable tie
- Mounting bolts and seals
Features
- No drilling required; simple installation typically taking 1 to 2 hours
- Can be mounted on most light commercial vehicles, motorhomes, and vans
- High-quality steel with high load capacity and long service life
- Improves stability, reduces body roll, and enhances handling
- CE certification
Please note
Before purchasing, compare the OEM/comparison numbers and product photos to avoid incorrect purchases. Professional installation is recommended; a manual is available.
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and vehicle version before ordering, as differences may exist depending on the version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
