Product Description

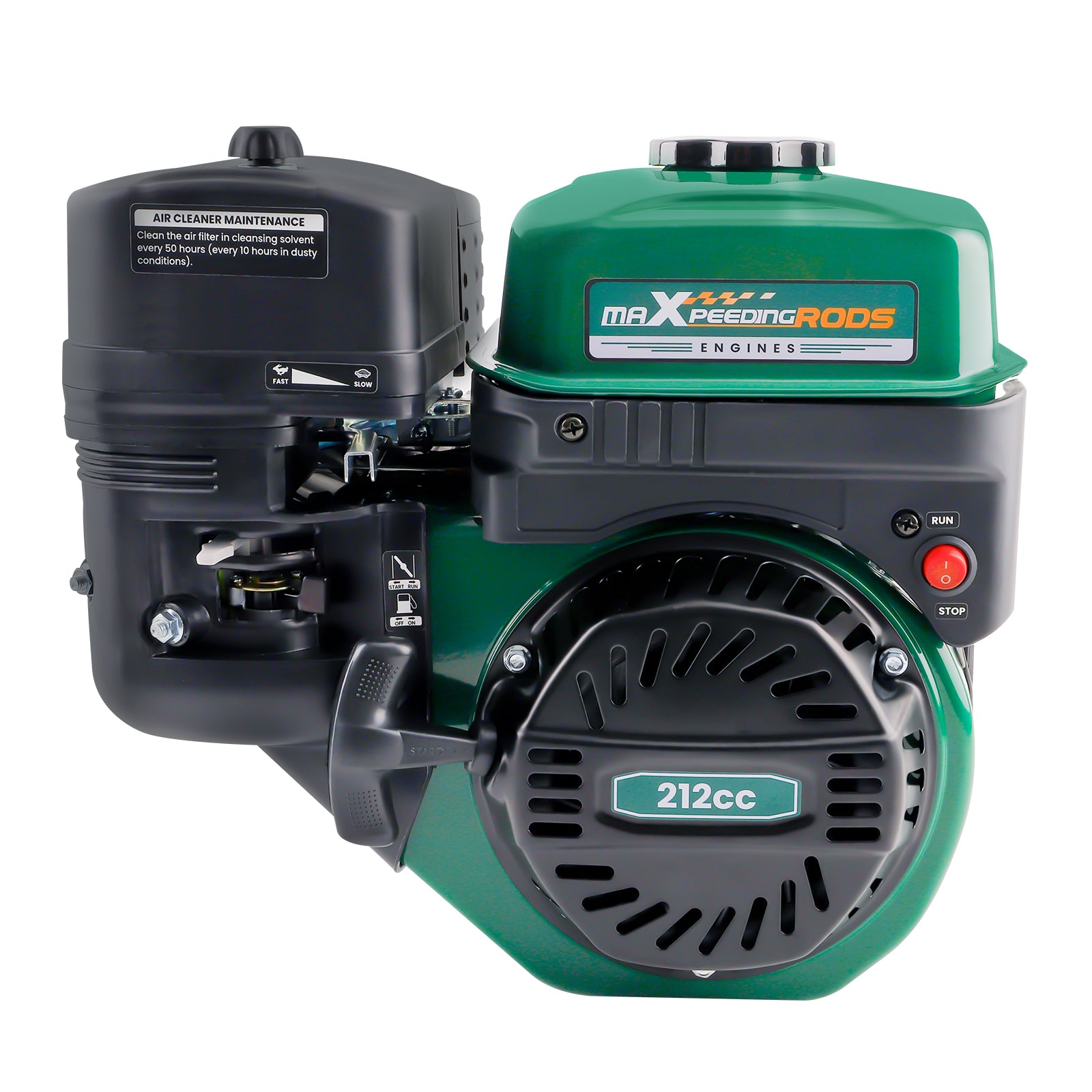

4-stroke gasoline engine (type MXR212R, 212 cc) with a horizontal shaft, suitable for various applications such as go-karts, compressors, lawnmowers, water pumps, and high-pressure cleaners.

Specifications

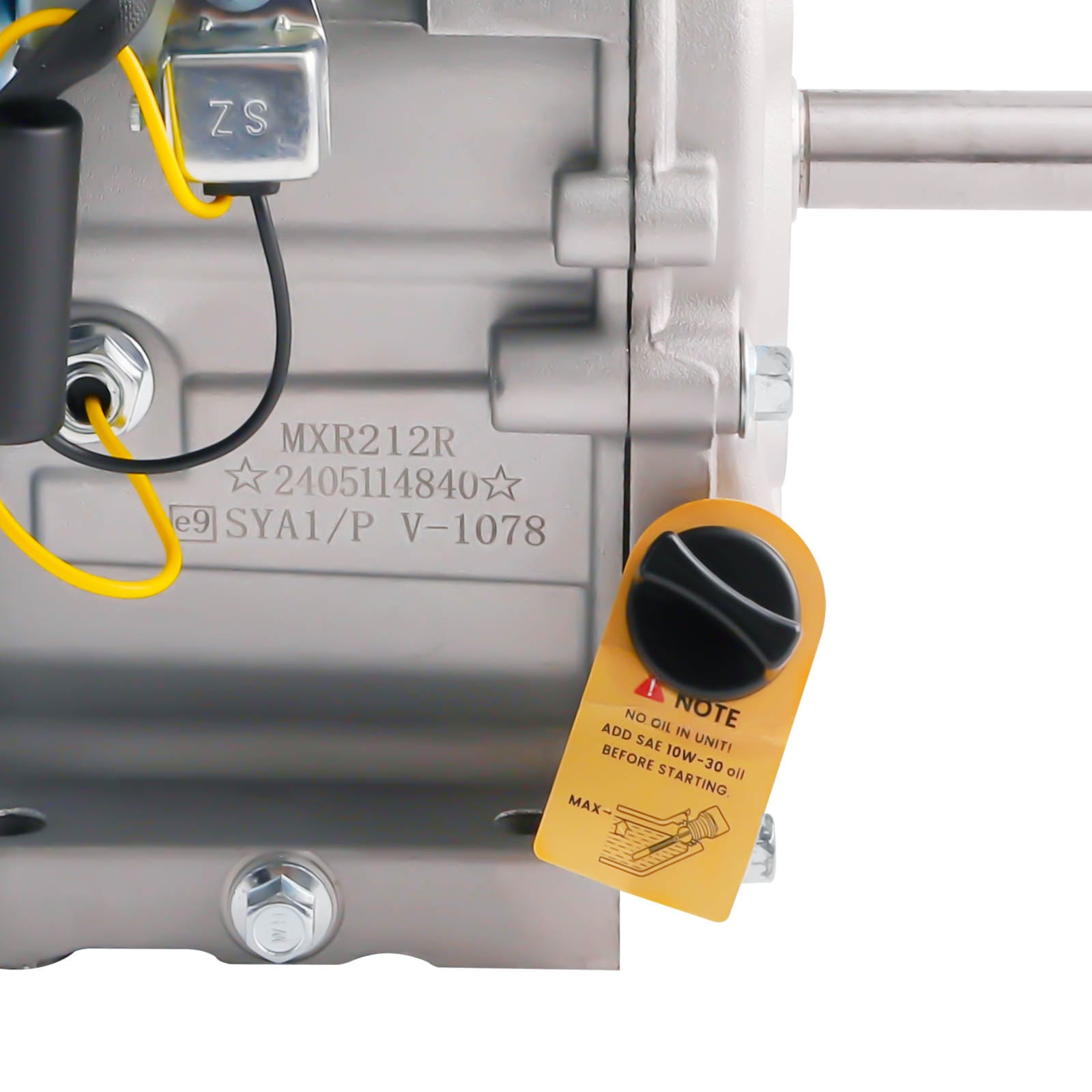

• Model: MXR212R
• Engine Type: single-cylinder, 4-stroke, forced air cooling, OHV
• Rated Power: 3.6 kW
• Bore x Stroke: 70 x 55 mm
• Displacement: 212 cc
• Compression Ratio: 8.5:1
• Starting System: recoil start
• Ignition: transistor ignition
• Power: 7 hp
• Fuel Type: gasoline
• Oil Type: SAE 10W-30
• Fuel Tank Capacity: 3.6 liters
• Engine Oil Capacity: 0.6 liters
• Dimensions: 390 x 325 x 385 mm
• Net Weight: 15 kg

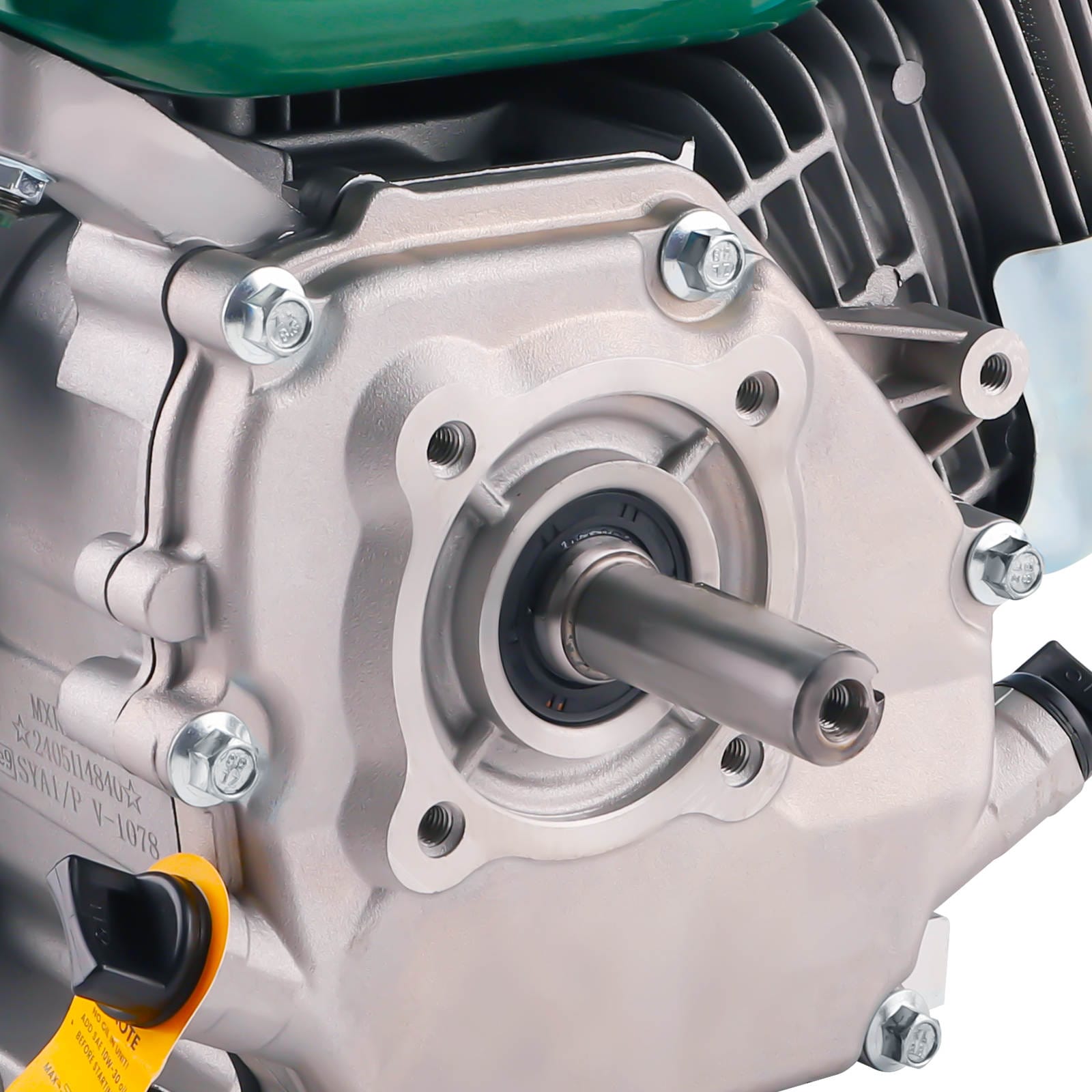

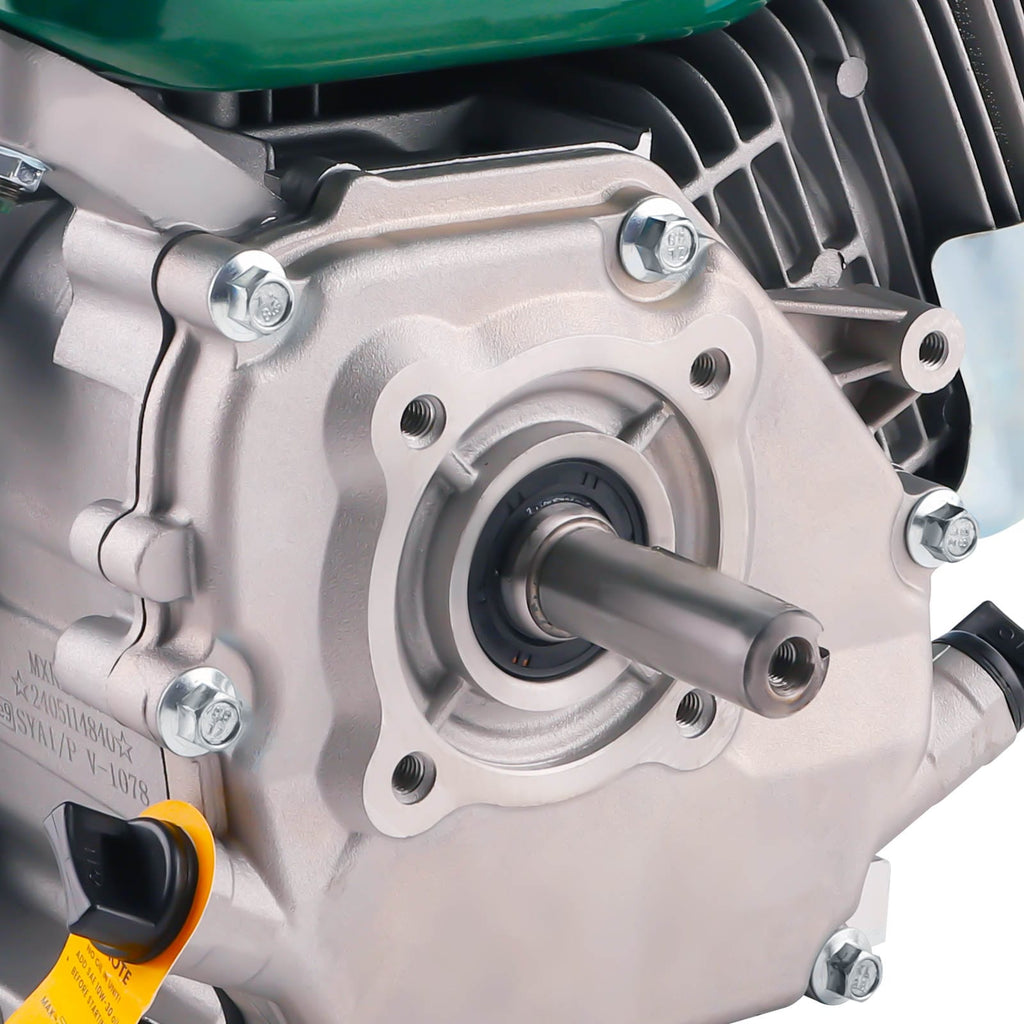

• Shaft Orientation: horizontal
• Shaft Diameter: 19.05 mm
• Shaft Keyway: 4.78 mm
• Shaft Length: 61.7 mm
• Shaft End: 5/16"-24 threaded bore
• Certification: CE, Euro V
• Warranty: 1 year

Scope of delivery

• 1x gasoline engine
• 1x spark plug wrench
• 1x oil funnel
• 1x user manual

Features

• Powerful 4-stroke OHV engine with high efficiency
• Crankshaft on ball bearings for stability and reduced vibration
• Low oil sensor shuts down the engine when oil level is too low

Please note

Do not pull the starter cord without fuel; this can cause permanent damage to the engine. No assembly instructions included; professional installation is strongly recommended. Do not disassemble or modify engine parts, otherwise the warranty will be void. Exhaust gases contain toxic carbon monoxide: follow the manufacturer's instructions when operating.

Check fit

Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
