Front Coilover Suspension Kit compatible for VW Golf Jetta MK2 MK3 1983-2000 Vento Corrado

Dit MaXpeedingRods onderdeel is geschikt voor Volkswagen-toepassingen waar vermeld. Controleer altijd onderdeelnummer, bouwjaar, motorcode en pasvorm voordat je bestelt.

Voordelen

• Gebaseerd op originele MaXpeedingRods productinformatie
• Geschikt voor directe vervanging of prestatie-upgrade

Toepassing, specificaties en compatibiliteit

Introductionma Xpeedingrods B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.Toepassing For 2WD Only

geschikt voor Volkswagen Golf MK21985-1992 (19E)

Geschikt voor Volkswagen Jetta II 1984-1992 (1G)

Geschikt voor Volkswagen Golf Mk3 1991-2000(1H)

Geschikt voor Volkswagen Vento/Jetta III 1993-1998 (1H)

For Volswagen Corrado 1988-1995 (53I)

Notice: No Top Mount Included, Modification Required If You Use OE Top Mount Specificaties Top mounts: Front OE top mounts required

Damping adjustable: Not available

Camber adjustable: Not available

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

Spring rate Front: 7 kg/mm (392 lbs/in)

Front spring inner diameter: 62 mm

Spring length Front: 200 mm

Help spring rate Front: 1 kg/mm (56 lbs/in)

Help spring length Front: 102 mm

Spring Preload advised: 7-10 mm

Color: Silver body with red spring Package included Package included：

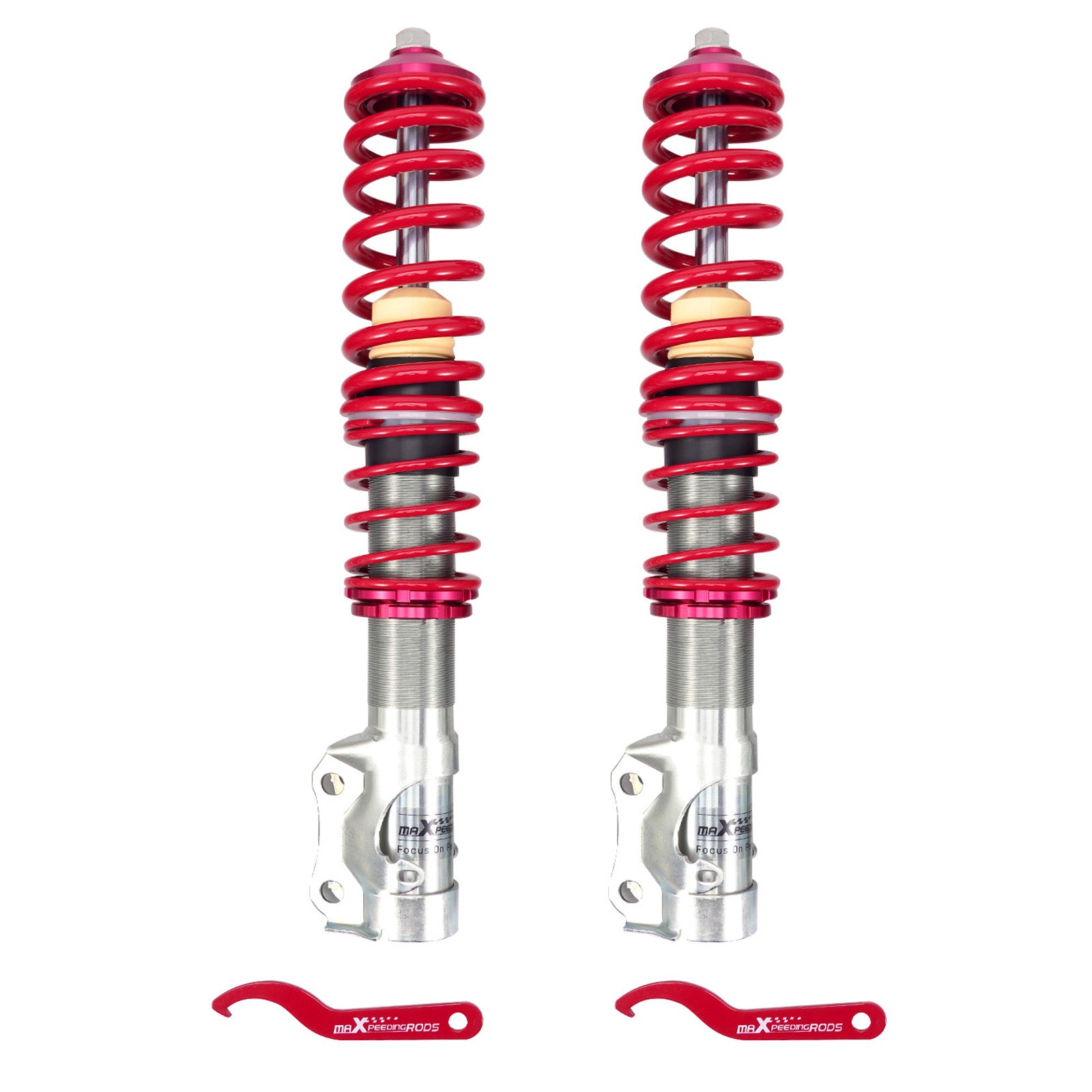

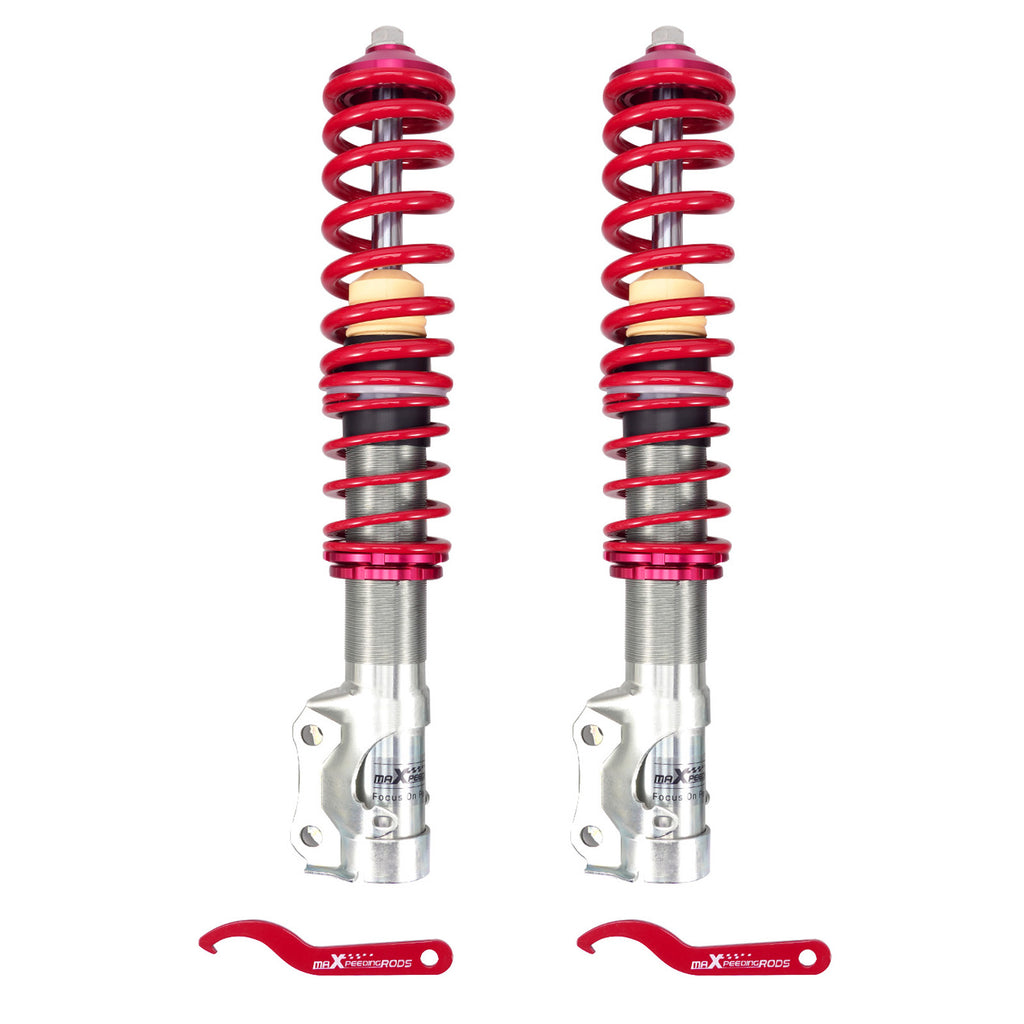

2x Front coil-overs

2x C spanners Dimension Package size : 70*27*20 cm

Weight: 11950 g Kenmerken1.0-25mm(depends on vehicle models) lower height adjustable

2. Dust boot, solid rubber bump stops

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets

4. Simple install,Easy to adjust.

5. Use the vehicle's original upper mounts (not included in our product kit).Let op1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
