Application

Compatible for Volkswagen T5 Transporter 2.5 TDI BNZ Engine 96KW 2003-2009

 OE/Part number

760698-2, 760698-3, 760698-4, 760698-5,
760698-0002, 760698-0003, 760698-0004, 760698-0005,
760698-5002S, 760698-5003S, 760698-5004S, 760698-5005S,
760698-9003S, 760698-9004S, 760698-9005S,
070145701R, 070145701RV, 070145701RX,
070145701RV204, 070145701RV210, 070145701RV220

Specification

Turbo Model: GTB1749V
Engine Code: BNZ
Cooling Type: Oil Cooling
Fuel Type: Diesel

Bearing Type: Journal Bearing/Floating Bearing
Thrust Bearing: 270 Degrees
Actuator Type: Vacuum Actuator
Universal Fitment: No
Finish: Matte
Turbo Type: Variable Geometry
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size: 29*27*23 cm
Package Weight: 8.8 kg

Features

* Product Material

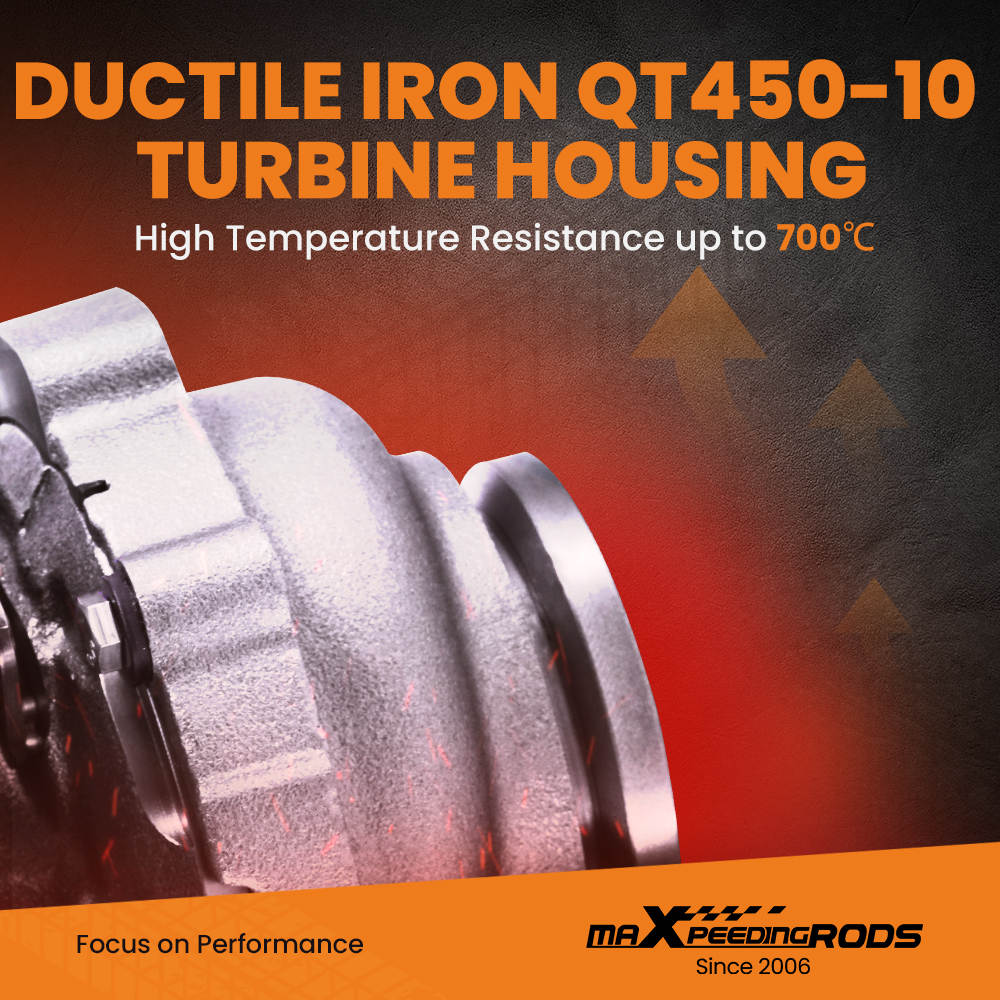

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃

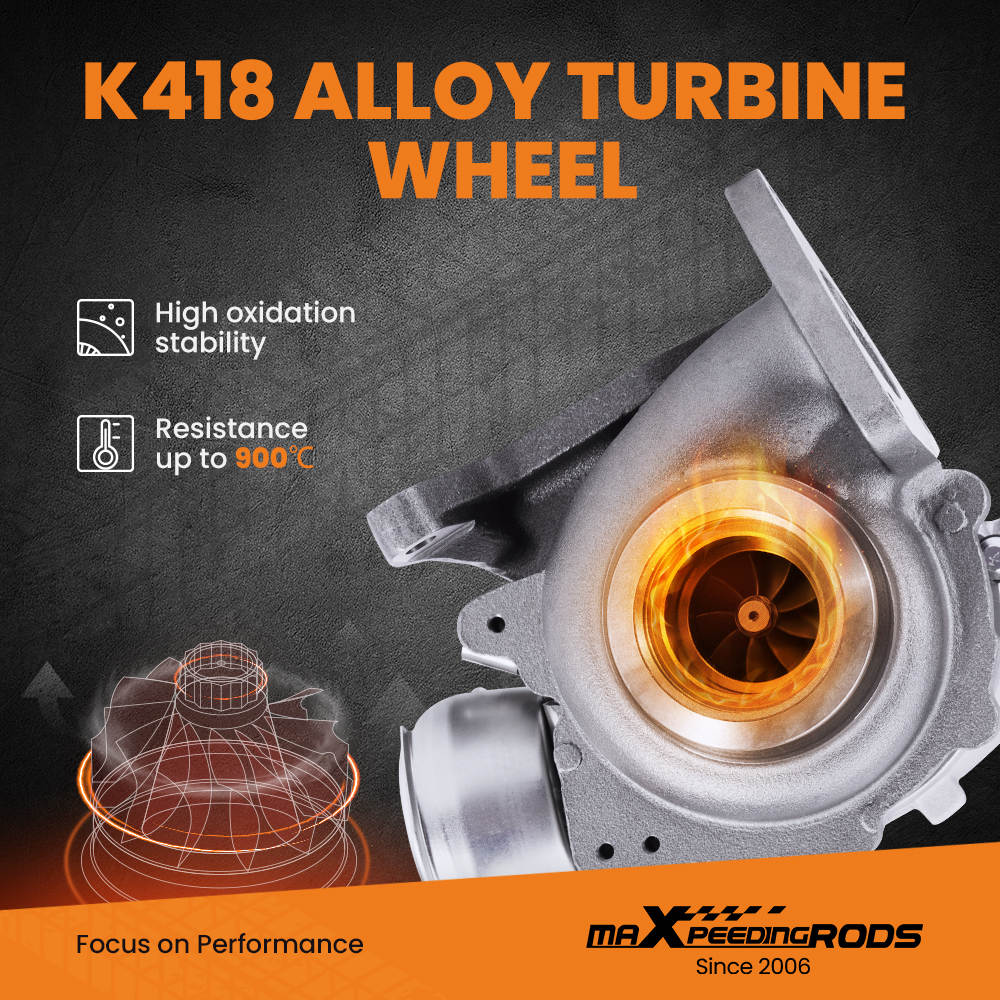

2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100 Percent balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

 Package included

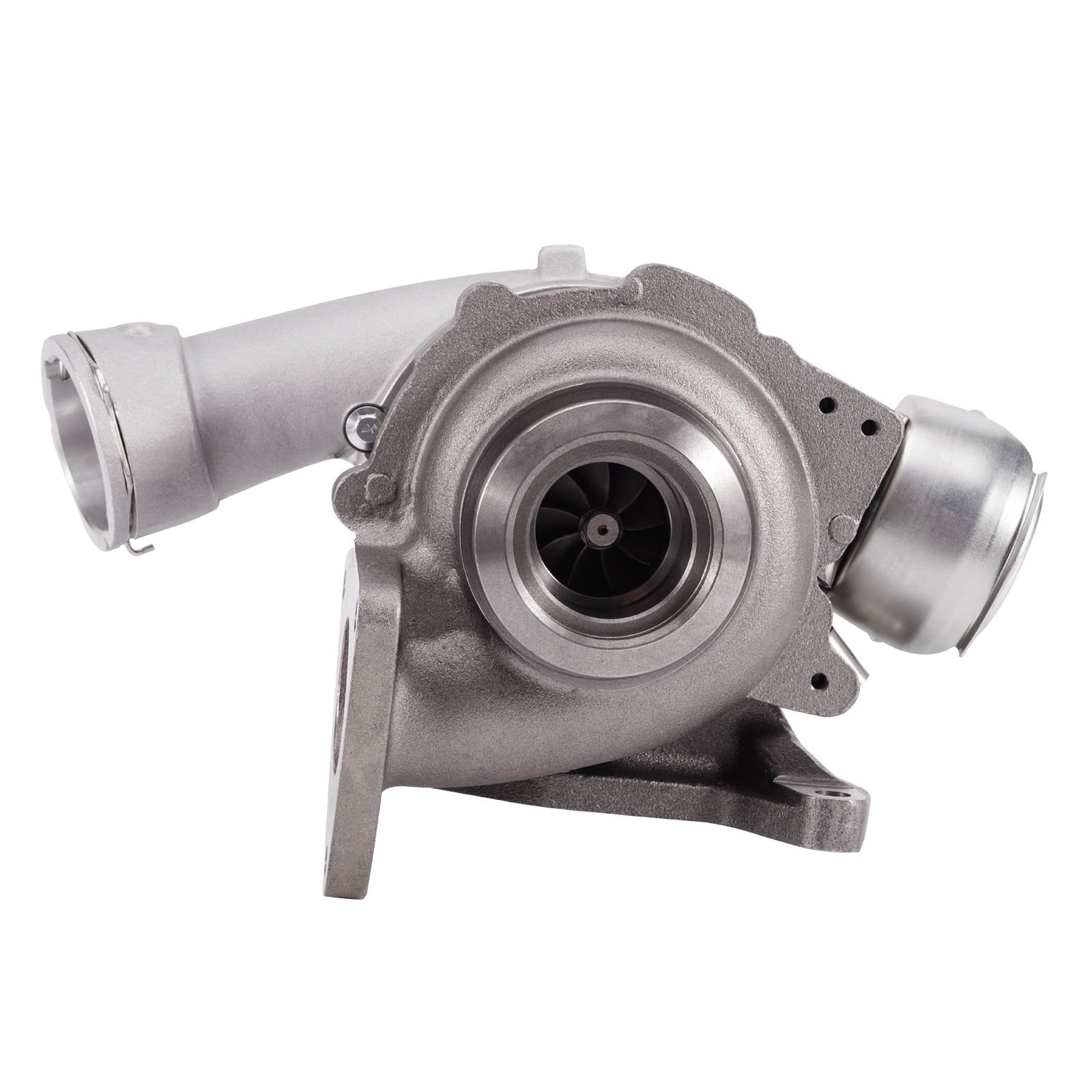

1x Turbocharger

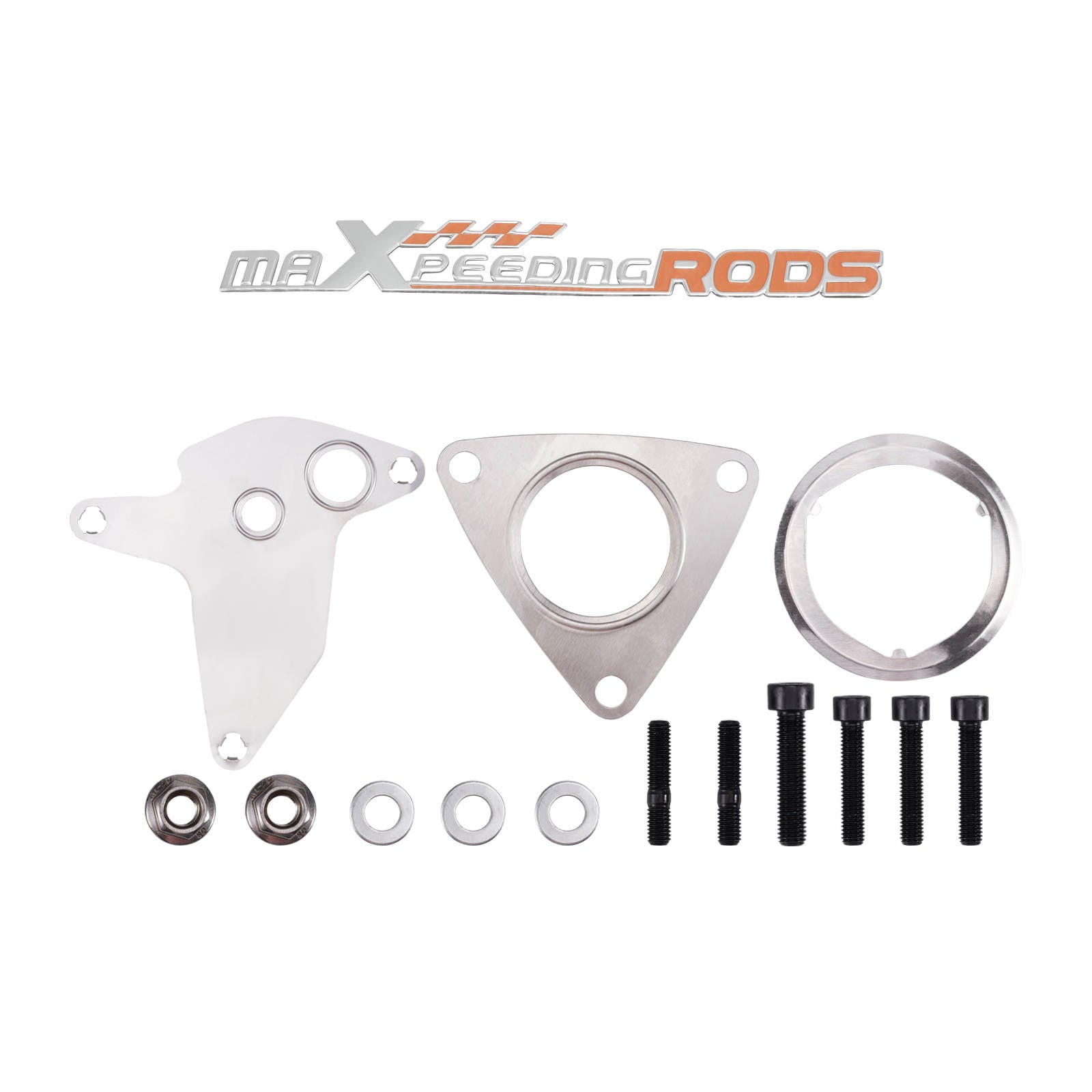

3x Gaskets
3x Bolts & nuts
1x Bolt
2x Stud bolts & nuts
1xManual
1xBrochure
1xSticker

Notice

* Please confirm your original fitment before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
