Specification

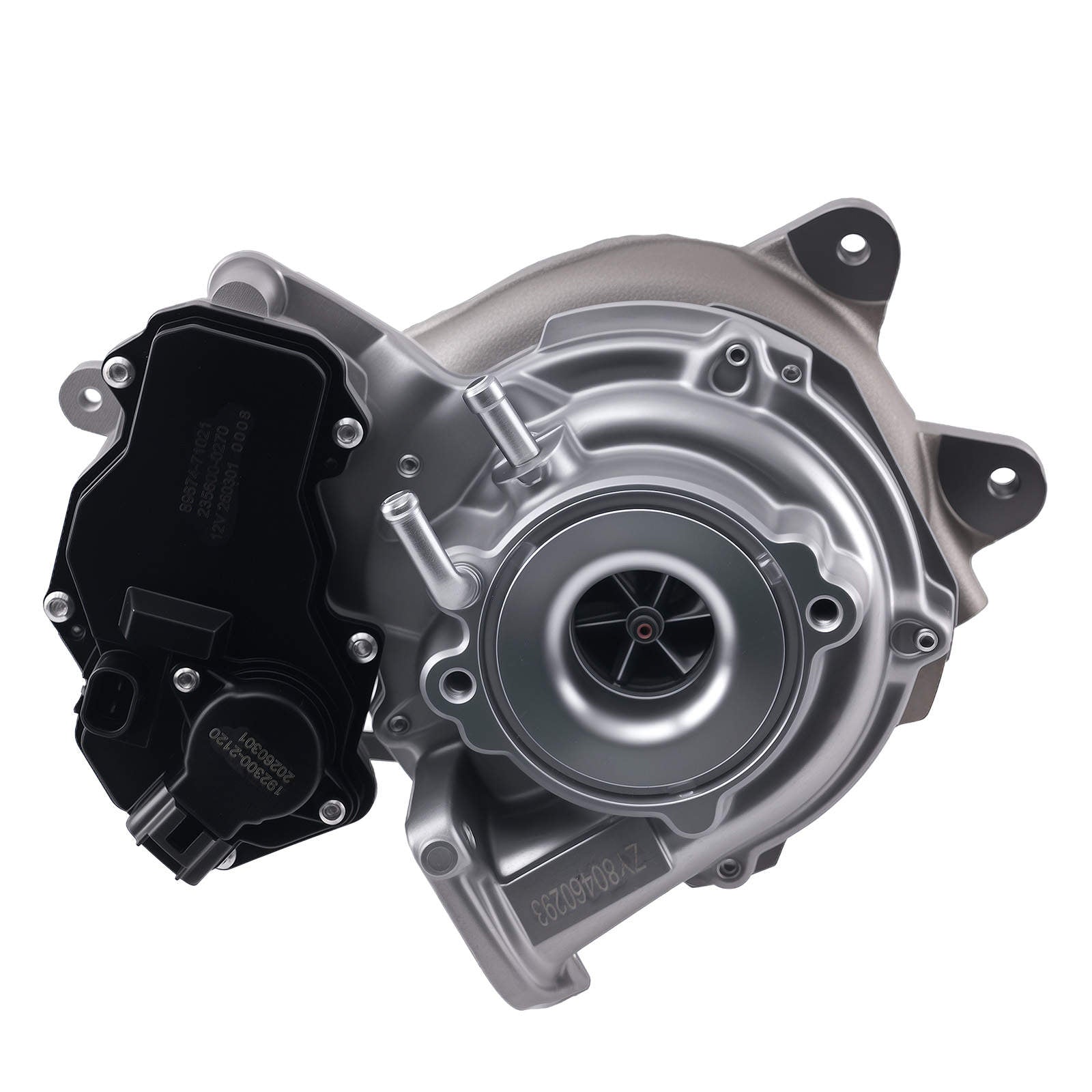

Turbo Model: CT16V
Engine Code: 2GD-FTV
Bearing Type: Journal Bearing/Floating Bearing
Finish: Matte
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly

Feature

* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM size can be directly replaced
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* Please confirm your original turbo PART NUMBER before Purchasing.
* Professional installation is highly recommended,
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.

Application

Compatible for Toyota Hilux VIII Pick-up N1 2.4 D 2GD-FTV 110 KW 2015-2025
compatible for Toyota Hilux VIII Pick-up N1 2.4 D 4WD 2GD-FTV 110 KW 2015-2025
compatible for Toyota Hilux VIII Pick-up N1 2.4 D 4WD 2GD-FTV 125 KW 2018-2025
compatible for Toyota Hilux VIII 1GD-FTV 2.8 L Engine 150KW 2020-2025
compatible for Toyota Land Cruiser Prado J15 2.8 D-4D 147 KW 2018-2025
compatible for Toyota Land Cruiser Prado J15 2.8 D-4D 130 KW 2015-2025
compatible for Toyota Land Cruiser Prado J15 2.8 D-4D 150 KW 2020-2025
compatible for Toyota Revo Rouge 2.8 with 2GD-FTV engine

OE/Part number

17201-11110, 1720111110,
89674-71020, 8967471020,
235600-0200, 2356000200,
