Application

Compatible for VW TDI 1.9L PD90 PD100 PD115 Type 4340 EN24
Fitment Details:
Compatible for VW Golf MK III 1993-1999 Hatchback 1.9 TDI, 1.9 TDI Syncro
compatible for VW Golf MK III 1994-1999 Estate 1.9 TDI, 1.9 TDI Syncro
compatible for VW Golf MK V 2003-2009 Hatchback 1.9 TDI, 1.9 TDI 4motion
compatible for VW Golf Cabriolet MK III 1995-2002 Convertible 1.9 TDI
compatible for VW Jetta MK III 2005-2010 Saloon 1.9 TDI

Specification

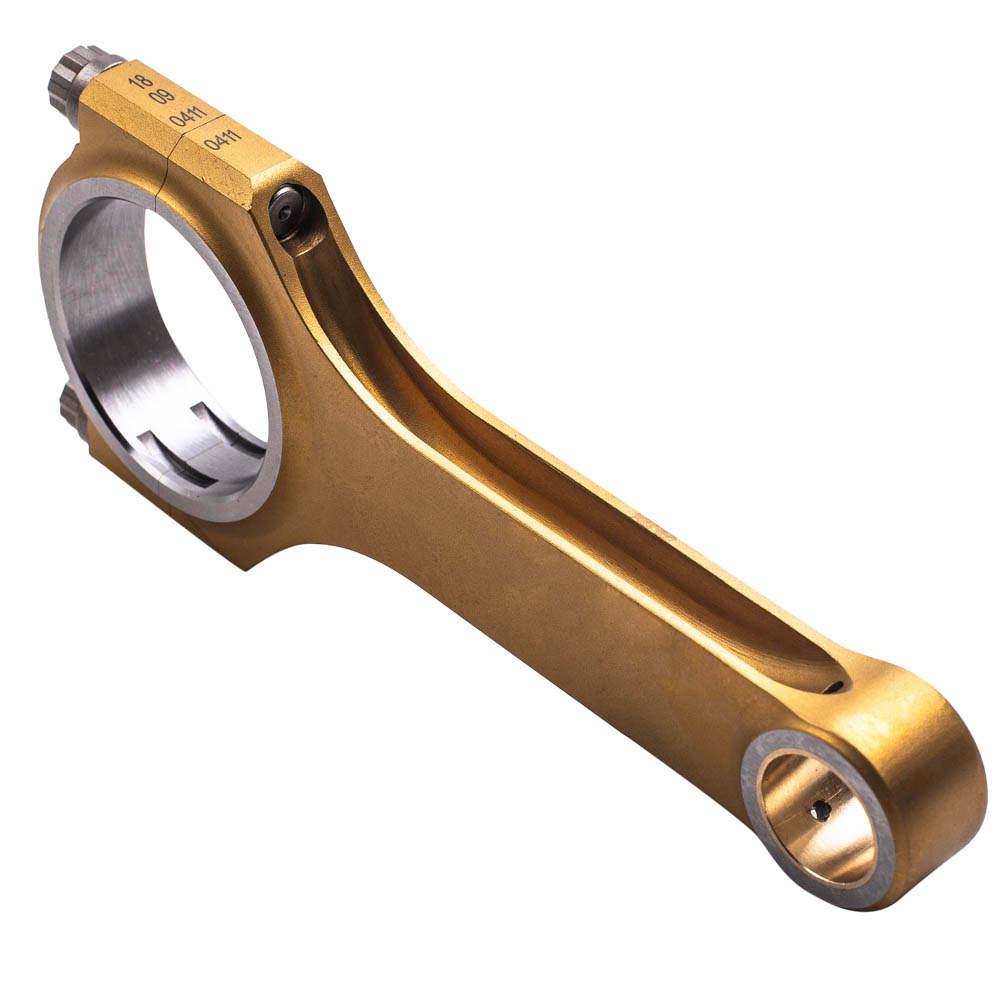

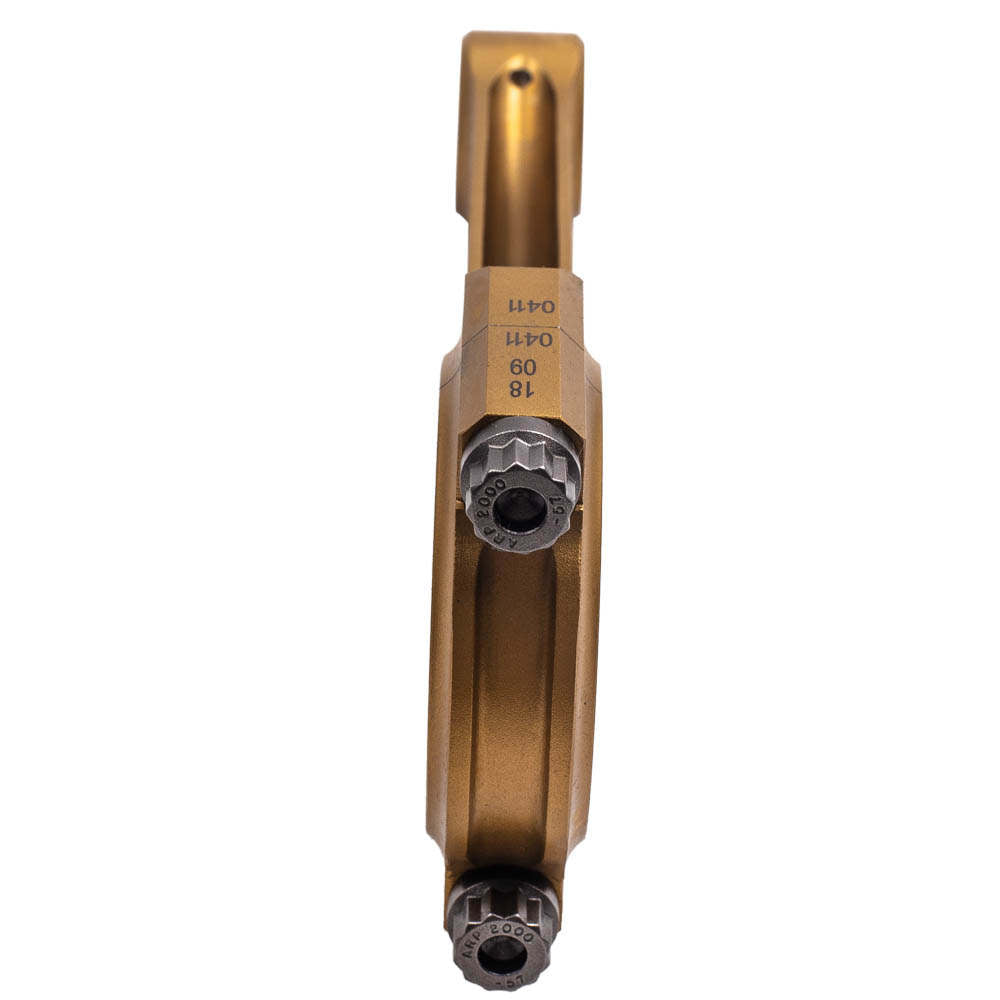

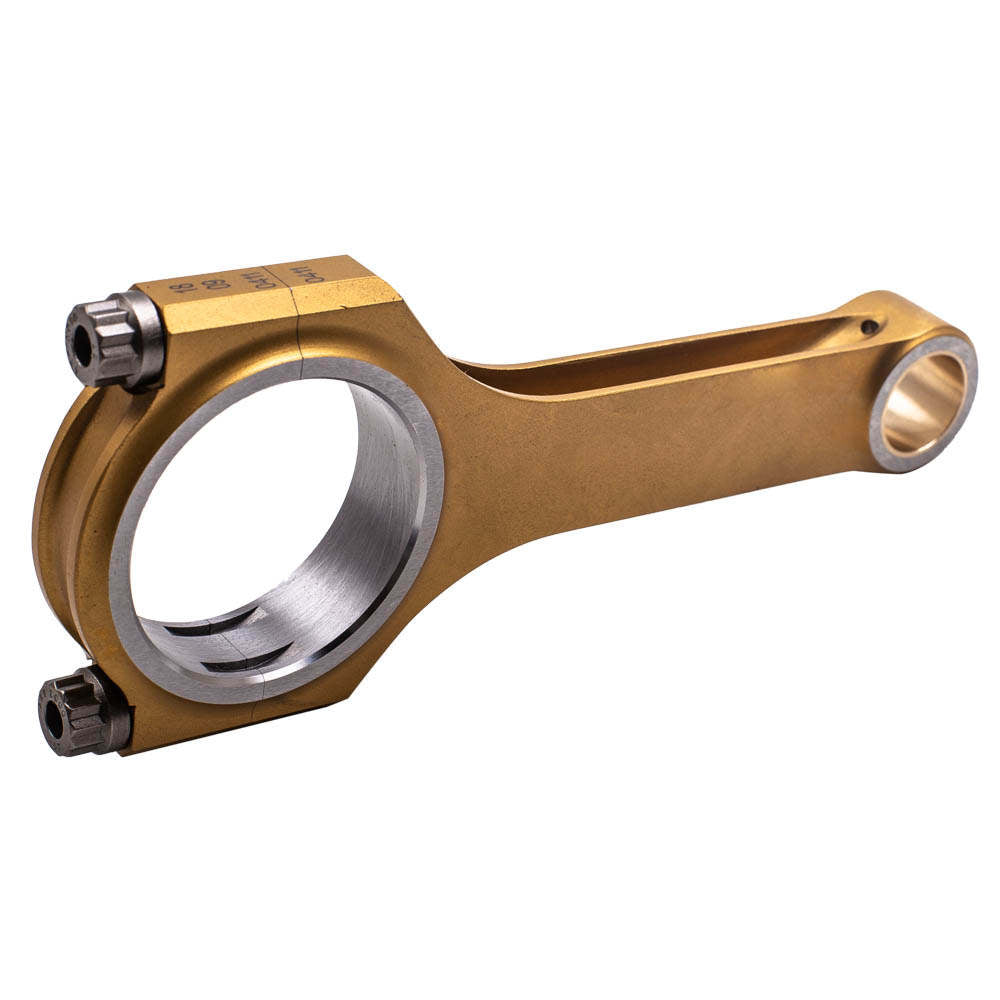

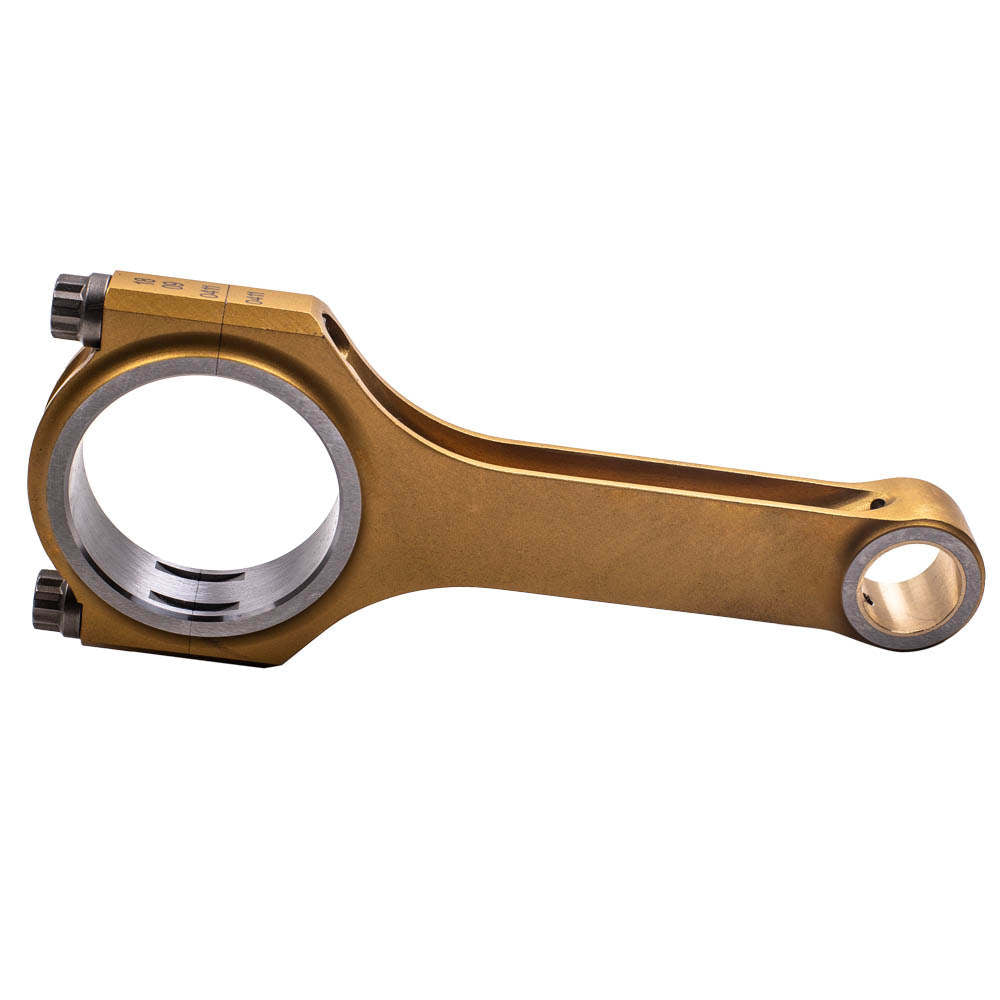

Performance Con Rods
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Torque: 48ft ≈ 65 NM
Material: Titanizing 4340 EN24 aircraft chrome moly quality steel for racing

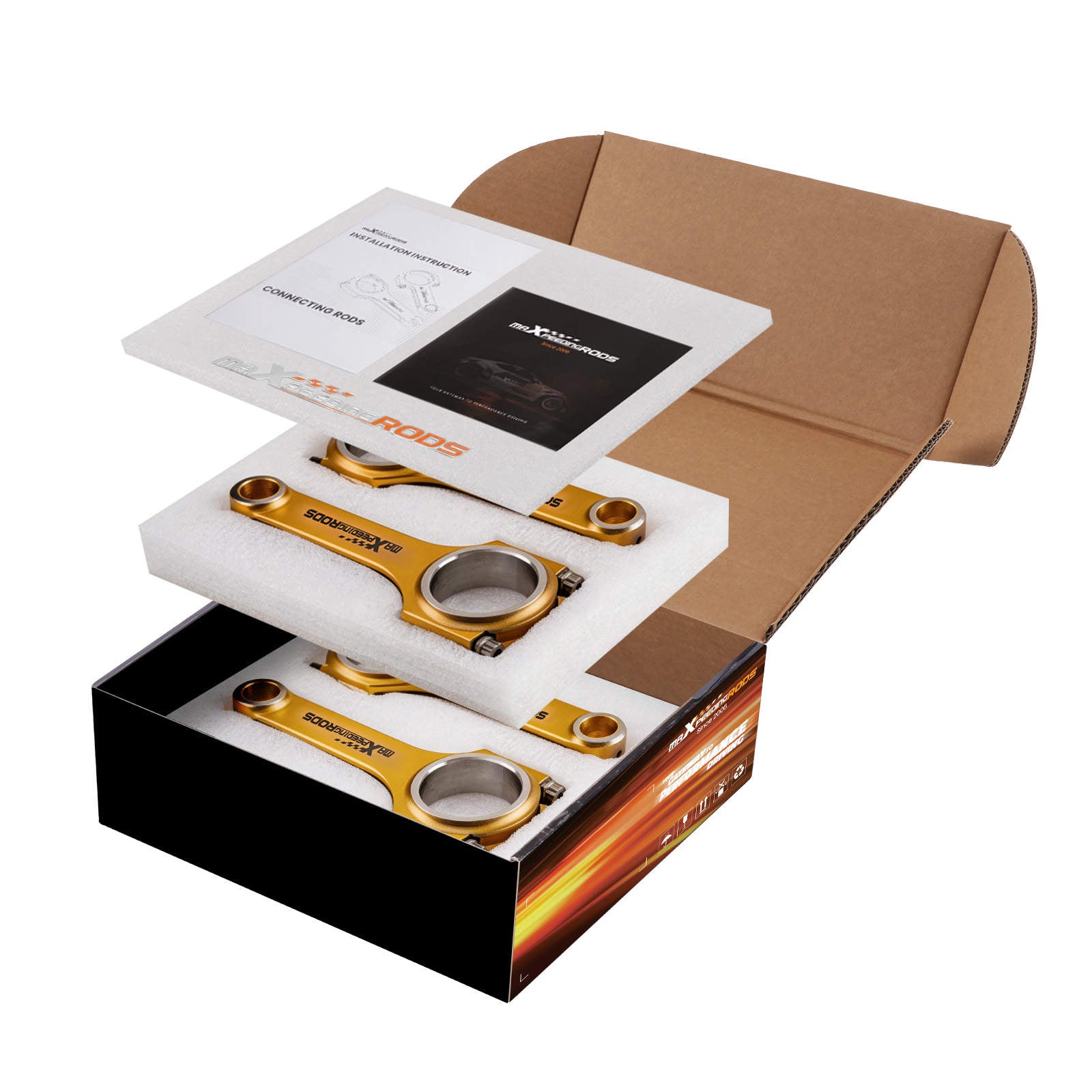

Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
Weight Tolerance: Balanced to +/- 1 gram in set
Color: Golden Color
Warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 144mm
Big end diameter: 50.6mm
Small end diameter: 26mm taper small end
Big end width: 24.9mm
Small end width: 24.9mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Notice

* Please Carefully check the Size of the Rods in Specific and Description
* Please check our store for other auto parts you may be interested in.
* Please feel free to contact us for whatever we can help.
