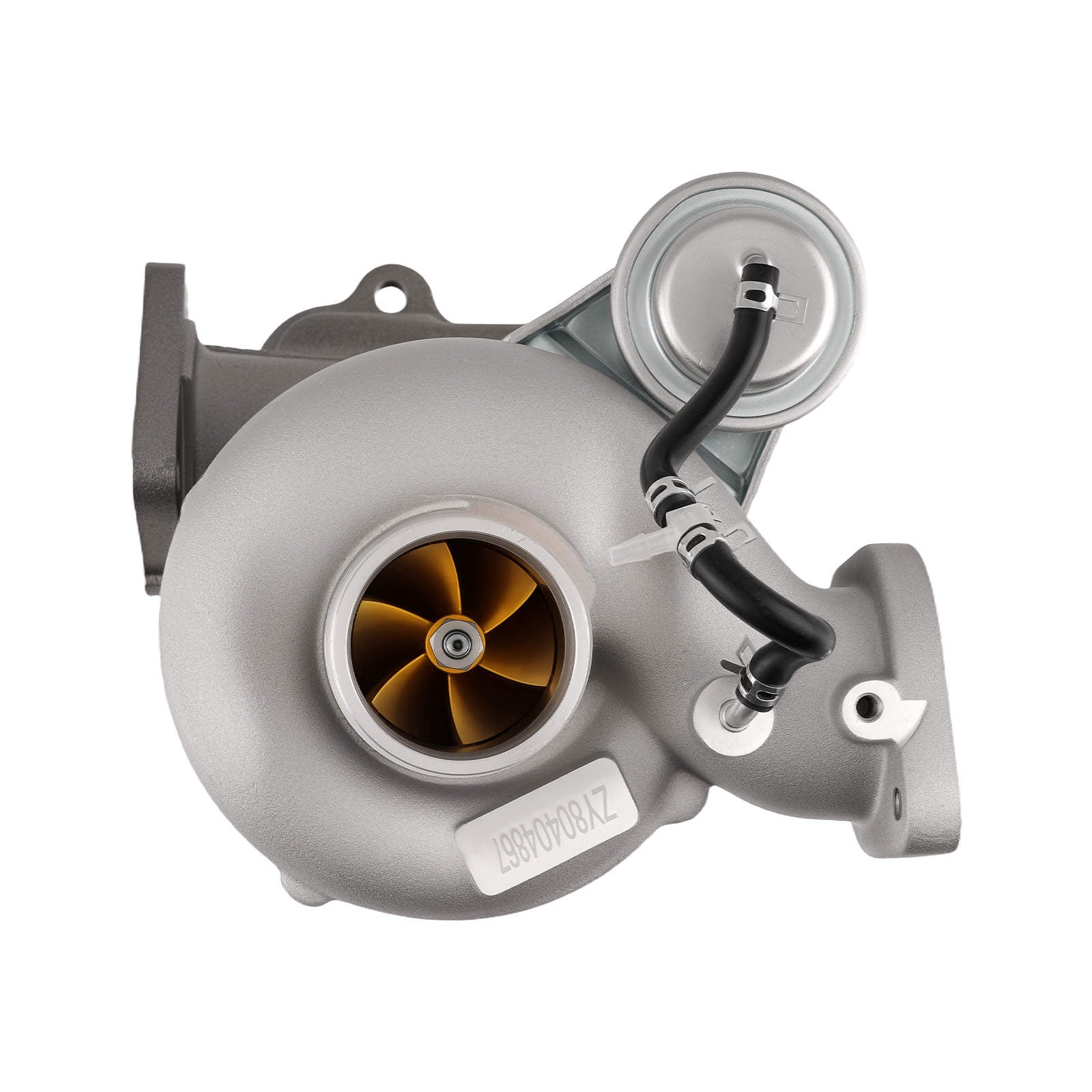

RHF55 VF52 Billet Turbo Turbocharger compatible for Subaru Impreza WRX 2.5L 2009-2014
RHF55 VF52 Billet Turbo Turbocharger compatible for Subaru Impreza WRX 2.5L 2009-2014
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Notice: This product must be installed by a licensed mechanic and used in compliance with local modification regulations. Due to state emissions regulations, this product cannot be sold or shipped to customers in California (CA) or New York (NY).
Application
Compatible For Subaru Impreza WRX 2.5L Gas 2009-2014(not fit the STI.)
Compatible For Subaru Forester 2.5XT 2007-2011
OE/Part number
14411AA800,14411-AA800,1-4411-AA800,
40-30186 R,VF52, VF55,
*Notice:DO NOT for 14411AA700, VF48
Specification
Compressor Wheel Diameter: 46/59mm
Turbine Wheel Diameter: 47/51 mm
Exjaust Inlet Flange: 3 Bolts
Exhaust Outlet Flange: 5 Bolt
Nozzle Area: 7cm
Turbo Model: RHF5H, RHF5H 09 098E
EngineCode: 6MT, EJ25 2.5 GT
Cooling Type:Water Cooling
Thrust Bearing: 360 Degrees
Horsepower: 320HP
Bearing Type: Floating Bearing
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Weight：6740g
Package Size：30*28*24cm

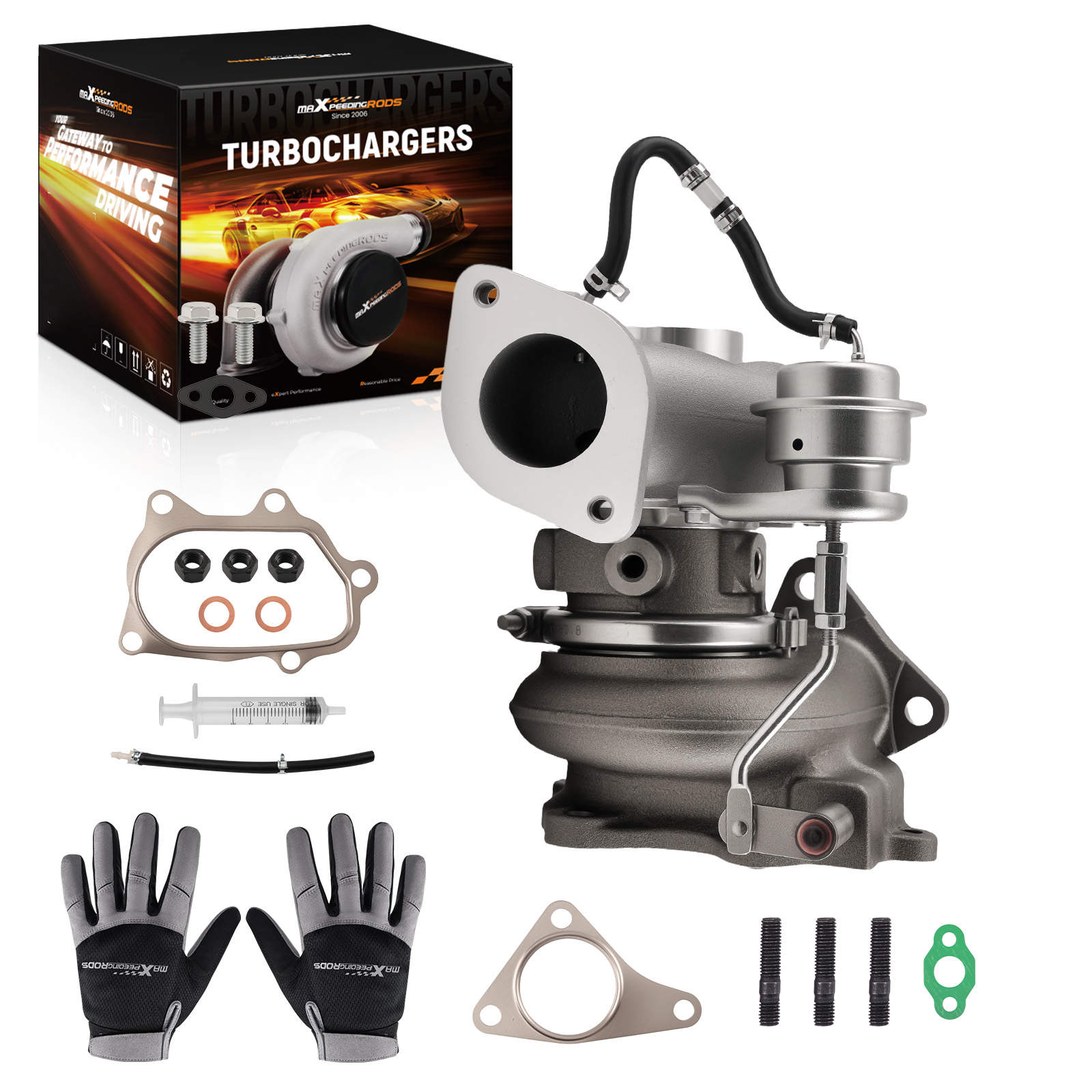

Package included
1x Turbocharger
2x Flange gaskets
2x Oil/Water port gaskets
1x Connecting pipe
1x Manual
1x Brochure
1x Sticker
Feature
*Product Material
1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
*Product Performance
1. OEM fitment turbo with upgraded material and performance
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
