Application

Compatible for Chevrolet Corsa Stufenheck -- 1.7L Hinten 2000/08-2002/07
compatible for Opel Astra G Cabriolet T98 1.6L-1.8L Hinten 2001/03-2005/10
compatible for Opel Astra G Caravan T98 1.2L-2.0L Hinten 1998/02-2004/07
compatible for Opel Astra G CC T98 1.2L-2.0L Hinten 1998/02-2009/12
compatible for Opel Astra G Coupe T98 1.6L-1.8L Hinten 2000/03-2005/05
compatible for Opel Astra G Kasten/Kombi F70 1.6L-2.0L Hinten 1998/09-2005/04
compatible for Opel Astra G Klasseic T98 1.4L-1.7L Hinten 2004/05-2009/07
compatible for Opel Astra G Klasseic Caravan F35 1.4L-1.7L Hinten 2004/05-2009/07
compatible for Opel Astra G Klasseic Stufenheck T98 1.4L-1.6L Hinten 2004/03-2009/07
compatible for Opel Astra G Stufenheck T98 1.2L-2.0L Hinten 1998/03-2009/12
compatible for Opel Astra H A04 1.2L-1.9L Hinten 2004/01-2014/05
compatible for Opel Astra H Caravan A04 1.2L-1.9L Hinten 2004/08-2014/05
compatible for Opel Astra H GTC A04 1.2L-1.9L Hinten 2005/03-2010/10
compatible for Opel Astra H Kasten/Kombi L70 1.2L-1.7L Hinten 2004/02-2014/10
compatible for Opel Astra H Stufenheck A04 1.2L-1.8L Hinten 2007/02-2014/05
compatible for Opel Astra H Twintop A04 1.6L-1.8L Hinten 2005/09-2010/10
compatible for Opel Astra Klasseic A04 1.2L-1.7L Hinten 2009/01-2015/12
compatible for Opel Astra Klasseic Caravan A04 1.4L-1.7L Hinten 2006/12-2015/12
compatible for Opel Astra Klasseic Stufenheck A04 1.6L-1.8L Hinten 2007/02-2015/12
compatible for Opel Meriva X03 1.4L-1.6L Hinten 2003/05-2010/05

OE/Part number

Brake Disc:
569108, 569111, 9117771, 9196587
Brake Pads:
1605086, 1605122, 1605128, 1605625, 1605967, 1605995, 93169143, 93170602, 93176118, 93179164, 93188727, 95507655

Specification

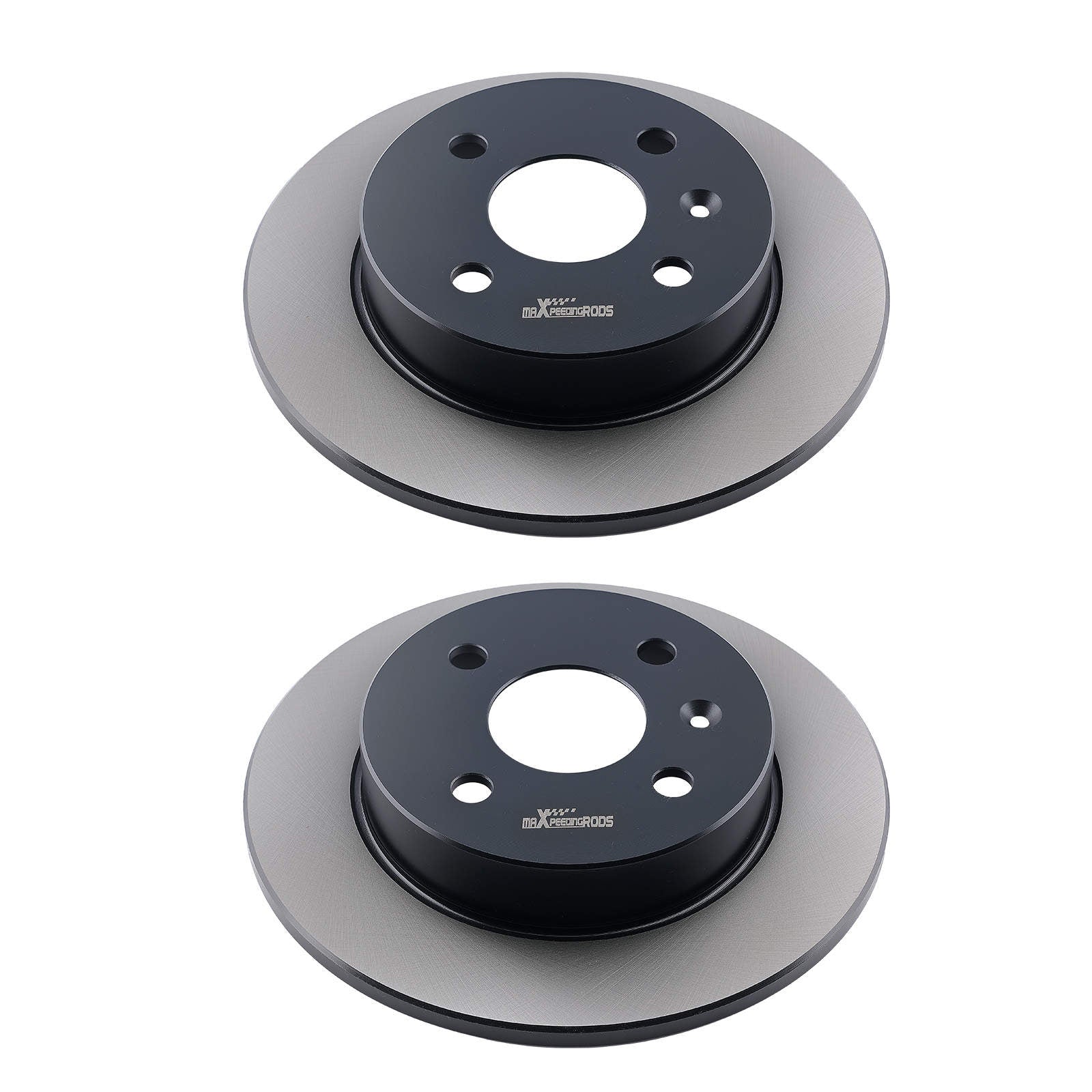

Item Type: Brake Discs
Conditiion: New
Installation position: Rear Dirver & Passenger Side
Material: Iron Alloy
Solid Or Vented Type Rotor: Solid
Rust Resistant Coating: Black Painting
Directional or Non-Directional Brake Surface: Non-Directional
ABS Tone Ring Included: No
Bearings Included: No
Mounting Bolt Hole Quantity: 4
Mounting Bolt Hole Circle Diameter(mm): 100
Outside Diameter(mm): 240
Overall Height(mm): 42
Nominal Thickness(mm): 10
Packaging Type: Box
Fitment: Direct Replacement

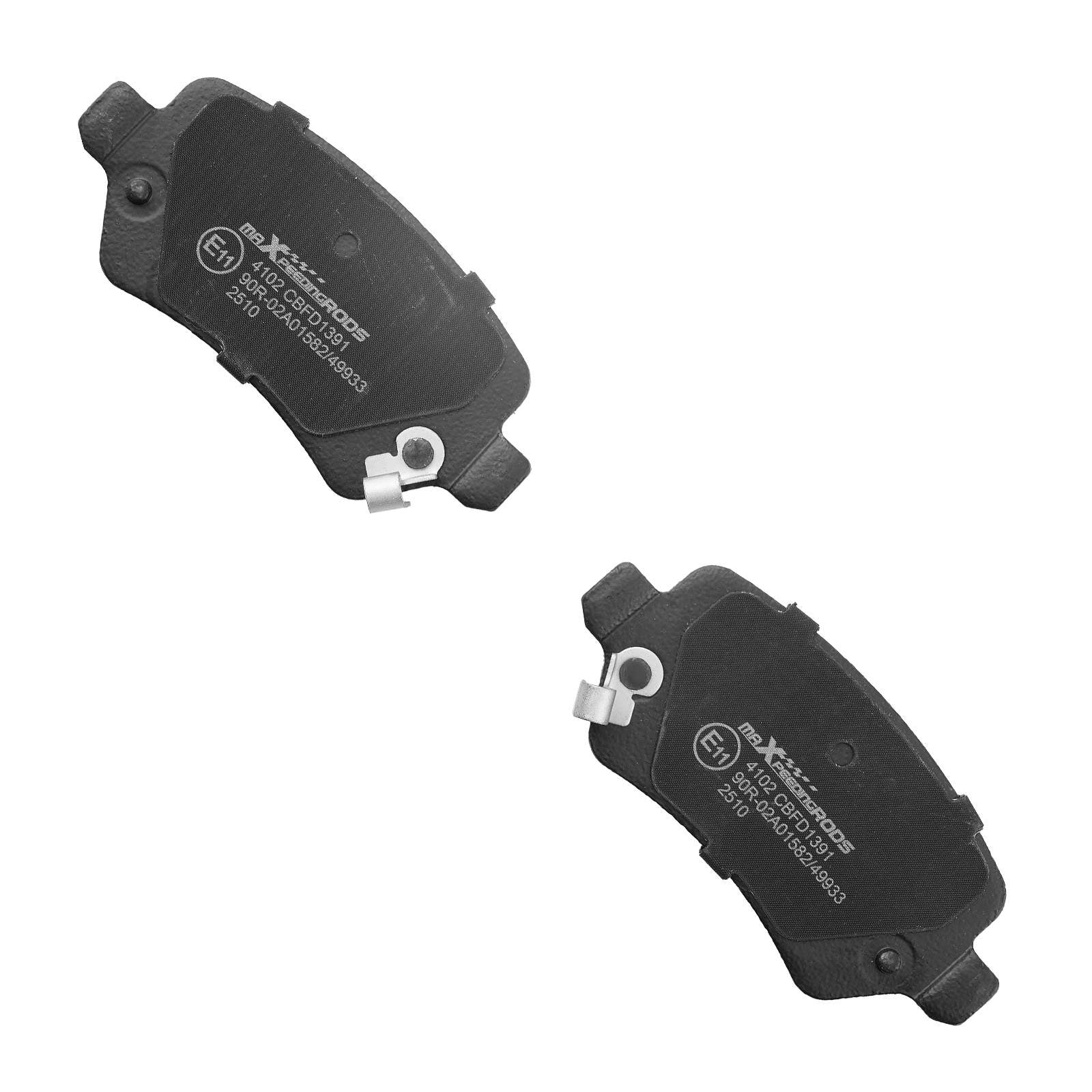

Item Type: Brake Pads
Conditiion: New
Installation position: Rear Dirver & Passenger Side
Backing Material: Steel
Pad Material: Low-metallic
Pad Shims Included: Yes

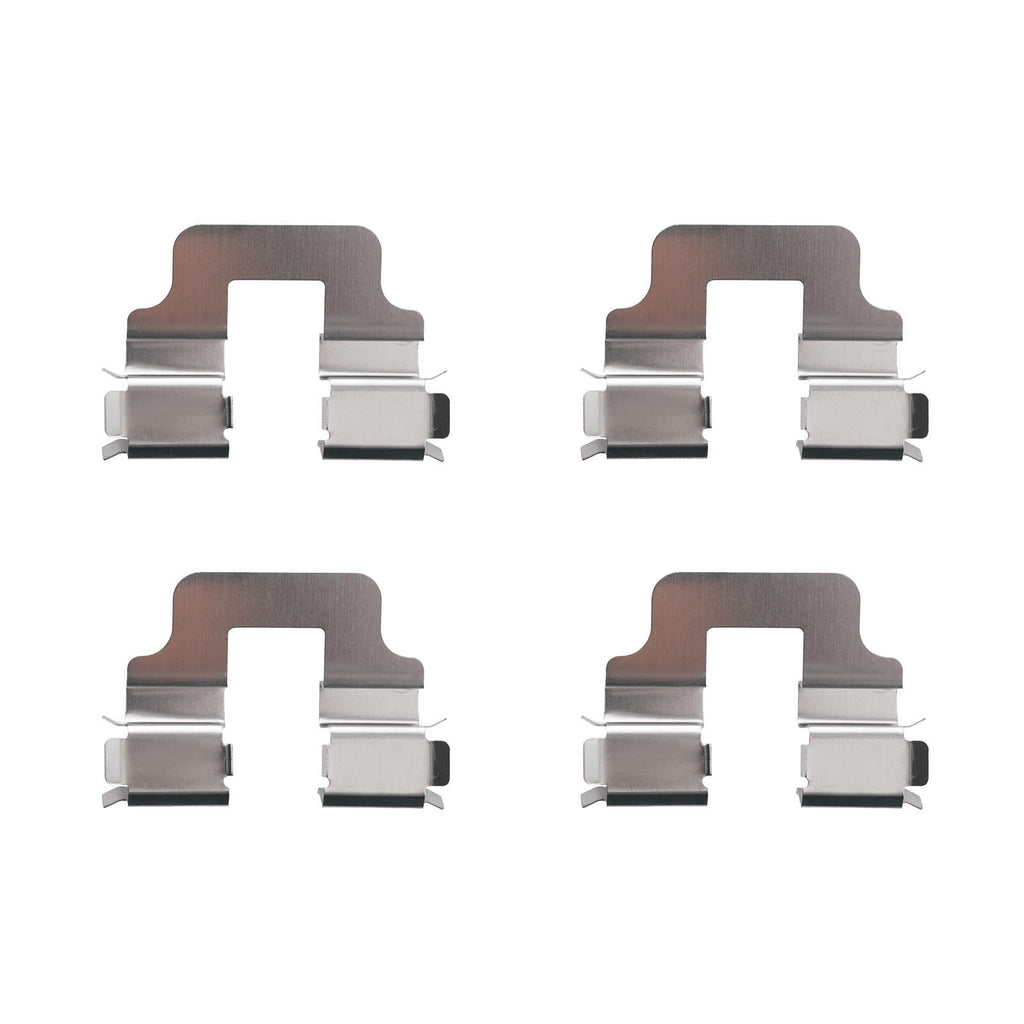

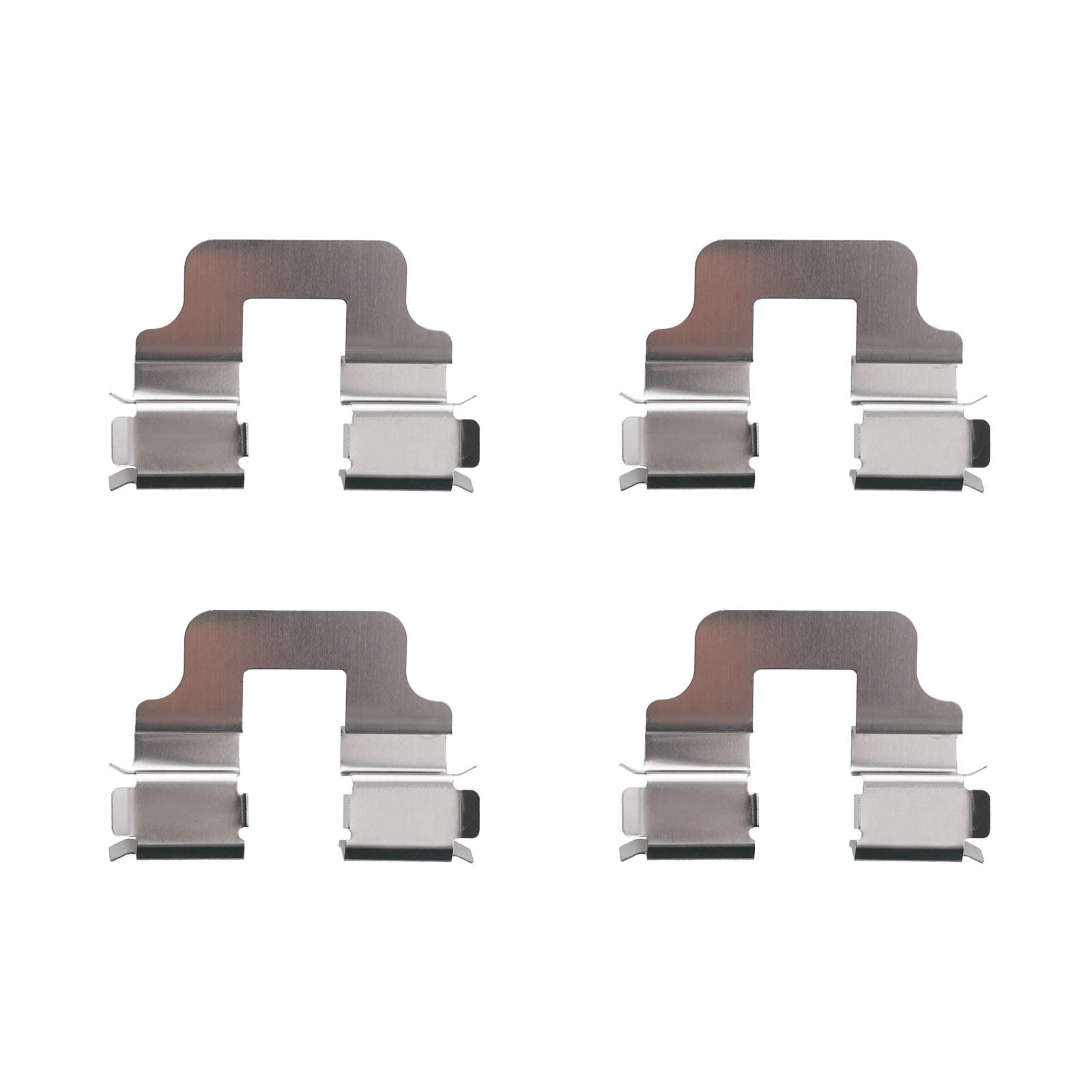

Mounting Hardware Included: Yes
Mounting bolt: Yes

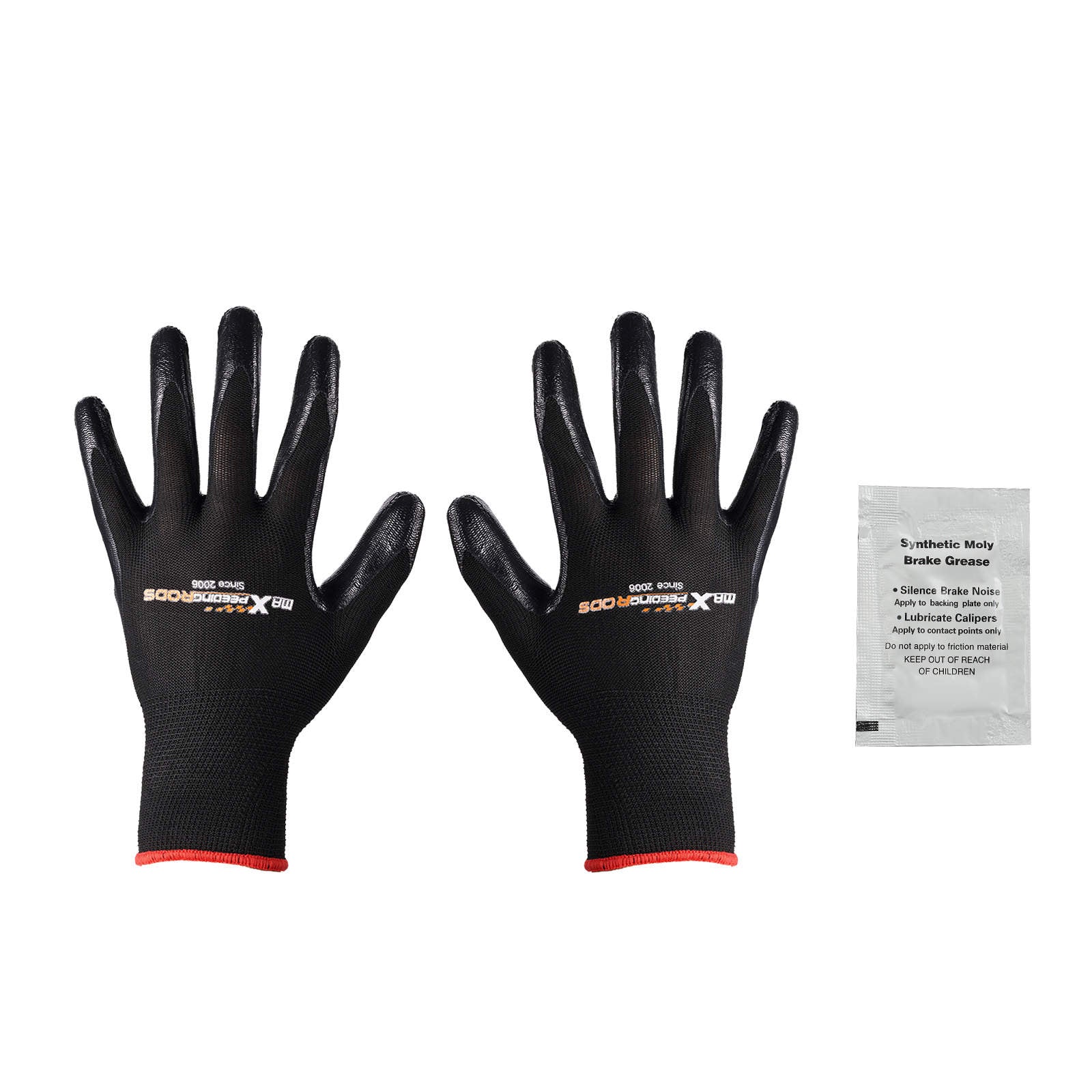

Lubricant Included: Yes
Pad Wear Sensor Included: Yes
Pad Wear Sensor Type: Mechanical Sear Sensor
Inner Pad Width(mm): 95.44
Inner Pad Height(mm): 42.6
Inner Pad Thickness(mm): 14.7
Outer Pad Width(mm): 95.44
Outer Pad Height(mm): 42.6
Outer Pad Thickness(mm): 14.7
Packaging Type: Box
Fitment: Direct Replacement

Package included

2x Brake Discs
4x Brake Pads

Note

●Please confirm your vehicle condition and OE number before placing an order!
●Please note that this is an after-sales part, not an original part.
●We suggest that you seek professional installation to avoid unnecessary trouble.
●If you have any questions, please contact us.
