Introduction

maXpeedingrods' MXR-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Application

Compatible for VW Golf Mk7 (2012–2020)1.0 1.2 1.4 TSI Multi-Link Rear
compatible for Audi A3 8V (2012–2020) with multi-link rear suspension
compatible for Audi S3 8V (2012–2020) with multi-link rear suspension
compatible for Audi TT TTS FV3 1.8 2.0 TFSI Coupe Roadster Multi-Link
compatible for Seat Leon Mk3 5F (2012–2020) with multi-link rear suspension
compatible for Skoda Superb Mk3 3V 1.4TSI 1.8TSI 1.6TDI
compatible for Skoda Octavia Mk3 5E 2.0 TSI TDI CR DSG

Specification

Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
Spring Rate Front: 5 kg/mm（280 lbs/in)
Spring Rate Rear: 5 kg/mm (280 lbs/in)
Front spring inner diameter: 70.5-90 mm
Rear spring inner diameter: 57-62 mm
Spring length Front: 262 mm
Spring length Rear: 260 mm
Spring Preload advised: 7-10 mm
Color: Black body with black spring

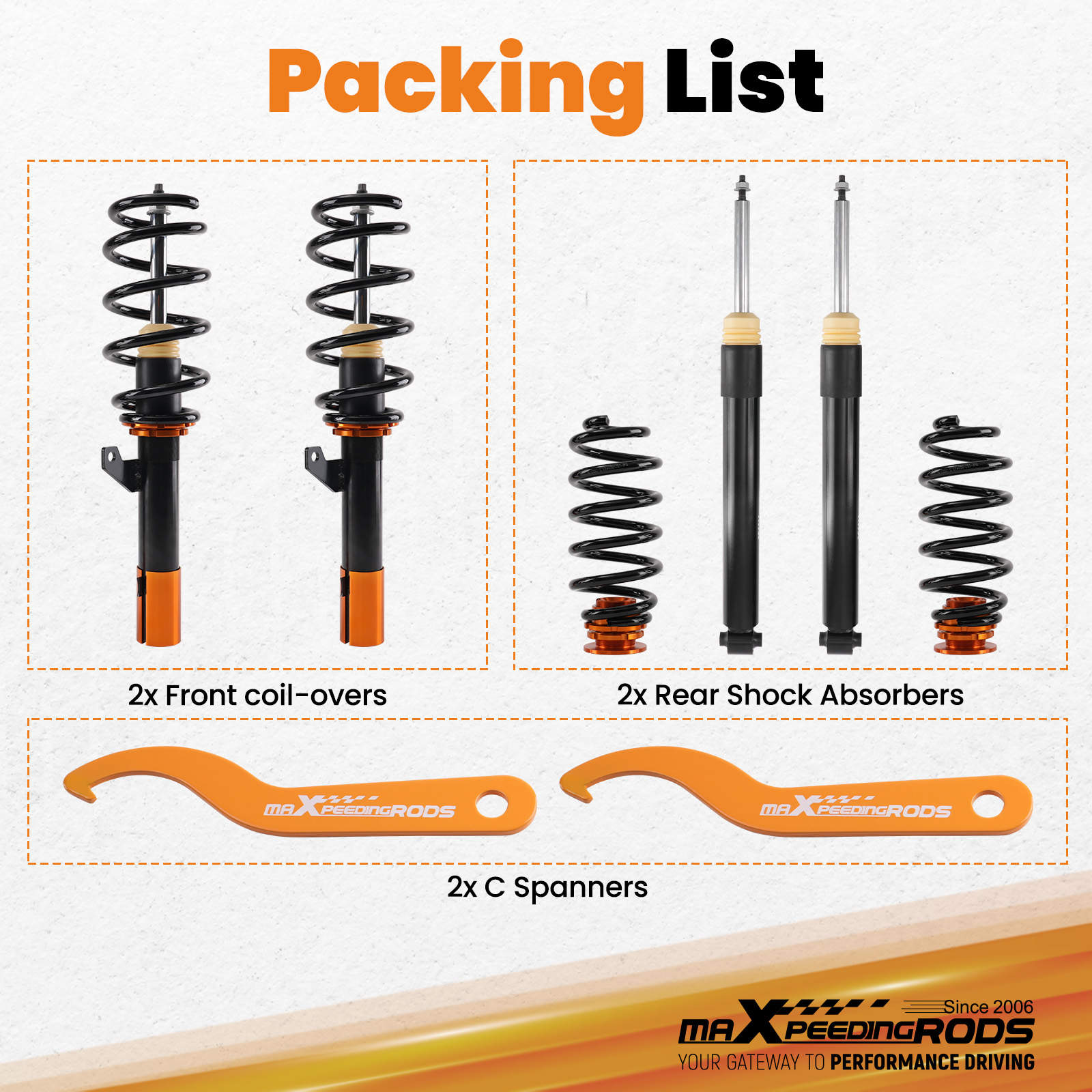

Package included

Package included：

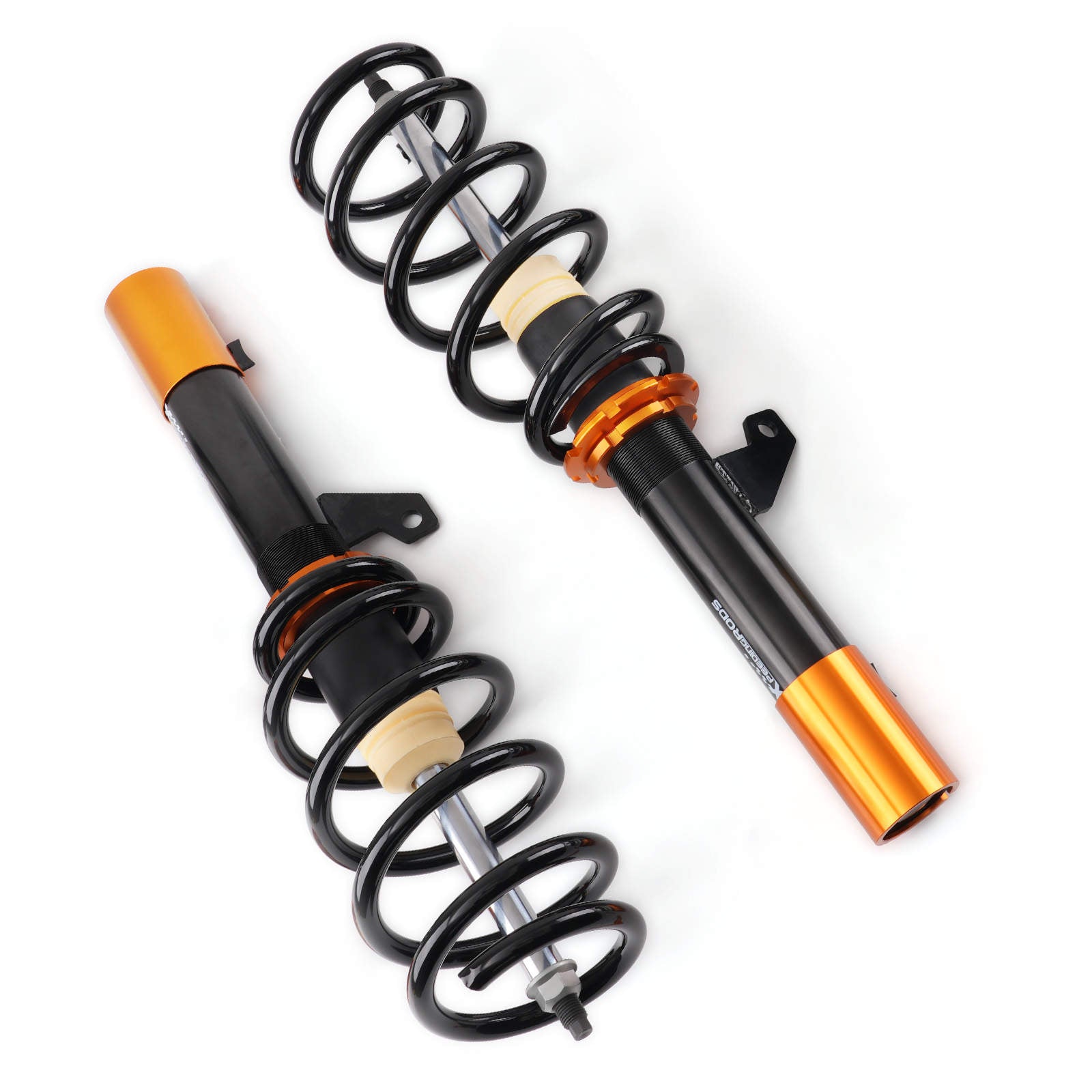

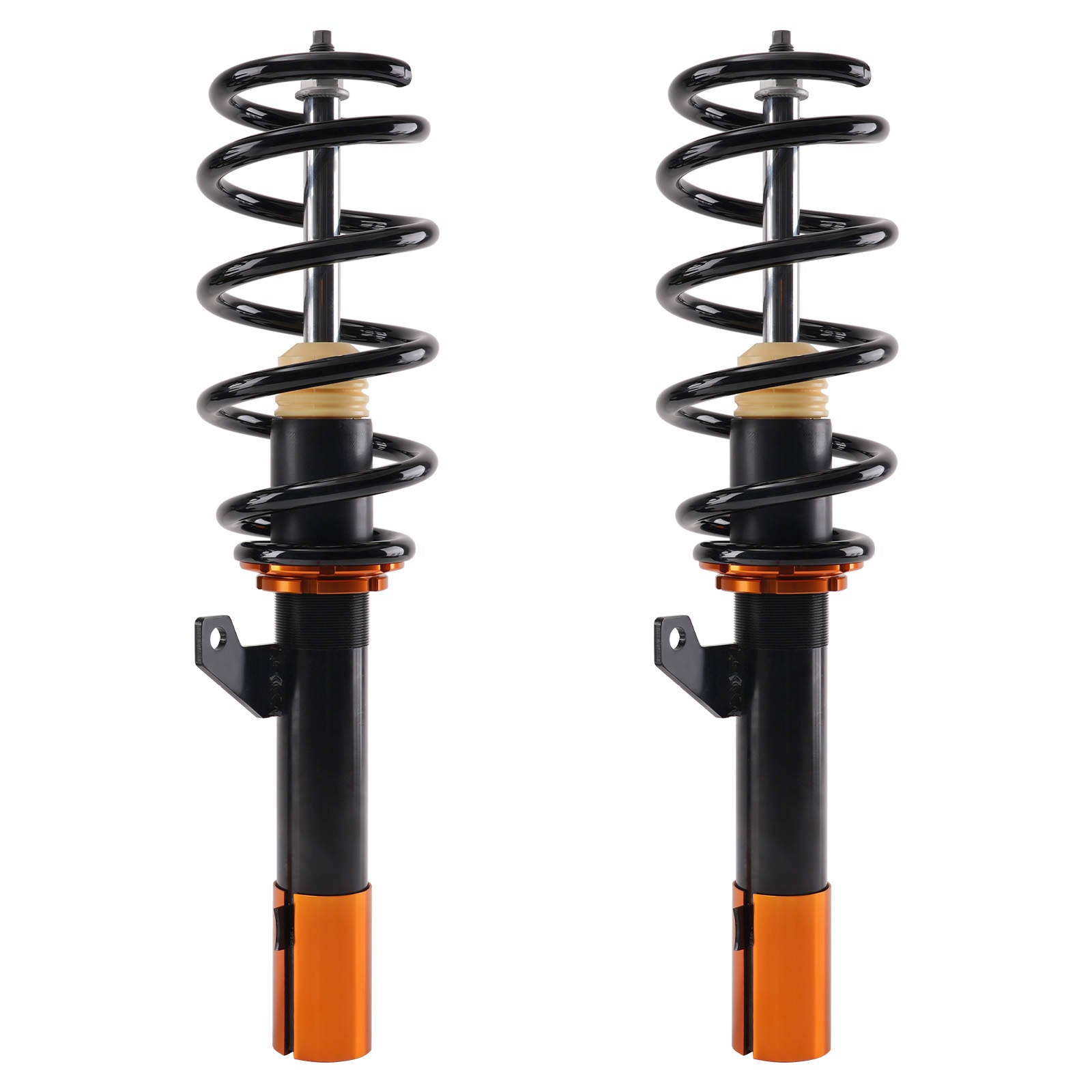

2x Front coil-overs

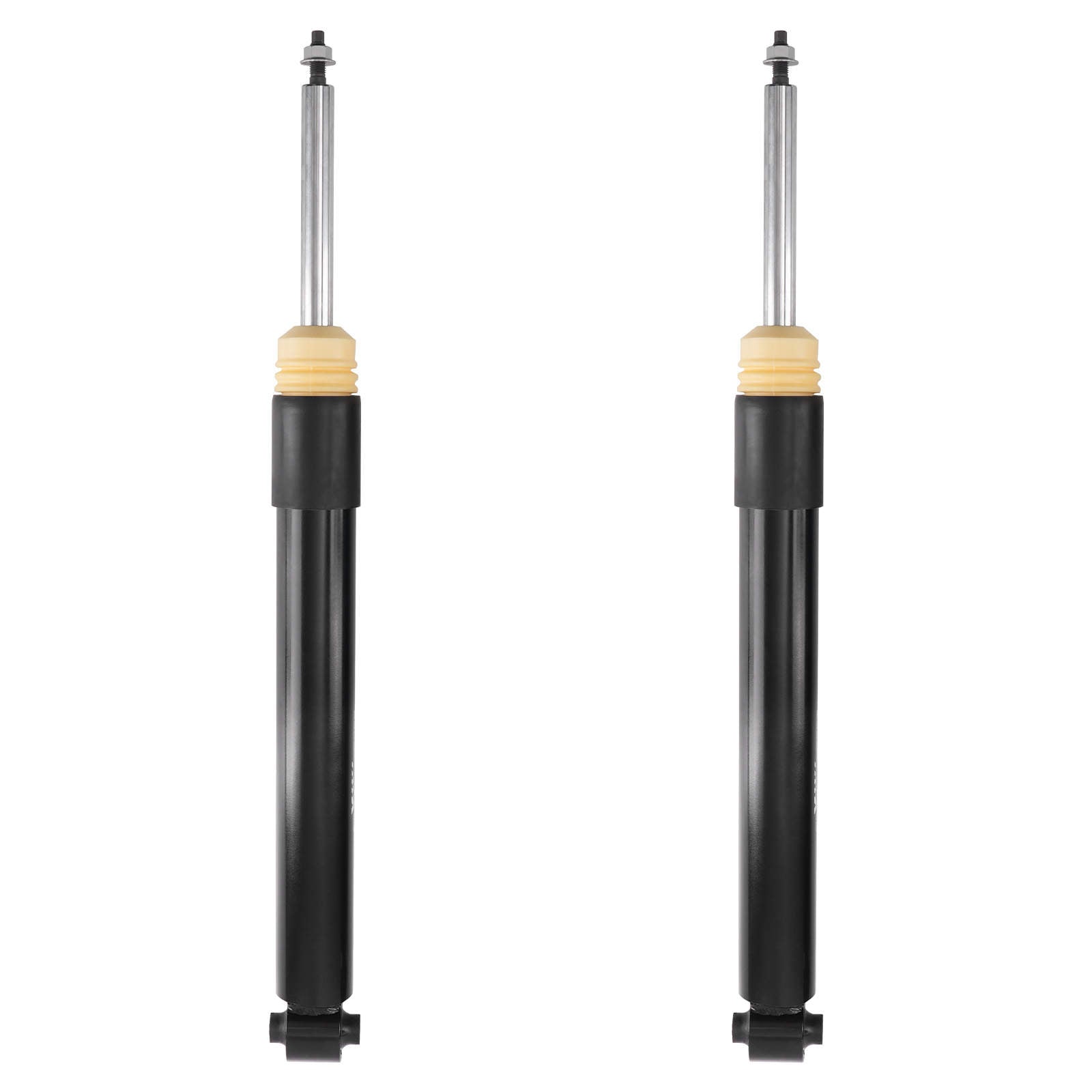

2x Rear coil-overs
2x C spanners

Dimension

Package Size: 70*51*20 cm
Weight: 24550 g

Feature

1. 0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
