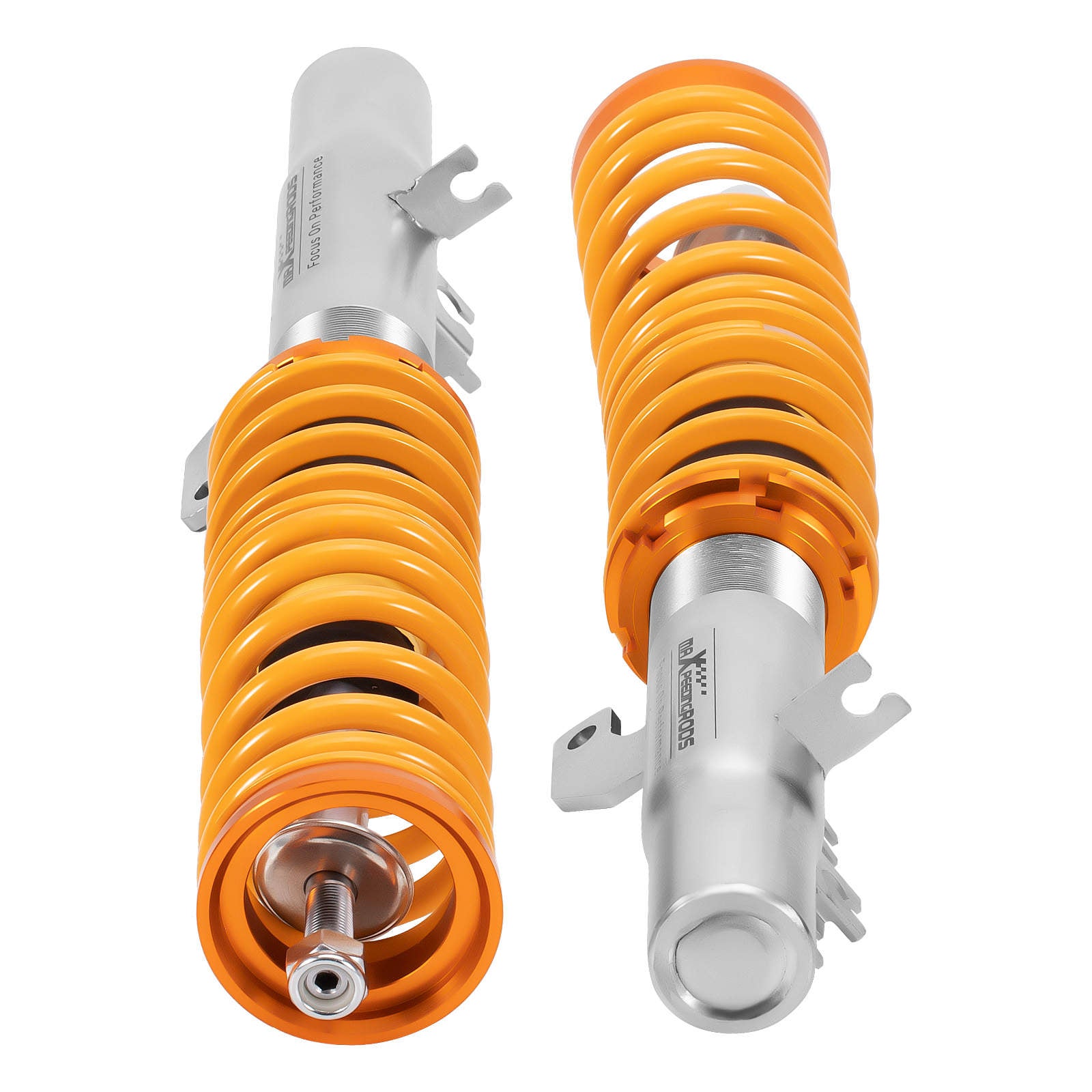

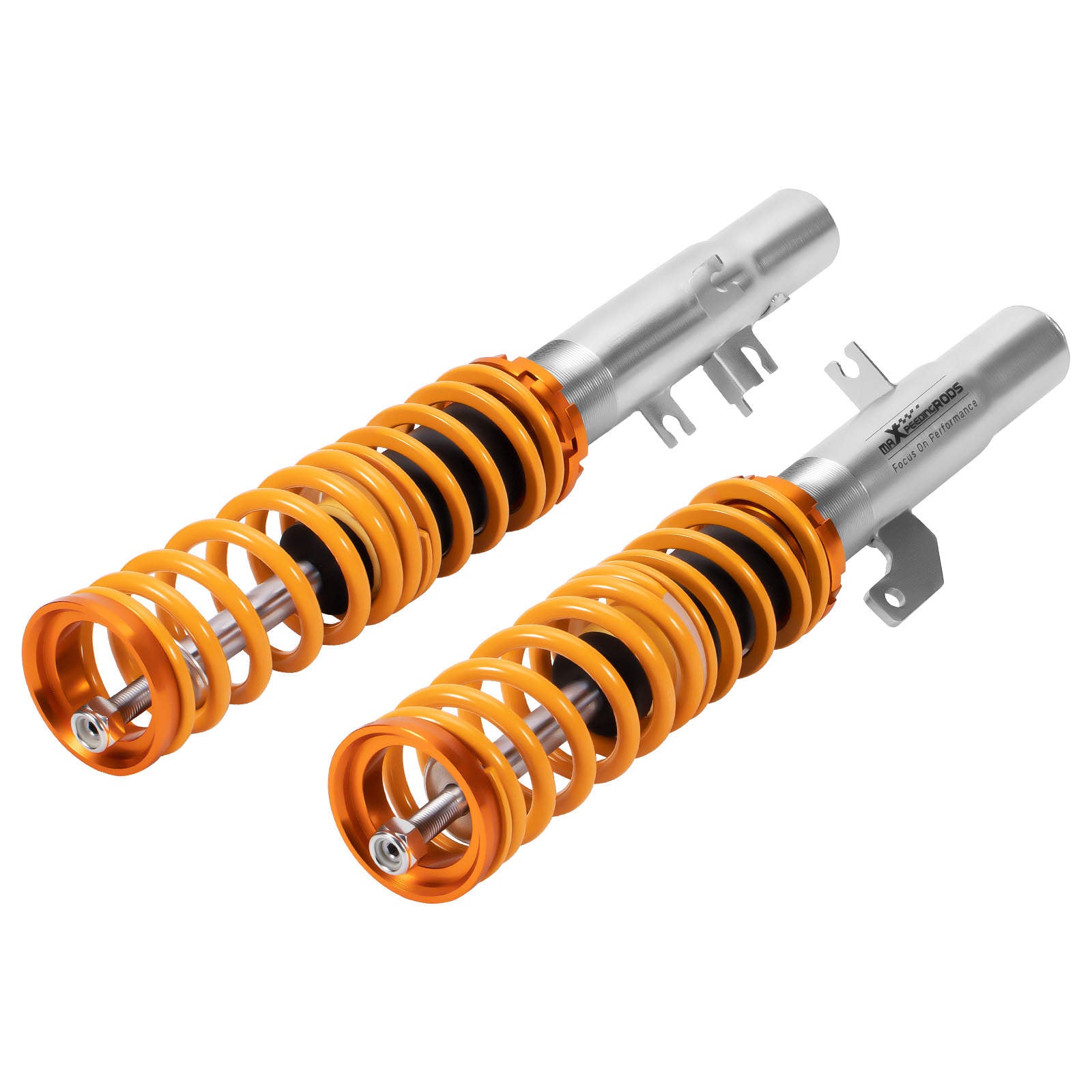

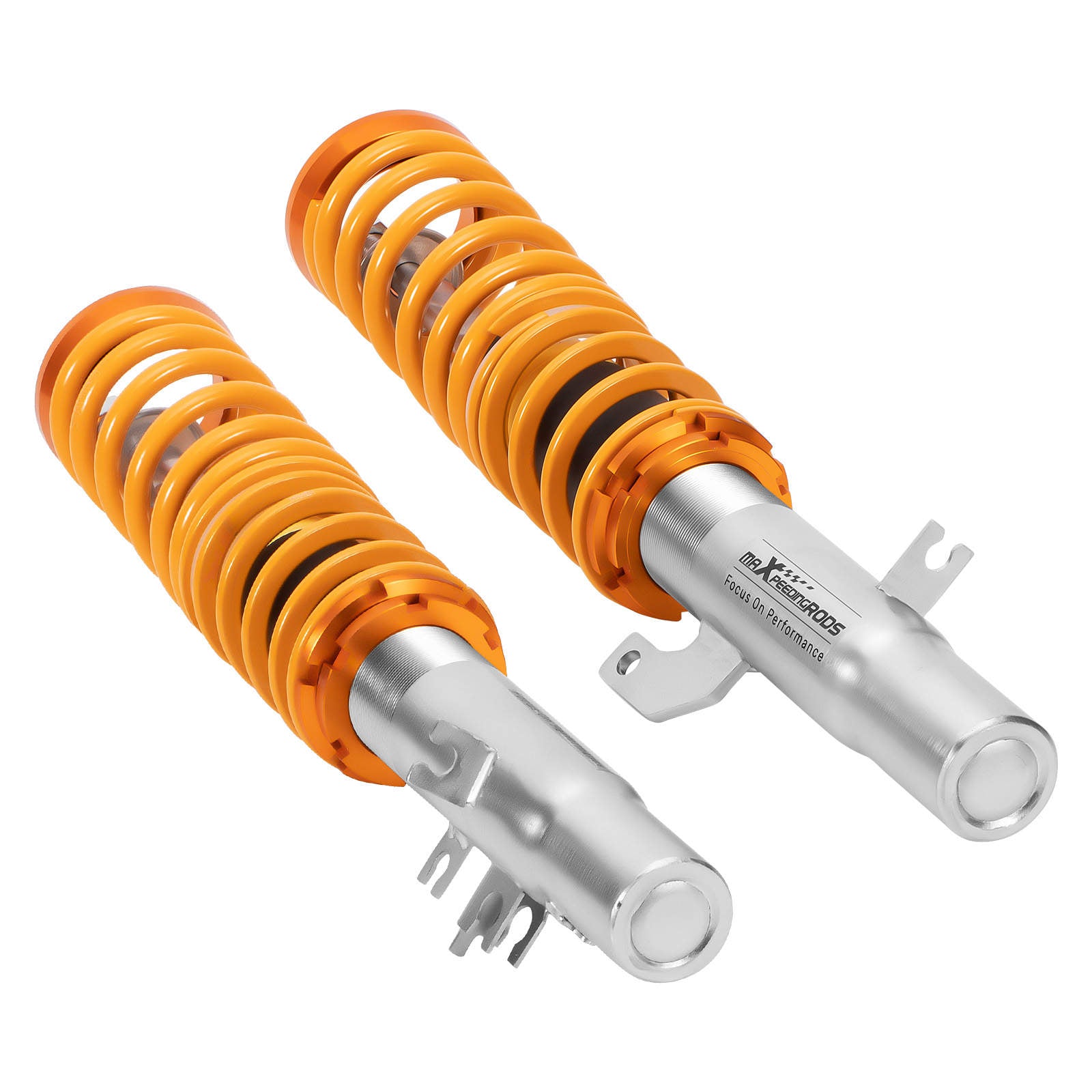

Height adjustable coilover kit compatible for Citroen C3 2003-2010 coilover shock absorbers lowering kit
Height adjustable coilover kit compatible for Citroen C3 2003-2010 coilover shock absorbers lowering kit
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Introduction
maXpeedingrods' MXR-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.
Application
Compatible for Citroen C2 compatible for FWD type J 2003-2010
compatible for Citroen C3 compatible for FWD type F, 2002-2010
compatible for Citroen C3 compatible for FWD Pluriel type H, 2003-2010
Specification
Top mounts: Front and rear OE top mounts required
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
Spring rate Front: 5 kg/mm (280 lbs/in)
Spring rate Rear: 2.5 kg/mm (140 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 57-61 mm
Spring length Front: 160 mm
Spring length Rear: 230 mm
Help spring rate Front: 1 kg/mm (56 lbs/in)
Help spring length Front: 102 mm
Spring Preload advised: 7-10 mm
Color: Silver body with golden spring
Package included
Package included：
2x Front coil-overs
2x Rear coil-overs
2x C spanners
Dimension
Package dimension : 61*50*20 cm
Weight: 17850 g
Feature
1. 0-25mm(depends on vehicle models) lower height adjustable

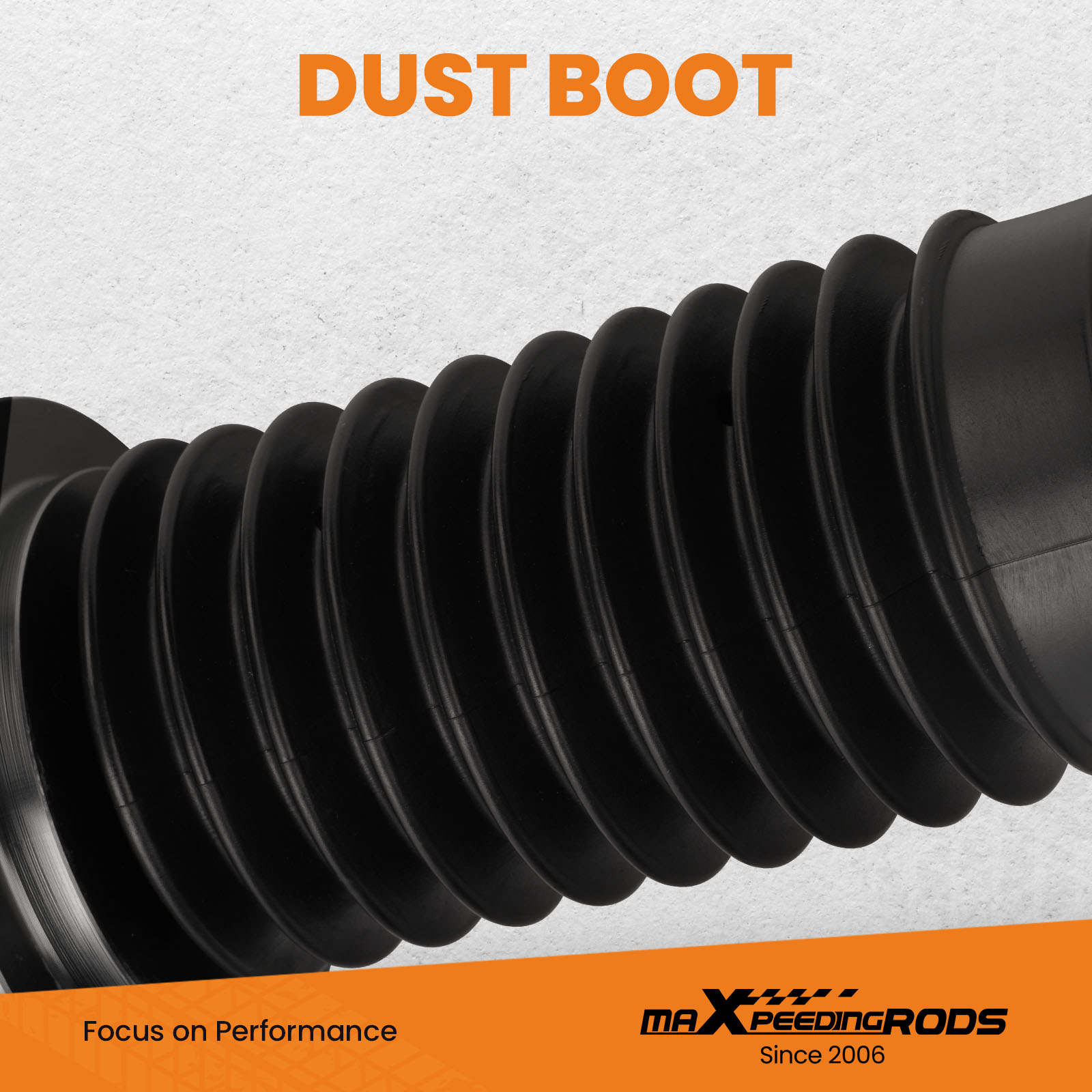

2. Dust boot, solid rubber bump stops

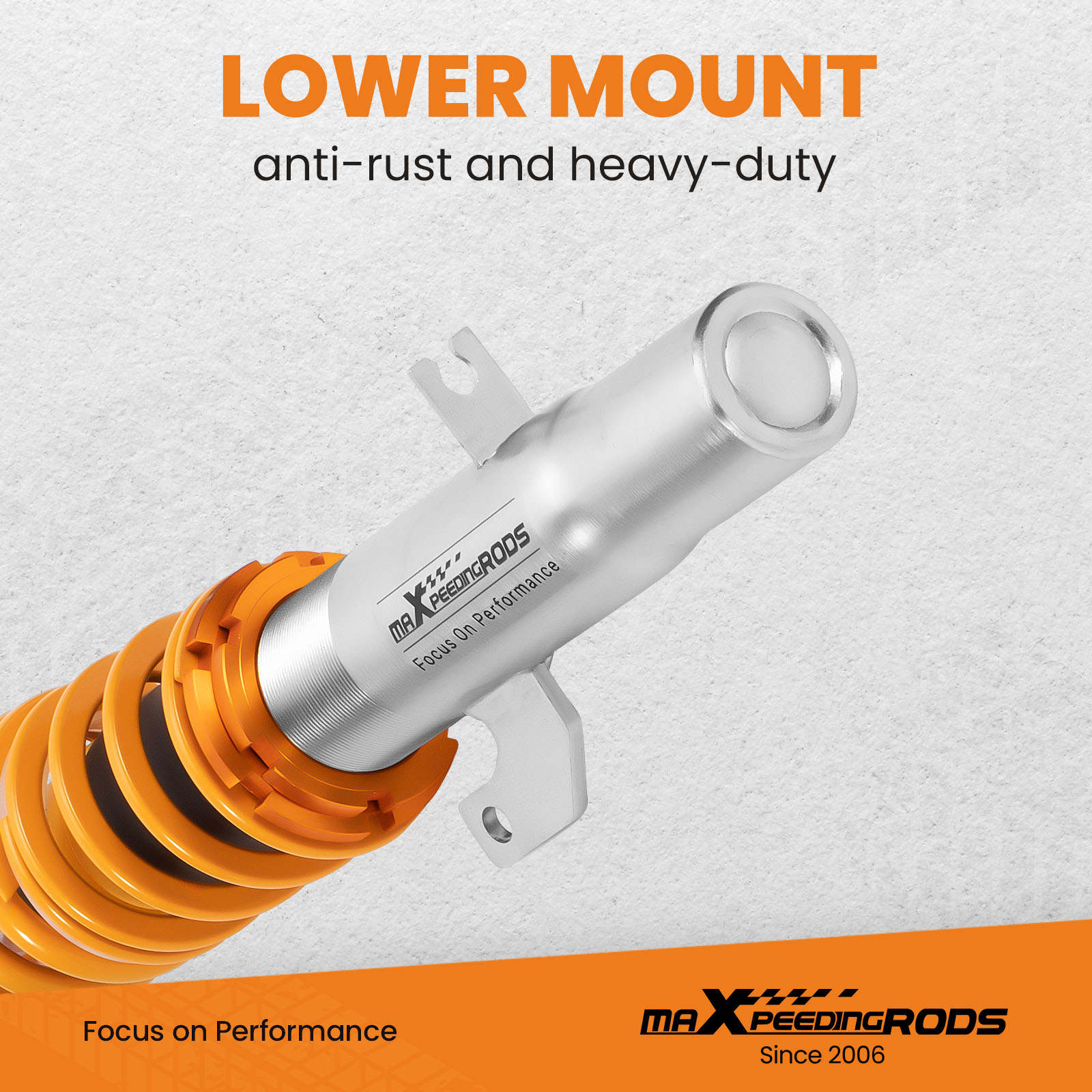

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).
Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
