Introduction

maXpeedingrods' MXR-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Application

Compatible for Focus 2gen/MK2 2008-2011 sedan/coupe（Excludes 2.5ST )
NOTE： Using the OE top mounts, the center bolt hole needs to be bored out.

Specification

Top mounts: Front and rear OE top mounts required
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
Spring Rate Front: 8.5 kg/mm (476 lbs/in)
Spring Rate Rear: 3 kg/mm (116 lbs/in)
Front spring inner diameter:62-73 mm
Rear spring inner diameter:88 mm
Spring length Front: 200 mm
Spring length Rear: 235 mm
Help spring rate Front: 1 kg/mm (56 lbs/in)
Help spring length Front: 102 mm
Spring Preload advised: 7-10 mm
Color: Silver body with golden spring
(Note: Front Bump stops and dust covers.)

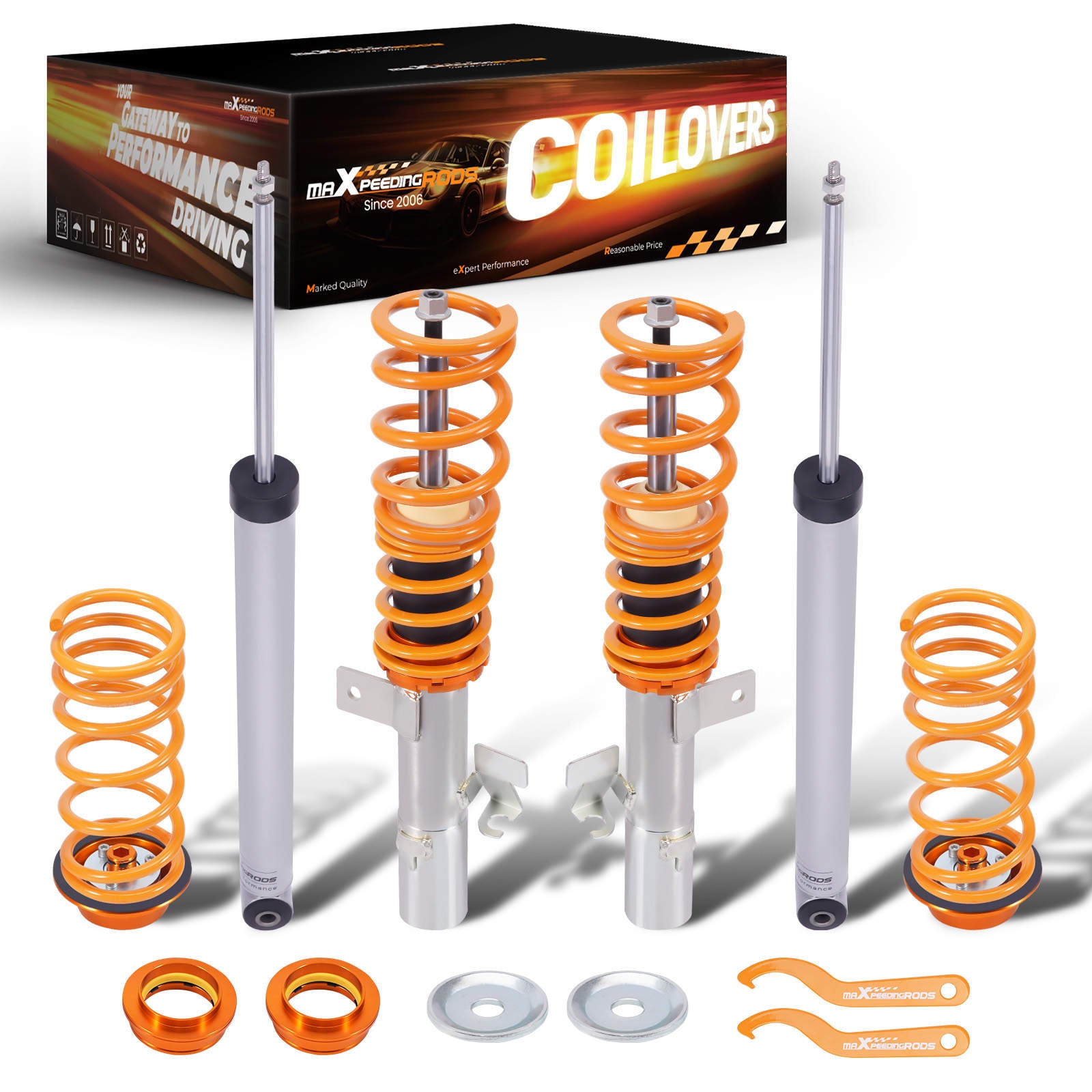

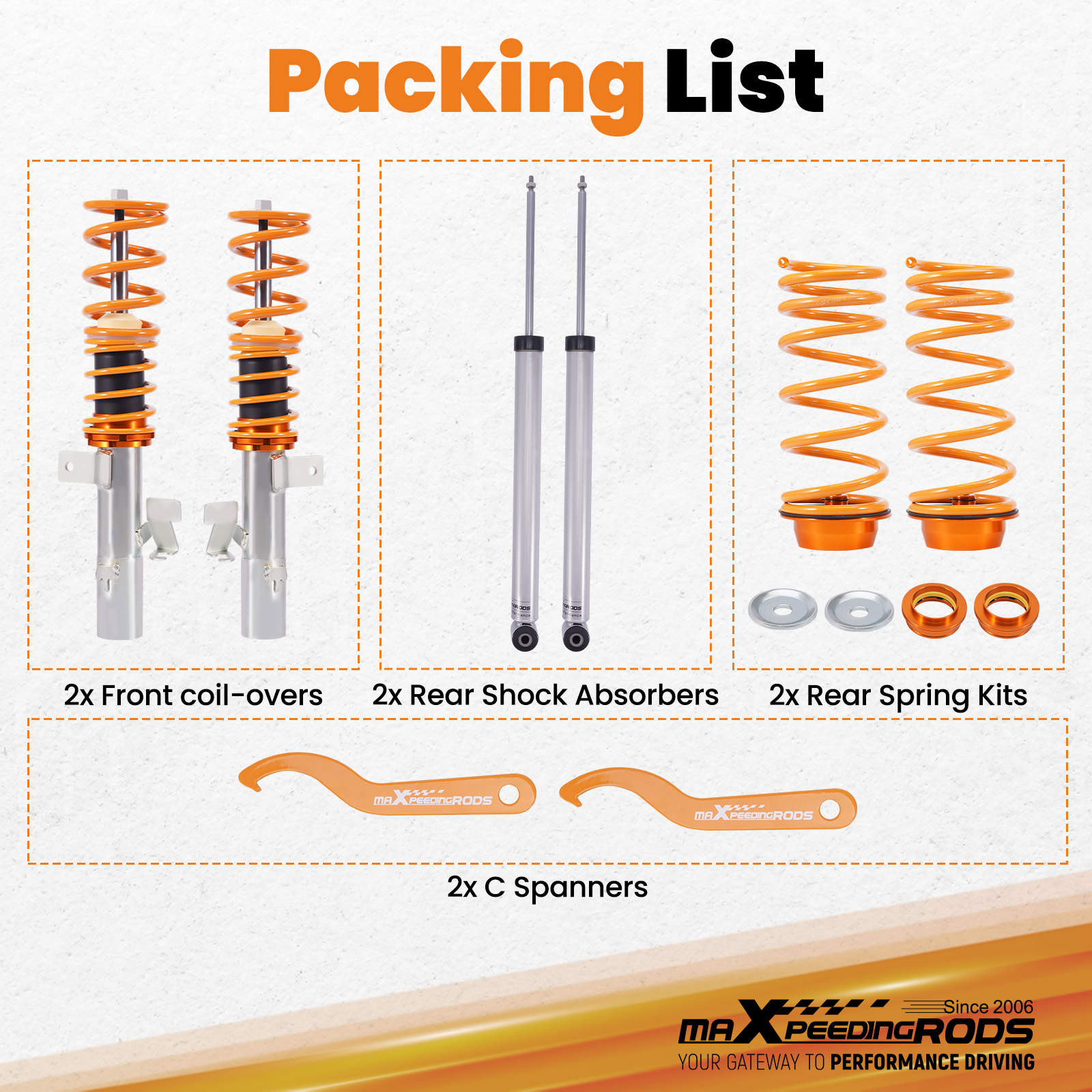

Package included

Package included：

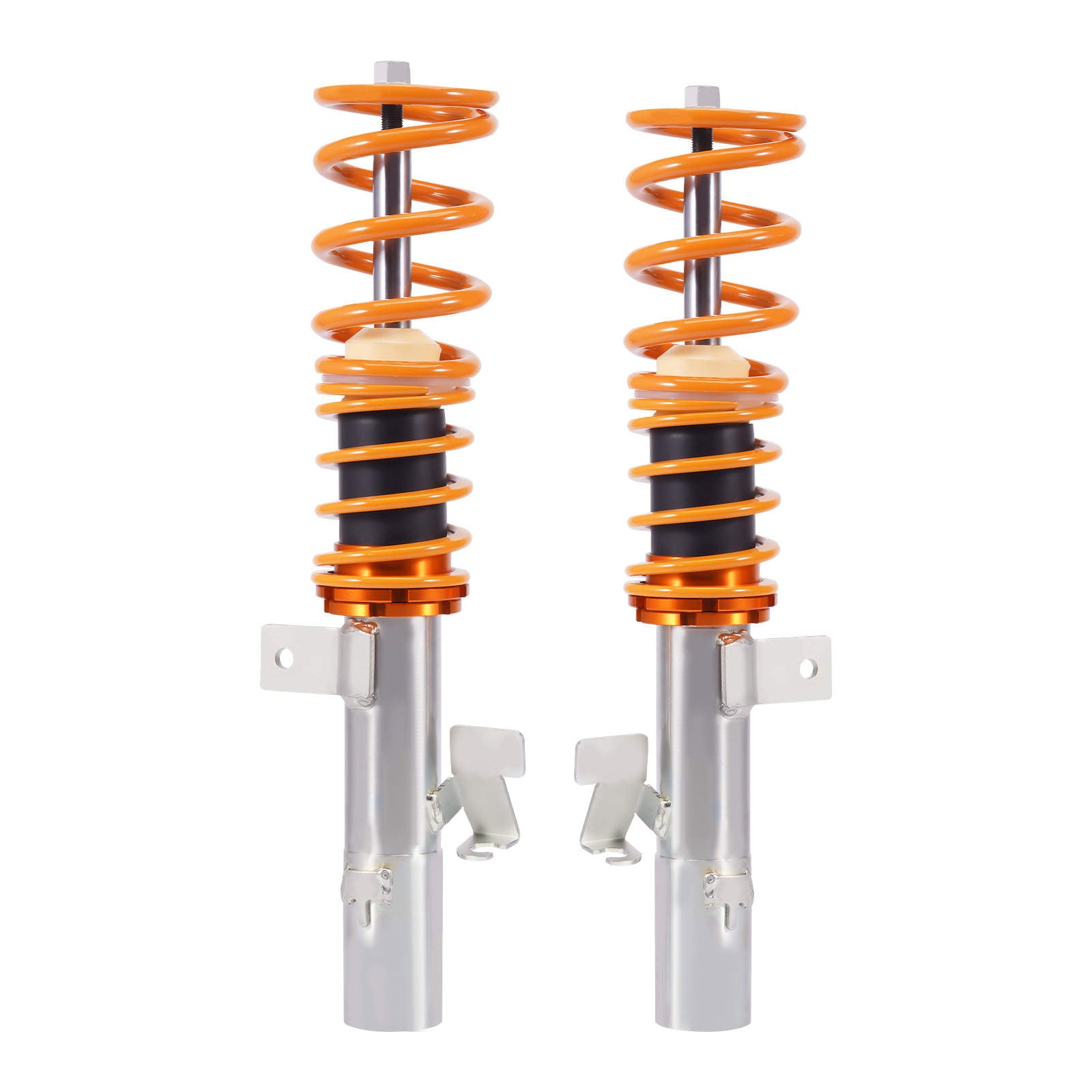

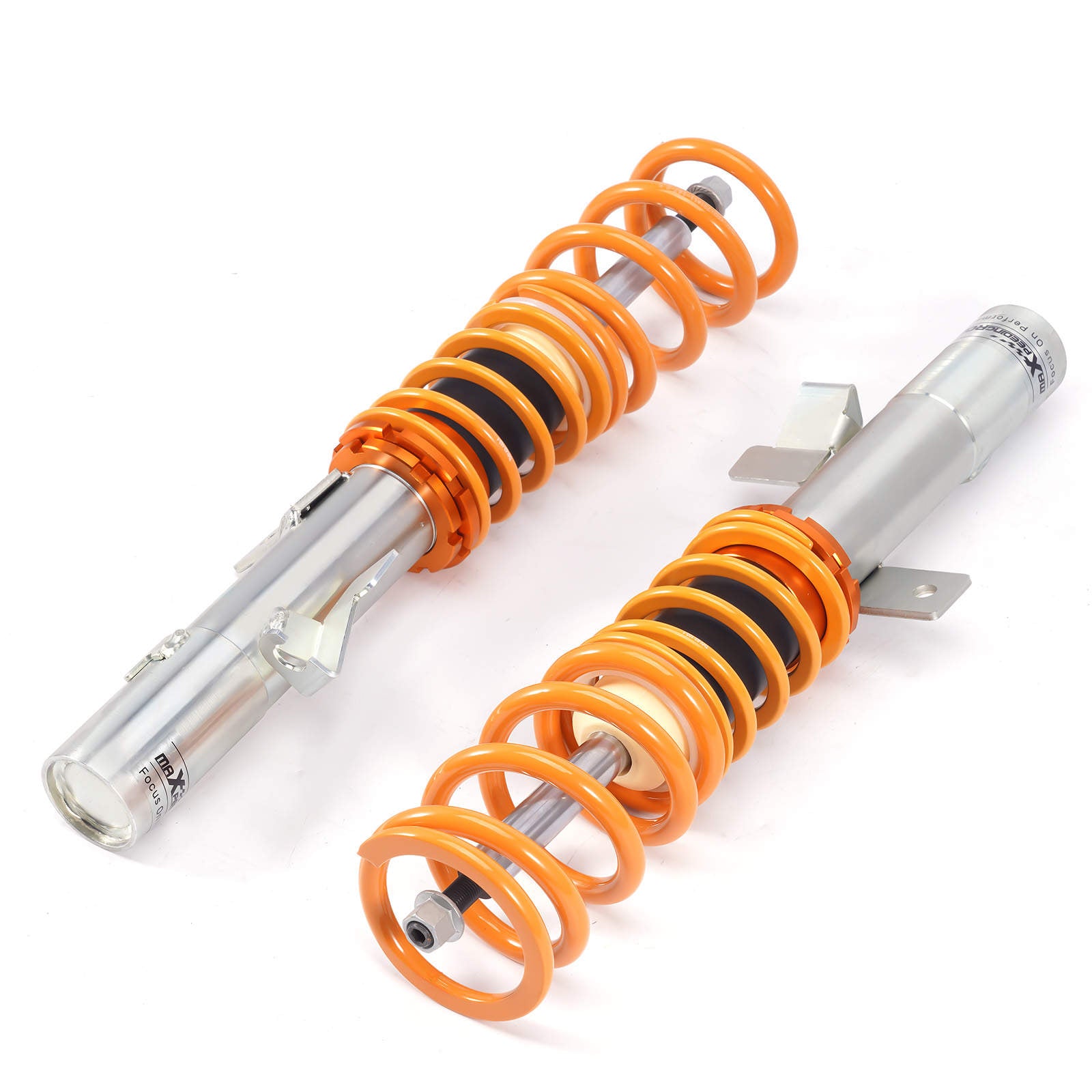

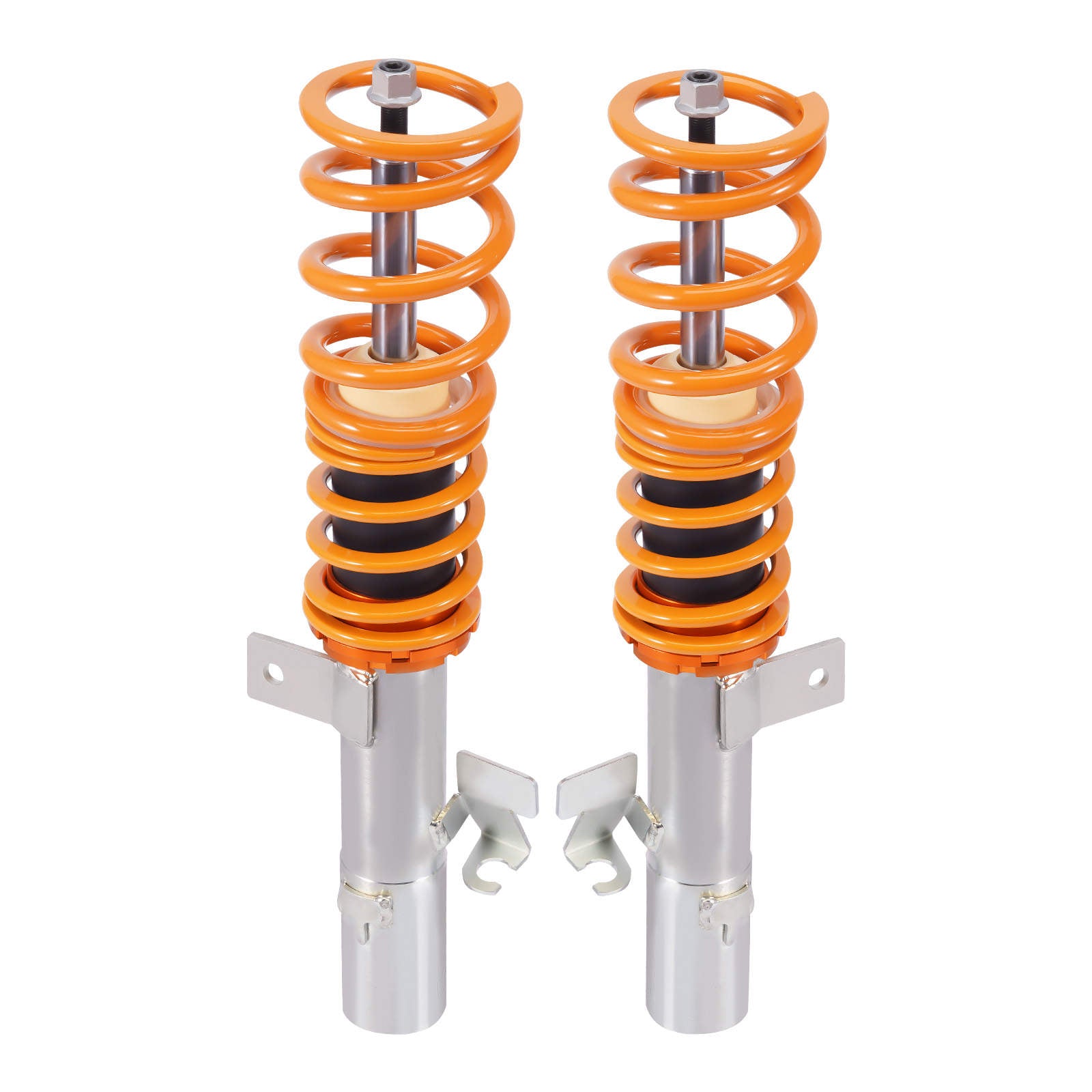

2x front coil-overs
2x rear coil-overs
2x C spanners

Dimension

Package size : 71*50*20cm
Weight: 19500 g

Feature

1. 0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).
