Forged 4340 EN24 Connecting Rods ARP compatible for VW 1.9 TDI PD130 PD150 5.669 2.114
Forged 4340 EN24 Connecting Rods ARP compatible for VW 1.9 TDI PD130 PD150 5.669 2.114
- ✓ Prijs inclusief btw — geen kosten achteraf
- ✓ Snelle verzending uit eigen voorraad
- ✓ 100% nieuw, aftermarket in OE-kwaliteit
- ✓ 2 jaar garantie op fabricagefouten
Application
Compatible for VW 1.9 TDI PD130 / PD150
compatible for VW 2.0 TDI PD140 / PD170 ASZ BKD
Specification

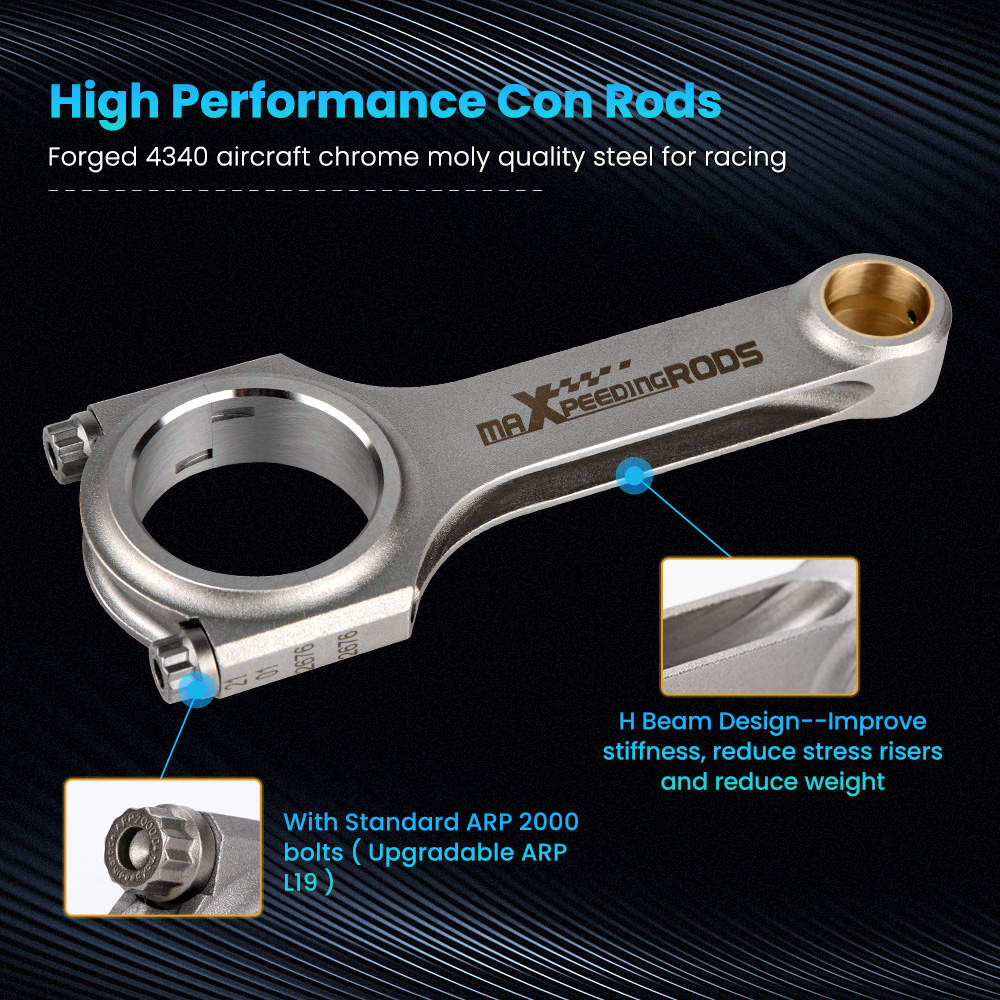

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 5/16"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

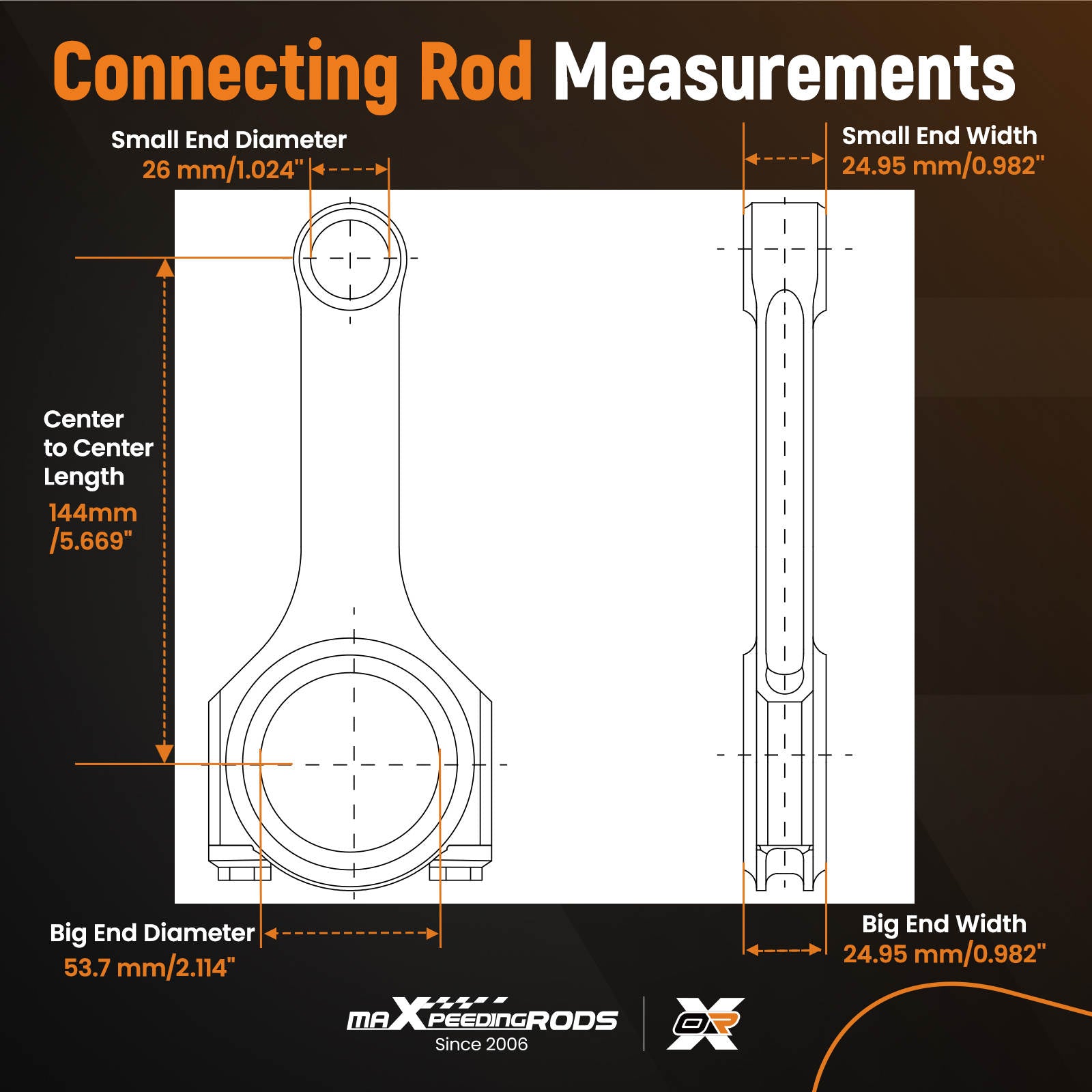

Dimension
Connecting Rod Length Center to Center: 144.00mm/5.669in
Approximate Connecting Rod Weight: 559g
Big End Bore Diameter: 53.70mm/2.114in
Pin End Bore Diameter: 26.00mm/1.024in
Big End Width: 24.95mm/0.982in
Small End Width: 24.95mm/0.982in
Performance Ratings
Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 7,000rpm
Packaging

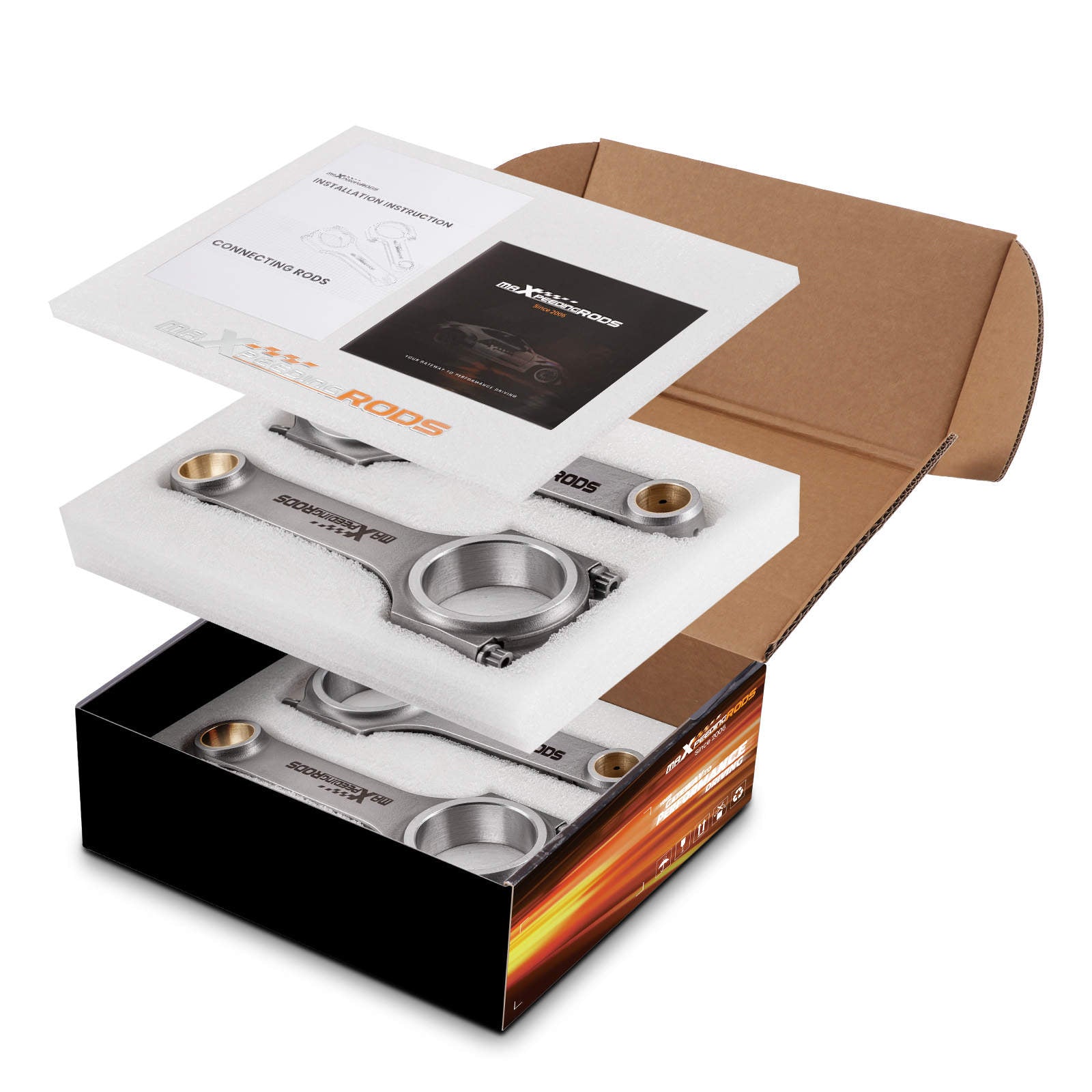

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
