Application

Compatible for CITROEN C2 1.6L D DV6TED4 05 -
Compatible for CITROEN C3 HDI 1.6L D DV6TED4 06 -
Compatible for CITROEN C4 HDI 1.6L D DV6TED4 04 -
Compatible for CITROEN C5 HDI 1.6L D DV6TED4 03 -
Compatible for CITROEN XSARA Picasso 1.6L D DV6TED4 03 -
Compatible for CITROEN Picasso 1.6 HDi FAP 1.6L D DV6TED4 04 -
Compatible for CITROEN Berlingo 1.6 HDi FAP 1.6L D DV6TED4 05 -
Compatible for PEUGEOT 1007 109HP 1.6DHi Fap DV6TED18 05 -
Compatible for PEUGEOT 207 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 206 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 407 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 307 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 308 Hdi 1.6L D DV6TED4 07 -
Compatible for PEUGEOT 3008 TDi 110 1.6L D DV6TED4 09 -
Compatible for PEUGEOT 5008 HDI 110 1.6L D DV6TED4 10 -
Compatible for Peugeot Partner 1.6 HDi 110 FAP 05-
Compatible for FORD C MAX 1.6L D DV6TED4 04 -
Compatible for FORD C-MAX TDCi 1.6L D DV6TED4 03 -
Compatible for FORD Focus TDCi 1.6L D DV6TED4 04 -
Compatible for FORD Mondeo III 1.6 TDCi 03-
Compatible for Volvo C30 1.6D 1.6L D4164T 06-
Compatible for VOLVO S40 1.6L D DV6TED4 05-09
compatible for VOLVO V50 1.6L D DV6TED4 07-09
compatible for MAZDA 3 1.6L D DV6TED4 04 -
For MINICOOPER D 1.6L D(R55 R56) W16 07 -

OE/Part number

740821,740821-1,740821-2,740821-0001,740821-0002,740821-5001S,740821-5002S,
750030,750030-1,750030-2,750030-0001,750030-0002,750030-5001S,750030-5002S,
753420,753420-,753420-3,753420-4,753420-5,7534202, 7534203, 7534204, 7534205,
753420-0002,753420-0003,753420-0004,753420-0005,753420-0006,753420-5002S,
753420-5003S,753420-5004S,753420-5005S,753420-5006S
0375J3，0375J6，0375J7，0375J8
1373584，1479055，1355027，1254337，1231096，1789074，1465162，1340133，
1441253，1319614，8603746，36002480，36000722，31259243，8603489
Y60113700, Y60113700A, Y60113700B，Y60113700C, Y60113700D，
Y60113700E，Y60113700F， Y60113700G
7804903，11657804903,3M5Q6K682AK，3M5Q6K682AE, 3M5Q6K682AF ，3M5Q6K682AH，
9656125880，9657248680，9660641380，9650764480，
9663199280，9654128780，9651839880

Specification

Turbo Model: For GT1544V,GT15V,GT15
Engine Code: W16,D4164T,DV6TED4
Turbo Type: VNT variable geometry turbo
Actuation: Vacuum
Cooling Type: Oil Cooling

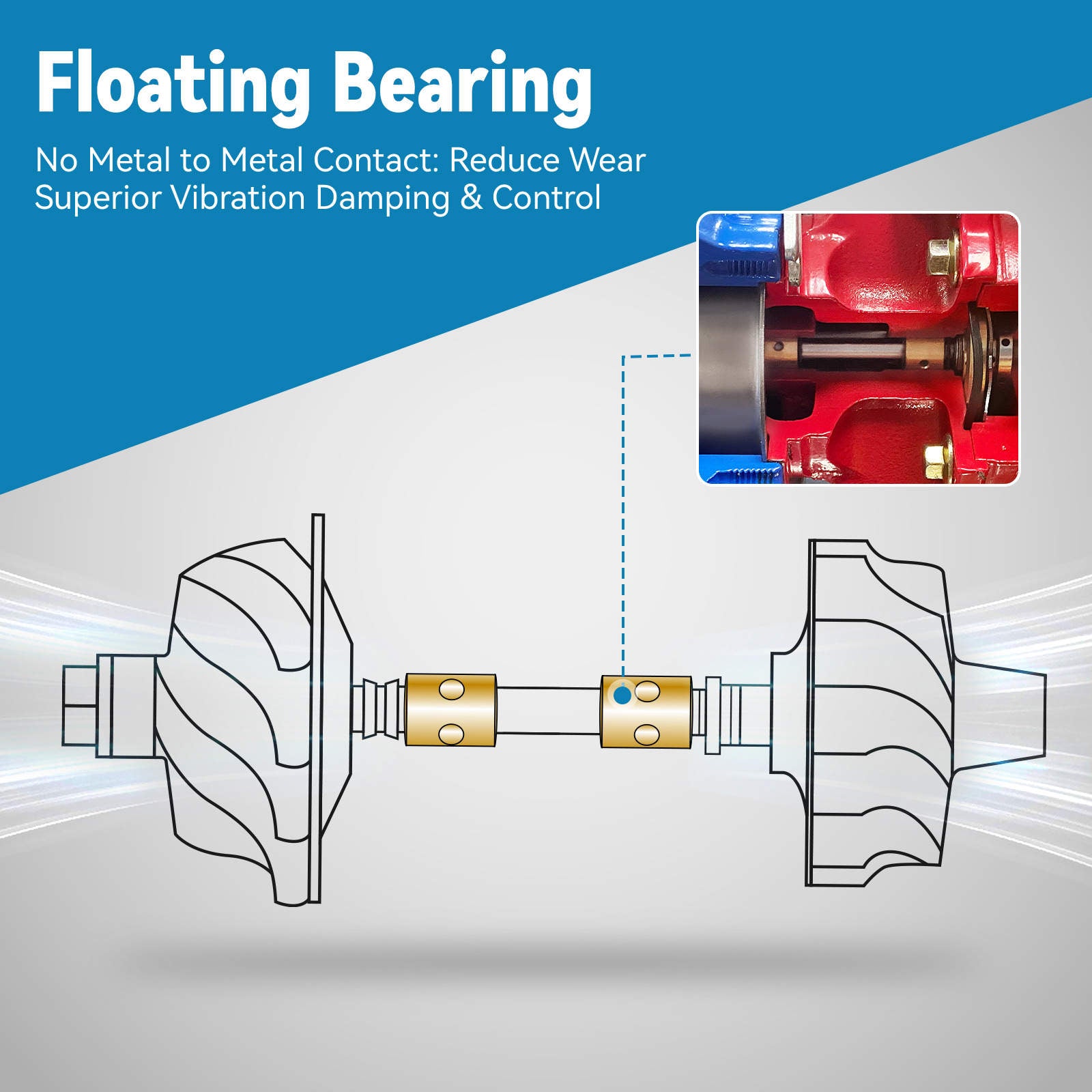

Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 109HP
Condition: Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:26x25x23cm
Package Weight: 5390g

Feature

1. OEM-quality and size with little modification

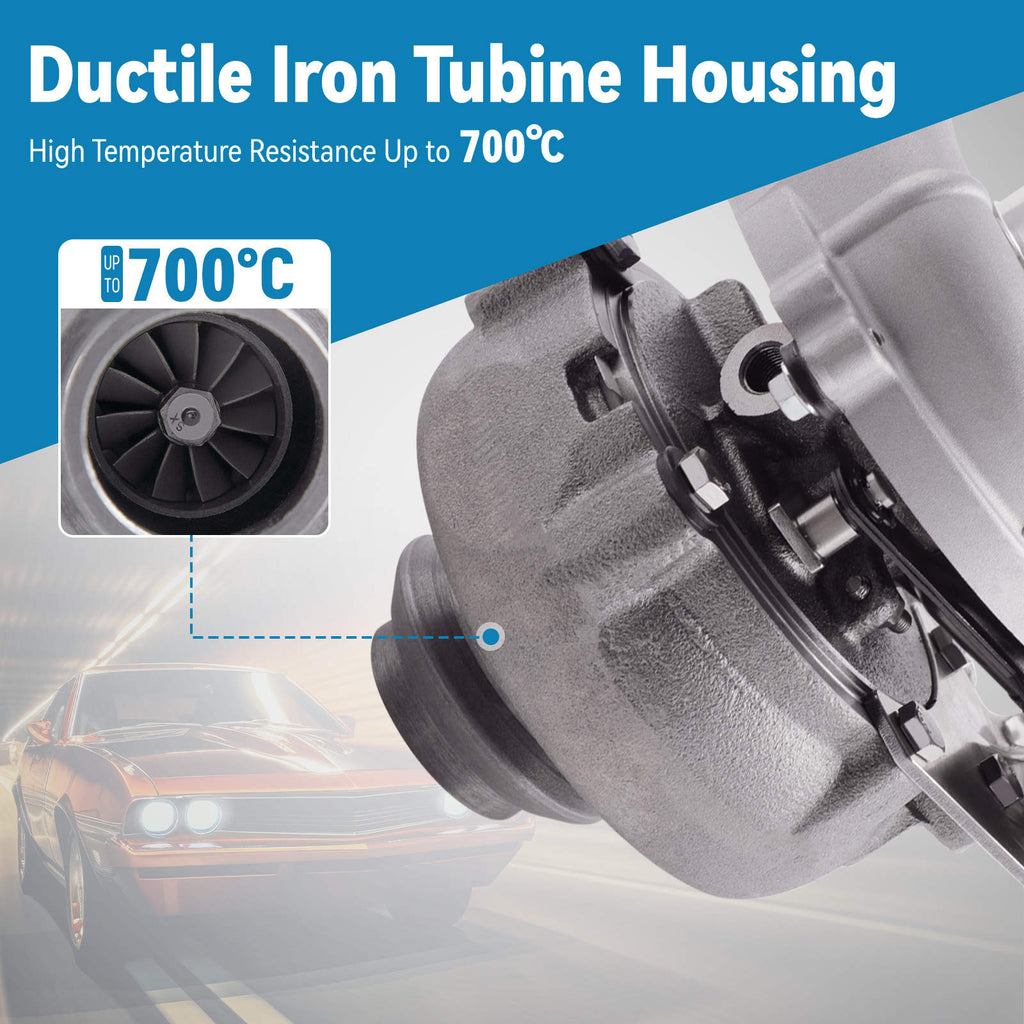

2. Ductile Iron QT450-10 turbine housing - Temperature resistant up to 700℃
3. K418 Alloy turbine wheel- High oxidation stability AND resistance up to 900℃
4. Cast aluminium blades with good gas tightness and corrosion resistance
5. ZL104 aluminum compressor housing with lightweight

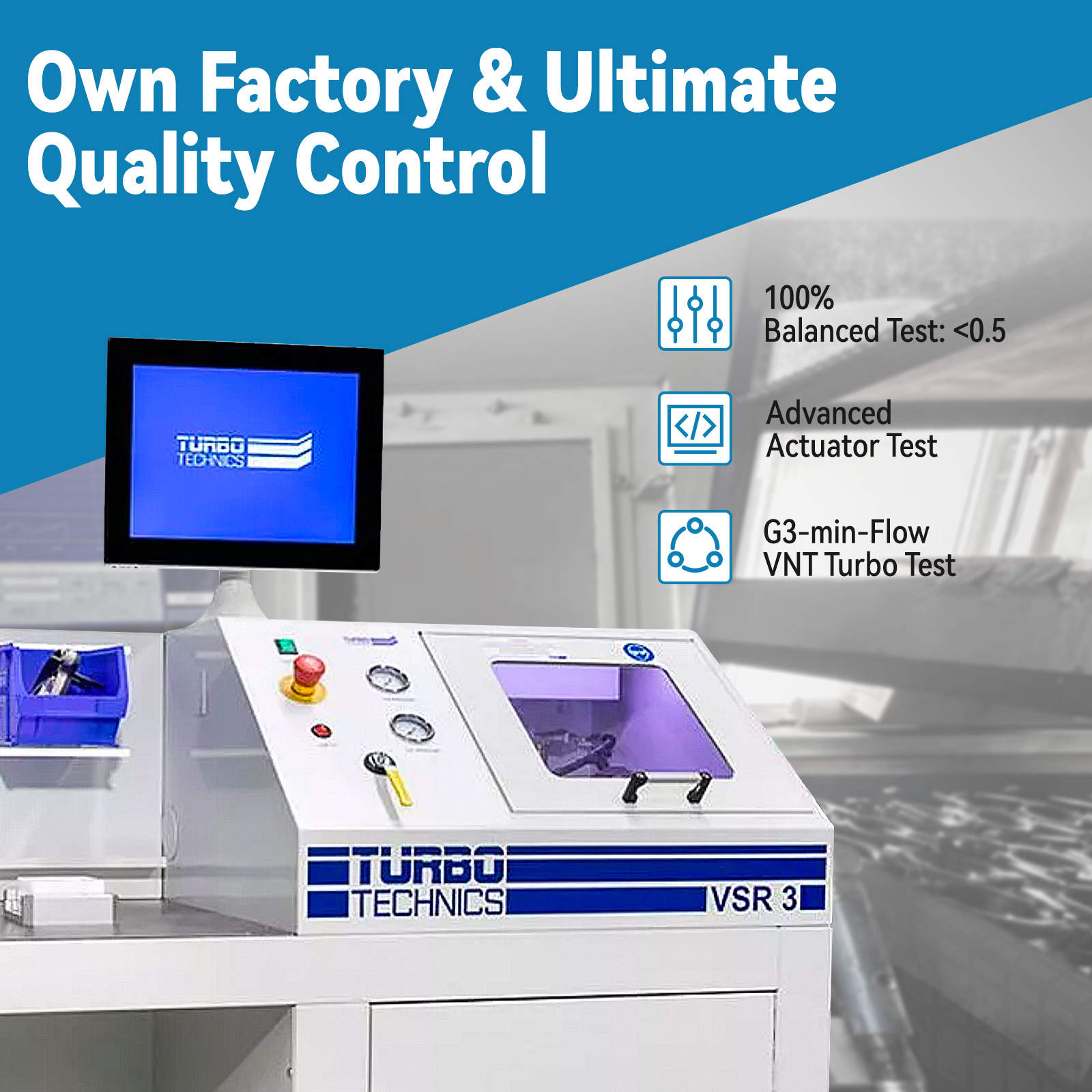

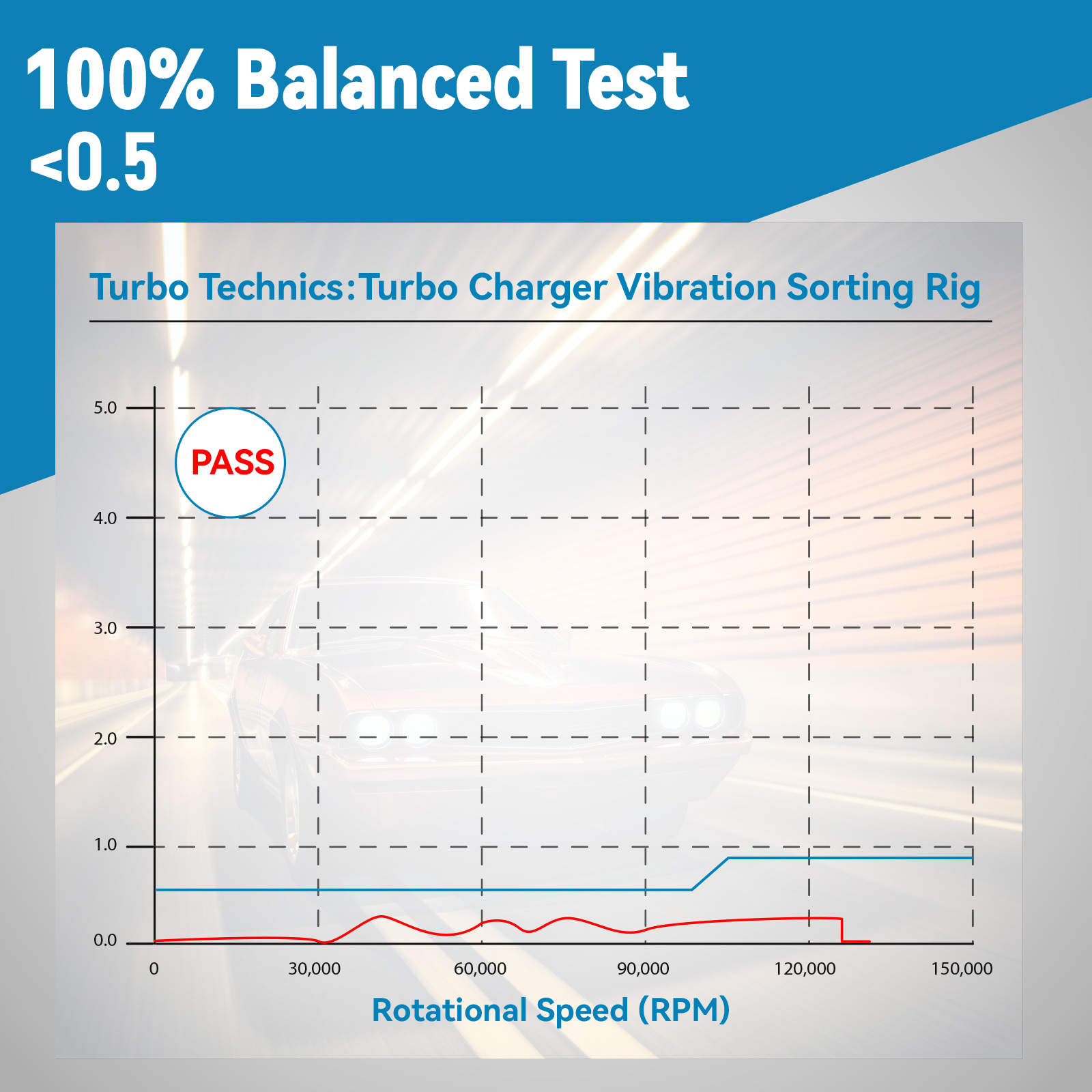

6. 100% balancing Test by TURBOTECHNICS VSR3
7. TÜV ISO 9001 CERTIFIED.

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasline , and the gasline air tightness.
