Application:

Compatible for Audi A5 (8T/8F) 2007-2017

(8T3/8F7/8TA)

Specification:

Height adjustable: Front & Rear (depends on your vehicle)

Front Lowering: 30-75mm

Rear Lowering: 20-65mm

Spring rate Front: 5 kg/mm (280 lbs/in)

Spring rate Rear: 3 kg/mm (168 lbs/in)

Spring length Front: 255 mm

Spring length Rear: 255 mm

Front spring inner diameter: 62-70 mm

Rear spring inner diameter: 62-53 mm

Spring Preload advised: 7-10 mm

Top mounts: Front and rear OE top mounts required

Damping : Not adjustable

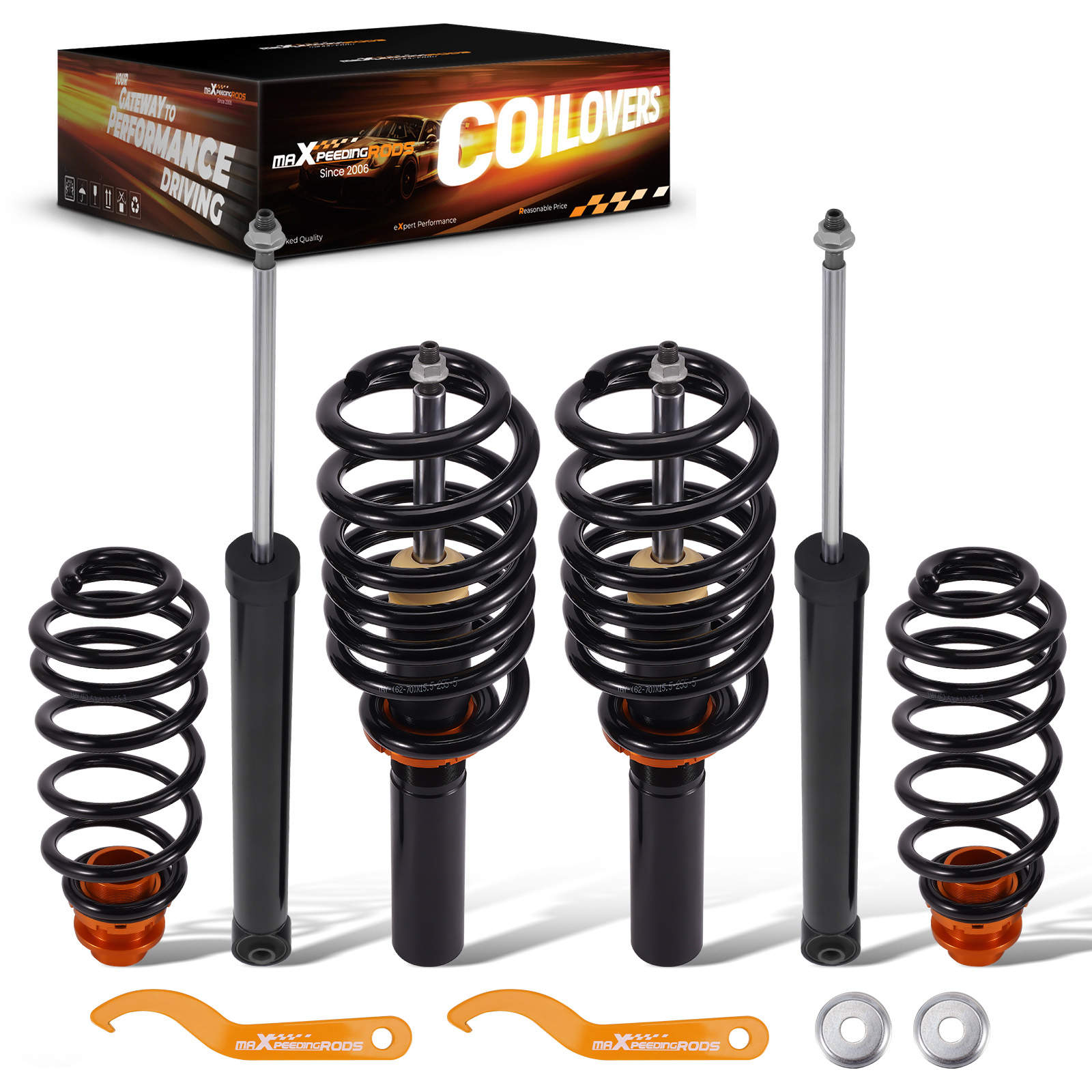

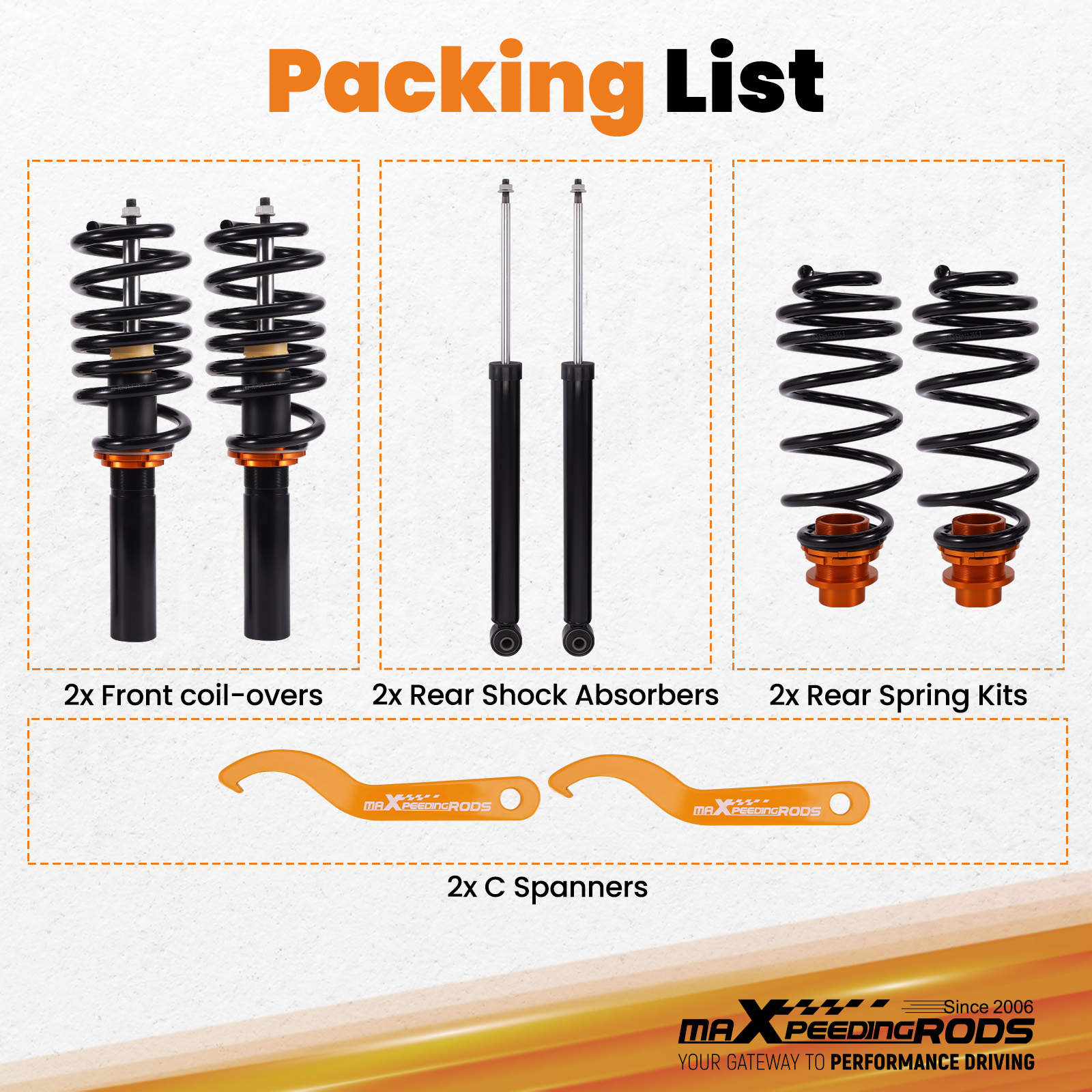

Package included:

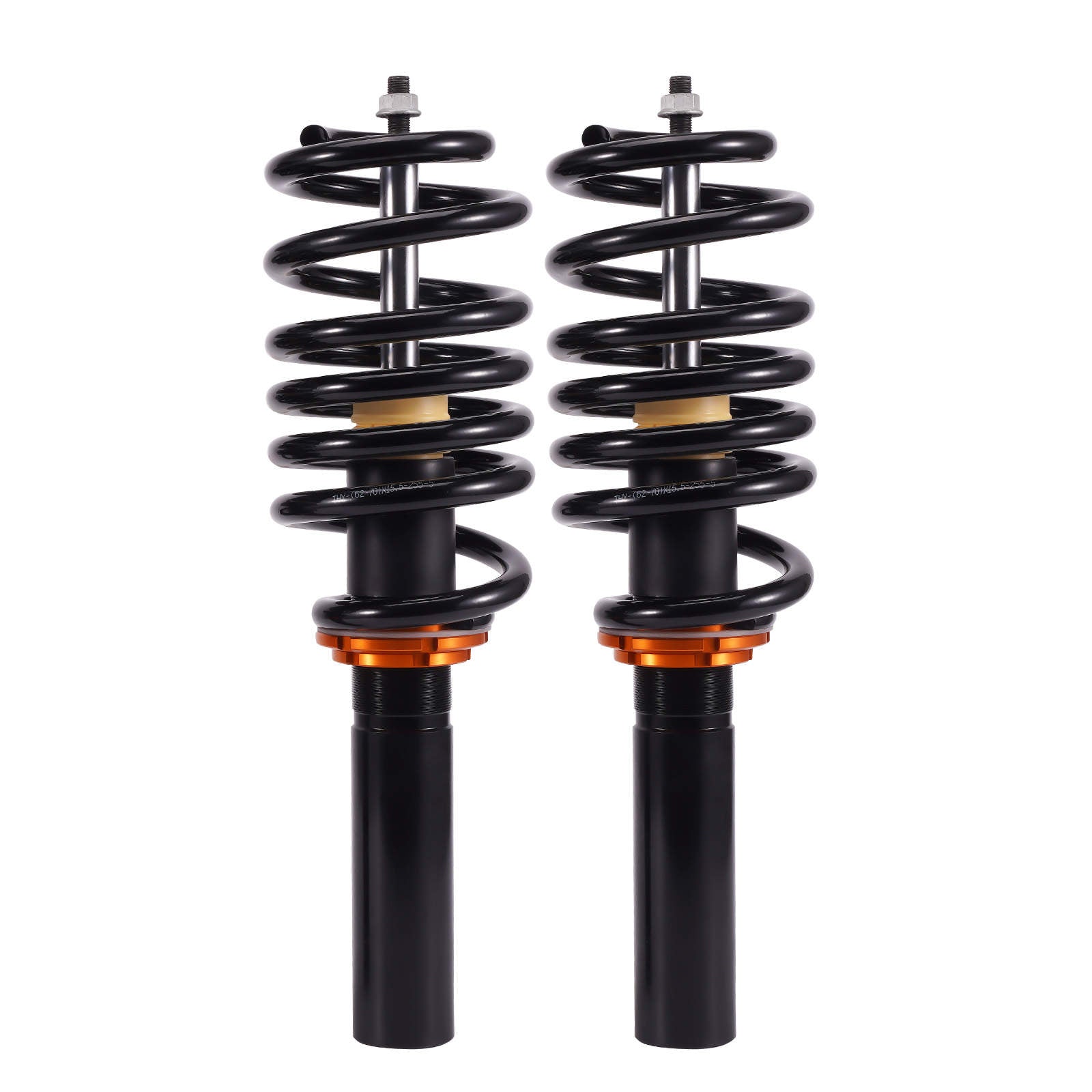

2x Front coil-overs

2x Rear coil-overs

2x C spanners

Feature:

1. Lower height adjustable (depends on vehicle models)

2. Dust boot, solid rubber bump stops

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets

4. Simple install, Easy to adjust.

5. Use the vehicle's original upper mounts (not included in our product kit).

Note:

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
