Introduction

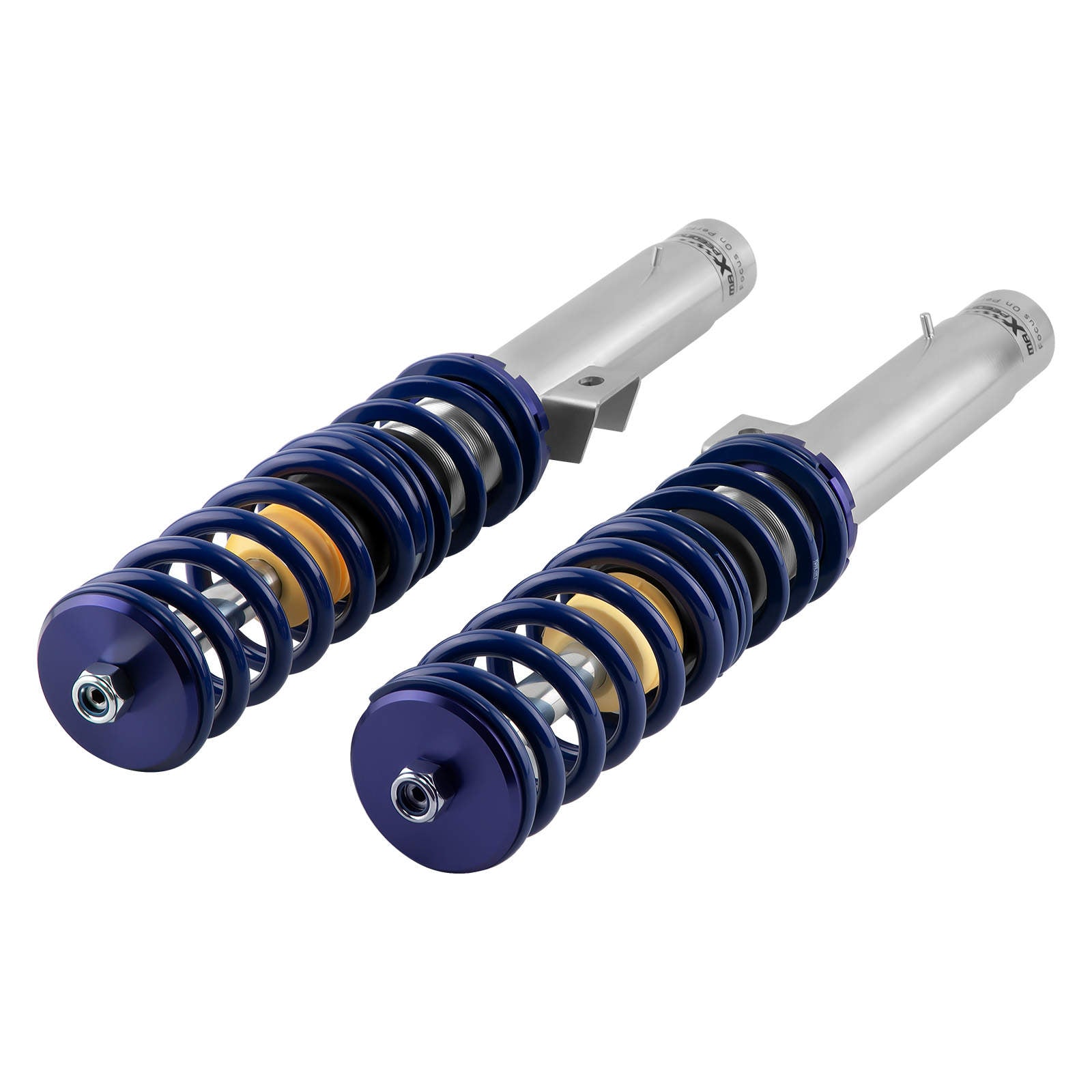

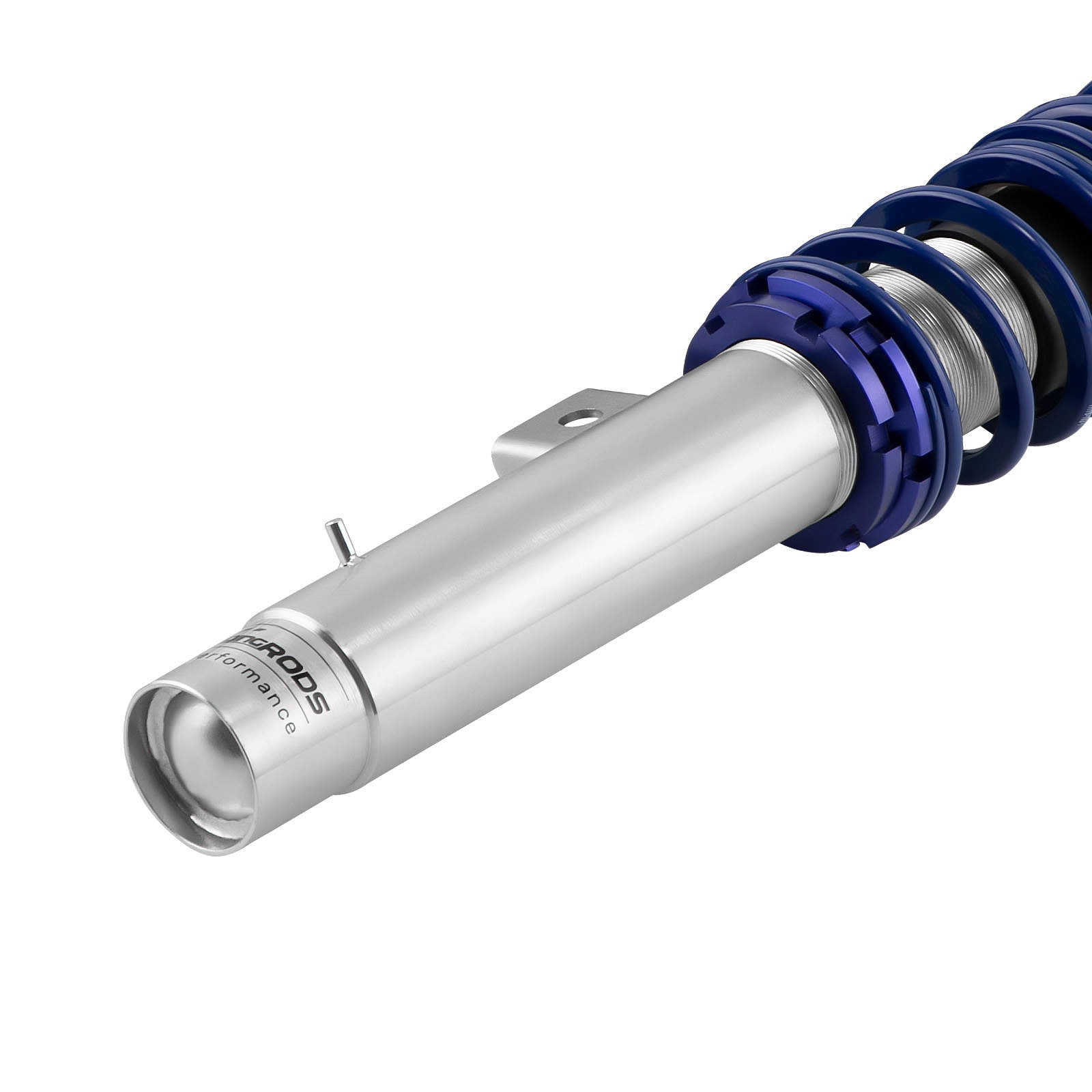

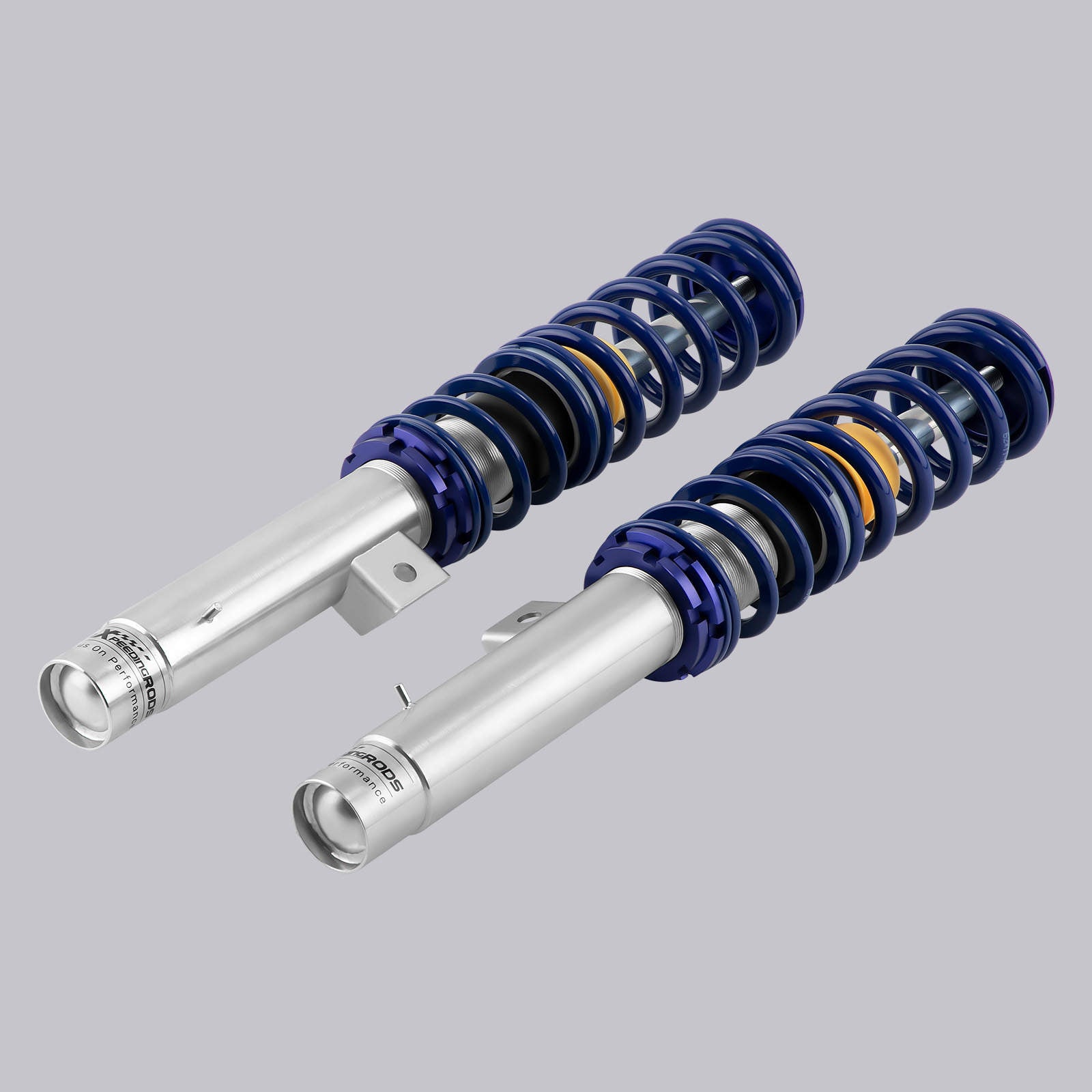

Maxpeedingrods-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Application

Compatible for BMW 3 (E46) 4-door sedan 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)
Compatible for BMW 3 2-door Convertible (E46) 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)
Compatible for BMW 3 2-door Coupe (E46) 320ci; 325ci; 330ci;320cd; 330cd; (02/1999-12/2006)
Compatible for BMW 3 Touring 5-door wagon/estate (E46) 316i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)

NOTE:
1. Shoter swaybar end link is required.
2. Not for Xi/xd 4 wheel drive, not for M3 model either.

Specification

Top mounts: Front and rear OE top mounts required
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
Spring rate Front: 8 kg/mm (478 in/lbs)
Spring rate Rear: 10 kg/mm (560 in/lbs)
Spring length Front: 170 mm
Spring length Rear: 190 mm
Spring Preload advised: 7-10 mm
Color: Silver body with blue spring

Package included

Package included：
1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment

Dimension

Size: 70*50*20 cm
Weight: 22100 g

Feature

1. 0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).
